LP8066120 10ah 3.7V

Items Parameter
Battery model LP8066120
Design scheme With PCM
Nominal voltage 3.7V
Minimum capacity  10000mAh(1C discharge)

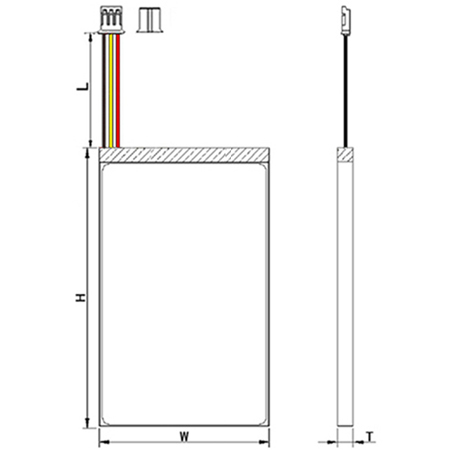

Connectors & Terminals
3P-2.0 24WAG

T: 8.0mm

W: 66.0mm

H: 120mm (includes PCM and wires)

L: 85mm (wire lenght)

Charging voltage 4.2V
Discharging cut-off voltage  2.5V
Standard charging  0.2C
Max charging 1.0C
Standard discharging 0.2C/4.2V
Max discharging  1.0C/4.2V
Weight  Appr: 200g
Shipment voltage  ≥3.9V
Operating temperature  Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )  -10°C~25°C (12 months, ≥85%)
-10°C ~45°C (6 months, ≥85% )
-10°C~60°C (1 month,  ≥90% )
20±5°C is the recommended storage temperature
