553443 950mah 3.7V

Items Parameter
Battery model LP553443
Design scheme With PCM
Nominal voltage 3.7V
Minimum capacity  950mAh(1C discharge)
Connectors & Terminals
2P-1.25 28WAG

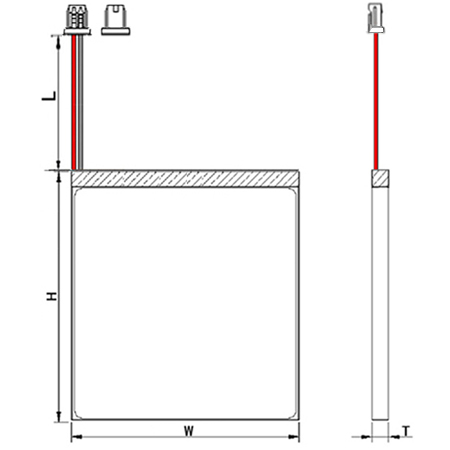

Size

T: 5.5mm

W: 34.0mm

H: 43mm (includes PCM and wires)

L: 50mm(wire lenght)

Charging voltage 4.2V
Discharging cut-off voltage  3.0V
Standard charging  0.2C
Max charging 1.0C
Standard discharging 0.2C/4.2V
Max discharging  1.0C/4.2V
Weight  Appr: 19g
Shipment voltage  ≥3.9V
Operating temperature  Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )  -10°C~25°C (12 months, ≥85%)
-10°C ~45°C (6 months, ≥85% )
-10°C~60°C (1 month,  ≥90% )
20±5°C is the recommended storage temperature
