LP5560110 15Ah 12V



Items Parameter
Battery model LP5560110 15Ah 12V
Design scheme With PCM
Nominal voltage 12V
Minimum capacity  15Ah (1C discharge)
Connectors & Terminals
Silicone Wire, 20 AWG

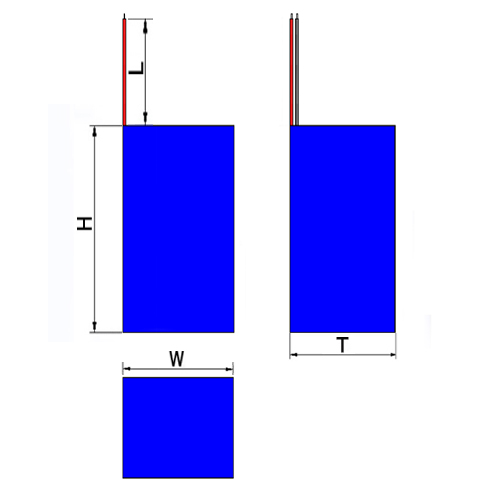

Size
T: 55.0mm

W: 60.0mm

H: 110.0mm (includes PCM and wires)

L: 150.0mm (Wire length)
Charging voltage 12.6V
Discharging cut-off voltage  7.5V
Standard charging  0.2C /12.6V
Max charging 1.0C /12.6V
Standard discharging 0.2C/7.5V
Max discharging  1.0C/7.5V
Weight  Appr: 800g
Shipment voltage  ≥3.9V
Operating temperature  Charging:   0°C ~ 45°C
Discharging: -20°C ~ 60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )  -10°C~25°C (12 months, ≥85%)
-10°C ~45°C (6 months, ≥85% )
-10°C~60°C (1 month,  ≥90% )
20±5°C is the recommended storage temperature
