LP103050 680mah 7.4V



Items Parameter
Battery model LP103050
Design scheme With PCM
Nominal voltage 7.4V
Minimum capacity  680mAh (1C discharge)
Connectors & Terminals
2P-2.54

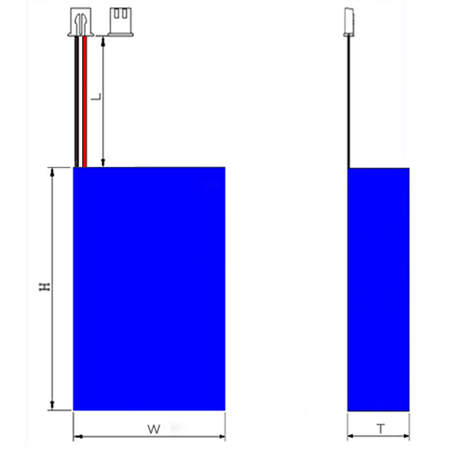

Size
T: 10.0mm
W: 30.0mm
H: 50.0mm (includes PCM and wires)
L: 50.0mm (Wire length)
Charging voltage 8.4V
Discharging cut-off voltage  6.0V
Standard charging  0.2C
Max charging 1.0C
Standard discharging 0.2C/6.0V
Max discharging  1.0C/6.0V
Weight  Appr: 28.5g
Shipment voltage  ≥7.8V
Operating temperature  Charging: 0°C ~ 45°C
Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )  -10°C~25°C (12 months, ≥85%)
-10°C ~45°C (6 months, ≥85% )
-10°C~60°C (1 month,  ≥90% )
20±5°C is the recommended storage temperature
