LP2260105 20000mah 3.7V



Items Parameter
Battery model LP2260105
Design scheme With PCM
Nominal voltage 3.7V
Minimum capacity  20000mAh (1C discharge)
Connectors & Terminals
2P-2.54

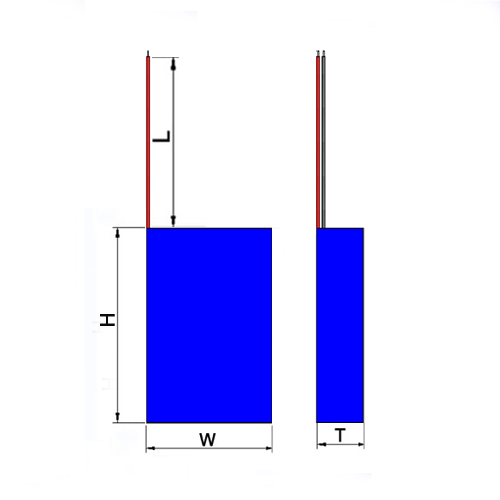

Size
T: 22.0mm
W: 60.0mm
H: 105.0mm (includes PCM and wires)
L: 200.0mm (Wire length)
Charging voltage 4.2V
Discharging cut-off voltage  2.5V
Standard charging  0.2C /4.2V
Max charging 1.0C /4.2V
Standard discharging 0.2C/2.5V
Max discharging  1.0C/2.5V
Weight  Appr: 405g
Shipment voltage  ≥3.9V
Operating temperature  Charging: 0°C ~ 45°C
Discharging: -20°C ~ 60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )  -10°C~25°C (12 months, ≥85%)
-10°C ~45°C (6 months, ≥85% )
-10°C~60°C (1 month,  ≥90% )
20±5°C is the recommended storage temperature
