LP123450 2s lipo battery 7.4v 1200mah lithium polymer battery pack

Your position: Home Customization Lithium ion battery pack

LP123450 1200mah 7.4V

Items	Parameter
Battery model	LP123450
Design scheme	With PCM
Nominal voltage	7.4V
Minimum capacity	1200mAh (1C discharge)
Connectors & Terminals	22 AWG CABLE

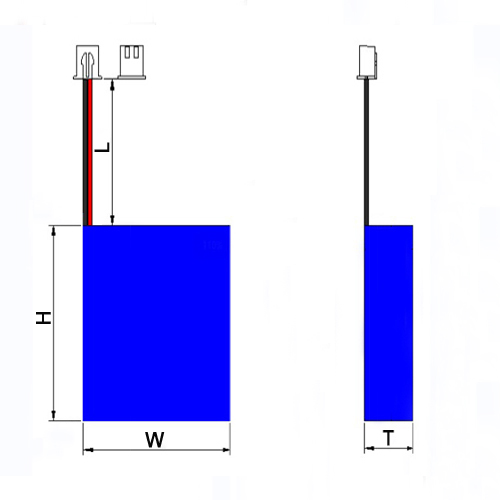

Size	T: 12.0mm W: 34.0mm H: 50.0mm (includes PCM and wires) L: 250.0mm (Wire length)
Charging voltage	8.4V
Discharging cut-off voltage	6V
Standard charging	0.2C
Max charging	1.0C
Standard discharging	0.2C/3.0V
Max discharging	1.0C/3.0V
Weight	Appr: 60.0g
Shipment voltage	≥3.9V
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~ 60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	(12 months, ≥85%)
	-10°C ~45°C	(6 months, ≥85% )
	-10°C~60°C	(1 month, ≥90% )
	20±5°C is the recommended storage temperature
