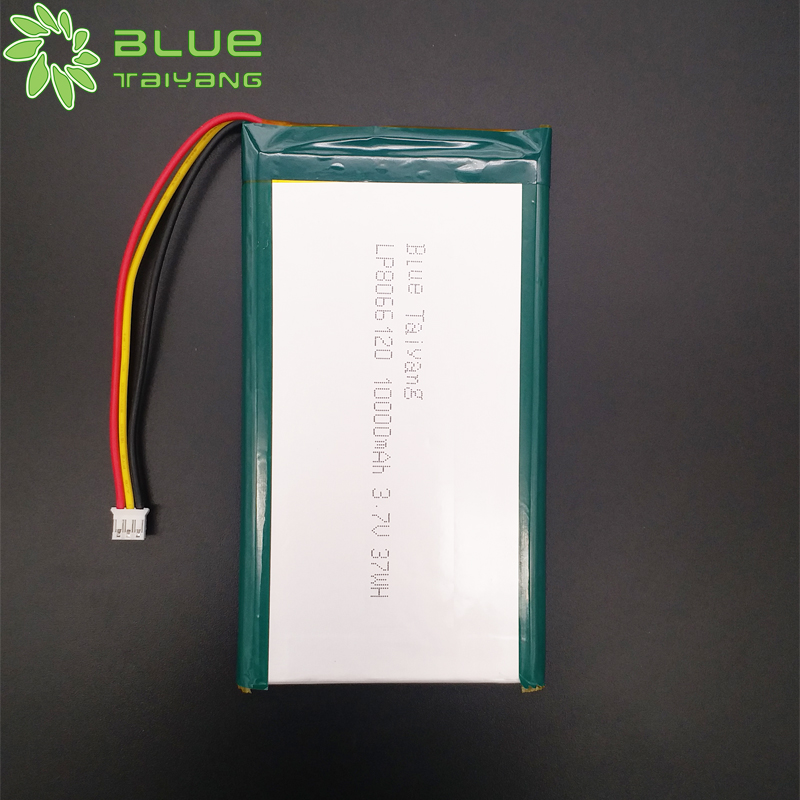

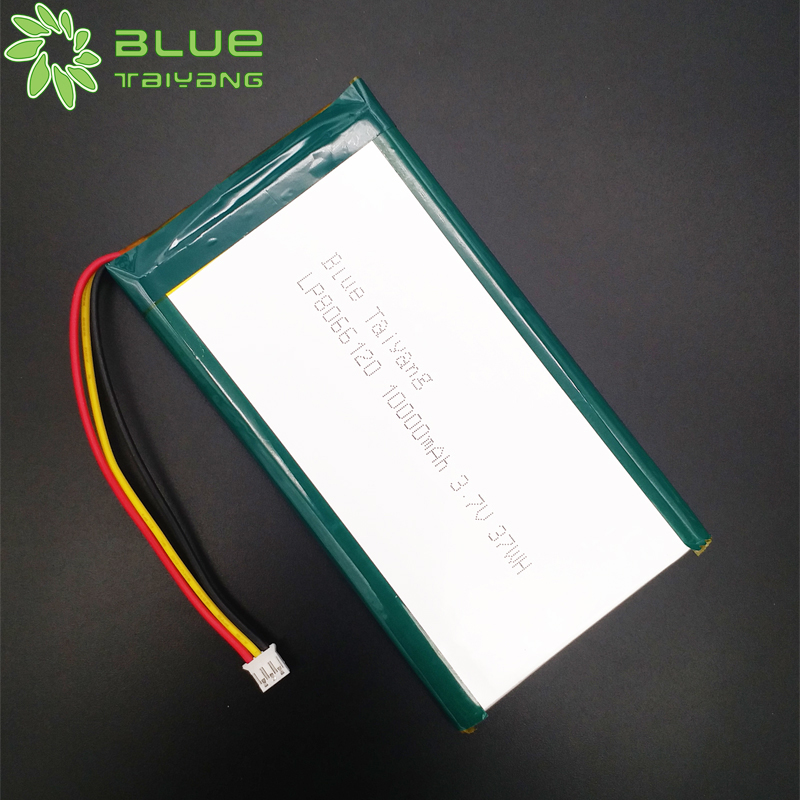

Rechargeable battery 8066120 3.7v 10000mah battery cell
Product model: 8066120 10000mah 3.7V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V
Nominal capacity: 10000mah
Discharge temperature: ordinary
Cycle life: >300 times
Discharge rate: 0.2C
Battery application: Electronics
Battery structure: Square flexible battery
Cell type: Polymer lithium battery cell
Application Area
Consumer Electronics Medical equipment Instrument and apparatus Smart Home Digital products Toy
cherry@bluetaiyang.com Online Message
Online Customization
*
*
*
*
*
*
    Items Parameter
    Battery model 8066120
    Design scheme With PCM
    Nominal voltage 3.7V
    Minimum capacity  10000mAh (0.2C discharge)

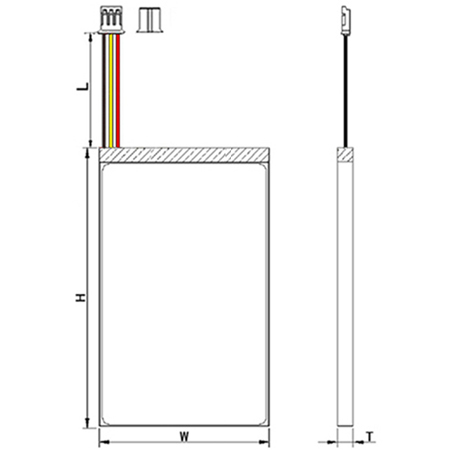

    Size
    T: 8.0mm
    W: 66.0mm
    H: 120.0mm  (Includes PCM and wires)
    L: 80.0mm (Wire length)
    Charging voltage 4.3V
    Discharging cut-off voltage  2.5V
    Standard charging  2.5A
    Max charging 3A
    Standard discharging 2.5A
    Max discharging   3A
    Weight   Appr:200.0g
    Shipment voltage  3.9V
    Battery pack impedance  ≤30
    Operating temperature  Charging:    0°C ~ 45°C
    Discharging: -20°C ~60°C
    Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )  -10°C~25°C (12 months, ≥85% )
    -10°C~45°C (6 months,  ≥85% )
    -10°C~60°C (1 month,   ≥90% )
    20±5°C is the recommended storage temperature

    Model Normal Voltage Normal Capacity (mAh) length (mm) width (mm) thickness (mm) Download
    104696 3.7/3.8V 6000 96 46 10
    105372 3.7/3.8V 6000 72 53 10
    105459 3.7/3.8V 5200 59 54 10
    105596 3.7/3.8V 8100 9 55 10
    105878 3.7/3.8V 6000 78 58 10
    106072 3.7/3.8V 6000 72 60 10
    106084 3.7/3.8V 6000 84 60 10
    106596 3.7/3.8V 10000 96 65 10
    106856 3.7/3.8V 5800 56 68 10
    116791 3.7/3.8V 10000 91 67 11.0
    124295 3.7/3.8V 6500 95 42 12
    124590 3.7/3.8V 6800 90 45 12
    125590 3.7/3.8V 10000 90 55 12
    125871 3.7/3.8V 7800 71 87 12.0
    126090 3.7/3.8V 8000 90 60 12.0
    126280 3.7/3.8V 10000 80 62 12.0
    134075 3.7/3.8V 6000 75 40 13
    136074 3.7/3.8V 10000 74 60 13
    446699 3.7/3.8V 5100 99 66 4.4
    499271 3.7/3.8V 5300 71 92 4.9
    507592 3.7/3.8V 5650 92 75 5.0
    516583 3.7/3.8V 5020 83 65 5.1
    526793 3.7/3.8V 5300 93 67 5.2
    528985 3.7/3.8V 5200 85 89 5.2
    587293 3.7/3.8V 5700 93 72 5.8
    587795 3.7/3.8V 5800 95 77 5.8
    606382 3.7/3.8V 5250 82 63 6.0
    606781 3.7/3.8V 5050 81 67 6.0
    607093 3.7/3.8V 6000 93 70 6.0
    625597 3.7/3.8V 5650 97 55 6.2
    625885 3.7/3.8V 5100 85 58 6.2
    626488 3.7/3.8V 6050 88 64 6.2
    626681 3.7/3.8V 5600 81 66 6.2
    636492 3.7/3.8V 6000 92 64 6.3
    657590 3.7/3.8V 6500 90 75 6.5
    676476 3.7/3.8V 5100 76 64 6.7
    677475 3.7/3.8V 5900 75 75 6.7
    679798 3.7/3.8V 9000 98 97 6.7
    687273 3.7/3.8V 6020 73 72 6.8
    706077 3.7/3.8V 5500 77 60 7.0
    706079 3.7/3.8V 5500 79 60 7.0
    707285 3.7/3.8V 6000 85 72 7.0
    708163 3.7/3.8V 5600 63 81 7.0
    725776 3.7/3.8V 5920 76 57 7.2
    726776 3.7/3.8V 5900 76 67 7.2
    816965 3.7/3.8V 5450 65 69 8.1
    836678 3.7/3.8V 5320 78 66 8.3
    865773 3.7/3.8V 6100 73 57 8.6
    895666 3.7/3.8V 5400 56 56 8.9
    905593 3.7/3.8V 6000 93 55 9.0
    906090 3.7/3.8V 6000 90 60 9.0
    906187 3.7/3.8V 8120 87 61 9.0
    906282 3.7/3.8V 6800 82 62 9.0
    926076 3.7/3.8V 7020 76 60 9.2
    935391 3.7/3.8V 6500 91 53 9.3
    954475 3.7/3.8V 5100 75 44 9.5
    954591 3.7/3.8V 5450 91 45 9.5
    955478 3.7/3.8V 5900 78 54 9.5
    956166 3.7/3.8V 5100 66 61 9.5
    966371 3.7/3.8V 5300 71 63 9.6
    966871 3.7/3.8V 6400 71 68 9.6
    975473 3.7/3.8V 5900 73 54 9.7
    987776 3.7/3.8V 7200 76 77 9.8
    1048118 3.7/3.8V 10000 118 48 10.0
    1055110 3.7/3.8V 10000 110 55 10.0
    1055125 3.7/3.8V 10000 125 55 10.0
    1060100 3.7/3.8V 10000 100 60 10.0
    1060110 3.7/3.8V 10000 110 60 10.0
    1065122 3.7/3.8V 10000 122 65 10.0
    1158102 3.7/3.8V 10000 102 58 11.0
    1260100 3.7/3.8V 10000 100 60 12.0
    1260113 3.7/3.8V 10000 113 60 12.0
    1336583 3.7/3.8V 10000 83 65 13.3
    1376074 3.7/3.8V 10000 74 60 13.3
    5385157 3.7/3.8V 10000 157 85 5.3
    5494130 3.7/3.8V 9000 130 94 5.4
    7565113 3.7/3.8V 8000 113 65 7.5
    7565121 3.7/3.8V 8000 121 65 7.5
    8080130 3.7/3.8V 12500 130 80 8.0
    8377110 3.7/3.8V 10000 110 77 8.3
    8870129 3.7/3.8V 10000 129 70 8.8
    9058100 3.7/3.8V 10000 100 58 9.0
    9060100 3.7/3.8V 8000 100 60 9.0
    3710195 3.7/3.8 5050 195 10 3.7
    8041118 3.7/3.8 5100 118 41 8
    32100100 3.7/3.8 5100 100 100 3.2
    4580122 3.7/3.8 5300 122 80 4.5
    6458102 3.7/3.8 5400 102 58 6.4
    31101151 3.7/3.8 5500 151 101 3.1
    2874118 3.7/3.8 6000 118 74 2.8
    3072178 3.7/3.8 6000 178 72 3
    3080176 3.7/3.8 6000 176 80 3
    3092140 3.7/3.8 6000 140 92 3
    4273125 3.7/3.8 6000 125 73 4.2
    5283114 3.7/3.8 6000 114 83 5.2
    5474105 3.7/3.8 6000 105 74 5.4
    5860127 3.7/3.8 6000 127 60 5.8
    6253110 3.7/3.8 6000 110 53 6.2
    6760121 3.7/3.8 6000 121 60 6.7
    8551100 3.7/3.8 6000 100 51 8.5
    30100140 3.7/3.8 6000 140 100 3
    30101122 3.7/3.8 6000 122 101 3
    30105114 3.7/3.8 6000 114 105 3
    30105115 3.7/3.8 6000 115 105 3
    30105125 3.7/3.8 6000 125 105 3
    31110131 3.7/3.8 6000 131 110 3.1
    32105113 3.7/3.8 6000 113 105 3.2
    5655130 3.7/3.8 6100 130 55 5.6
    1260105 3.7/3.8 6200 105 60 12
    5060120 3.7/3.8 6200 120 60 5
    4868130 3.7/3.8 6290 130 68 4.8
    5287104 3.7/3.8 6400 104 87 5.2
    4672135 3.7/3.8 6500 135 72 4.6
    5084110 3.7/3.8 6500 110 84 5
    6775120 3.7/3.8 6500 120 75 6.7
    3074108 3.7/3.8 7000 108 74 3
    3175185 3.7/3.8 7000 185 75 3.1
    5510095 3.7/3.8 7000 95 10 5.5
    6462110 3.7/3.8 7000 110 62 6.4
    30100147 3.7/3.8 7000 147 100 3
    36100116 3.7/3.8 7000 116 100 3.6
    3594133 3.7/3.8 7350 133 94 3.5
    4867160 3.7/3.8 7500 160 67 4.8
    9058102 3.7/3.8 7500 102 58 9
    5067113 3.7/3.8 7600 113 67 5
    9642115 3.7/3.8 7600 115 42 9.6
    4990112 3.7/3.8 7800 112 90 4.9
    5063170 3.7/3.8 7800 170 63 5
    5970115 3.7/3.8 7800 115 70 5.9
    3582133 3.7/3.8 8000 133 82 3.5
    4880125 3.7/3.8 8000 125 80 4.8
    4885120 3.7/3.8 8000 120 85 4.8
    5294100 3.7/3.8 8000 100 94 5.2
    7865110 3.7/3.8 8000 110 65 7.8
    8059130 3.7/3.8 8000 130 59 8
    6075126 3.7/3.8 9000 126 75 6
    7084110 3.7/3.8 9000 110 84 7
    5482132 3.7/3.8 9150 132 82 5.4
    8051142 3.7/3.8 9500 142 51 8
    1160100 3.7/3.8 10000 100 60 11
    1165110 3.7/3.8 10000 110 65 11
    1165115 3.7/3.8 10000 115 65 11
    1260110 3.7/3.8 10000 110 60 12
    6565125 3.7/3.8 10000 125 65 6.5
    7872118 3.7/3.8 10000 118 72 7.8
    9065115 3.7/3.8 10000 115 65 9
    9373129 3.7/3.8 10000 129 73 9.3
    9572130 3.7/3.8 10000 130 72 9.5
    9858102 3.7/3.8 10000 102 58 9.8
    9960115 3.7/3.8 10000 115 60 9.9
    6165150 3.7/3.8 10400 150 65 6.1
    1080123 3.7/3.8 13400 123 80 10
