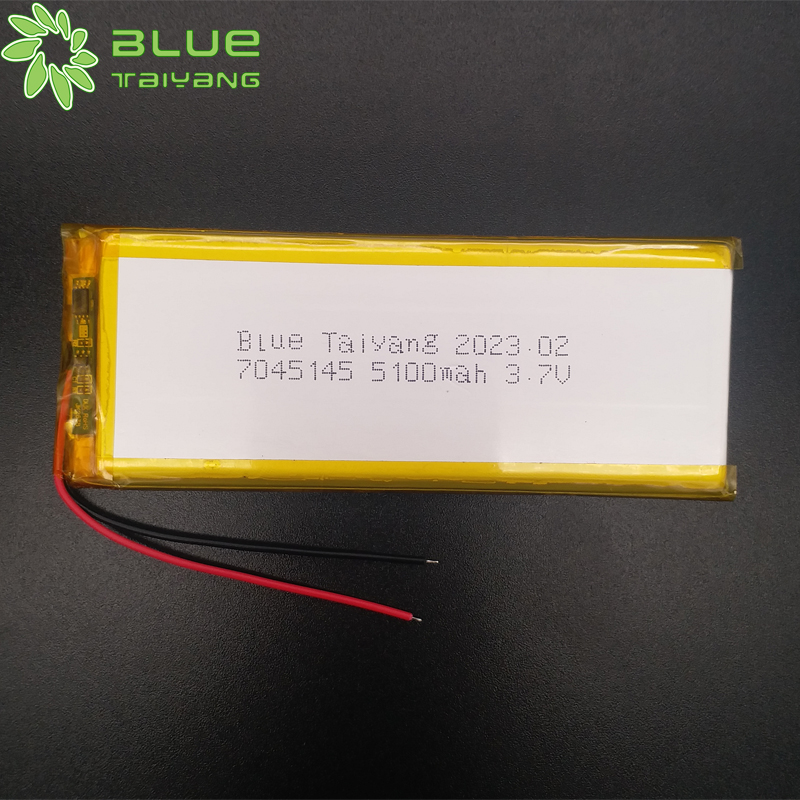

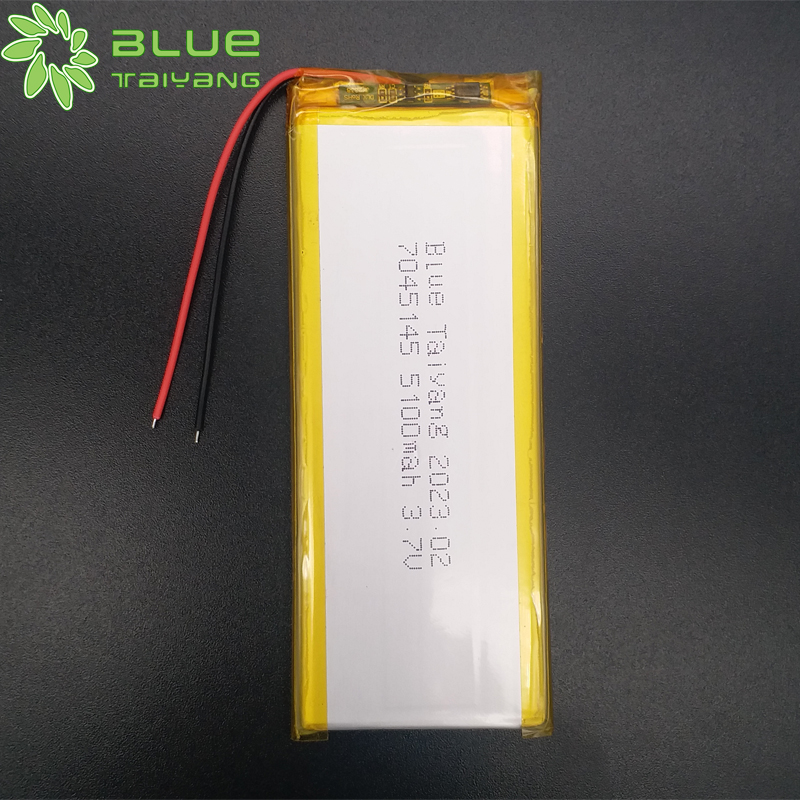

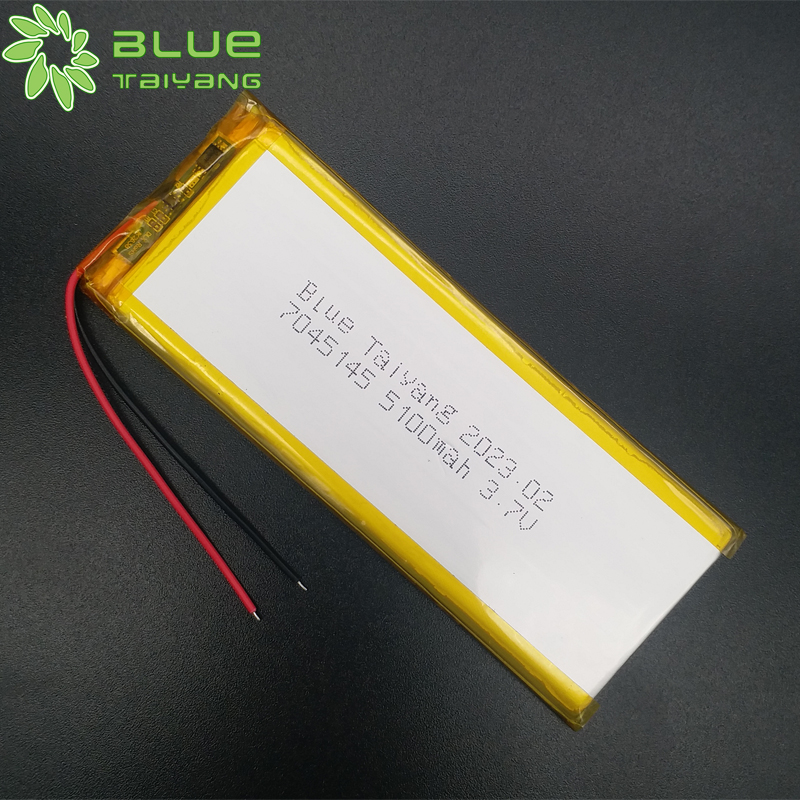

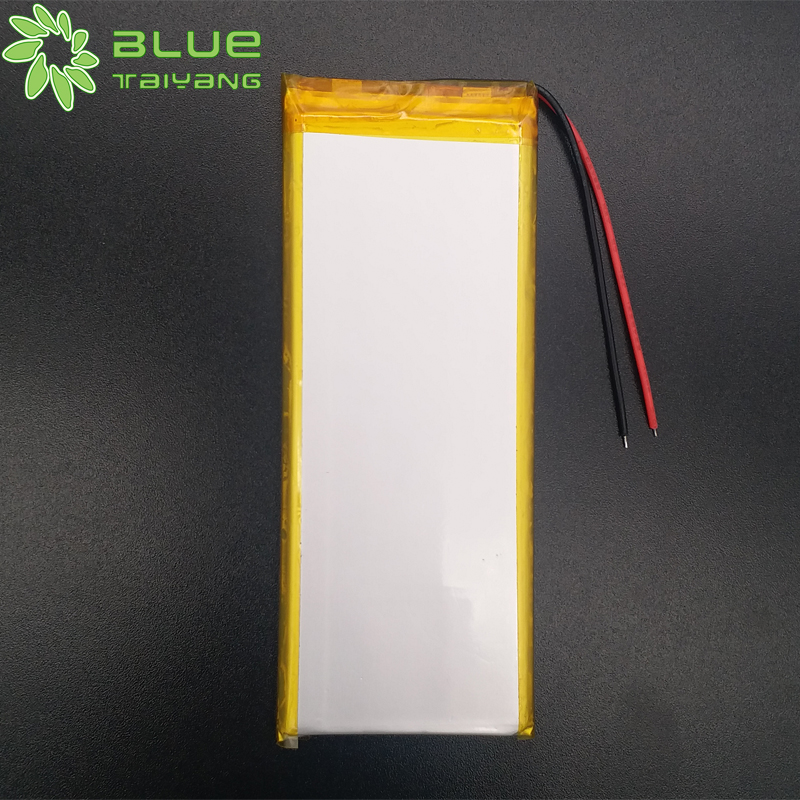

7045145 rechargeable battery Lipo Battery 3.7V 5100mah Lithium Polymer Battery

Items	Parameter
Battery model	7045145
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	5100mAh (0.5C discharge)
Size	T: 7.0mm W: 45.0mm H: 145.0mm (Includes PCM and wires) L: 60.0mm (Wire length)
Charging voltage	4.3V
Discharging cut-off voltage	2.5V
Standard charging	2.5A
Max charging	3A
Standard discharging	2.5A
Max discharging	3A
Weight	Appr：102.0g
Shipment voltage	≥3.9V
Battery pack impedance	≤55mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	(12 months, ≥85% )
	-10°C~45°C	(6 months, ≥85% )
	-10°C~60°C	(1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Download
104696	3.7/3.8V	6000	96.0	46.0	10.0
105372	3.7/3.8V	6000	72.0	53.0	10.0
105459	3.7/3.8V	5200	59.0	54.0	10.0
105596	3.7/3.8V	8100	96.0	55.0	10.0
105878	3.7/3.8V	6000	78.0	58.0	10.0
106072	3.7/3.8V	6000	72.0	60.0	10.0
106084	3.7/3.8V	6000	84.0	60.0	10.0
106596	3.7/3.8V	10000	96.0	65.0	10.0
106856	3.7/3.8V	5800	56.0	68.0	10.0
115580	3.7/3.8V	7500	80.0	55.0	11.0
115883	3.7/3.8V	7600	83.0	58.0	11.0
115878	3.7/3.8V	7000	78.0	58.0	11.0
116791	3.7/3.8V	10000	91.0	67.0	11.0
124295	3.7/3.8V	6500	95.0	42.0	12.0
124590	3.7/3.8V	6800	90.0	45.0	12.0
125590	3.7/3.8V	10000	90.0	55.0	12.0
125665	3.7/3.8V	6400	65.0	56.0	12.0
125871	3.7/3.8V	7800	71.0	87.0	12.0
126074	3.7/3.8V	10000	74.0	60.0	12.0
126078	3.7/3.8V	9000	78.0	60.0	12.0
126090	3.7/3.8V	8000	90.0	60.0	12.0
126280	3.7/3.8V	10000	80.0	62.0	12.0
134075	3.7/3.8V	6000	75.0	40.0	13.0
136074	3.7/3.8V	10000	74.0	60.0	13.0
446699	3.7/3.8V	5100	99.0	66.0	4.4
499271	3.7/3.8V	5300	71.0	92.0	4.9
507592	3.7/3.8V	5650	92.0	75.0	5.0
516583	3.7/3.8V	5020	83.0	65.0	5.1
526793	3.7/3.8V	5300	93.0	67.0	5.2
528985	3.7/3.8V	5200	85.0	89.0	5.2
568872	3.7/3.8V	6395	72.0	88.0	5.6
587293	3.7/3.8V	5700	93.0	72.0	5.8
587795	3.7/3.8V	5800	95.0	77.0	5.8
606382	3.7/3.8V	5250	82.0	63.0	6.0
606781	3.7/3.8V	5050	81.0	67.0	6.0
607093	3.7/3.8V	6000	93.0	70.0	6.0
625597	3.7/3.8V	5650	97.0	55.0	6.2
625885	3.7/3.8V	5100	85.0	58.0	6.2
626488	3.7/3.8V	6050	88.0	64.0	6.2
626681	3.7/3.8V	5600	81.0	66.0	6.2
636492	3.7/3.8V	6000	92.0	64.0	6.3
657590	3.7/3.8V	6500	90.0	75.0	6.5
676476	3.7/3.8V	5100	76.0	64.0	6.7
677475	3.7/3.8V	5900	75.0	75.0	6.7
679798	3.7/3.8V	9000	98.0	97.0	6.7
687273	3.7/3.8V	6020	73.0	72.0	6.8
706077	3.7/3.8V	5500	77.0	60.0	7.0
706079	3.7/3.8V	5500	79.0	60.0	7.0
707285	3.7/3.8V	6000	85.0	72.0	7.0
708163	3.7/3.8V	5600	63.0	81.0	7.0
725776	3.7/3.8V	5920	76.0	57.0	7.2
726776	3.7/3.8V	5900	76.0	67.0	7.2
735589	3.7/3.8V	6735	89.0	55.0	6.3
766482	3.7/3.8V	5600	82.0	64.0	7.6
779058	3.7/3.8V	6500	58.0	90.0	7.7
786288	3.7/3.8V	6700	88.0	62.0	7.8
816965	3.7/3.8V	5450	65.0	69.0	8.1
836678	3.7/3.8V	5320	78.0	66.0	8.3
865773	3.7/3.8V	6100	73.0	57.0	8.6
866281	3.7/3.8V	7100	81.0	62.0	8.6
887292	3.7/3.8V	8000	92.0	72.0	8.8
895666	3.7/3.8V	5400	56.0	56.0	8.9
905593	3.7/3.8V	6000	93.0	55.0	9.0
906090	3.7/3.8V	6000	90.0	60.0	9.0
906187	3.7/3.8V	8120	87.0	61.0	9.0
906282	3.7/3.8V	6800	82.0	62.0	9.0
926076	3.7/3.8V	7020	76.0	60.0	9.2
935391	3.7/3.8V	6500	91.0	53.0	9.3
954475	3.7/3.8V	5100	75.0	44.0	9.5
954591	3.7/3.8V	5450	91.0	45.0	9.5
955478	3.7/3.8V	5900	78.0	54.0	9.5
956166	3.7/3.8V	5100	66.0	61.0	9.5
966371	3.7/3.8V	5300	71.0	63.0	9.6
966871	3.7/3.8V	6400	71.0	68.0	9.6
975473	3.7/3.8V	5900	73.0	54.0	9.7
987776	3.7/3.8V	7200	76.0	77.0	9.8
1048118	3.7/3.8V	10000	118.0	48.0	10.0
1055110	3.7/3.8V	10000	110.0	55.0	10.0
1055125	3.7/3.8V	10000	125.0	55.0	10.0
1060100	3.7/3.8V	10000	100.0	60.0	10.0
1060110	3.7/3.8V	10000	110.0	60.0	10.0
1060115	3.7/3.8V	10000	115.0	60.0	10.0
1080123	3.7/3.8V	13400	123.0	80.0	10.0
1158102	3.7/3.8V	10000	102.0	58.0	11.0
1160100	3.7/3.8V	10000	100.0	60.0	11.0
1160110	3.7/3.8V	10000	110.0	60.0	11.0
1163115	3.7/3.8V	10000	115.0	63.0	11.0
1165110	3.7/3.8V	10000	110.0	65.0	11.0
1165115	3.7/3.8V	10000	115.0	65.0	11.0
125878	3.7/3.8V	7500	78.0	58.0	12.0
126082	3.7/3.8V	8000	82.0	60.0	12.0
1260105	3.7/3.8V	6200	105.0	60.0	12.0
1260110	3.7/3.8V	12500	110.0	60.0	12.0
1260110	3.7/3.8V	10000	110.0	60.0	12.0
1260113	3.7/3.8V	10000	113.0	60.0	12.0
1336583	3.7/3.8V	10000	83.0	65.0	13.3
2874118	3.7/3.8V	6000	118.0	74.0	2.8
3072178	3.7/3.8V	6000	178.0	72.0	3.0
3080176	3.7/3.8V	6000	176.0	80.0	3.0
3091141	3.7/3.8V	6000	141.0	91.0	3.0
3092140	3.7/3.8V	6000	140.0	92.0	3.0
3094162	3.7/3.8V	7000	162.0	94.0	3.0
3094162	3.7/3.8V	7500	162.0	94.0	3.0
3095158	3.7/3.8V	7200	158.0	95.0	3.0
30100137	3.7/3.8V	6000	137.0	100.0	3.0
3074108	3.7/3.8V	7000	108.0	74.0	3.0
30100140	3.7/3.8V	6000	140.0	100.0	3.0
30100147	3.7/3.8V	7000	147.0	100.0	3.0
30101122	3.7/3.8V	6000	122.0	101.0	3.0
30105114	3.7/3.8V	6000	114.0	105.0	3.0
30105115	3.7/3.8V	6000	115.0	105.0	3.0
3175185	3.7/3.8V	7000	185.0	75.0	3.1
31101118	3.7/3.8V	6000	118.0	101.0	3.1
31101151	3.7/3.8V	5500	151.0	101.0	3.1
31110131	3.7/3.8V	6000	131.0	110.0	3.1
32100100	3.7/3.8V	5100	100.0	100.0	3.2
32101118	3.7/3.8V	6000	118.0	101.0	3.2
32105135	3.7/3.8V	7000	135.0	105.0	3.2
3582133	3.7/3.8V	8000	133.0	82.0	3.5
3594133	3.7/3.8V	7350	133.0	94.0	3.5
36100116	3.7/3.8V	7000	116.0	100.0	3.6
3710195	3.7/3.8V	5050	95.0	101.0	3.7
4273125	3.7/3.8V	6000	125.0	73.0	4.2
4580122	3.7/3.8V	5300	122.0	80.0	4.5
4672135	3.7/3.8V	6500	135.0	72.0	4.6
4867160	3.7/3.8V	7500	160.0	67.0	4.8
4868130	3.7/3.8V	6290	130.0	68.0	4.8
4880125	3.7/3.8V	8000	125.0	80.0	4.8
4885120	3.7/3.8V	8000	120.0	85.0	4.8
4990112	3.7/3.8V	7800	112.0	90.0	4.9
5060120	3.7/3.8V	6200	120.0	60.0	5.0
5063170	3.7/3.8V	7800	170.0	63.0	5.0
5067113	3.7/3.8V	7600	113.0	67.0	5.0
5084110	3.7/3.8V	6500	110.0	84.0	5.0
5283114	3.7/3.8V	6000	114.0	83.0	5.2
5385157	3.7/3.8V	10000	157.0	85.0	5.3
5287104	3.7/3.8V	6400	104.0	87.0	5.2
5294100	3.7/3.8V	8000	100.0	94.0	5.2
5482132	3.7/3.8V	9150	132.0	82.0	5.4
5494130	3.7/3.8V	9000	130.0	94.0	5.4
5474105	3.7/3.8V	6000	105.0	74.0	5.4
5510095	3.7/3.8V	7000	95.0	100.0	5.5
5655130	3.7/3.8V	6100	130.0	55.0	5.6
5860127	3.7/3.8V	6000	127.0	60.0	5.8
5970115	3.7/3.8V	7800	115.0	70.0	5.9
6075126	3.7/3.8V	9000	126.0	75.0	6.0
6165150	3.7/3.8V	10400	150.0	65.0	6.1
6253110	3.7/3.8V	6000	110.0	53.0	6.2
6458102	3.7/3.8V	5400	102.0	58.0	6.4
6462110	3.7/3.8V	7000	110.0	62.0	6.4
6565125	3.7/3.8V	10000	125.0	65.0	6.5
6760121	3.7/3.8V	6000	121.0	60.0	6.7
6775120	3.7/3.8V	6500	120.0	75.0	6.7
7084110	3.7/3.8V	9000	110.0	84.0	7.0
7565113	3.7/3.8V	8000	113.0	65.0	7.5
7565121	3.7/3.8V	8000	121.0	65.0	7.5
7865110	3.7/3.8V	8000	110.0	65.0	7.8
7872118	3.7/3.8V	10000	118.0	72.0	7.8
8051142	3.7/3.8V	9500	142.0	51.0	8.0
8059130	3.7/3.8V	8000	130.0	59.0	8.0
8080130	3.7/3.8V	12500	130.0	80.0	8.0
8377110	3.7/3.8V	10000	110.0	77.0	8.3
8551100	3.7/3.8V	6000	100.0	51.0	8.5
8870129	3.7/3.8V	10000	129.0	70.0	8.8
9058100	3.7/3.8V	10000	100.0	58.0	9.0
9058102	3.7/3.8V	7500	102.0	58.0	9.0
9060100	3.7/3.8V	8000	100.0	60.0	9.0
9065115	3.7/3.8V	10000	115.0	65.0	9.0
9373129	3.7/3.8V	10000	129.0	73.0	9.3
9572130	3.7/3.8V	10000	130.0	72.0	9.5
9642115	3.7/3.8V	7600	115.0	42.0	9.6
9858102	3.7/3.8V	10000	102.0	58.0	9.8
9960115	3.7/3.8V	10000	115.0	60.0	9.9

Click here to find a list of other models

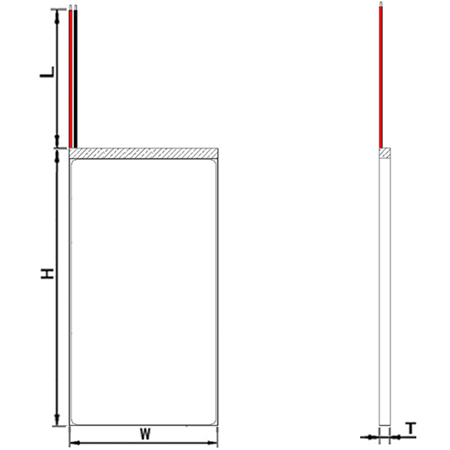

T	7.0mm
W	45.0mm
H	145.0mm
L	60.0mm
