513338 3.7v 800mah rechargeable lithium battery 3.7v 800mah 2.96wh

Your position: Home Customization lithium polymer battery

513338 800mah 3.7V

Items	Parameter
Battery model	LP513338
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	800mAh(1C discharge)
Connectors & Terminals	26WAG

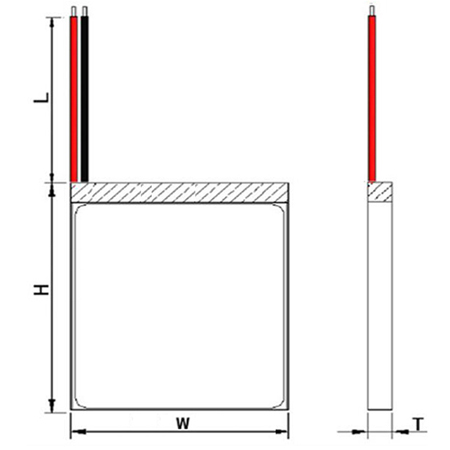

Size	T: 5.1mm W: 33.0mm H: 38mm (includes PCM and wires) L: 60mm(wire lenght)
Charging voltage	4.2V
Discharging cut-off voltage	3.0V
Standard charging	0.2C
Max charging	1.0C
Standard discharging	0.2C/4.2V
Max discharging	1.0C/4.2V
Weight	Appr: 16g
Shipment voltage	≥3.9V
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~ 60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	(12 months, ≥85%)
	-10°C ~45°C	(6 months, ≥85% )
	-10°C~60°C	(1 month, ≥90% )
	20±5°C is the recommended storage temperature
