LP60120120 ultra thin battery pack 2s lipo battery 7.4v 5000mah battery pack

Your position: Home Customization Lithium ion battery pack

LP60120120 5000mah 7.4V

Items	Parameter
Battery model	LP60120120
Design scheme	With PCM
Nominal voltage	7.4V
Minimum capacity	5000mAh (0.5C discharge)
Connectors & Terminals	XH-2.54mm 22AWG 7P

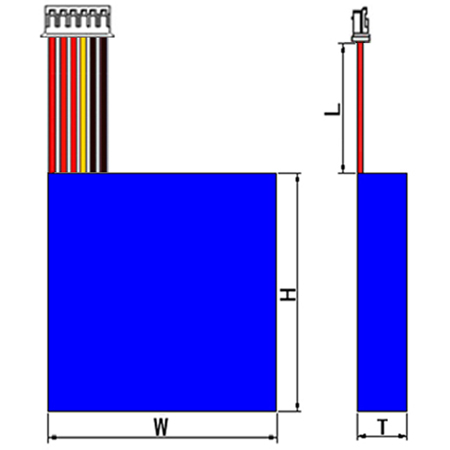

Size	T: 6.0mm W: 120.0mm H: 120.0mm (includes PCM and wires) L: 105.0mm (Wire length)
Charging voltage	8.4V
Discharging cut-off voltage	6.0V
Standard charging	0.2C
Max charging	1.0C
Standard discharging	0.2C/6.0V
Max discharging	1.0C/6.0V
Weight	Appr: 205g
Shipment voltage	≥7.8V
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	(12 months, ≥85%)
	-10°C ~45°C	(6 months, ≥85% )
	-10°C~60°C	(1 month, ≥90% )
	20±5°C is the recommended storage temperature
