Blue Taiyang 6A discharge power lithium rechargeable li-ion 3.7v 18650 3200mah battery

Your position: Home Customization Lithium-ion battery

18650 3200mah 3.7V

Items	Parameter
Battery model	18650 3200mah 3.7V
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	3200mAh(1C discharge)
Connectors & Terminals	1007 26WAG

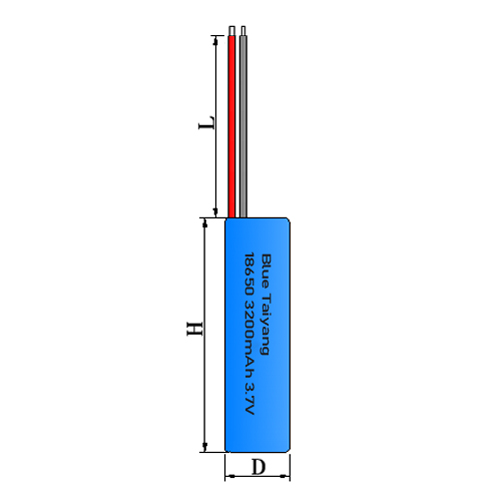

size	D: 19.6mm (With PCM) H: 65.1mm L: 55.0mm
Charging voltage	4.2V
Discharging cut-off voltage	2.0V
Standard charging	0.2C /4.2V
Max charging	1.0C /4.2V
Standard discharging	0.2C/4.2V
Max discharging	1.0C/4.2V
Weight	Appr: 48g
Shipment voltage	≥3.9V
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~ 60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	(12 months, ≥85%)
	-10°C ~45°C	(6 months, ≥85% )
	-10°C~60°C	(1 month, ≥90% )
	20±5°C is the recommended storage temperature
