Blue Taiyang 10220 3.7v 110mah li polymer battery li ion battery

Your position: Home Customization Lithium-ion battery

10220 3.7v 110mah

Items	Parameter
Battery model	10220 3.7v 110mah
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	110mAh (1C discharge)

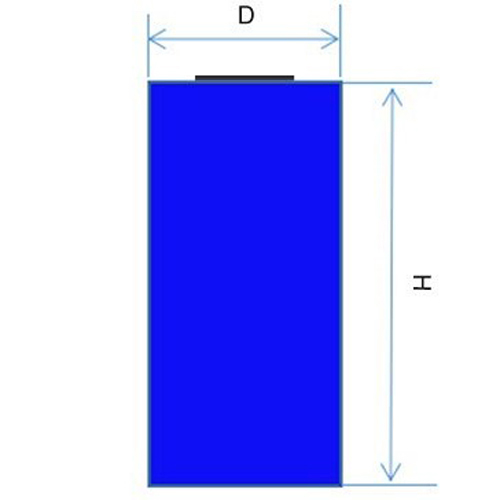

Size	D: 10.15mm D: 21.8mm
Charging voltage	4.2V
Discharging cut-off voltage	2.0V
Standard charging	0.2C /4.2V
Max charging	1.0C /4.2V
Standard discharging	0.2C/4.2V
Max discharging	1.0C/4.2V
Weight	Appr: 4.35g
Shipment voltage	≥3.9V
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~ 60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	(12 months, ≥85%)
	-10°C ~45°C	(6 months, ≥85% )
	-10°C~60°C	(1 month, ≥90% )
	20±5°C is the recommended storage temperature
