Items
|
Parameter
|
Battery model
|
LP192390
|
Design scheme
|
With PCM
|
Nominal voltage
|
3.7V
|
Minimum capacity
|
3000mAh(1C discharge)
|
Connectors & Terminals
|
26 AWG
|

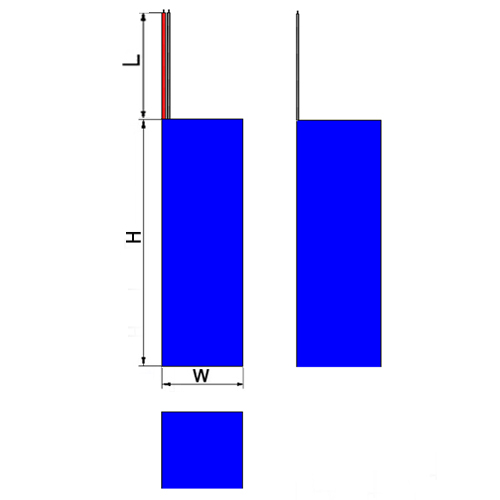

Size
|
T: 19.0mm
W: 23.0mm
H: 90.0mm (includes PCM and wires)
L: 50.0mm (Wire length)
|
Charging voltage
|
4.2V
|
Discharging cut-off voltage
|
2.5V
|
Standard charging
|
0.2C /4.2V
|
Max charging
|
1.0C /4.2V
|
Standard discharging
|
0.2C/2.5V
|
Max discharging
|
1.0C/2.5V
|
Weight
|
Appr: 62g
|
Shipment voltage
|
≥3.9V
|
Operating temperature
|
Charging: 0°C ~ 45°C
|
Discharging: -20°C ~ 60°C
|
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )
|
-10°C~25°C
|
(12 months, ≥85%)
|
-10°C ~45°C
|
(6 months, ≥85% )
|
-10°C~60°C
|
(1 month, ≥90% )
|
20±5°C is the recommended storage temperature
|
