CP052039 3.0V 35mAh smart card label battery Ultra thin low-temperature li-mno2

Items	Parameter
Battery model	cp052039 35mah 3V
Open circuit voltage	≥3.1V
Size	0.5mm20.0mm39.0mm
working temperature	-40°C~60°C
Sample	Provide Free Samples
OEM/ODM	Yes(Accepted)
Max. constant current	17.5mA
Max. pulse current	35mA
Storage condition	-40°C~60°C
Weight	Appr：0.6g
Self-discharge	2%

Model	Maximum size(mm)	Normal Capacity(mAh)	Normal Voltage	Max.Discharge current (mA)	Max.Pulse Capability (mA)
cp102425	10.2×25×26	1100mah li-mno2 battery	3.0V	400	600
cp254442	2.7×45×43	750mah li-mno2 battery	3.0V	300	500
cp401922	4.2×20×23	300mah li-mno2 battery	3.0V	100	150
cp451830	4.8×18.6×30	480mah li-mno2 battery	3.0V	150	200
cp452922	0.5×22.2×29	18mah li-mno2 battery	3.0V	10	20
cp502540	5.0×25×40.2	1200mah li-mno2 battery	3.0V	400	800
cp602026	6.2×21×27	600mah li-mno2 battery	3.0V	200	300
cp603956	6.2×40×57	3500mah li-mno2 battery	3.0V	1500	2000
cp604050	6.0×40×50	3000mah li-mno2 battery	3.0V	1500	2000
cp804834	7.7×48.6×34	150mah li-mno2 battery	3.0V	20	40
CP042345	0.45×23×45	30mah li-mno2 battery	3.0V	20	35
CP042922	0.45×29×22	15mah li-mno2 battery	3.0V	10	20
CP082922	0.8×29.5×22.5	60mah li-mno2 battery	3.0V	10	20
CP083645	0.8×36.5×45.5	250mah li-mno2 battery	3.0V	50	100
CP084248	0.8×45.5×48	320mah li-mno2 battery	3.0V	50	100
CP1003542	10.5×37.5×42.5	3800mah li-mno2 battery	3.0V	1000	2000
CP1003742	10.2×38×43	3900mah li-mno2 battery	3.0V	1200	2000
CP1007060	10.0×70.0×60.0	11500mah li-mno2 battery	3.0V	1500	3000
CP104248	1.0×45.5×48	400mah li-mno2 battery	3.0V	100	200
CP104848	1.0×48×48	400mah li-mno2 battery	3.0V	100	200
CP113130	1. 15×31×30	165mah li-mno2 battery	3.0V	10	50
CP114951	1. 1×49×51	380mah li-mno2 battery	3.0V	100	200
CP124653	1.25×47.5×53.5	550mah li-mno2 battery	3.0V	200	300
CP142828	1.5×29×29	100mah li-mno2 battery	3.0V	15	30
CP144920	1.4×49×20	150mah li-mno2 battery	3.0V	20	40
CP153030	1.6×31×31	120mah li-mno2 battery	3.0V	50	100
CP153350	1.55×33×50	400mah li-mno2 battery	3.0V	100	200
CP155050	1.6×51×51	650mah li-mno2 battery	3.0V	500	1000
CP163350	1.6×33×50	450mah li-mno2 battery	3.0V	100	200
CP164848	1.6×48×48	520mah li-mno2 battery	3.0V	100	200
CP2012120	2.0×12×125	400mah li-mno2 battery	3.0V	100	200
CP202850	2.2×28.5×50	380mah li-mno2 battery	3.0V	100	200
CP223045	2.4×31×46	480mah li-mno2 battery	3.0V	150	300
CP223638	22×36×38	500mah li-mno2 battery	3.0V	100	200
CP223830	2.3×38.5×30.5	380mah li-mno2 battery	3.0V	100	300
CP224035	2.4×41×36	580mah li-mno2 battery	3.0V	150	300
CP224147	2.3×45×49	800mah li-mno2 battery	3.0V	500	1200
CP224248	2.2×42×48	850mah li-mno2 battery	3.0V	200	400
CP243842	2.4×38×42	700mah li-mno2 battery	3.0V	100	200
CP252525	2.6×25×25	240mah li-mno2 battery	3.0V	50	100
CP263638	2.6×36×38	700mah li-mno2 battery	3.0V	100	200
CP264558	2.8×46×59	1250mah li-mno2 battery	3.0V	300	500
CP265045	2.8×51×46	1200mah li-mno2 battery	3.0V	300	500
CP281314	2.85×13.5×14.5	50mah li-mno2 battery	3.0V	10	20
CP283636	2.8×36×36	700mah li-mno2 battery	3.0V	150	300
CP301330	3.0×13.5×30.5	200mah li-mno2 battery	3.0V	40	80
CP301919	3.2×20.0×20.0	150mah li-mno2 battery	3.0V	30	50
CP302752	3.0×27×52	1030mah li-mno2 battery	3.0V	300	500
CP302775	3.2×27×75	1450mah li-mno2 battery	3.0V	350	700
CP303450	3.2×34×50	1300mah li-mno2 battery	3.0V	300	500
CP305050	3.2×51×51	1600mah li-mno2 battery	3.0V	600	1000
CP32100100	3.2×100.0×100.0	8000mah li-mno2 battery	3.0V	1500	3000
CP372440	3.7×24×40	700mah li-mno2 battery	3.0V	150	300
CP383147F	4.3×31.5×47.5	1350mah li-mno2 battery	3.0V	300	500
CP401720	4.2×18×21	220mah li-mno2 battery	3.0V	50	120
CP401830	4. 1×18.5×30	400mah li-mno2 battery	3.0V	100	200
CP403346	4. 1×33×46	1300mah li-mno2 battery	3.0V	300	500
CP403838	4. 1×38×38	1500mah li-mno2 battery	3.0V	600	900
CP405050	4.2×51×51	2400mah li-mno2 battery	3.0V	1000	1500
CP405555	4. 1×55.5×55.5	3000mah li-mno2 battery	3.0V	1000	3000
CP407060	4. 1×70.5×60.5	4300mah li-mno2 battery	3.0V	1000	3000
CP451728	4.5×18×29	380mah li-mno2 battery	3.0V	120	200
CP502025	5.0×20.5×25	420mah li-mno2 battery	3.0V	50	150
CP502425	5. 1×24×25	530mah li-mno2 battery	3.0V	200	300
CP502440	5.2×25×42	1200mah li-mno2 battery	3.0V	400	800
CP502525	5.2×26×26	600mah li-mno2 battery	3.0V	200	300
CP502530	5.2×25.5×30.5	750mah li-mno2 battery	3.0V	150	200
CP502537	5. 1×25×37	1200mah li-mno2 battery	3.0V	300	500
CP503333	5.0×33×33	1200mah li-mno2 battery	3.0V	400	800
CP503742	5.2×38×43	1900mah li-mno2 battery	3.0V	800	1200
CP504644	5.2×47×45	2500mah li-mno2 battery	3.0V	1200	2000
CP505050	5.2×51×51	3000mah li-mno2 battery	3.0V	1500	2000
CP552338	5.5×23×38	1000mah li-mno2 battery	3.0V	300	500
CP552623	5.5×27×23	630mah li-mno2 battery	3.0V	200	300
CP553145	5.5×31×45	1700mah li-mno2 battery	3.0V	400	800
CP602745	6.3×27.0×45.5	1350mah li-mno2 battery	3.0V	250	500
CP603147	6.0×31×47	1900mah li-mno2 battery	3.0V	400	800
CP603448	6.0×34×48	2400mah li-mno2 battery	3.0V	500	1000
CP603450	6.0×34×50	2400mah li-mno2 battery	3.0V	500	1000
CP604061	6. 1×40.0×61.0	3600mah li-mno2 battery	3.0V	300	600
CP605050	.6.0×50×50	3800mah li-mno2 battery	3.0V	1000	2000
CP6052164	6. 1×52.5×164.5	15000mah li-mno2 battery	3.0V	3000	5000
CP651848	6.5×17.5×48.5	1200mah li-mno2 battery	3.0V	400	800
CP701725	7.2×18×26	520mah li-mno2 battery	3.0V	150	300
CP702236	7.2×22×36	1300mah li-mno2 battery	3.0V	300	500
CP702440	7.0×24×40	1500mah li-mno2 battery	3.0V	500	900
CP7052164	7. 1×52.5×164.5	17000mah li-mno2 battery	3.0V	3000	5000
CP7335128	7. 1×35.0×131.0	9400mah li-mno2 battery	3.0V	1500	3000
CP754560	7.5×44.5×60	5000mah li-mno2 battery	3.0V	1500	3000
CP755060	7.7×50.0×60.5	5500mah li-mno2 battery	3.0V	1000	2000
CP783668	7.8×36.0×68.0	4600mah li-mno2 battery	3.0V	1000	2000
CP7839109	7.8×39×109	10000mah li-mno2 battery	3.0V	3000	5000
CP783970	7.8×39×70	5500mah li-mno2 battery	3.0V	3000	5000
CP802060	8.0×20×60	2100mah li-mno2 battery	3.0V	2000	3000
CP802732	8.2×27.5×32.5	1200mah li-mno2 battery	3.0V	150	300
CP8043115	8.0×43×115	12000mah li-mno2 battery	3.0V	3000	5000
CP804660	8.0×46.5×60.5	5500mah li-mno2 battery	3.0V	1500	3000
CP8258160	8.2×58.5×160.5	22000mah li-mno2 battery	3.0V	3000	5000
CP8544115	8.5×44.5×115.5	13500mah li-mno2 battery	3.0V	3000	5000
CP902525	9.3×25.0×25.0	1050mah li-mno2 battery	3.0V	300	450
CP903450	9.0×34×50	3500mah li-mno2 battery	3.0V	1000	2000
CP9058160	9.0×58×160.0	25000mah li-mno2 battery	3.0V	2000	3000
CP952434	9.7×25×35	1700mah li-mno2 battery	3.0V	500	800
CP102425	10.2×25×26	1100mah li-mno2 battery	3.0V	400	600
CP142828	1.5×28×29	150mah li-mno2 battery	3.0V	20	30
CP144920	14×49×20	150mah li-mno2 battery	3.0V	20	40
CP223045	2.4×30×46	480mah li-mno2 battery	3.0V	150	300
CP224035	2.5×41×36	550mah li-mno2 battery	3.0V	150	300
CP224147	2.4×46×49	800mah li-mno2 battery	3.0V	200	400
CP254442	2.7×45×43	750mah li-mno2 battery	3.0V	300	500
CP401922	4.2×20×23	300mah li-mno2 battery	3.0V	100	150
CP405050	4.2×51×51	2500mah li-mno2 battery	3.0V	1000	1500
CP451830	4.8×18.6×30	480mah li-mno2 battery	3.0V	150	200
CP452922	0.5×22.2×29	18mah li-mno2 battery	3.0V	10	20
CP502540	5.0×25×40.2	1200mah li-mno2 battery	3.0V	400	800
CP602026	6.2×21×27	600mah li-mno2 battery	3.0V	200	300
CP603956	6.2×40×57	3500mah li-mno2 battery	3.0V	1500	2000
CP604050	6.0×40×50	3000mah li-mno2 battery	3.0V	1500	2000
CP783970	7.8×39×70	5500mah li-mno2 battery	3.0V	2000	3000
CP804834	7.7×48.6×34	150mah li-mno2 battery	3.0V	20	40
CP903450	9.2×34×50	4000mah li-mno2 battery	3.0V	1500	2500

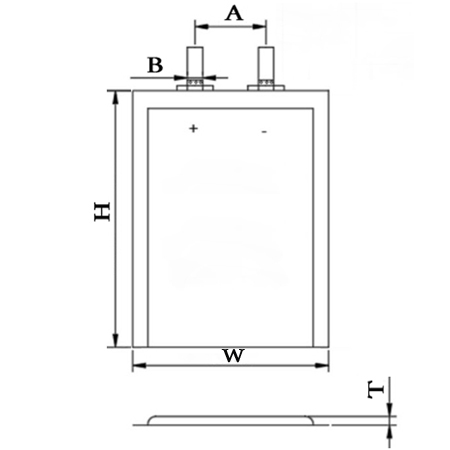

T	0.5mm
W	20.0mm
H	39.0mm
A	6.5mm
B	3.0mm
