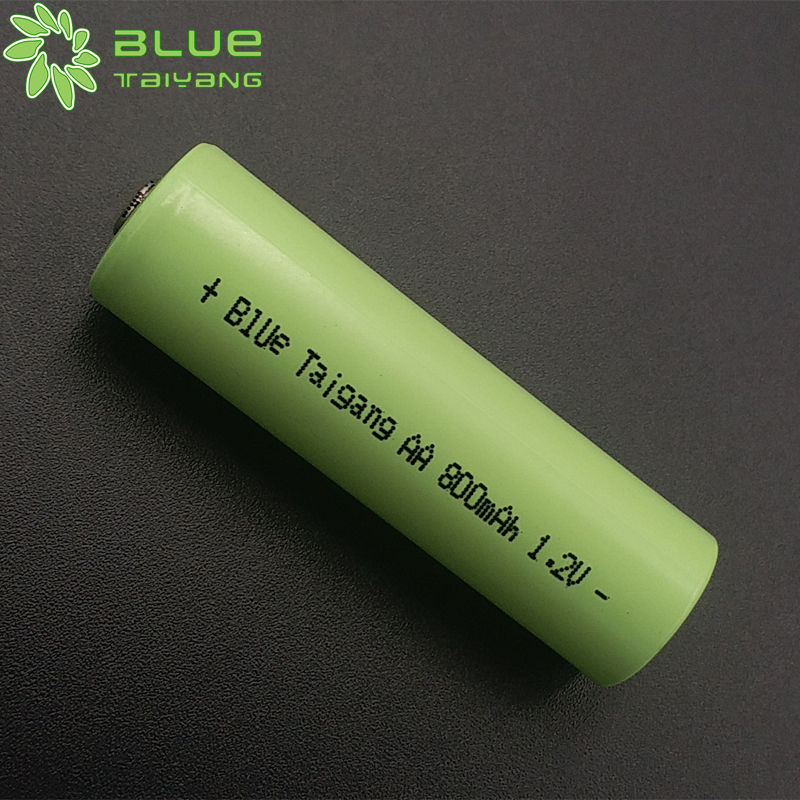

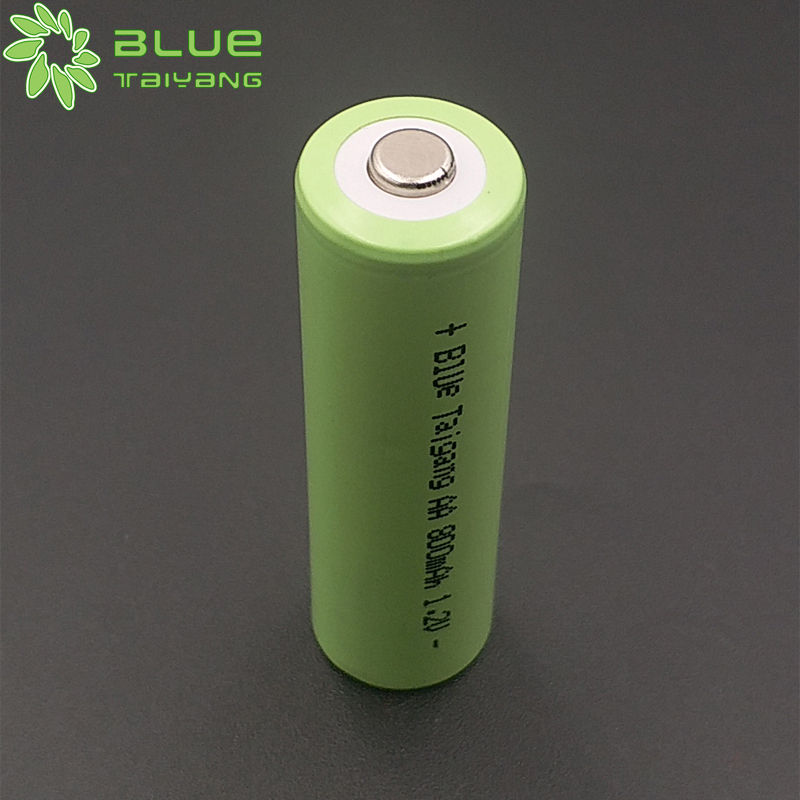

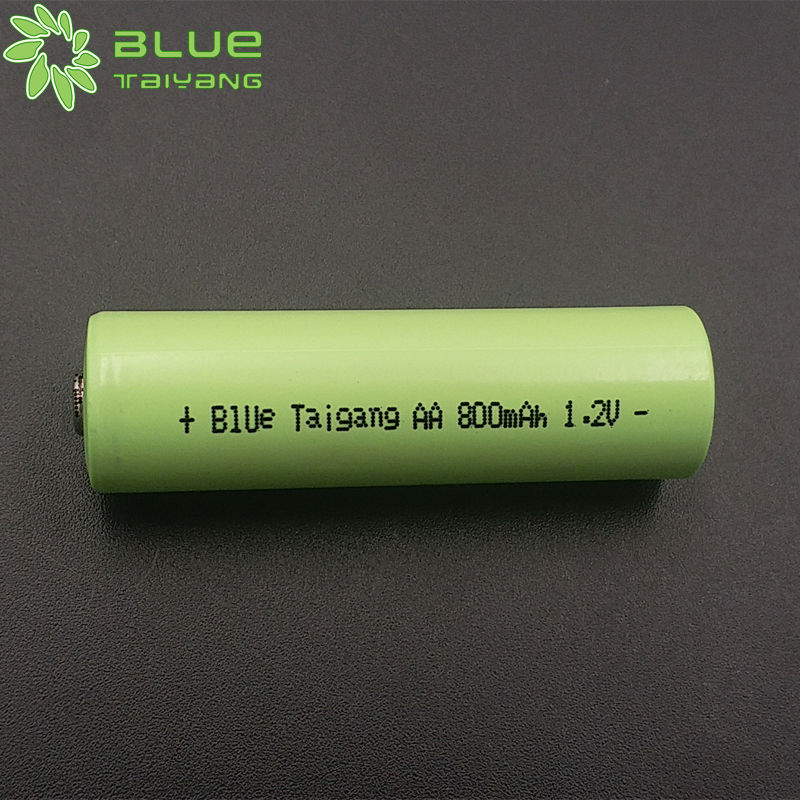

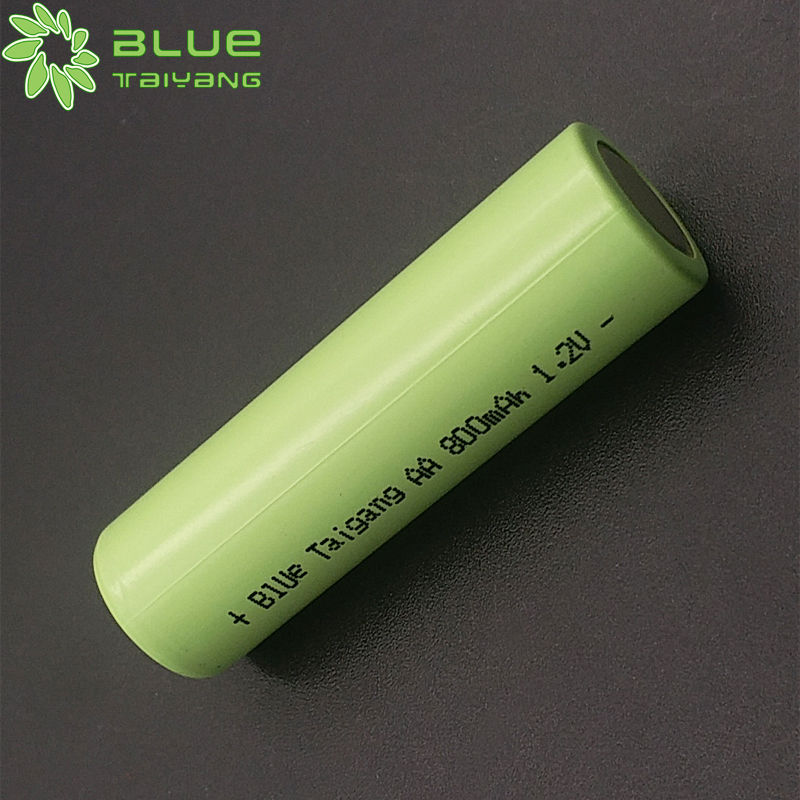

Rechargeable 800mAh 1.2v AA Ni-MH battery
  • Rechargeable 800mAh 1.2v AA Ni-MH battery
  • Rechargeable 800mAh 1.2v AA Ni-MH battery
  • Rechargeable 800mAh 1.2v AA Ni-MH battery
  • Rechargeable 800mAh 1.2v AA Ni-MH battery
Rechargeable 800mAh 1.2v AA Ni-MH battery
Product model: AA
Rechargeable or Non-rechargeable: Rechargeable

Nominal voltage: 1.2V

Maximum Discharge Current: 1A

Internal Resistance: ≤110mΩ

Discharge cut off voltage: 1.0V

Storage Temperature:  -20°C~60°C

battery type: 800mAh 1.2v AA Ni-MH battery

Application Area
Smart Home Medical equipment Consumer Electronics Instrument and apparatus Digital products Toy
cherry@bluetaiyang.com Online Message
Online Customization
*
*
*
*
*
*
    Items Parameter
    Type AA Ni-MH battery 800mAh 1.2v rechargeable batteries
    Size Φ14.5mm*50.5mm
    open circuit voltage
    ≥1.5V
    Sample
    Provide Free Samples
    OEM/ODM Accepatable
    storage life
    4-6 years
    Weight  Appr : 18g

    specifications
    model
    Rated voltage(V)
    Rated capacity(mah)
    diameter(mm)
    height(mm)
    AAA NI-CD AAA400 1.2 400 10.0±0.2 42.7±0.5
    AAA NI-MH AAA700J 1.2 700 10.0±0.2 44.0±0.5
    AAA NI-MH AAA850J 1.2 850 10.1±0.2 44.0±0.5
    5/4AAA NI-MH 5/4AAA750 1.2 750 10.0±0.2 50.5±0.5
    5/7AAAA NI-MH 5/7AAA1100 1.2 1100 10.0±0.2 66.5±0.5
    AA NI-CD AA800 1.2 800 13.9±0.2 48.0±0.5
    AA NI-CD AA1100 1.2 1100 13.9±0.2 48.0±0.5
    7/5AA NI-CD 7/5AA1300 1.2 1300 13.9±0.2 64.5±0.5
    AA NI-MH AA2000 1.2 2000 14.2±0.2 48.8±0.5
    AA NI-MH AA2300J 1.2 2300 14.5±0.2 50.5±0.5
    AA NI-MH AA2400J 1.2 2400 14.5±0.2 50.5±0.5
    2/3AA NI-MH 2/3AA700 1.2 700 13.9±0.2 28.1±0.5
    4/5AA NI-MH 4/5AA1200 1.2 1200 13.9±0.2 42.6±0.5
    7/5AA NI-MH 7/5AA1800 1.2 1800 13.9±0.2 64.5±0.5
    A NI-CD A1600 1.2 1600 16.6±0.2 49.0±0.5
    4/5A NI-CD 4/5A1200 1.2 1200 16.6±0.2 42.1±0.5
    7/5A NI-CD 7/5A2000 1.2 2000 16.6±0.2 66.2±0.5
    A NI-MH A2100 1.2 2100 16.6±0.2 49.0±0.5
    1/2A NI-MH 1/2A1000 1.2 1000 16.3±0.2 27.4±0.5
    4/5A NI-MH 4/5A2000 1.2 2000 16.6±0.2 42.1±0.5
    7/5A NI-MH 7/5A3500 1.2 3500 16.6±0.2 66.0±0.5
    7/5A NI-MH 7/5A3800 1.2 3800 16.6±0.2 66.0±0.5
    SC NI-CD SC1300 1.2 1300 22.0±0.2 42.0±0.5
    SC NI-CD SC1800 1.2 1800 22.0±0.2 42.0±0.5
    SC NI-CD SC2200 1.2 2200 22.0±0.2 42.0±0.5
    4/5SC NI-CD 4/5SC1200 1.2 1200 22.0±0.2 32.5±0.5
    5/4SC NI-CD 5/4SC2000 1.2 2000 22.0±0.2 49.0±0.5
    5/4SC NI-CD 5/4SC2300 1.2 2300 22.0±0.2 49.0±0.5
    SC NI-MH SC2800 1.2 2800 22.0±0.2 42.0±0.5
    SC NI-MH SC3300 1.2 3300 22.0±0.2 42.0±0.5
    4/5SC NI-MH 4/5SC2000 1.2 2000 22.0±0.2 32.5±0.5

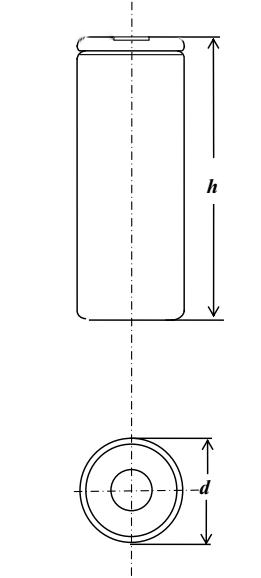

    D 14.5mm max.
    H 50.5mm max.

    Schematic diagram of various connectors
