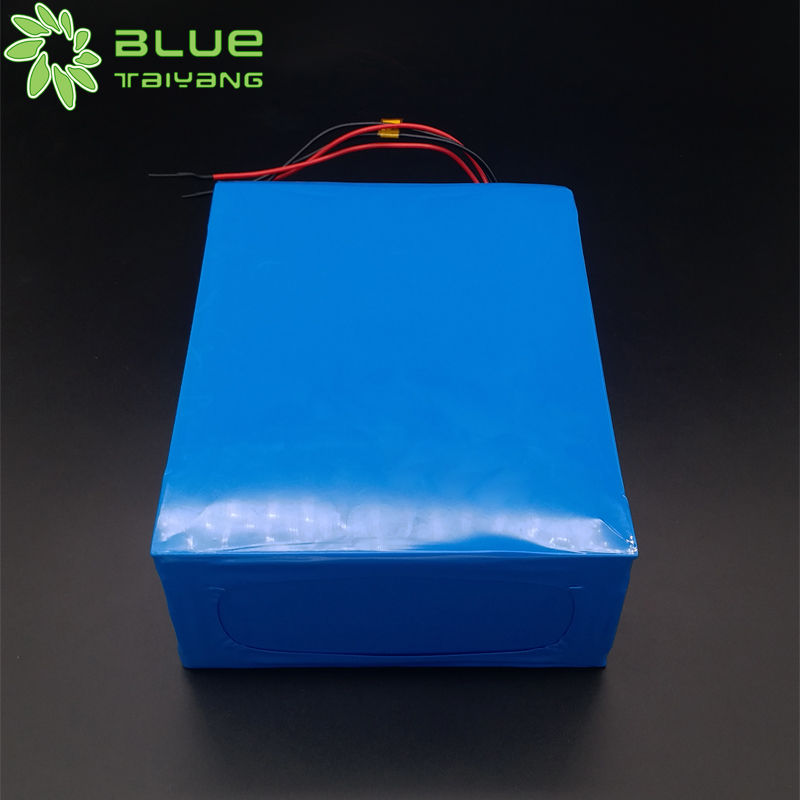

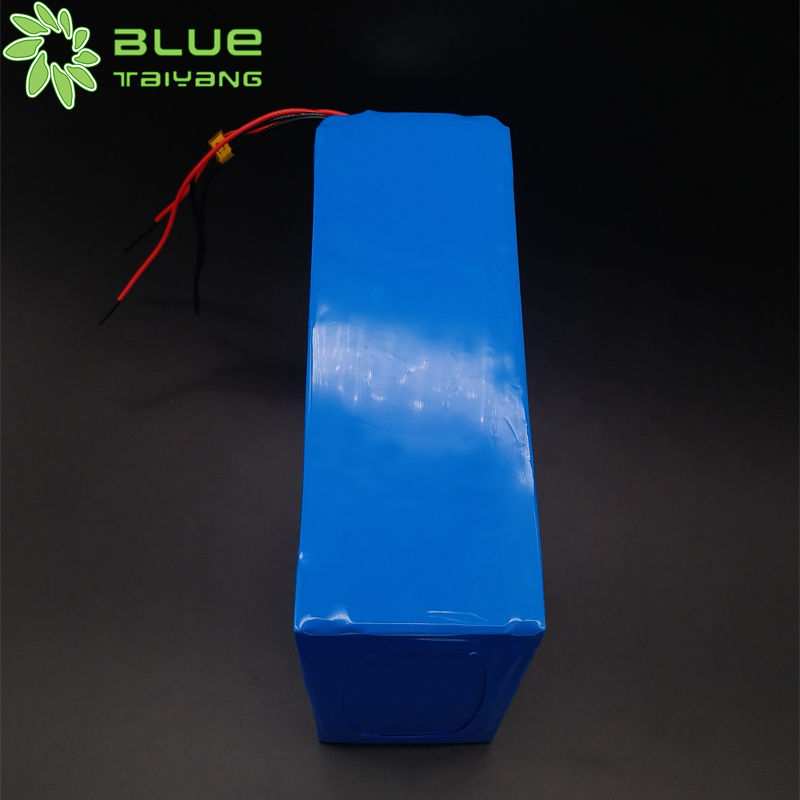

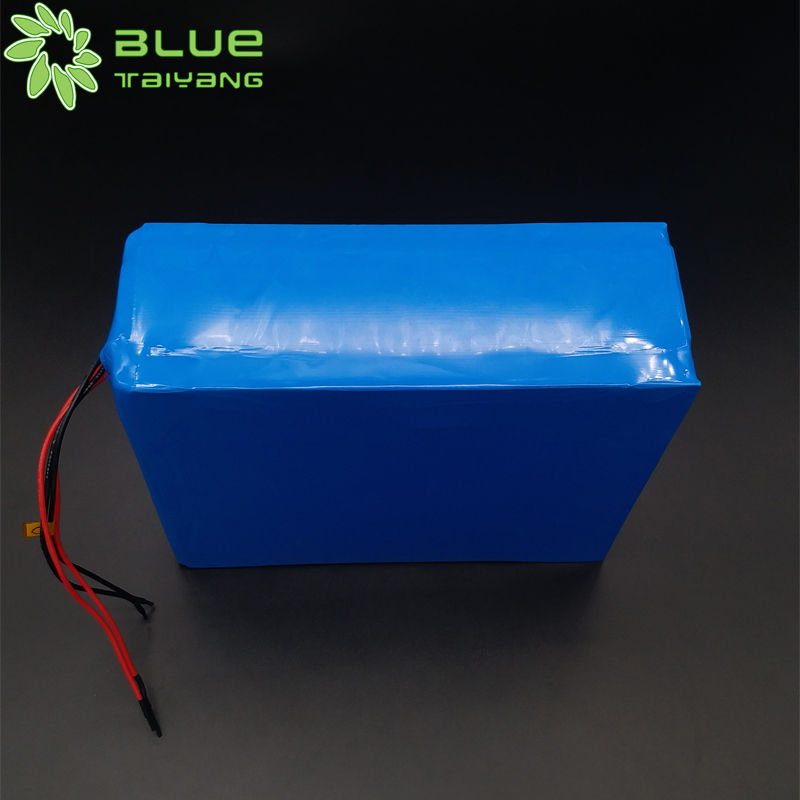

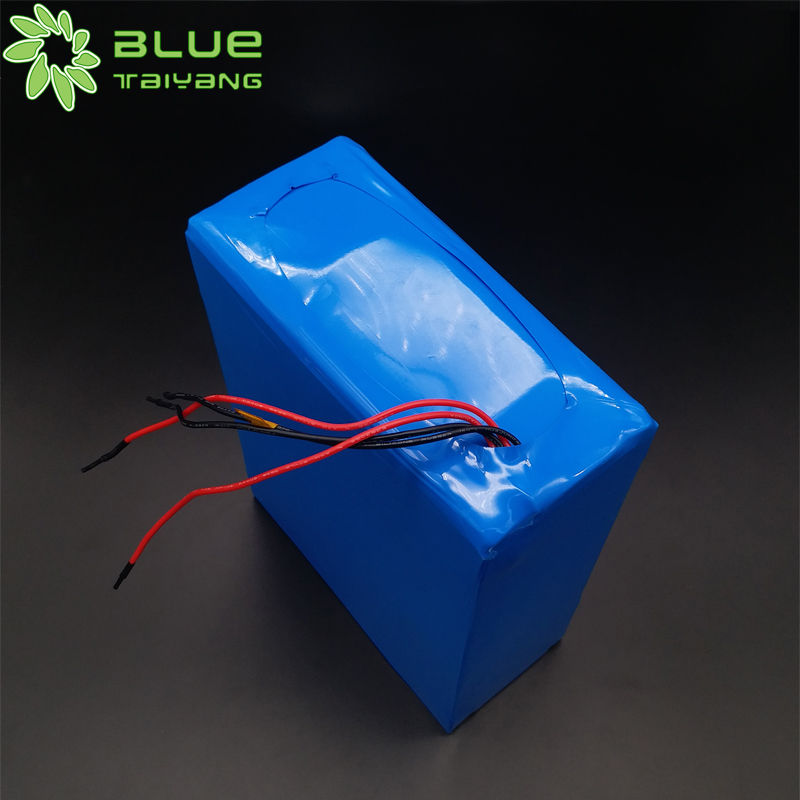

Customized li ion battery pack 36V 20Ah lithium ion batteries

Rechargeable or Non-rechargeable: Rechargeable
voltage: 36V
Nominal capacity: 20ah
The charging ratio: 2.5A
The discharge rate: 2.5A
Storage Type: Normal temperature storage
Warranty: 3months-1year, 12 Months
Anode Malateri: NCM
Chargeable: Yes

Application Area

power tool Farm machinery equipment Energy storage power supply Smart Home Medical equipment Consumer Electronics

cherry@bluetaiyang.com Online Message

Online Customization

Product Specifications
Product Details
Product Pictures

Items	Parameter
Battery model	20Ah 36V
Design scheme	With PCM
Nominal voltage	36V
Minimum capacity	20Ah(0.1C discharge)
Size	T：70.0mm W：153.0mm H：200.0mm(Includes PCM and wires) L：150.0mm(Wire length)
Charging voltage	42V
Discharging cut-off voltage	25V
Standard charging	2.5A
Max charging	3A
Standard discharging	2.5A
Max discharging	3A
Weight	Appr：12.4kg
Shipment voltage	≥39V
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	( 12 months, ≥85% )
	-10°C ~45°C	( 6 months, ≥85% )
	-10°C~60°C	( 1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Remark
196193	3.7	12000	93.0	61.0	19.0
196195	3.7	12000	95.0	61.0	19.0
325080	3.7	15000	82.0	50.0	32.0
1965118	3.7	20000	118.0	65.0	19.0
192390	3.7	3000	90.0	23.0	19.0
163135	3.7	1700	35.0	31.0	35.0
85110125	3.7	12500	125.0	110.0	8.5
858185	3.7	8000	85.0	81.0	8.5
80122140	3.7	16200	140.0	122.0	8.0
162350	3.7	1500	50.0	23.0	16.0
14500 2P1S	3.7	1600	50.5	28.0	14.0
201524	3.7	550	24.0	15.0	20.0
205050	3.7	6000	50.0	50.0	20.0
435056	3.7	12000	56.0	50.0	43.0
908186	3.7	8800	86.0	81.0	9.0
3-802540	3.7	2400	40.0	25.0	24.0
684753	3.7	2000	53.0	47.0	6.8
14500 1P3S	3.7	2250	50.0	17.0	14.0
3-502248	3.7	1500	50.0	22.0	15.0
205580	3.7	10000	80.0	55.0	20.0
198185	3.7	20000	85.0	81.0	19.0	High voltage
183545	3.7	3000	45.0	35.0	18.0
171225	3.7	360	25.0	12.0	17.0
133546	3.7	2000	46.0	35.0	13.0
124060	3.7	4000	60.0	40.0	12.0
1070148	3.7	15000	148.0	70.0	148.0	High voltage
1834108	3.7	6750	108.0	34.0	18.0
1965118	3.7	20000	118.0	65.0	19.0
2260105	3.7	20000	105.0	60.0	22.0
18650 1S3P	3.7	7800	140.0	56.0	21.0
18650 1S4P	3.7	13400	70.0	37.5	37.5
18650 1S2P	3.7	5200	70.0	37.5	19.0
18650 1S2P	3.7	3000	70.0	37.5	19.0
18650 1S6P	3.7	15600	70.0	56.0	37.5
18650 1S4P	3.7	12000	130.0	37.5	19.0
18650 1S3P	3.7	7800	68.0	56.0	19.0
18650 1S2P	3.7	5800	70.0	37.0	19.0
18650 1S2P	3.7	7000	68.0	37.0	19.0
18650 1S2P	3.7	6700	68.0	37.0	19.0
18650 1S2P	3.7	6000	68.0	37.0	19.0
102055	7.4	450	55.0	20.0	10.0
123450	7.4	1200	50.0	34.0	12.0
123568	7.4	1650	68.0	35.0	12.0
126090	7.4	4000	90.0	60.0	12.0
135070	7.4	3000	70.0	50.0	13.0
143050	7.4	1000	50.0	30.0	14.0
153450	7.4	1200	50.0	34.0	15.0
155590	7.4	5000	90.0	55.0	15.0
155593	7.4	5000	93.0	55.0	15.0
203452	7.4	2000	52.0	34.0	20.0
204560	7.4	2450	60.0	45.0	20.0
1265110	7.4	4000	110.0	65.0	12.0
2260103	7.4	10000	103.0	60.0	22.0
18650 2P2S	7.4	5800	70.0	37.0	19.0
18650 2S2P	7.4	5200	70.0	37.0	19.0	Low-temperature
18650 2S4P	7.4	12000	300.0	56.0	21.0
18650 3P2S	7.4	9000	140.0	56.0	21.0
18650 2S1P	7.4	3000	70.0	37.0	19.0
135070	7.4	3000	70.0	50.0	13.0
155592	7.4	5000	92.0	55.0	15.0
18650 3P2S	7.4	10000	140.0	56.0	21.0
203452	7.4	2000	52.0	34.0	20.0
163450	7.4	1500	50.0	34.0	16.0
185668	7.4	3500	68.0	56.0	18.0
18650 2S4P	7.4	10000	135.0	74.0	18.5
1538128	7.4	5000	128.0	38.0	15.0
5273190	7.4	40000	190.0	73.0	52.0
205598	7.4	6000	98.0	55.0	20.0
1365100	7.4	6000	100.0	65.0	13.0
103050	7.4	680	50.0	30.0	10.0
18650 2S2P	7.4	6000	70.0	37.0	19.0
802023	7.4	170	23.0	20.0	8.0
516581	7.4	4000	81.0	65.0	5.5
503985	7.4	2200	85.0	39.0	5.0
205050G	7.4	2850	50.0	50.0	20.0
135097	7.4	4000	97.0	50.0	13.0
164050	7.4	1700	50.0	40.0	16.0
1438145	7.4	4000	145.0	38.0	14.0
133568	7.4	1700	68.0	35.0	13.0
123539	7.4	170	39.0	35.0	12.0
124060	7.4	2300	60.0	40.0	12.0
114050	7.4	1150	50.0	40.0	11.0
116371	7.4	2600	71.0	63.0	11.0
113452	7.4	1000	52.0	34.0	11.0
102055	7.4	450	55.0	20.0	10.0
113572	7.4	3700	75.0	35.0	11.0
153450	7.4	1150	50.0	35.0	15.0	E8
163450	7.4	1500	50.0	34.0	16.0
1535130	7.4	5000	130.0	35.0	15.0
1875132	7.4	13200	132.0	75.0	18.0
2068135	7.4	10000	135.0	68.0	20.0
8555129	7.4	4000	129.0	55.0	8.5
8763134	7.4	4000	134.0	63.0	8.7
146486	11.1/12.0	4000	86.0	64.0	14.0	High voltage
102055	11.1/12.0	250	55.0	20.0	10.0
232550	11.1/12.0	850	50.0	25.0	23.0
756299	11.1/12.0	6000	99.0	62.0	23.0
3461115	11.1/12.0	20000	115.0	61.0	34.0
3662130	11.1/12.0	10000	130.0	62.0	36.0
5560110	11.1/12.0	15000	110.0	60.0	55.0
21110135	11.1/12.0	12000	135.0	110.0	21.0
18650 3S2P	11.1/12.0	6000	140.0	56.0	21.0
18650 3S3P	11.1/12.0	9000	200.0	56.0	21.0
18650 3S1P	11.1/12.0	2200	68.0	56.0	19.0
18650 3S2P	11.1/12.0	6000	140.0	56.0	21.0
18650 3S3P	11.1/12.0	11000	75.0	56.0	56.0
18650 3S1P	11.1/12.0	2200	68.0	56.0	19.0
18650 3S1P	11.1/12.0	2000	68.0	56.0	19.0
103555	11.1/12.0	500	55.0	35.0	10.5
3068135	11.1/12.0	10000	135.0	68.0	30.0
8090155	11.1/12.0	15000	155.0	90.0	80.0
3-105050	11.1/12.0	3000	50.0	50.0	30.0
14500 1P3S	11.1/12.0	800	150.0	17.0	14.0
70105150	11.1/12.0	4000	150.0	105.0	7.0
6260120	11.1/12.0	20000	120.0	60.0	62.0
303570	11.1/12.0	2700	70.0	35.0	30.0
254590	11.1/12.0	4000	90.0	45.0	25.0
25110142	11.1/12.0	12000	142.0	110.0	25.0
18650 3S1P	11.1/12.0	2600	70.0	56.0	19.0
173550	11.1/12.0	1200	50.0	35.0	17.0
153462	11.1/12.0	1000	62.0	34.0	15.0
18650 3S1P	11.1/12.0	1800	70.0	56.0	19.0
102055	11.1/12.0	250	55.0	20.0	10.0
232550	11.1/12.0	850	50.0	25.0	23.0
1864100	11.1/12.0	5000	100.0	64.0	18.0
2544120	11.1/12.0	4500	120.0	44.0	25.0
21110135	11.1/12.0	12000	135.0	110.0	21.0
90105180	11.1/12.0	8000	180.0	105.0	9.0
203050	14.8/16.8	680	50.0	30.0	20.0
253042	14.8/16.8	650	42.0	30.0	25.0
276195	14.8/16.8	5000	95.0	61.0	27.0
602626	14.8/16.8	700	62.0	26.0	26.0
18650 4S1P	14.8/16.8	2200	68.0	38.0	38.0
645893	14.8/16.8	5000	93.0	58.0	64.0
18650 4S1P	14.8/16.8	3000	130.0	56.0	37.5
652626	14.8/16.8	800	65.0	26.0	26.0
755590-4S	14.8/16.8	5000	95.0	56.0	30.0
18650 4S1P	14.8/16.8	2200	130.0	37.0	19.0
243750	14.8/16.8	800	50.0	37.0	24.0
18194240	14.8/16.8	15000	240.0	194.0	18.0
18650 6S1P	24.0/25.2	3000	75.0	37.0	55.0
18650 6S1P	24.0/25.2	2200	130.0	60.0	19.0
18650 10S8P	36.0	20000	200.0	153.0	70.0
18650 14S3P	51.8	7500	145.0	115.0	72.0

Click here to find a list of other models

T	70.0mm
W	153.0mm
H	200.0mm
L	150.0mm

Product application

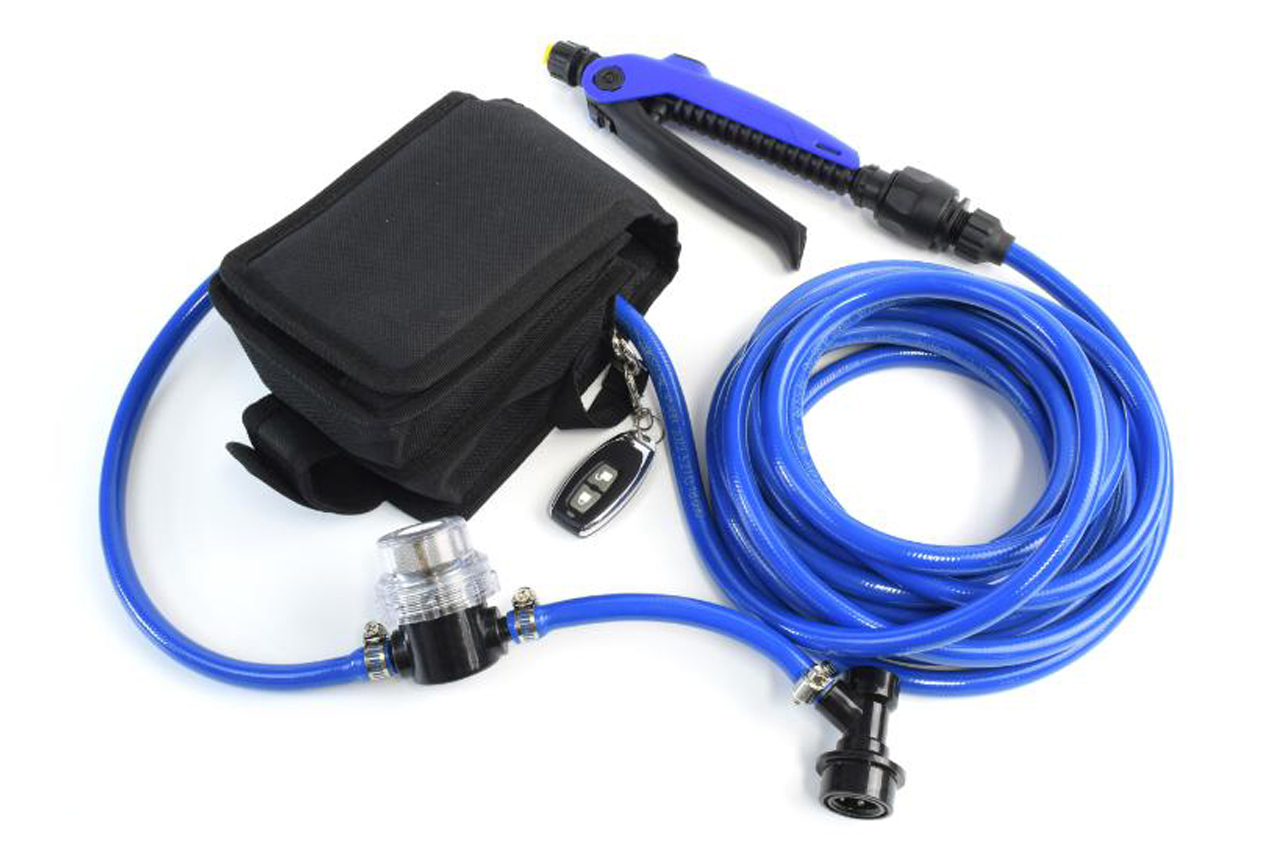

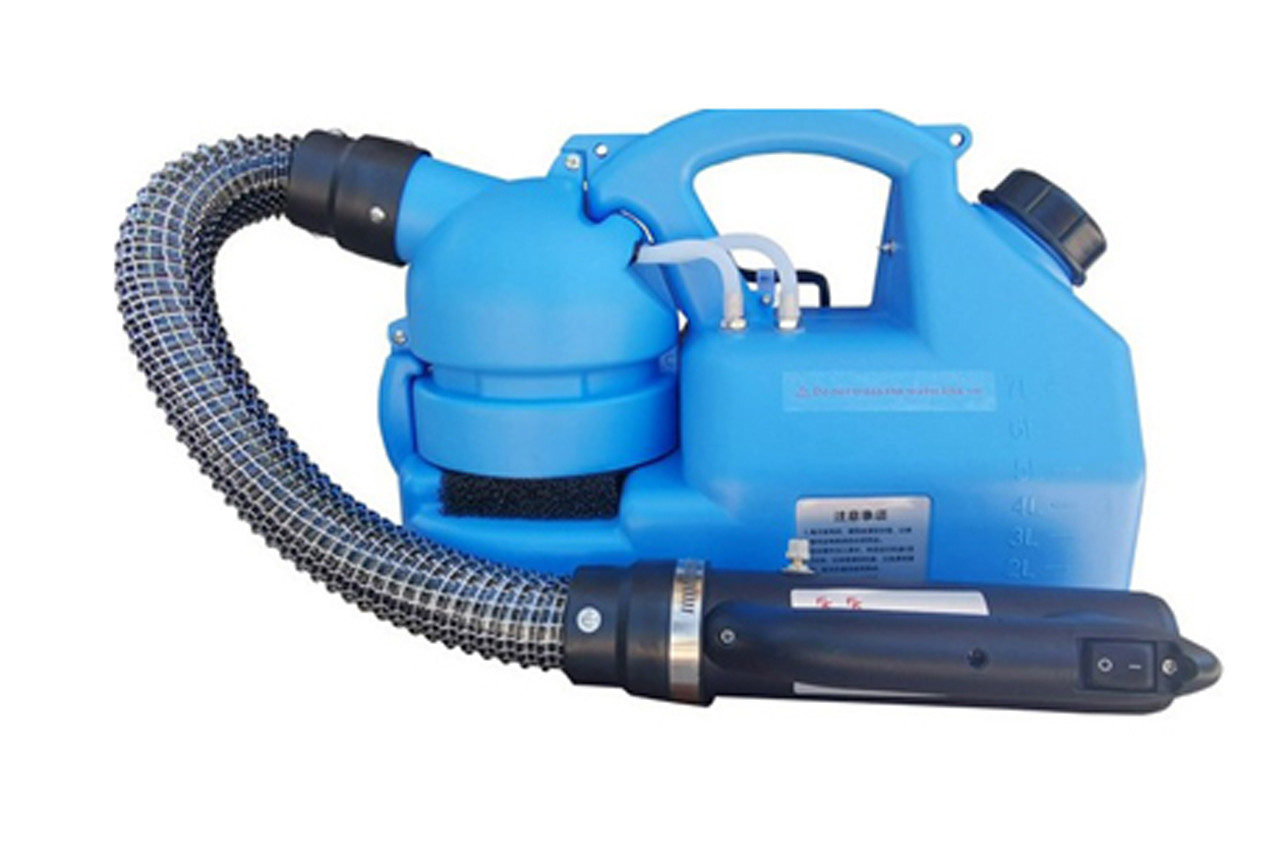

sprayer

Lithium tram

Electric three-wheel vehicle

Electric forklift
