Nominal voltage: 6V
Nominal capacity: 1300mah
Cell type: li-MnO2 battery pack
Items | Parameter | |
Battery model |
cp142243 1300mAh 6.0V |
|
Open circuit voltage | ≥3.1V | |
Size | 14.0mm*22.2mm*43.2mm | |
Operating |
-20°C~71°C | |
Sample |
Provide Free Samples |
|
OEM/ODM |
Accepatable |
|
Max. constant current | 300mA | |
Max. pulse current | 500mA | |
Storage condition |
≤30°C,≤75%RH |
|
Weight | Appr: 21g | |
Self-discharge |
1.8% |
model |
Maximum
size
|
Rated
Capacity
|
Maximum
discharge current
|
|
continuous | pulse | |||
cp102425 | 10.2×25×26 | 1100 | 400 | 600 |
cp142828 | 1.5×28×29 | 150 | 20 | 30 |
cp144920 | 14×49×20 | 150 | 20 | 40 |
cp223045 | 2.4×30×46 | 480 | 150 | 300 |
cp224035 | 2.5×41×36 | 550 | 150 | 300 |
cp224147 | 2.4×46×49 | 800 | 200 | 400 |
cp254442 | 2.7×45×43 | 750 | 300 | 500 |
cp401922 | 4.2×20×23 | 300 | 100 | 150 |
cp405050 | 4.2×51×51 | 2500 | 1000 | 1500 |
cp451830 | 4.8×18.6×30 | 480 | 150 | 200 |
cp452922 | 0.5×22.2×29 | 18 | 10 | 20 |
cp502540 | 5.0×25×40.2 | 1200 | 400 | 800 |
cp602026 | 6.2×21×27 | 600 | 200 | 300 |
cp603956 | 6.2×40×57 | 3500 | 1500 | 2000 |
cp604050 | 6.0×40×50 | 3000 | 1500 | 2000 |
cp783970 | 7.8×39×70 | 5500 | 2000 | 3000 |
cp804834 | 7.7×48.6×34 | 150 | 20 | 40 |
cp903450 | 9.2×34×50 | 4000 | 1500 | 2500 |

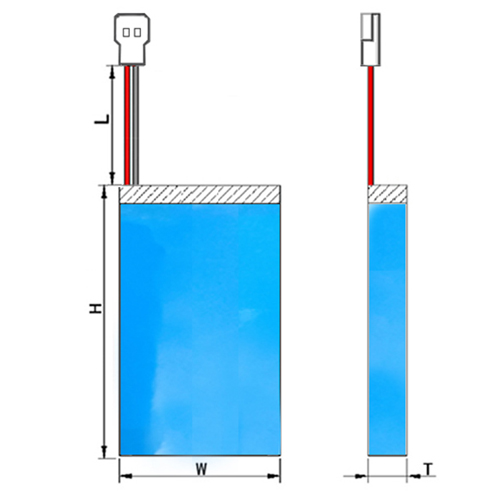

T |
14.0mm |
W |
22.2mm |
L |
43.2mm |
H |
60.0mm |
