electric bicycle battery 48v 10ah li ion batteries pack
Rechargeable or Non-rechargeable: Rechargeable
voltage: 48V
Nominal capacity: 10ah
The charging ratio: 0.2c-1.0c
The discharge rate: 0.2c-3c
Storage Type: Normal temperature storage
Warranty: 3months-1year, 12 Months
Anode Material: NCM
Chargeable: Yes
voltage: 48V
Nominal capacity: 10ah
The charging ratio: 0.2c-1.0c
The discharge rate: 0.2c-3c
Storage Type: Normal temperature storage
Warranty: 3months-1year, 12 Months
Anode Material: NCM
Chargeable: Yes
Application Area
Electric vehicleElectric
power tool
Farm machinery equipment
Energy storage power supply
Smart Home
Medical equipment
cherry@bluetaiyang.com
Online Message
specifications: 10ah 48V
Nominal capacity: 10ah
Charging time Standard Charging: 6.0 hours (Ref.)
Rapid charge: 2.0 hours (Ref.)
Cycle Life: 800 times~1000 times , with BMS
Charging: 0°C ~ 55°C
Discharging: -20°C ~ 65°C
Max. charge voltage: 4.3v
Max. charge current: 1C
Max discharge current: 3C
Connection mode: 13S4P
Weight: 5kg
| Battery model | Inner dimension (outer diameter) | Outer box size | Net weight of battery | Gross weight of battery | Battery connection mode | Warranty |
| 36V 20ah | 425*110*76mm | 43*21*27cm | 5kg | 8.0 kg | 10S8P | 1 year |
| 36V 10ah | 390*76*110mm | 55*15*16.5cm | 4.5kg | 6.5kg | 10S4P | 1 year |
| 24V 20ah | 89*136*385mm | 40*30*30cm | 4.8kg | 7.8kg | 7S6P | 1 year |
| 48V 15ah | 360*135*80mm | 43*21*27 cm | 4.5kg | 6kg | 13S5P | 1 year |
| 48V 20ah | 395*148*80mm | 43*21*27cm | 3-7.5kg | 9kg | 13S8P | 1 year |
| 36V 13ah | 91mm*392mm(circular) | 43*21*27cm | 4.5kg | 6kg | 10S5P | 1 year |
| 36V 16ah | 367*111*90mm | 43*21*27cm | 3.5kg | 5kg | 10S4P | 1 year |
| 361*90*92mm(without USB) | ||||||
| 24V 8.8ah | 380*94.2*87mm | 55*25*16.5cm | 3.3kg | 5.5kg | 7S4P | 1 year |
| 48v 20ah | 360*150*75mm | 43*21*27cm | 4.5kg | 6.5kg | 13S8P | 1 year |
| 48v 20ah | 370*130*85mm | 54*15*16.5cm | 5.82kg | 6.5kg | 13S7P | 1 year |
| 36v 15ah | 385*115*75mm | 47*15*16.5cm | 3.9kg | 4.5kg | 10S6P | 1 year |

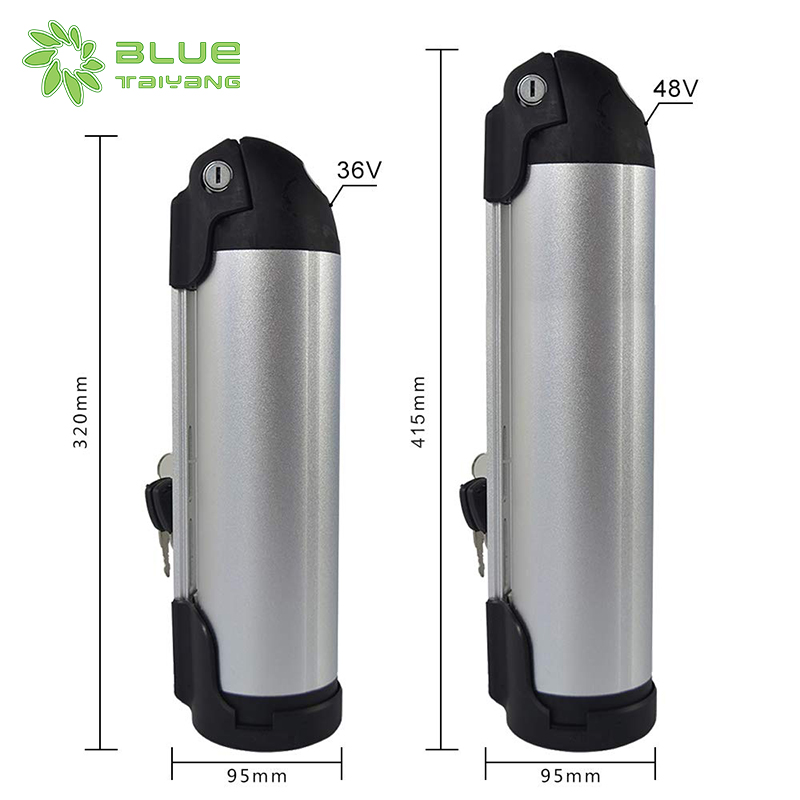

| 48v 10ah | 95mm*415mm(circular) | 44*23*17cm | 3.3kg | 5kg | 13S4P | 1 year |
| 36v 10ah | 361*92*90mm | 43*21*27cm | 3.5kg | 5kg | 10S4P | 1 year |
Product application
