18490 li-ion 5.18wh 3.7v 1400mah lituiun-ion battery

Product model: 18490 1400mah 3.7V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V/3.8V
Nominal capacity: 1400mah
Discharge temperature: ordinary
Cycle life: >500 times
Battery structure: steel shell/Cylindrical
Cell type: Lithium-ion battery

Application Area

Smart Home Medical equipment Consumer Electronics Instrument and apparatus Digital products Toy

cherry@bluetaiyang.com Online Message

Online Customization

Product Specifications
Product Details
Product Pictures

Items	Parameter
Battery model	18490
Design scheme	Without PCM
Nominal voltage	3.7V
Minimum capacity	1400mAh(1C discharge)

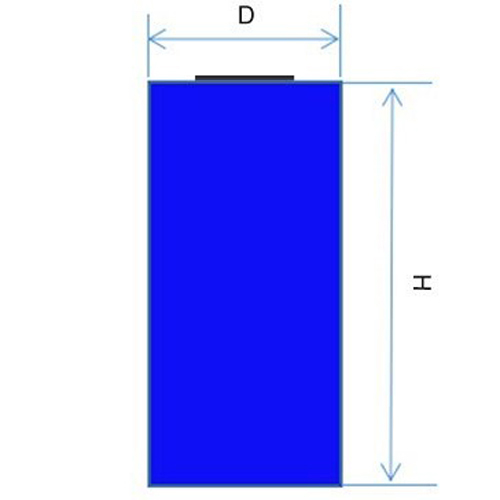

Size	D: 18.15mm H: 33.45mm
Charging voltage	4.2V
Discharging cut-off voltage	2.5V
Standard charging	0.2C /4.2V
Max charging	1.0C /4.2V
Standard discharging	0.2C/2.5V
Max discharging	1.0C/2.5V
Weight	Appr: 49.1g
Shipment voltage	≥3.9V
Battery pack impedance	≤60mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	(12 months, ≥85%)
	-10°C ~45°C	(6 months, ≥85%)
	-10°C~60°C	(1 month, ≥90%)
	20±5°C is the recommended storage temperature

Model	Capacity (mAh)	Nominal Voltage(v)	internal resistance(≤mΩ)	discharge rate(C)	weight(≤g)	d≤mm	h≤mm
10180	80	4	200		3	10	18
10220	110	3.7	180		4.35	10.15	21.8
10280	150	3.7	110		5.25	10.15	28.1
10380	280	3.7	85		8.35	10.15	38
10440	320	3.7	65		8.95	10.15	44.7
10840	650	3.7	65	3C	9.55	10.15	84.7
10870	750	3.7	65	3C	9.55	10.15	87.7
14250	280	3.7	130		8.85	14.15	26
14280	300	3.7	110		8.85	14.15	27.9
14430	600	3.7	65		16.25	14.15	43.1
14430	650	3.7	50		18.15	14.15	43.1
14500	600	3.7	50		17.25	14.15	50.6
14500	800	3.7	45	3C	17.25	14.15	50.6
14500	800	3.7	50		19.25	14.15	50.6
14650	1100	3.7	40	3C	26.65	14.15	64.9
15270	400	3.7	90		12.4	15.15	27
16280	600	3.7	80		15.4	16.35	28.1
16340	500	3.7	80	3C	15.4	16.35	34.35
16340	600	3.7	80		16.6	16.35	34.35
16340	600	3.7	45	5C	17.05	16.35	34.35
16340	700	3.7	80		17.05	16.35	34.35
16500	1100	3.7	50		24.5	16.35	49.1
16500	1200	3.7	45	3C	25.35	16.35	49.1
16650	1600	3.7	40		34.25	16.45	64.5
18350	800	3.7	25	5C	21.95	18.15	35.1
18350	900	3.7	70		21.15	18.15	35.1
18490	1400	3.7	60		33.45	18.15	49.1
18500	1600	3.7	50		33.55	18.15	49.4
18500	1900	3.7	50		33.55	18.15	49.4
