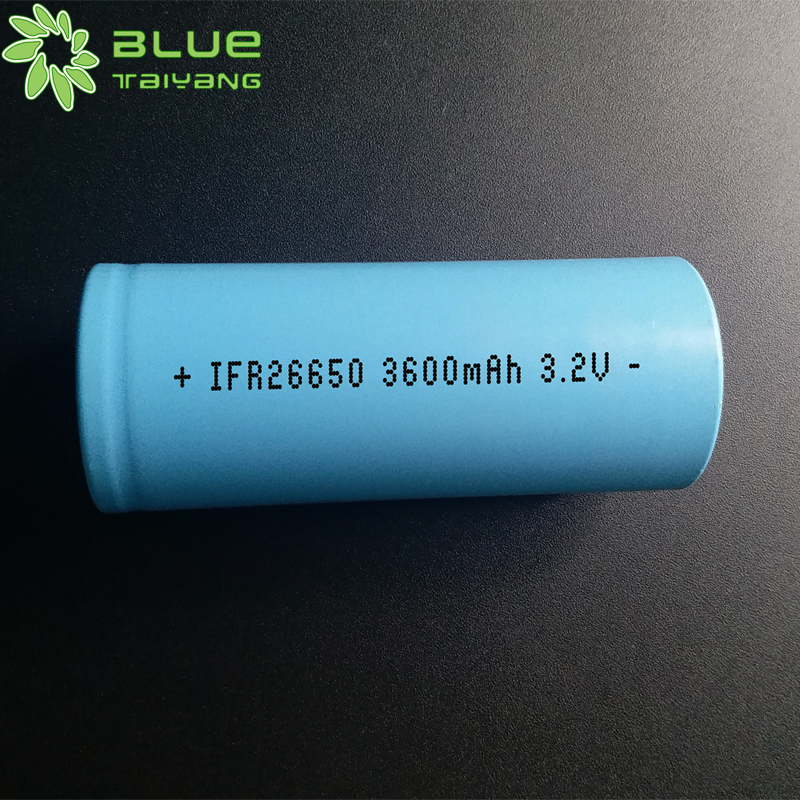

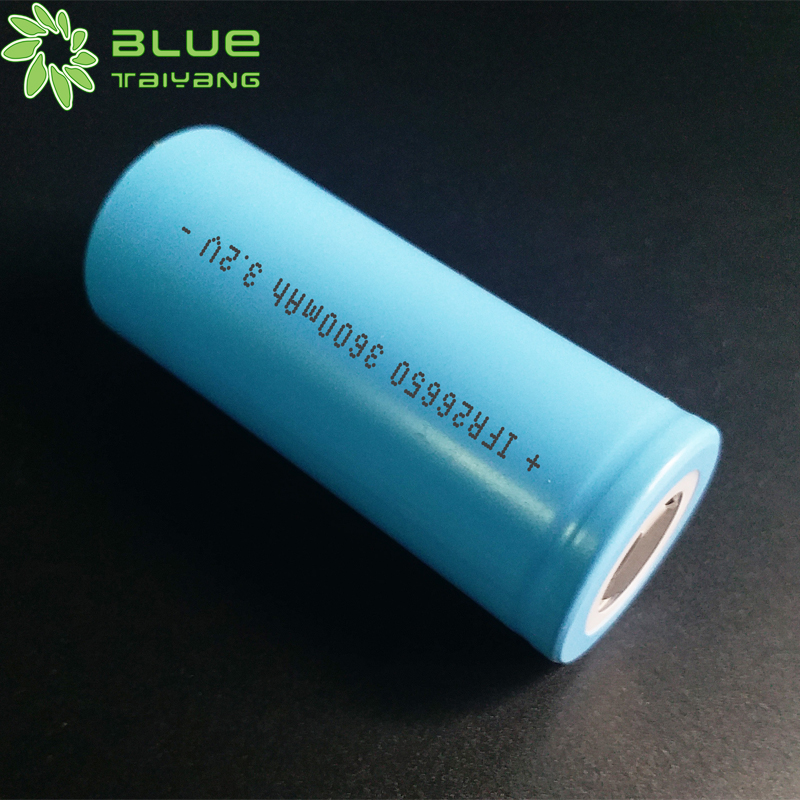

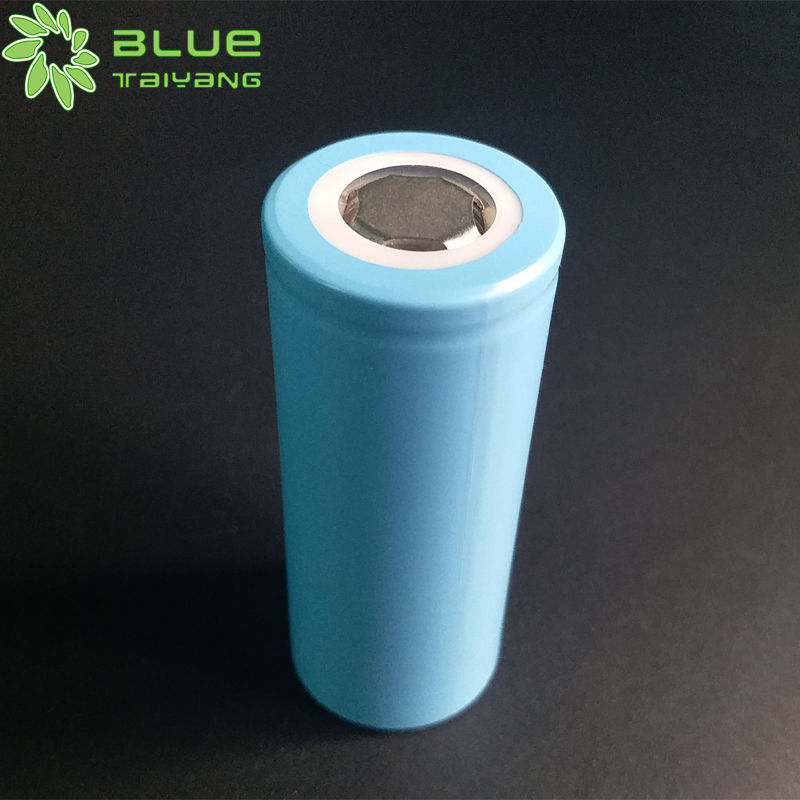

High Quality Cylindrical 3.65v Lifepo4 Charger Temperature Wide 26650 3.2v 3600mah Low Temperature Cycle Lifepo4 Battery
Product model: IFR26650 3600mah 3.2V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.2V
Nominal capacity: 3600mah
Discharge temperature: -40~60deg C
Cycle life: >2000 times
Cell type: Li-FePO4 battery
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.2V
Nominal capacity: 3600mah
Discharge temperature: -40~60deg C
Cycle life: >2000 times
Cell type: Li-FePO4 battery
Application Area
power tool
Farm machinery equipment
Energy storage power supply
Smart Home
Medical equipment
Consumer Electronics
cherry@bluetaiyang.com
Online Message
| Items | Parameter | |
| Battery model | IFR26650 | |
| Design scheme | Without PCM | |
| Nominal voltage | 3.2V | |
| Minimum capacity | 3600mAh(5C discharge) | |
| Size | D: 26.5mm H：65mm | |
| Charging voltage | 3.65V | |
| Discharging cut-off voltage | 2.0V | |
| Standard charging | 0.2C /3.65V | |
| Max charging | 1.0C /3.65V | |
| Standard discharging | 0.2C/2.0V | |
| Max discharging | 1C/2.0V | |
| Weight | Appr：90.0g | |
| Battery pack impedance | ≤30mΩ | |
| Operating temperature | Charging: -40°C ~ 60°C | |
| Discharging: -40°C ~60°C | ||
| cycle life | 25°C | ≥2000cycles |
| -10°C | ≥1000cycles | |
| -30°C | ≥500cycles | |
| 20±5°C is the recommended storage temperature | ||
| Model | Capacity (mAh) | Nominal Voltage(v) | internal resistance(≤mΩ) | discharge rate(C) | weight(≤g) | d≤mm | h≤mm |
| 10180 | 80 | 4 | 200 | 3 | 10 | 18 | |
| 10220 | 110 | 3.7 | 180 | 4.35 | 10.15 | 21.8 | |
| 10280 | 150 | 3.7 | 110 | 5.25 | 10.15 | 28.1 | |
| 10380 | 280 | 3.7 | 85 | 8.35 | 10.15 | 38 | |
| 10440 | 320 | 3.7 | 65 | 8.95 | 10.15 | 44.7 | |
| 10840 | 650 | 3.7 | 65 | 3C | 9.55 | 10.15 | 84.7 |
| 10870 | 750 | 3.7 | 65 | 3C | 9.55 | 10.15 | 87.7 |
| 14250 | 280 | 3.7 | 130 | 8.85 | 14.15 | 26 | |
| 14280 | 300 | 3.7 | 110 | 8.85 | 14.15 | 27.9 | |
| 14430 | 600 | 3.7 | 65 | 16.25 | 14.15 | 43.1 | |
| 14430 | 650 | 3.7 | 50 | 18.15 | 14.15 | 43.1 | |
| 14500 | 600 | 3.7 | 50 | 17.25 | 14.15 | 50.6 | |
| 14500 | 800 | 3.7 | 45 | 3C | 17.25 | 14.15 | 50.6 |
| 14500 | 800 | 3.7 | 50 | 19.25 | 14.15 | 50.6 | |
| 14650 | 1100 | 3.7 | 40 | 3C | 26.65 | 14.15 | 64.9 |
| 15270 | 400 | 3.7 | 90 | 12.4 | 15.15 | 27 | |
| 16280 | 600 | 3.7 | 80 | 15.4 | 16.35 | 28.1 | |
| 16340 | 500 | 3.7 | 80 | 3C | 15.4 | 16.35 | 34.35 |
| 16340 | 600 | 3.7 | 80 | 16.6 | 16.35 | 34.35 | |
| 16340 | 600 | 3.7 | 45 | 5C | 17.05 | 16.35 | 34.35 |
| 16340 | 700 | 3.7 | 80 | 17.05 | 16.35 | 34.35 | |
| 16500 | 1100 | 3.7 | 50 | 24.5 | 16.35 | 49.1 | |
| 16500 | 1200 | 3.7 | 45 | 3C | 25.35 | 16.35 | 49.1 |
| 16650 | 1600 | 3.7 | 40 | 34.25 | 16.45 | 64.5 | |
| 18350 | 800 | 3.7 | 25 | 5C | 21.95 | 18.15 | 35.1 |
| 18350 | 900 | 3.7 | 70 | 21.15 | 18.15 | 35.1 | |
| 18490 | 1400 | 3.7 | 60 | 33.45 | 18.15 | 49.1 | |
| 18500 | 1600 | 3.7 | 50 | 33.55 | 18.15 | 49.4 | |
|
18500 |
1900 |
3.7 |
50 |
|
33.55 |
18.15 |
49.4 |
|
Click here to find a list of other models |
| D |
26.5mm |
|
H |
65.0mm |
