Items | Parameter | |

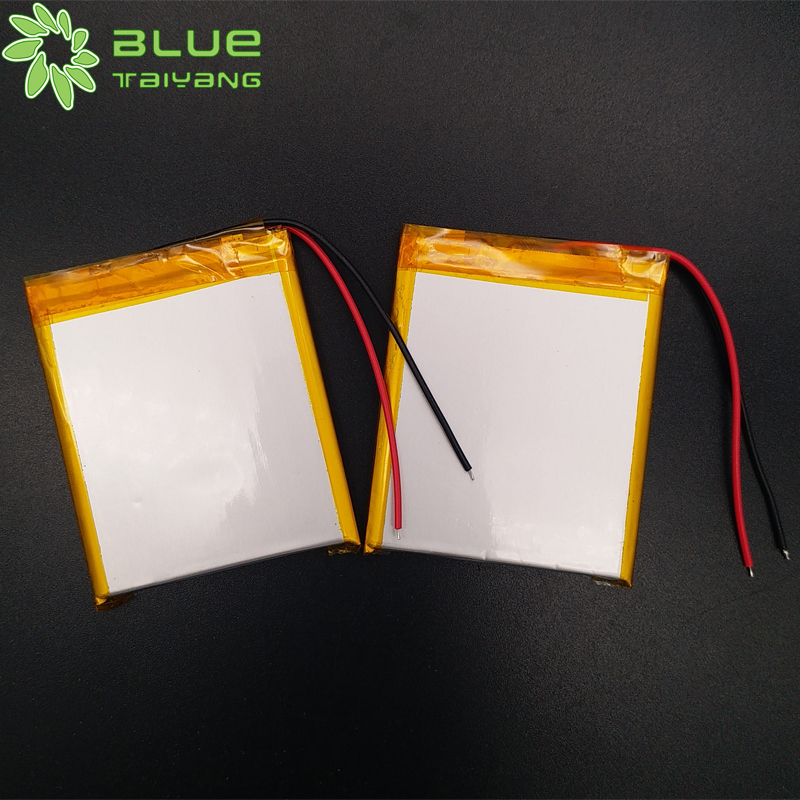

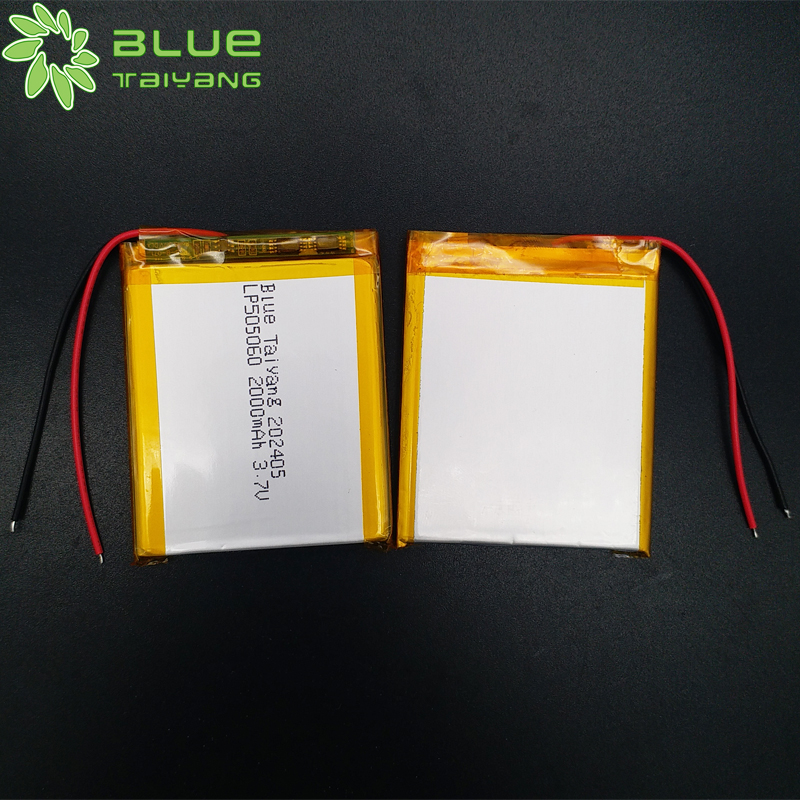

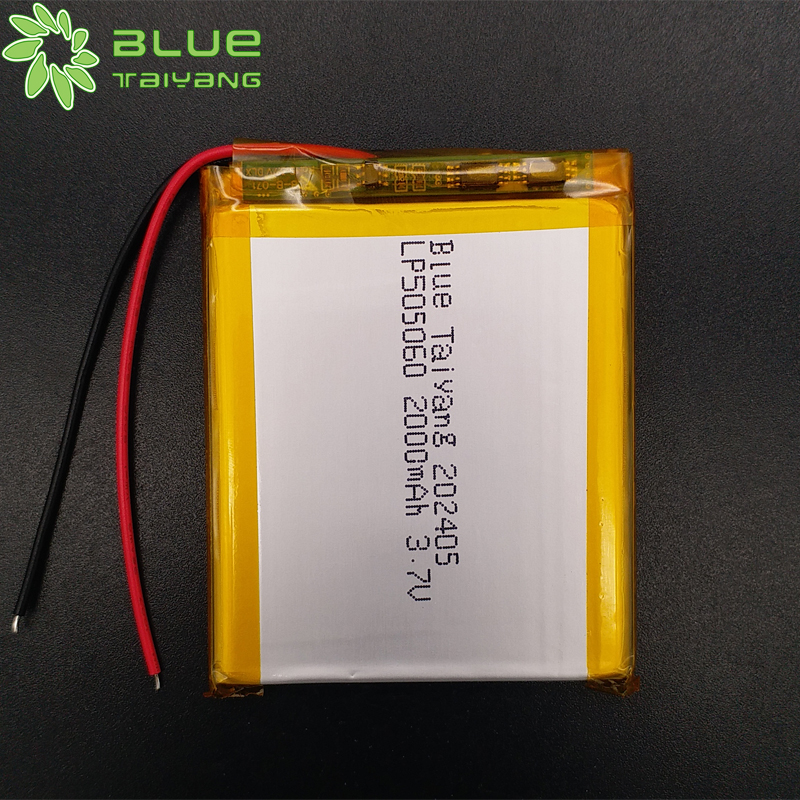

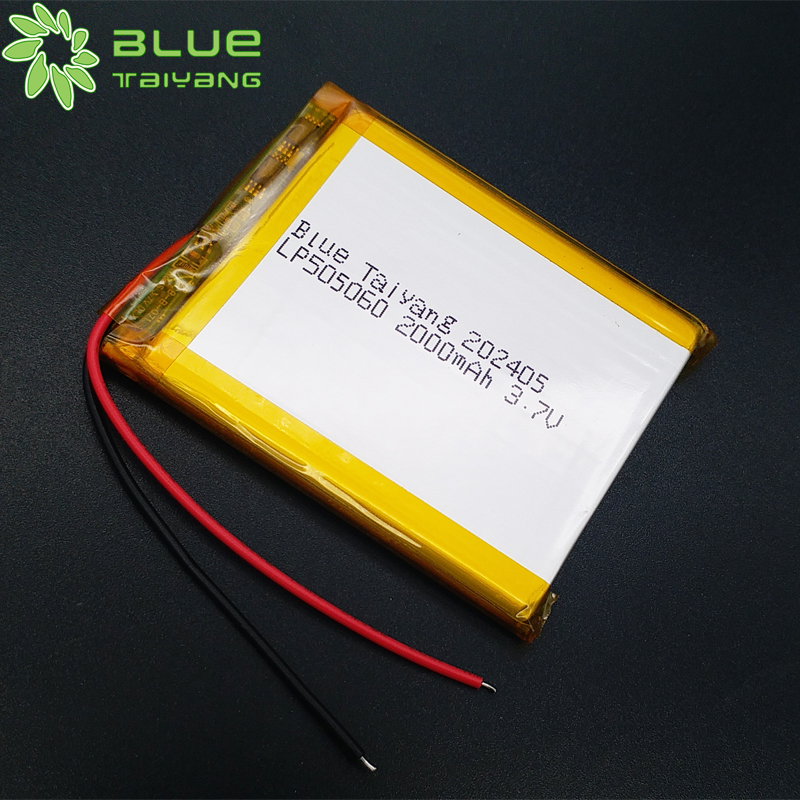

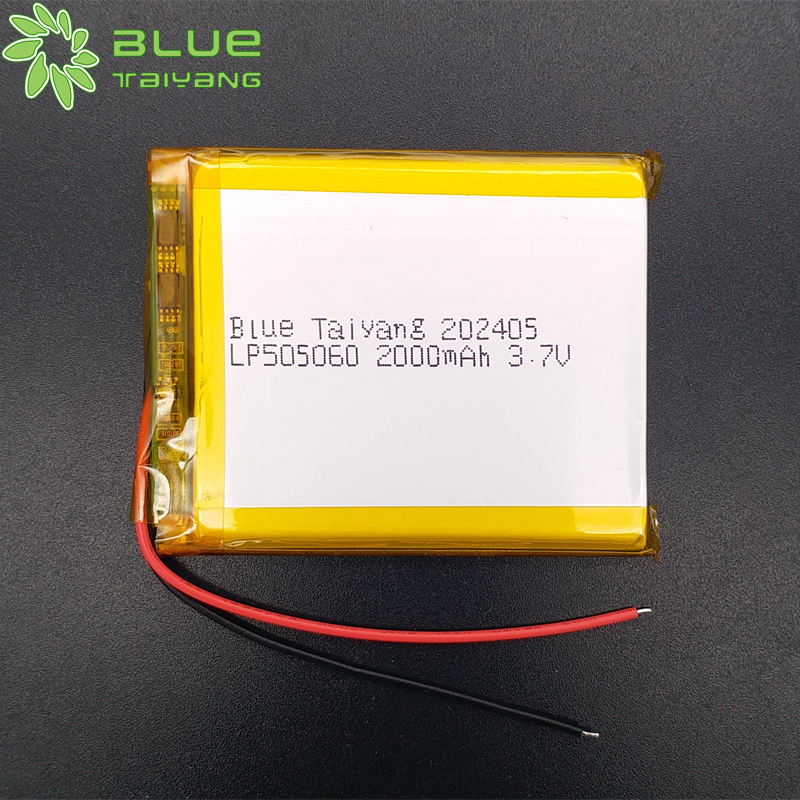

Battery model | LP505060 | |
Design scheme | With PCM | |
Nominal voltage | 3.7V | |
Minimum capacity | 2000mAh(1C discharge) | |

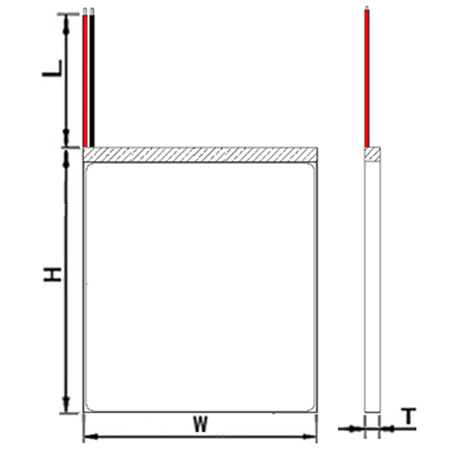

Size |
T:5.0mm
W:50.0mm
H:60.0mm(Includes PCM and wires)
L:60.0mm(Wire length)
|
|
Charging voltage | 4.2V | |
Discharging cut-off voltage | 2.5V | |
Standard charging | 0.2C /4.2V | |
Max charging | 1.0C /4.2V | |
Standard discharging | 0.2C/2.5V | |
Max discharging | 1.0C/2.5V | |
Weight | Appr:25.0g | |
Shipment voltage | ≥3.9V | |
Battery pack impedance | ≤60mΩ | |
Operating temperature | Charging: 0°C ~ 45°C | |
Discharging: -20°C ~60°C | ||
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. ) | -10°C~25°C | ( 12 months, ≥85% ) |
-10°C ~45°C | ( 6 months, ≥85% ) | |
-10°C~60°C | ( 1 month, ≥90% ) | |
20±5°C is the recommended storage temperature |
Model | Normal Voltage | Normal Capacity (mAh) | length (mm) | width (mm) | thickness (mm) | Download |
102035 | 3.7/3.8V | 650 | 35 | 20 | 10 | |
102050 | 3.7/3.8V | 1000 | 50 | 20 | 10 | |
102060 | 3.7/3.8V | 1200 | 60 | 20 | 10 | |
102230 | 3.7/3.8V | 650 | 30 | 22 | 10 | |
102240 | 3.7/3.8V | 980 | 40 | 22 | 10 | |
102427 | 3.7/3.8V | 600 | 27 | 24 | 10 | |
102530 | 3.7/3.8V | 680 | 30 | 25 | 10 | |
102535 | 3.7/3.8V | 850 | 35 | 25 | 10 | |
102542 | 3.7/3.8V | 1150 | 42 | 25 | 10 | |
102550 | 3.7/3.8V | 1400 | 50 | 25 | 10 | |
102731 | 3.7/3.8V | 800 | 31 | 27 | 10 | |
102737 | 3.7/3.8V | 950 | 37 | 27 | 10 | |
103030 | 3.7/3.8V | 900 | 30 | 30 | 10 | |
103035 | 3.7/3.8V | 1200 | 35 | 30 | 10 | |
103040 | 3.7/3.8V | 1200 | 40 | 30 | 10 | |
103048 | 3.7/3.8V | 1500 | 48 | 30 | 10 | |
103361 | 3.7/3.8V | 2000 | 61 | 33 | 10 | |
103445 | 3.7/3.8V | 1700 | 45 | 34 | 10 | |
103450 | 3.7/3.8V | 1800 | 50 | 34 | 10 | |
103535 | 3.7/3.8V | 1250 | 35 | 35 | 10 | |
103740 | 3.7/3.8V | 1600 | 40 | 37 | 10 | |
104045 | 3.7/3.8V | 2000 | 45 | 40 | 10 | |
112150 | 3.7/3.8V | 1200 | 50 | 21 | 11 | |
112356 | 3.7/3.8V | 1550 | 56 | 23 | 11 | |
112436 | 3.7/3.8V | 1000 | 36 | 24 | 11 | |
113252 | 3.7/3.8V | 2000 | 52 | 32 | 11 | |
113440 | 3.7/3.8V | 1500 | 40 | 34 | 11 | |
113735 | 3.7/3.8V | 2000 | 35 | 37 | 11 | |
122542 | 3.7/3.8V | 1400 | 42 | 25 | 12 | |
123046 | 3.7/3.8V | 1900 | 46 | 30 | 11 | |
123236 | 3.7/3.8V | 1940 | 36 | 32 | 11 | |
285087 | 3.7/3.8V | 1950 | 87 | 50 | 2.8 | |
285491 | 3.7/3.8V | 2000 | 91 | 54 | 2.8 | |
286272 | 3.7/3.8V | 1976 | 72 | 62 | 2.8 | |
296476 | 3.7/3.8V | 1900 | 76 | 64 | 2.9 | |
304093 | 3.7/3.8V | 1400 | 93 | 40 | 3 | |
333046 | 3.7/3.8V | 520 | 46 | 30 | 3.3 | |
343893 | 3.7/3.8V | 1900 | 93 | 38 | 3.4 | |
355864 | 3.7/3.8V | 1950 | 64 | 58 | 3.5 | |
364050 | 3.7/3.8V | 750 | 50 | 40 | 3.6 | |
365481 | 3.7/3.8V | 1950 | 81 | 54 | 3.6 | |
375370 | 3.7/3.8V | 2000 | 70 | 53 | 3.7 | |
385185 | 3.7/3.8V | 2000 | 85 | 51 | 3.8 | |
393548 | 3.7/3.8V | 820 | 48 | 35 | 3.9 | |
394273 | 3.7/3.8V | 1950 | 73 | 42 | 3.9 | |
403040 | 3.7/3.8V | 530 | 40 | 30 | 4 | |
403048 | 3.7/3.8V | 600 | 48 | 30 | 4 | |
404050 | 3.7/3.8V | 850 | 50 | 40 | 4 | |
404060 | 3.7/3.8V | 1200 | 60 | 40 | 4 | |
404246 | 3.7/3.8V | 800 | 46 | 42 | 4 | |
404274 | 3.7/3.8V | 1950 | 74 | 42 | 4 | |
404385 | 3.7/3.8V | 2000 | 85 | 43 | 4 | |
423450 | 3.7/3.8V | 750 | 50 | 34 | 4.2 | |
424837 | 3.7/3.8V | 780 | 37 | 48 | 4.2 | |
425583 | 3.7/3.8V | 2000 | 83 | 55 | 4.2 | |
432276 | 3.7/3.8V | 1200 | 76 | 22 | 4.3 | |
435562 | 3.7/3.8V | 2000 | 62 | 55 | 4.3 | |
453035 | 3.7/3.8V | 540 | 35 | 30 | 4.5 | |
453040 | 3.7/3.8V | 570 | 40 | 30 | 4.5 | |
453443 | 3.7/3.8V | 650 | 43 | 34 | 4.5 | |
453450 | 3.7/3.8V | 800 | 50 | 34 | 4.5 | |
454260 | 3.7/3.8V | 1300 | 60 | 42 | 4.5 | |
454770 | 3.7/3.8V | 1900 | 70 | 47 | 4.5 | |
464085 | 3.7/3.8V | 2000 | 85 | 40 | 4.6 | |
472157 | 3.7/3.8V | 700 | 57 | 21 | 4.7 | |
473048 | 3.7/3.8V | 750 | 48 | 30 | 4.7 | |
474665 | 3.7/3.8V | 2000 | 65 | 46 | 4.7 | |
483048 | 3.7/3.8V | 780 | 48 | 30 | 4.8 | |
485947 | 3.7/3.8V | 2000 | 47 | 59 | 4.8 | |
495562 | 3.7/3.8V | 2000 | 62 | 55 | 4.9 | |
502060 | 3.7/3.8V | 700 | 60 | 20 | 5 | |
502157 | 3.7/3.8V | 700 | 57 | 21 | 5 | |
502948 | 3.7/3.8V | 580 | 48 | 29 | 5 | |
503040 | 3.7/3.8V | 600 | 40 | 30 | 5 | |
503048 | 3.7/3.8V | 750 | 48 | 30 | 5 | |
503337 | 3.7/3.8V | 750 | 37 | 33 | 5 | |
503450 | 3.7/3.8V | 1000 | 50 | 34 | 5 | |
503480 | 3.7/3.8V | 1680 | 80 | 34 | 5 | |
503759 | 3.7/3.8V | 1200 | 59 | 37 | 5 | |
504045 | 3.7/3.8V | 900 | 45 | 40 | 5 | |
504240 | 3.7/3.8V | 1000 | 40 | 42 | 5 | |
504246 | 3.7/3.8V | 1100 | 46 | 42 | 5 | |
505068 | 3.7/3.8V | 2000 | 68 | 50 | 5 | |
522062 | 3.7/3.8V | 700 | 62 | 22 | 5.2 | |
523450 | 3.7/3.8V | 1000 | 50 | 34 | 5.2 | |
523467 | 3.7/3.8V | 1450 | 67 | 34 | 5.2 | |
534860 | 3.7/3.8V | 1900 | 60 | 48 | 5.3 | |
535257 | 3.7/3.8V | 2000 | 57 | 52 | 5.3 | |
543448 | 3.7/3.8V | 1000 | 48 | 34 | 5.4 | |
552445 | 3.7/3.8V | 620 | 45 | 24 | 5.5 | |
552548 | 3.7/3.8V | 700 | 48 | 25 | 5.5 | |
553450 | 3.7/3.8V | 1000 | 50 | 34 | 5.5 | |
553640 | 3.7/3.8V | 1000 | 40 | 36 | 5.5 | |
553759 | 3.7/3.8V | 1400 | 59 | 37 | 5.5 | |
563450 | 3.7/3.8V | 1100 | 50 | 34 | 5.6 | |
565049 | 3.7/3.8V | 2000 | 49 | 50 | 5.6 | |
565060 | 3.7/3.8V | 2000 | 60 | 50 | 5.6 | |
573045 | 3.7/3.8V | 750 | 45 | 30 | 5.7 | |
574160 | 3.7/3.8V | 1900 | 60 | 41 | 5.7 | |
582446 | 3.7/3.8V | 650 | 46 | 24 | 5.8 | |
582828 | 3.7/3.8V | 580 | 28 | 28 | 5.8 | |
583443 | 3.7/3.8V | 850 | 43 | 34 | 5.8 | |
593450 | 3.7/3.8V | 1200 | 50 | 34 | 5.9 | |
594459 | 3.7/3.8V | 2000 | 59 | 44 | 5.9 | |
602060 | 3.7/3.8V | 700 | 60 | 20 | 6 | |
602142 | 3.7/3.8V | 520 | 42 | 21 | 6 | |
602540 | 3.7/3.8V | 600 | 40 | 25 | 6 | |
602760 | 3.7/3.8V | 1200 | 60 | 27 | 6 | |
602840 | 3.7/3.8V | 700 | 40 | 28 | 6 | |
603035 | 3.7/3.8V | 600 | 35 | 30 | 6 | |
603040 | 3.7/3.8V | 700 | 40 | 30 | 6 | |
603045 | 3.7/3.8V | 850 | 45 | 30 | 6 | |
603048 | 3.7/3.8V | 1000 | 48 | 30 | 6 | |
603443 | 3.7/3.8V | 850 | 43 | 34 | 6 | |
603450 | 3.7/3.8V | 1200 | 50 | 34 | 6 | |
604346 | 3.7/3.8V | 1500 | 46 | 34 | 6 | |
604759 | 3.7/3.8V | 2000 | 59 | 47 | 6 | |
624038 | 3.7/3.8V | 1100 | 38 | 40 | 6.2 | |
633770 | 3.7/3.8V | 1950 | 70 | 37 | 6.3 | |
634169 | 3.7/3.8V | 2000 | 69 | 41 | 6.3 | |
645254 | 3.7/3.8V | 2000 | 54 | 52 | 6.4 | |
646737 | 3.7/3.8V | 2000 | 37 | 67 | 6.4 | |
651849 | 3.7/3.8V | 740 | 49 | 18 | 6.5 | |
652040 | 3.7/3.8V | 520 | 40 | 20 | 6.5 | |
652461 | 3.7/3.8V | 1250 | 61 | 24 | 6.5 | |
652540 | 3.7/3.8V | 650 | 40 | 25 | 6.5 | |
653040 | 3.7/3.8V | 850 | 40 | 30 | 6.5 | |
653050 | 3.7/3.8V | 1250 | 50 | 30 | 6.5 | |
653535 | 3.7/3.8V | 850 | 35 | 35 | 6.5 | |
654060 | 3.7/3.8V | 1950 | 60 | 40 | 6.5 | |
654167 | 3.7/3.8V | 2000 | 67 | 41 | 6.5 | |
654446 | 3.7/3.8V | 2000 | 46 | 44 | 6.5 | |
663030 | 3.7/3.8V | 650 | 30 | 30 | 6.6 | |
672045 | 3.7/3.8V | 600 | 45 | 20 | 6.7 | |
673554 | 3.7/3.8V | 2000 | 54 | 35 | 6.7 | |
683048 | 3.7/3.8V | 1000 | 48 | 30 | 6.8 | |
683075 | 3.7/3.8V | 1900 | 75 | 30 | 6.8 | |
693040 | 3.7/3.8V | 930 | 40 | 30 | 6.9 | |
694450 | 3.7/3.8V | 2000 | 80 | 44 | 6.9 | |
701658 | 3.7/3.8V | 730 | 58 | 16 | 7 | |
702050 | 3.7/3.8V | 800 | 50 | 20 | 7 | |
702060 | 3.7/3.8V | 850 | 60 | 20 | 7 | |
702240 | 3.7/3.8V | 600 | 40 | 22 | 7 | |
702337 | 3.7/3.8V | 680 | 37 | 23 | 7 | |
702534 | 3.7/3.8V | 700 | 34 | 25 | 7 | |
702535 | 3.7/3.8V | 600 | 35 | 25 | 7 | |
702542 | 3.7/3.8V | 750 | 42 | 25 | 7 | |
703048 | 3.7/3.8V | 1000 | 48 | 30 | 7 | |
703056 | 3.7/3.8V | 1300 | 56 | 30 | 7 | |
703447 | 3.7/3.8V | 1300 | 47 | 34 | 7 | |
703450 | 3.7/3.8V | 1200 | 50 | 34 | 7 | |
703940 | 3.7/3.8V | 1350 | 40 | 39 | 7 | |
704546 | 3.7/3.8V | 2000 | 46 | 45 | 7 | |
704555 | 3.7/3.8V | 2000 | 55 | 45 | 7 | |
714650 | 3.7/3.8V | 2000 | 50 | 46 | 7.1 | |
721945 | 3.7/3.8V | 680 | 45 | 19 | 7.2 | |
724645 | 3.7/3.8V | 2000 | 45 | 46 | 7.2 | |
733030 | 3.7/3.8V | 650 | 30 | 30 | 7.3 | |
734540 | 3.7/3.8V | 1900 | 40 | 45 | 7.3 | |
744442 | 3.7/3.8V | 2000 | 42 | 44 | 7.4 | |
752634 | 3.7/3.8V | 900 | 34 | 26 | 7.5 | |
752648 | 3.7/3.8V | 900 | 48 | 26 | 7.5 | |
752838 | 3.7/3.8V | 700 | 38 | 28 | 7.5 | |
753048 | 3.7/3.8V | 1100 | 48 | 30 | 7.5 | |
753440 | 3.7/3.8V | 950 | 40 | 34 | 7.5 | |
753848 | 3.7/3.8V | 2000 | 48 | 38 | 7.5 | |
762232 | 3.7/3.8V | 550 | 32 | 22 | 7.6 | |
772760 | 3.7/3.8V | 1500 | 60 | 27 | 7.7 | |
772839 | 3.7/3.8V | 950 | 39 | 28 | 7.7 | |
782036 | 3.7/3.8V | 590 | 36 | 20 | 7.8 | |
782538 | 3.7/3.8V | 720 | 38 | 25 | 7.8 | |
783048 | 3.7/3.8V | 1500 | 48 | 30 | 7.8 | |
793160 | 3.7/3.8V | 1800 | 60 | 31 | 7.9 | |
801454 | 3.7/3.8V | 580 | 54 | 14 | 8 | |
802040 | 3.7/3.8V | 650 | 40 | 20 | 8 | |
802045 | 3.7/3.8V | 700 | 45 | 20 | 8 | |
802048 | 3.7/3.8V | 750 | 48 | 20 | 8 | |
802446 | 3.7/3.8V | 920 | 46 | 24 | 8 | |
802530 | 3.7/3.8V | 550 | 30 | 25 | 8 | |
802531 | 3.7/3.8V | 600 | 31 | 25 | 8 | |
802535 | 3.7/3.8V | 700 | 35 | 25 | 8 | |
802540 | 3.7/3.8V | 850 | 40 | 25 | 8 | |
803035 | 3.7/3.8V | 850 | 35 | 30 | 8 | |
803040 | 3.7/3.8V | 1000 | 40 | 30 | 8 | |
803048 | 3.7/3.8V | 1200 | 48 | 30 | 8 | |
803436 | 3.7/3.8V | 1000 | 36 | 34 | 8 | |
803440 | 3.7/3.8V | 1100 | 40 | 30 | 8 | |
803535 | 3.7/3.8V | 1000 | 35 | 35 | 8 | |
803759 | 3.7/3.8V | 2000 | 59 | 37 | 8 | |
823260 | 3.7/3.8V | 1900 | 60 | 32 | 8.2 | |
823448 | 3.7/3.8V | 1500 | 48 | 23 | 8.2 | |
832130 | 3.7/3.8V | 600 | 30 | 21 | 8.3 | |
842346 | 3.7/3.8V | 950 | 46 | 23 | 8.4 | |
843760 | 3.7/3.8V | 1950 | 60 | 37 | 8.4 | |
852835 | 3.7/3.8V | 830 | 35 | 28 | 8.5 | |
853030 | 3.7/3.8V | 800 | 30 | 30 | 8.5 | |
853043 | 3.7/3.8V | 1200 | 43 | 30 | 8.5 | |
882142 | 3.7/3.8V | 800 | 42 | 21 | 8.8 | |
882535 | 3.7/3.8V | 750 | 35 | 25 | 8.8 | |
901745 | 3.7/3.8V | 650 | 45 | 17 | 9 | |
902035 | 3.7/3.8V | 650 | 35 | 20 | 9 | |
902040 | 3.7/3.8V | 700 | 40 | 20 | 9 | |
902148 | 3.7/3.8V | 900 | 48 | 21 | 9 | |
902540 | 3.7/3.8V | 900 | 40 | 25 | 9 | |
902543 | 3.7/3.8V | 1000 | 43 | 25 | 9 | |
902550 | 3.7/3.8V | 1000 | 50 | 25 | 9 | |
903048 | 3.7/3.8V | 1350 | 48 | 30 | 9 | |
903466 | 3.7/3.8V | 1900 | 66 | 34 | 9 | |
903558 | 3.7/3.8V | 2000 | 58 | 35 | 9 | |
903947 | 3.7/3.8V | 2000 | 47 | 39 | 9 | |
911956 | 3.7/3.8V | 1050 | 56 | 19 | 9.1 | |
922062 | 3.7/3.8V | 1450 | 62 | 20 | 9.2 | |
922234 | 3.7/3.8V | 700 | 34 | 22 | 9.2 | |
922535 | 3.7/3.8V | 800 | 35 | 25 | 9.2 | |
932045 | 3.7/3.8V | 800 | 45 | 20 | 9.3 | |
952238 | 3.7/3.8V | 750 | 38 | 22 | 9.5 | |
952258 | 3.7/3.8V | 1350 | 58 | 22 | 9.5 | |
952535 | 3.7/3.8V | 800 | 35 | 25 | 9.5 | |
953040 | 3.7/3.8V | 1200 | 40 | 30 | 9.5 | |
954541 | 3.7/3.8V | 2000 | 41 | 45 | 9.5 | |
961738 | 3.7/3.8V | 530 | 38 | 17 | 9.6 | |
962630 | 3.7/3.8V | 700 | 30 | 26 | 9.6 | |
972130 | 3.7/3.8V | 540 | 30 | 21 | 9.7 | |
973053 | 3.7/3.8V | 1900 | 53 | 30 | 9.7 | |
983448 | 3.7/3.8V | 2000 | 48 | 34 | 9.8 | |
2555106 | 3.7/3.8 | 2000 | 106 | 55 | 2.5 | |
2941108 | 3.7/3.8 | 1800 | 108 | 41 | 2.9 | |
3336114 | 3.7/3.8 | 1800 | 114 | 36 | 3.3 | |
3345116 | 3.7/3.8 | 2000 | 116 | 45 | 3.3 | |
5024100 | 3.7/3.8 | 1500 | 100 | 24 | 5 |
|
Click here to find a list of other models |
T |
5.0mm |
W |
50.0mm |
H |
50.0mm |
L |
60.0mm |
