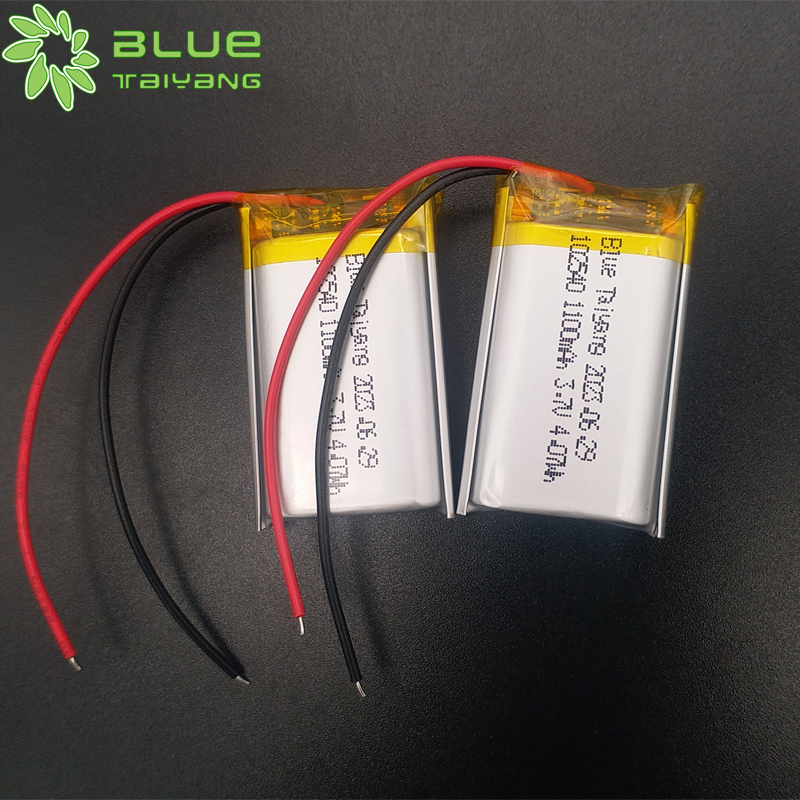

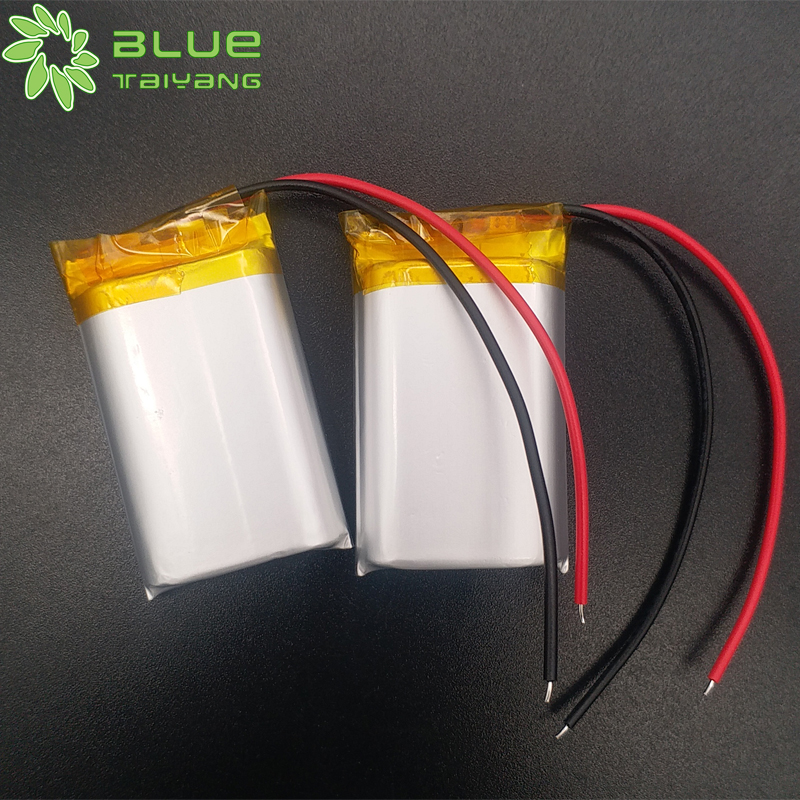

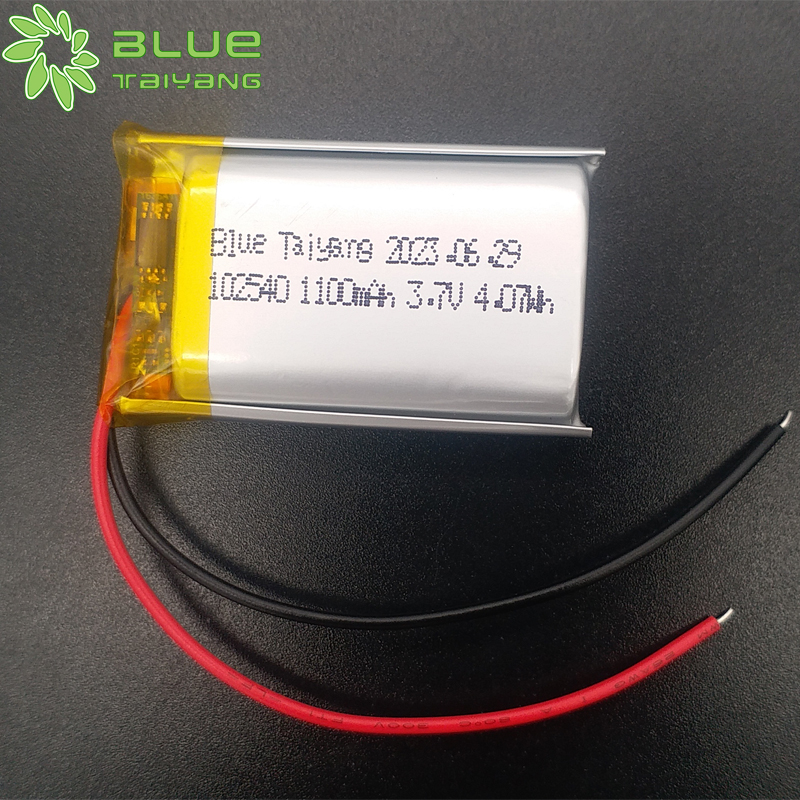

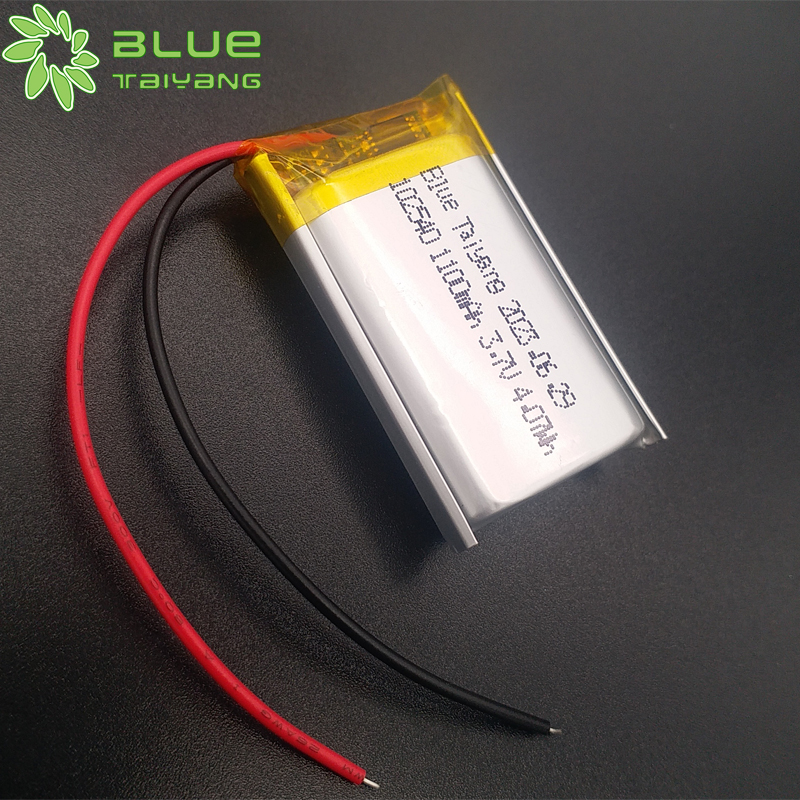

102540 rechargeable lithium polymer 3.7v 1100mah 4.07wh lipo battery cell rc helicopter battery

Items	Parameter
Battery model	LP102540
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	1100mAh(1C discharge)

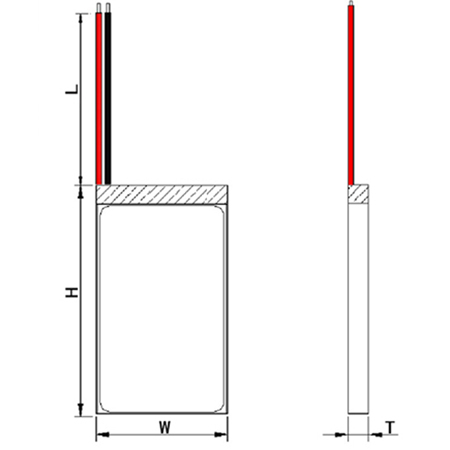

Size	T：10.0mm W：25.0mm H：40.0mm(Includes PCM and wires) L：60.0mm(Wire length)
Charging voltage	4.2V
Discharging cut-off voltage	2.5V
Standard charging	0.2C /4.2V
Max charging	1.0C /4.2V
Standard discharging	0.2C/2.5V
Max discharging	1.0C/2.5V
Weight	Appr：22.0g
Shipment voltage	≥3.9V
Battery pack impedance	≤70mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	( 12 months, ≥85% )
	-10°C ~45°C	( 6 months, ≥85% )
	-10°C~60°C	( 1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Download
102035	3.7/3.8V	650	35.0	20.0	10.0
102050	3.7/3.8V	1000	50.0	20.0	10.0
102060	3.7/3.8V	1200	60.0	20.0	10.0
102230	3.7/3.8V	650	30.0	22.0	10.0
102240	3.7/3.8V	980	40.0	22.0	10.0
102265	3.7/3.8V	1800	65.0	22.0	10.0
102427	3.7/3.8V	600	27.0	24.0	10.0
102530	3.7/3.8V	680	30.0	25.0	10.0
102535	3.7/3.8V	850	35.0	25.0	10.0
102542	3.7/3.8V	1150	42.0	25.0	10.0
102550	3.7/3.8V	1400	50.0	25.0	10.0
102731	3.7/3.8V	800	31.0	27.0	10.0
102737	3.7/3.8V	950	37.0	27.0	10.0
103030	3.7/3.8V	900	30.0	30.0	10.0
103035	3.7/3.8V	1200	35.0	30.0	10.0
103040	3.7/3.8V	1200	40.0	30.0	10.0
103048	3.7/3.8V	1500	48.0	30.0	10.0
103361	3.7/3.8V	2000	61.0	33.0	10.0
103445	3.7/3.8V	1700	45.0	34.0	10.0
103450	3.7/3.8V	1800	50.0	34.0	10.0
103535	3.7/3.8V	1250	35.0	35.0	10.0
103740	3.7/3.8V	1600	40.0	37.0	10.0
104045	3.7/3.8V	2000	45.0	40.0	10.0
104040	3.7/3.8V	1800	40.0	40.0	10.0
112150	3.7/3.8V	1200	50.0	21.0	11.0
112356	3.7/3.8V	1550	56.0	23.0	11.0
112436	3.7/3.8V	1000	36.0	24.0	11.0
113252	3.7/3.8V	2000	52.0	32.0	11.0
113440	3.7/3.8V	1500	40.0	34.0	11.0
113735	3.7/3.8V	2000	35.0	37.0	11.0
122542	3.7/3.8V	1400	42.0	25.0	12.0
123046	3.7/3.8V	1900	46.0	30.0	12.0
123236	3.7/3.8V	1940	36.0	32.0	12.0
267470	3.7/3.8V	1900	70.0	74.0	2.6
286380	3.7/3.8V	1700	80.0	63.0	2.8
285087	3.7/3.8V	1950	87.0	50.0	2.8
285491	3.7/3.8V	2000	91.0	54.0	2.8
286272	3.7/3.8V	1976	72.0	62.0	2.8
296476	3.7/3.8V	1900	76.0	64.0	2.9
304093	3.7/3.8V	1400	93.0	40.0	3.0
304278	3.7/3.8V	1200	78.0	42.0	3.0
304562	3.7/3.8V	1250	62.0	45.0	3.0
333046	3.7/3.8V	520	46.0	30.0	3.3
336678	3.7/3.8V	2200	78.0	66.0	3.3
345171	3.7/3.8V	1750	71.0	51.0	3.4
343893	3.7/3.8V	1900	93.0	38.0	3.4
343993	3.7/3.8V	1800	93.0	39.0	3.4
355864	3.7/3.8V	1950	64.0	58.0	3.5
355580	3.7/3.8V	2200	80.0	55.0	3.5
364050	3.7/3.8V	750	50.0	40.0	3.6
365481	3.7/3.8V	1950	81.0	54.0	3.6
375370	3.7/3.8V	2000	70.0	53.0	3.7
385185	3.7/3.8V	2000	85.0	51.0	3.8
393548	3.7/3.8V	820	48.0	35.0	3.9
394273	3.7/3.8V	1950	73.0	42.0	3.9
403040	3.7/3.8V	530	40.0	30.0	4.0
403048	3.7/3.8V	600	48.0	30.0	4.0
404050	3.7/3.8V	850	50.0	40.0	4.0
404060	3.7/3.8V	1200	60.0	40.0	4.0
404246	3.7/3.8V	800	46.0	42.0	4.0
404274	3.7/3.8V	1950	74.0	42.0	4.0
404280	3.7/3.8V	1500	80.0	42.0	4.0
404385	3.7/3.8V	2000	85.0	43.0	4.0
404580	3.7/3.8V	1500	80.0	45.0	4.0
406571	3.7/3.8V	2000	71.0	65.0	4.0
413489	3.7/3.8V	1600	89.0	34.0	4.1
414360	3.7/3.8V	1700	60.0	43.0	4.1
423450	3.7/3.8V	750	50.0	34.0	4.2
424353	3.7/3.8V	1400	53.0	43.0	4.2
424837	3.7/3.8V	780	37.0	48.0	4.2
425583	3.7/3.8V	2000	83.0	55.0	4.2
425070	3.7/3.8V	2000	70.0	50.0	4.2
432276	3.7/3.8V	1200	76.0	22.0	4.3
435562	3.7/3.8V	2000	62.0	55.0	4.3
442181	3.7/3.8V	1100	81.0	21.0	4.4
443048	3.7/3.8V	700	48.0	30.0	4.4
443095	3.7/3.8V	1350	95.0	30.0	4.4
443958	3.7/3.8V	1250	58.0	39.0	4.4
453035	3.7/3.8V	540	35.0	30.0	4.5
453040	3.7/3.8V	570	40.0	30.0	4.5
453443	3.7/3.8V	650	43.0	34.0	4.5
453450	3.7/3.8V	800	50.0	34.0	4.5
454161	3.7/3.8V	1500	61.0	41.0	4.5
454260	3.7/3.8V	1300	60.0	42.0	4.5
454770	3.7/3.8V	1900	70.0	47.0	4.5
454961	3.7/3.8V	2000	61.0	49.0	4.5
464085	3.7/3.8V	2000	85.0	40.0	4.6
472157	3.7/3.8V	700	57.0	21.0	4.7
473048	3.7/3.8V	750	48.0	30.0	4.7
474665	3.7/3.8V	2000	65.0	46.0	4.7
483048	3.7/3.8V	780	48.0	30.0	4.8
483943	3.7/3.8V	1000	43.0	39.0	4.8
484868	3.7/3.8V	1800	68.0	48.0	4.8
485947	3.7/3.8V	2000	47.0	59.0	4.8
495562	3.7/3.8V	2000	62.0	55.0	4.9
502060	3.7/3.8V	700	60.0	20.0	5.0
502157	3.7/3.8V	700	57.0	21.0	5.0
502948	3.7/3.8V	580	48.0	29.0	5.0
503040	3.7/3.8V	600	40.0	30.0	5.0
503048	3.7/3.8V	750	48.0	30.0	5.0
503065	3.7/3.8V	1500	65.0	30.0	5.0
503337	3.7/3.8V	750	37.0	33.0	5.0
503450	3.7/3.8V	1000	50.0	34.0	5.0
503480	3.7/3.8V	1680	80.0	34.0	5.0
503665	3.7/3.8V	1500	65.0	36.0	5.0
503759	3.7/3.8V	1200	59.0	37.0	5.0
503837	3.7/3.8V	1000	37.0	38.0	5.0
504045	3.7/3.8V	900	45.0	40.0	5.0
504240	3.7/3.8V	1000	40.0	42.0	5.0
504246	3.7/3.8V	1100	46.0	42.0	5.0
505068	3.7/3.8V	2000	68.0	50.0	5.0
522062	3.7/3.8V	700	62.0	22.0	5.2
523450	3.7/3.8V	1000	50.0	34.0	5.2
523467	3.7/3.8V	1450	67.0	34.0	5.2
534860	3.7/3.8V	1900	60.0	48.0	5.3
535257	3.7/3.8V	2000	57.0	52.0	5.3
543448	3.7/3.8V	1000	48.0	34.0	5.4
552445	3.7/3.8V	620	45.0	24.0	5.5
552548	3.7/3.8V	700	48.0	25.0	5.5
553450	3.7/3.8V	1000	50.0	34.0	5.5
553640	3.7/3.8V	1000	40.0	36.0	5.5
553759	3.7/3.8V	1400	59.0	37.0	5.5
563450	3.7/3.8V	1100	50.0	34.0	5.6
565049	3.7/3.8V	2000	49.0	50.0	5.6
565060	3.7/3.8V	2000	60.0	50.0	5.6
573045	3.7/3.8V	750	45.0	30.0	5.7
573569	3.7/3.8V	1950	69.0	35.0	5.7
574160	3.7/3.8V	1900	60.0	41.0	5.7
582446	3.7/3.8V	650	46.0	24.0	5.8
582828	3.7/3.8V	580	28.0	28.0	5.8
583443	3.7/3.8V	850	43.0	34.0	5.8
593450	3.7/3.8V	1200	50.0	34.0	5.9
594459	3.7/3.8V	2000	59.0	44.0	5.9
602060	3.7/3.8V	700	60.0	20.0	6.0
602142	3.7/3.8V	520	42.0	21.0	6.0
602540	3.7/3.8V	600	40.0	25.0	6.0
602760	3.7/3.8V	1200	60.0	27.0	6.0
602840	3.7/3.8V	700	40.0	28.0	6.0
603035	3.7/3.8V	600	35.0	30.0	6.0
603040	3.7/3.8V	700	40.0	30.0	6.0
603045	3.7/3.8V	850	45.0	30.0	6.0
603048	3.7/3.8V	1000	48.0	30.0	6.0
603063	3.7/3.8V	1550	63.0	30.0	6.0
603443	3.7/3.8V	850	43.0	34.0	6.0
603450	3.7/3.8V	1200	50.0	34.0	6.0
604052	3.7/3.8V	1500	52.0	40.0	6.0
604340	3.7/3.8V	1250	40.0	43.0	6.0
604346	3.7/3.8V	1500	46.0	34.0	6.0
604759	3.7/3.8V	2000	59.0	47.0	6.0
612171	3.7/3.8V	1300	71.0	21.0	6.1
623059	3.7/3.8V	1600	59.0	30.0	6.2
624038	3.7/3.8V	1100	38.0	40.0	6.2
633770	3.7/3.8V	1950	70.0	37.0	6.3
634169	3.7/3.8V	2000	69.0	41.0	6.3
641664	3.7/3.8V	660	64.0	16.0	6.4
645254	3.7/3.8V	2000	54.0	52.0	6.4
646737	3.7/3.8V	2000	37.0	67.0	6.4
651849	3.7/3.8V	740	49.0	18.0	6.5
652040	3.7/3.8V	520	40.0	20.0	6.5
652461	3.7/3.8V	1250	61.0	24.0	6.5
652540	3.7/3.8V	650	40.0	25.0	6.5
652723	3.7/3.8V	510	23.0	27.0	6.5
652923	3.7/3.8V	950	23.0	29.0	6.5
653040	3.7/3.8V	850	40.0	30.0	6.5
653048	3.7/3.8V	1000	48.0	30.0	6.5
653050	3.7/3.8V	1250	50.0	30.0	6.5
653245	3.7/3.8V	1100	45.0	32.0	6.5
653535	3.7/3.8V	850	35.0	35.0	6.5
653863	3.7/3.8V	2000	63.0	38.0	6.5
654060	3.7/3.8V	1950	60.0	40.0	6.5
654167	3.7/3.8V	2000	67.0	41.0	6.5
654446	3.7/3.8V	2000	46.0	44.0	6.5
661876	3.7/3.8V	1400	76.0	18.0	6.6
663030	3.7/3.8V	650	30.0	30.0	6.6

673554	3.7/3.8V	2000	54.0	35.0	6.7
683048	3.7/3.8V	1000	48.0	30.0	6.8
683075	3.7/3.8V	1900	75.0	30.0	6.8
692768	3.7/3.8V	1300	68.0	27.0	6.9
693040	3.7/3.8V	930	40.0	30.0	6.9
694450	3.7/3.8V	2000	80.0	44.0	6.9
701658	3.7/3.8V	730	58.0	16.0	7.0
701840	3.7/3.8V	550	40.0	18.0	7.0
702050	3.7/3.8V	800	50.0	20.0	7.0
702060	3.7/3.8V	850	60.0	20.0	7.0
702240	3.7/3.8V	600	40.0	22.0	7.0
702337	3.7/3.8V	680	37.0	23.0	7.0
702534	3.7/3.8V	700	34.0	25.0	7.0
702535	3.7/3.8V	600	35.0	25.0	7.0
702542	3.7/3.8V	750	42.0	25.0	7.0
702548	3.7/3.8V	530	48.0	25.0	7.0
703048	3.7/3.8V	1000	48.0	30.0	7.0
703056	3.7/3.8V	1300	56.0	30.0	7.0
703232	3.7/3.8V	1000	32.0	32.0	7.0
703447	3.7/3.8V	1300	47.0	34.0	7.0
703450	3.7/3.8V	1200	50.0	34.0	7.0
703940	3.7/3.8V	1350	40.0	39.0	7.0
704546	3.7/3.8V	2000	46.0	45.0	7.0
704555	3.7/3.8V	2000	55.0	45.0	7.0
714650	3.7/3.8V	2000	50.0	46.0	7.1
713540	3.7/3.8V	1530	40.0	35.0	7.1
721945	3.7/3.8V	680	45.0	19.0	7.2
724645	3.7/3.8V	2000	45.0	46.0	7.2
733030	3.7/3.8V	650	30.0	30.0	7.3
734540	3.7/3.8V	1900	40.0	45.0	7.3
744442	3.7/3.8V	2000	42.0	44.0	7.4
752634	3.7/3.8V	900	34.0	26.0	7.5
752648	3.7/3.8V	900	48.0	26.0	7.5
752838	3.7/3.8V	700	38.0	28.0	7.5
753048	3.7/3.8V	1100	48.0	30.0	7.5
753440	3.7/3.8V	950	40.0	34.0	7.5
753848	3.7/3.8V	2000	48.0	38.0	7.5
754055	3.7/3.8V	1900	55.0	40.0	7.5
762232	3.7/3.8V	550	32.0	22.0	7.6
772760	3.7/3.8V	1500	60.0	27.0	7.7
772839	3.7/3.8V	950	39.0	28.0	7.7
782036	3.7/3.8V	590	36.0	20.0	7.8
782538	3.7/3.8V	720	38.0	25.0	7.8
783048	3.7/3.8V	1500	48.0	30.0	7.8
793160	3.7/3.8V	1800	60.0	31.0	7.9
801454	3.7/3.8V	580	54.0	14.0	8.0
802040	3.7/3.8V	650	40.0	20.0	8.0
802045	3.7/3.8V	700	45.0	20.0	8.0
802048	3.7/3.8V	750	48.0	20.0	8.0
802065	3.7/3.8V	1200	65.0	20.0	8.0
802446	3.7/3.8V	920	46.0	24.0	8.0
802448	3.7/3.8V	1080	48.0	24.0	8.0
802530	3.7/3.8V	550	30.0	25.0	8.0
802531	3.7/3.8V	600	31.0	25.0	8.0
802535	3.7/3.8V	700	35.0	25.0	8.0
802540	3.7/3.8V	850	40.0	25.0	8.0
802631	3.7/3.8V	600	31.0	26.0	8.0
803035	3.7/3.8V	850	35.0	30.0	8.0
803040	3.7/3.8V	1000	40.0	30.0	8.0
803042	3.7/3.8V	800	42.0	30.0	8.0
803048	3.7/3.8V	1200	48.0	30.0	8.0
803336	3.7/3.8V	1200	36.0	33.0	8.0
803436	3.7/3.8V	1000	36.0	34.0	8.0
803440	3.7/3.8V	1100	40.0	30.0	8.0
803535	3.7/3.8V	1000	35.0	35.0	8.0
803759	3.7/3.8V	2000	59.0	37.0	8.0
803750	3.7/3.8V	1650	50.0	37.0	8.0
823260	3.7/3.8V	1900	60.0	32.0	8.2
823448	3.7/3.8V	1500	48.0	23.0	8.2
832130	3.7/3.8V	600	30.0	21.0	8.3
833833	3.7/3.8V	1500	33.0	38.0	8.3
842346	3.7/3.8V	950	46.0	23.0	8.4
843760	3.7/3.8V	1950	60.0	37.0	8.4
852626	3.7/3.8V	500	26.0	26.0	8.5
852835	3.7/3.8V	830	35.0	28.0	8.5
852952	3.7/3.8V	1400	52.0	29.0	8.5
853030	3.7/3.8V	800	30.0	30.0	8.5
853043	3.7/3.8V	1200	43.0	30.0	8.5
853069	3.7/3.8V	2000	69.0	30.0	8.5
882142	3.7/3.8V	800	42.0	21.0	8.8
882535	3.7/3.8V	750	35.0	25.0	8.8
901745	3.7/3.8V	650	45.0	17.0	9.0
902035	3.7/3.8V	650	35.0	20.0	9.0
902040	3.7/3.8V	700	40.0	20.0	9.0
902045	3.7/3.8V	800	45.0	20.0	9.0
902148	3.7/3.8V	900	48.0	21.0	9.0
902238	3.7/3.8V	780	38.0	22.0	9.0
902540	3.7/3.8V	900	40.0	25.0	9.0
902530	3.7/3.7V	500	30.0	25.0	9.0
902530	3.7/3.7V	700	30.0	25.0	9.0
902543	3.7/3.8V	1000	43.0	25.0	9.0
902550	3.7/3.8V	1000	50.0	25.0	9.0
902554	3.7/3.8V	1500	54.0	25.0	9.0
903048	3.7/3.8V	1350	48.0	30.0	9.0
903466	3.7/3.8V	1900	66.0	34.0	9.0
903558	3.7/3.8V	2000	58.0	35.0	9.0
903636	3.7/3.8V	1300	36.0	36.0	9.0
903947	3.7/3.8V	2000	47.0.	39.0	9.0
911956	3.7/3.8V	1050	56.0	19.0	9.1
922062	3.7/3.8V	1450	62.0	20.0	9.2
922234	3.7/3.8V	700	34.0	22.0	9.2
922535	3.7/3.8V	800	35.0	25.0	9.2
923060	3.7/3.8V	2050	60.0	30.0	9.2
931737	3.7/3.8V	600	37.0	17.0	9.3
932045	3.7/3.8V	800	45.0	20.0	9.3
952238	3.7/3.8V	750	38.0	22.0	9.5
952258	3.7/3.8V	1350	58.0	22.0	9.5
952535	3.7/3.8V	800	35.0	25.0	9.5
953040	3.7/3.8V	1200	40.0	30.0	9.5
953748	3.7/3.8V	1800	48.0	37.0	9.5
954541	3.7/3.8V	2000	41.0	45.0	9.5
961738	3.7/3.8V	530	38.0	17.0	9.6
961737	3.7/3.8V	500	37.0	17.0	9.6
962230	3.7/3.7V	600	30.0	22.0	9.6
962630	3.7/3.8V	700	30.0	26.0	9.6
972130	3.7/3.8V	540	30.0	21.0	9.7
973053	3.7/3.8V	1900	53.0	30.0	9.7
983448	3.7/3.8V	2000	48.0	34.0	9.8
2555106	3.7/3.8	2000	106.0	55.0	2.5
2941108	3.7/3.8	1800	108.0	41.0	2.9
3336114	3.7/3.8	1800	114.0	36.0	3.3
3345116	3.7/3.8	2000	116.0	45.0	3.3
5024100	3.7/3.8	1500	100.0	24.0	5.0

Click here to find a list of other models

T	10.0mm
W	25.0mm
H	40.0mm
L	60.0mm
