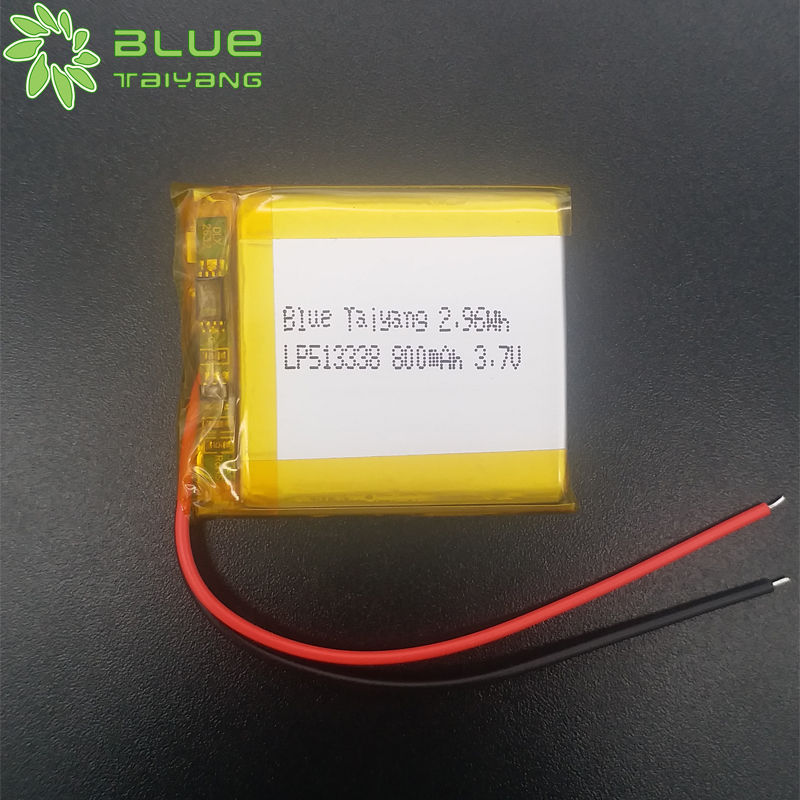

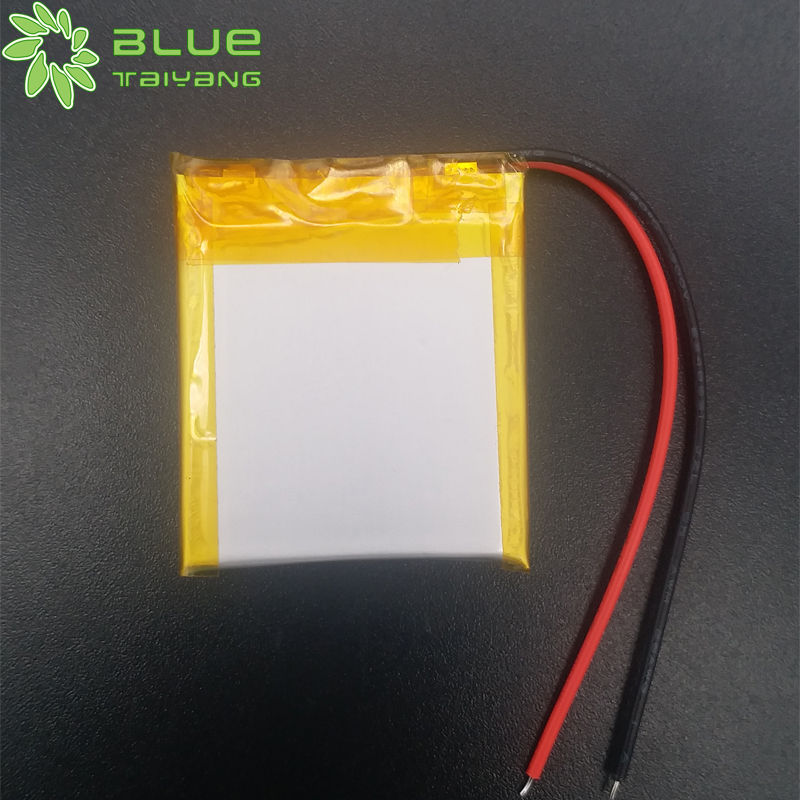

513338 3.7v 800mah 2.96wh rechargeable lithium polymer battery

Items	Parameter
Battery model	LP513338
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	800mAh(1C discharge)
Size	T：5.1mm W：33.0mm H：38.0mm(Includes PCM and wires) L：60.0mm(Wire length)
Charging voltage	4.2V
Discharging cut-off voltage	2.5V
Standard charging	0.2C /4.2V
Max charging	1.0C /4.2V
Standard discharging	0.2C/2.5V
Max discharging	1.0C/2.5V
Weight	Appr：16.0g
Shipment voltage	≥3.9V
Battery pack impedance	≤70mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	( 12 months, ≥85% )
	-10°C ~45°C	( 6 months, ≥85% )
	-10°C~60°C	( 1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Download
102035	3.7/3.8V	650	35	20	10
102050	3.7/3.8V	1000	50	20	10
102060	3.7/3.8V	1200	60	20	10
102230	3.7/3.8V	650	30	22	10
102240	3.7/3.8V	980	40	22	10
102427	3.7/3.8V	600	27	24	10
102530	3.7/3.8V	680	30	25	10
102535	3.7/3.8V	850	35	25	10
102542	3.7/3.8V	1150	42	25	10
102550	3.7/3.8V	1400	50	25	10
102731	3.7/3.8V	800	31	27	10
102737	3.7/3.8V	950	37	27	10
103030	3.7/3.8V	900	30	30	10
103035	3.7/3.8V	1200	35	30	10
103040	3.7/3.8V	1200	40	30	10
103048	3.7/3.8V	1500	48	30	10
103361	3.7/3.8V	2000	61	33	10
103445	3.7/3.8V	1700	45	34	10
103450	3.7/3.8V	1800	50	34	10
103535	3.7/3.8V	1250	35	35	10
103740	3.7/3.8V	1600	40	37	10
104045	3.7/3.8V	2000	45	40	10
112150	3.7/3.8V	1200	50	21	11
112356	3.7/3.8V	1550	56	23	11
112436	3.7/3.8V	1000	36	24	11
113252	3.7/3.8V	2000	52	32	11
113440	3.7/3.8V	1500	40	34	11
113735	3.7/3.8V	2000	35	37	11
122542	3.7/3.8V	1400	42	25	12
123046	3.7/3.8V	1900	46	30	11
123236	3.7/3.8V	1940	36	32	11
285087	3.7/3.8V	1950	87	50	2.8
285491	3.7/3.8V	2000	91	54	2.8
286272	3.7/3.8V	1976	72	62	2.8
296476	3.7/3.8V	1900	76	64	2.9
304093	3.7/3.8V	1400	93	40	3
333046	3.7/3.8V	520	46	30	3.3
343893	3.7/3.8V	1900	93	38	3.4
355864	3.7/3.8V	1950	64	58	3.5
364050	3.7/3.8V	750	50	40	3.6
365481	3.7/3.8V	1950	81	54	3.6
375370	3.7/3.8V	2000	70	53	3.7
385185	3.7/3.8V	2000	85	51	3.8
393548	3.7/3.8V	820	48	35	3.9
394273	3.7/3.8V	1950	73	42	3.9
403040	3.7/3.8V	530	40	30	4
403048	3.7/3.8V	600	48	30	4
404050	3.7/3.8V	850	50	40	4
404060	3.7/3.8V	1200	60	40	4
404246	3.7/3.8V	800	46	42	4
404274	3.7/3.8V	1950	74	42	4
404385	3.7/3.8V	2000	85	43	4
423450	3.7/3.8V	750	50	34	4.2
424837	3.7/3.8V	780	37	48	4.2
425583	3.7/3.8V	2000	83	55	4.2
432276	3.7/3.8V	1200	76	22	4.3
435562	3.7/3.8V	2000	62	55	4.3
453035	3.7/3.8V	540	35	30	4.5
453040	3.7/3.8V	570	40	30	4.5
453443	3.7/3.8V	650	43	34	4.5
453450	3.7/3.8V	800	50	34	4.5
454260	3.7/3.8V	1300	60	42	4.5
454770	3.7/3.8V	1900	70	47	4.5
464085	3.7/3.8V	2000	85	40	4.6
472157	3.7/3.8V	700	57	21	4.7
473048	3.7/3.8V	750	48	30	4.7
474665	3.7/3.8V	2000	65	46	4.7
483048	3.7/3.8V	780	48	30	4.8
485947	3.7/3.8V	2000	47	59	4.8
495562	3.7/3.8V	2000	62	55	4.9
502060	3.7/3.8V	700	60	20	5
502157	3.7/3.8V	700	57	21	5
502948	3.7/3.8V	580	48	29	5
503040	3.7/3.8V	600	40	30	5
503048	3.7/3.8V	750	48	30	5
503337	3.7/3.8V	750	37	33	5
503450	3.7/3.8V	1000	50	34	5
503480	3.7/3.8V	1680	80	34	5
503759	3.7/3.8V	1200	59	37	5
504045	3.7/3.8V	900	45	40	5
504240	3.7/3.8V	1000	40	42	5
504246	3.7/3.8V	1100	46	42	5
505068	3.7/3.8V	2000	68	50	5
522062	3.7/3.8V	700	62	22	5.2
523450	3.7/3.8V	1000	50	34	5.2
523467	3.7/3.8V	1450	67	34	5.2
534860	3.7/3.8V	1900	60	48	5.3
535257	3.7/3.8V	2000	57	52	5.3
543448	3.7/3.8V	1000	48	34	5.4
552445	3.7/3.8V	620	45	24	5.5
552548	3.7/3.8V	700	48	25	5.5
553450	3.7/3.8V	1000	50	34	5.5
553640	3.7/3.8V	1000	40	36	5.5
553759	3.7/3.8V	1400	59	37	5.5
563450	3.7/3.8V	1100	50	34	5.6
565049	3.7/3.8V	2000	49	50	5.6
565060	3.7/3.8V	2000	60	50	5.6
573045	3.7/3.8V	750	45	30	5.7
574160	3.7/3.8V	1900	60	41	5.7
582446	3.7/3.8V	650	46	24	5.8
582828	3.7/3.8V	580	28	28	5.8
583443	3.7/3.8V	850	43	34	5.8
593450	3.7/3.8V	1200	50	34	5.9
594459	3.7/3.8V	2000	59	44	5.9
602060	3.7/3.8V	700	60	20	6
602142	3.7/3.8V	520	42	21	6
602540	3.7/3.8V	600	40	25	6
602760	3.7/3.8V	1200	60	27	6
602840	3.7/3.8V	700	40	28	6
603035	3.7/3.8V	600	35	30	6
603040	3.7/3.8V	700	40	30	6
603045	3.7/3.8V	850	45	30	6
603048	3.7/3.8V	1000	48	30	6
603443	3.7/3.8V	850	43	34	6
603450	3.7/3.8V	1200	50	34	6
604346	3.7/3.8V	1500	46	34	6
604759	3.7/3.8V	2000	59	47	6
624038	3.7/3.8V	1100	38	40	6.2
633770	3.7/3.8V	1950	70	37	6.3
634169	3.7/3.8V	2000	69	41	6.3
645254	3.7/3.8V	2000	54	52	6.4
646737	3.7/3.8V	2000	37	67	6.4
651849	3.7/3.8V	740	49	18	6.5
652040	3.7/3.8V	520	40	20	6.5
652461	3.7/3.8V	1250	61	24	6.5
652540	3.7/3.8V	650	40	25	6.5
653040	3.7/3.8V	850	40	30	6.5
653050	3.7/3.8V	1250	50	30	6.5
653535	3.7/3.8V	850	35	35	6.5
654060	3.7/3.8V	1950	60	40	6.5
654167	3.7/3.8V	2000	67	41	6.5
654446	3.7/3.8V	2000	46	44	6.5
663030	3.7/3.8V	650	30	30	6.6
672045	3.7/3.8V	600	45	20	6.7
673554	3.7/3.8V	2000	54	35	6.7
683048	3.7/3.8V	1000	48	30	6.8
683075	3.7/3.8V	1900	75	30	6.8
693040	3.7/3.8V	930	40	30	6.9
694450	3.7/3.8V	2000	80	44	6.9
701658	3.7/3.8V	730	58	16	7
702050	3.7/3.8V	800	50	20	7
702060	3.7/3.8V	850	60	20	7
702240	3.7/3.8V	600	40	22	7
702337	3.7/3.8V	680	37	23	7
702534	3.7/3.8V	700	34	25	7
702535	3.7/3.8V	600	35	25	7
702542	3.7/3.8V	750	42	25	7
703048	3.7/3.8V	1000	48	30	7
703056	3.7/3.8V	1300	56	30	7
703447	3.7/3.8V	1300	47	34	7
703450	3.7/3.8V	1200	50	34	7
703940	3.7/3.8V	1350	40	39	7
704546	3.7/3.8V	2000	46	45	7
704555	3.7/3.8V	2000	55	45	7
714650	3.7/3.8V	2000	50	46	7.1
721945	3.7/3.8V	680	45	19	7.2
724645	3.7/3.8V	2000	45	46	7.2
733030	3.7/3.8V	650	30	30	7.3
734540	3.7/3.8V	1900	40	45	7.3
744442	3.7/3.8V	2000	42	44	7.4
752634	3.7/3.8V	900	34	26	7.5
752648	3.7/3.8V	900	48	26	7.5
752838	3.7/3.8V	700	38	28	7.5
753048	3.7/3.8V	1100	48	30	7.5
753440	3.7/3.8V	950	40	34	7.5
753848	3.7/3.8V	2000	48	38	7.5
762232	3.7/3.8V	550	32	22	7.6
772760	3.7/3.8V	1500	60	27	7.7
772839	3.7/3.8V	950	39	28	7.7
782036	3.7/3.8V	590	36	20	7.8
782538	3.7/3.8V	720	38	25	7.8
783048	3.7/3.8V	1500	48	30	7.8
793160	3.7/3.8V	1800	60	31	7.9
801454	3.7/3.8V	580	54	14	8
802040	3.7/3.8V	650	40	20	8
802045	3.7/3.8V	700	45	20	8
802048	3.7/3.8V	750	48	20	8
802446	3.7/3.8V	920	46	24	8
802530	3.7/3.8V	550	30	25	8
802531	3.7/3.8V	600	31	25	8
802535	3.7/3.8V	700	35	25	8
802540	3.7/3.8V	850	40	25	8
803035	3.7/3.8V	850	35	30	8
803040	3.7/3.8V	1000	40	30	8
803048	3.7/3.8V	1200	48	30	8
803436	3.7/3.8V	1000	36	34	8
803440	3.7/3.8V	1100	40	30	8
803535	3.7/3.8V	1000	35	35	8
803759	3.7/3.8V	2000	59	37	8
823260	3.7/3.8V	1900	60	32	8.2
823448	3.7/3.8V	1500	48	23	8.2
832130	3.7/3.8V	600	30	21	8.3
842346	3.7/3.8V	950	46	23	8.4
843760	3.7/3.8V	1950	60	37	8.4
852835	3.7/3.8V	830	35	28	8.5
853030	3.7/3.8V	800	30	30	8.5
853043	3.7/3.8V	1200	43	30	8.5
882142	3.7/3.8V	800	42	21	8.8
882535	3.7/3.8V	750	35	25	8.8
901745	3.7/3.8V	650	45	17	9
902035	3.7/3.8V	650	35	20	9
902040	3.7/3.8V	700	40	20	9
902148	3.7/3.8V	900	48	21	9
902540	3.7/3.8V	900	40	25	9
902543	3.7/3.8V	1000	43	25	9
902550	3.7/3.8V	1000	50	25	9
903048	3.7/3.8V	1350	48	30	9
903466	3.7/3.8V	1900	66	34	9
903558	3.7/3.8V	2000	58	35	9
903947	3.7/3.8V	2000	47	39	9
911956	3.7/3.8V	1050	56	19	9.1
922062	3.7/3.8V	1450	62	20	9.2
922234	3.7/3.8V	700	34	22	9.2
922535	3.7/3.8V	800	35	25	9.2
932045	3.7/3.8V	800	45	20	9.3
952238	3.7/3.8V	750	38	22	9.5
952258	3.7/3.8V	1350	58	22	9.5
952535	3.7/3.8V	800	35	25	9.5
953040	3.7/3.8V	1200	40	30	9.5
954541	3.7/3.8V	2000	41	45	9.5
961738	3.7/3.8V	530	38	17	9.6
962630	3.7/3.8V	700	30	26	9.6
972130	3.7/3.8V	540	30	21	9.7
973053	3.7/3.8V	1900	53	30	9.7
983448	3.7/3.8V	2000	48	34	9.8
2555106	3.7/3.8	2000	106	55	2.5
2941108	3.7/3.8	1800	108	41	2.9
3336114	3.7/3.8	1800	114	36	3.3
3345116	3.7/3.8	2000	116	45	3.3
5024100	3.7/3.8	1500	100	24	5

Click here to find a list of other models

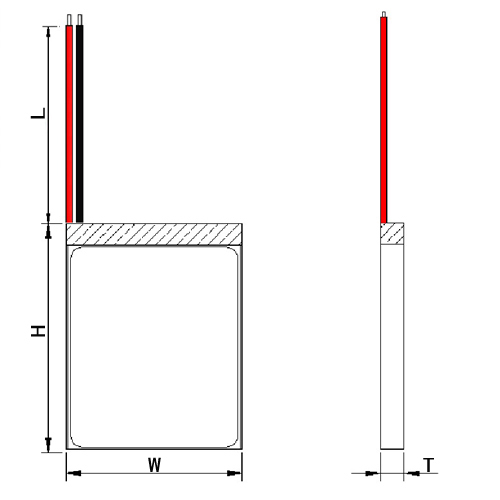

T	5.1mm
W	33.0mm
H	38.0mm
L	60.0mm
