Items | Parameter | |

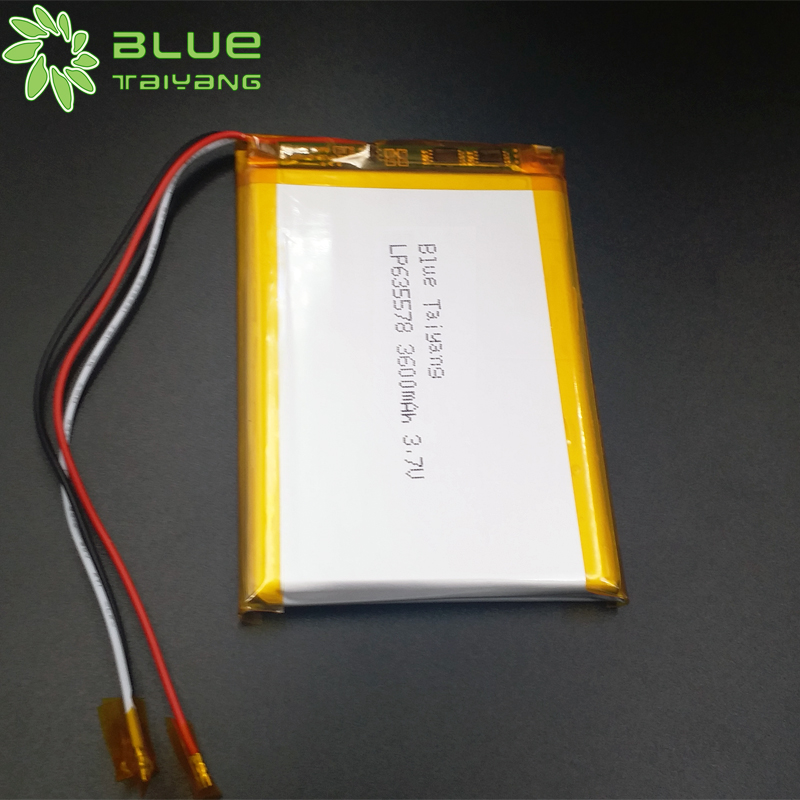

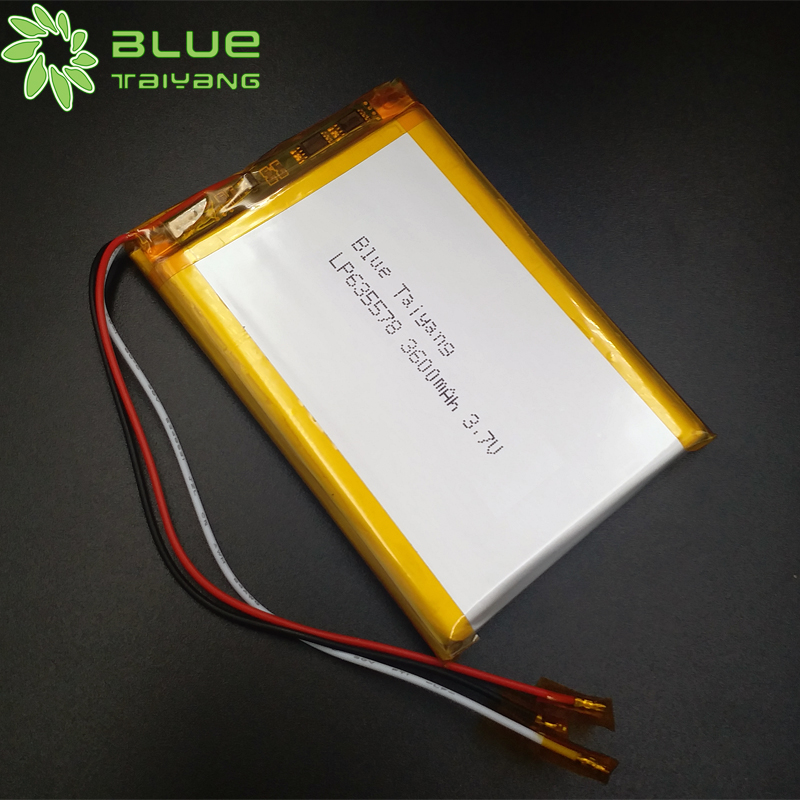

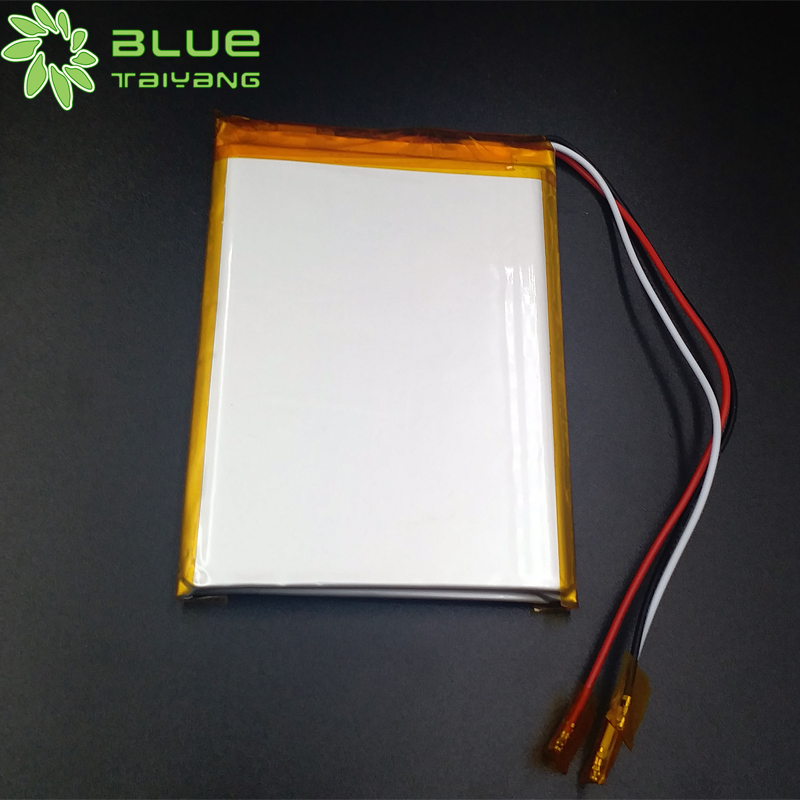

Battery model | LP635578 | |
Design scheme | With PCM | |
Nominal voltage | 3.7V | |
Minimum capacity | 3600mAh (0.5C discharge) | |

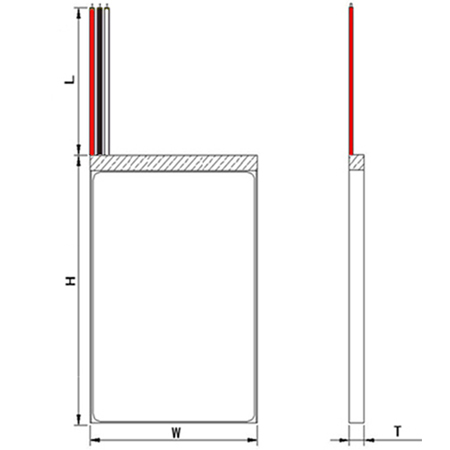

Size |
T: 6.3mm
W: 55.0mm
H: 78.0mm (Includes PCM and wires)
L: 110.0mm (Wire length)
|
|
Charging voltage | 4.3V | |
Discharging cut-off voltage | 2.5V | |
Standard charging | 0.2C /4.2V | |
Max charging | 1.0C /4.2V | |
Standard discharging | 0.2C/2.5V | |
Max discharging | 1.0C/2.5V | |
Weight | Appr:73g | |
Shipment voltage | ≥3.9V | |
Battery pack impedance | ≤50mΩ | |
Operating temperature | Charging: 0°C ~ 45°C | |
Discharging: -20°C ~60°C | ||
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. ) | -10°C~25°C | (12 months, ≥85% ) |
-10°C~45°C | (6 months, ≥85% ) | |
-10°C~60°C | (1 month, ≥90% ) | |
20±5°C is the recommended storage temperature |
Model | Normal Voltage |
Normal Capacity
(mAh)
|
length
(mm)
|
width
(mm)
|
thickness
(mm)
|
Download |
103067 | 3.7/3.8V | 2100 | 67 | 30 | 10 | |
103557 | 3.7/3.8V | 3000 | 57 | 35 | 10 | |
103560 | 3.7/3.8V | 2700 | 60 | 35 | 10 | |
103665 | 3.7/3.8V | 3000 | 65 | 36 | 10 | |
103863 | 3.7/3.8V | 2800 | 63 | 38 | 10 | |
103870 | 3.7/3.8V | 4000 | 70 | 38 | 10 | |
103964 | 3.7/3.8V | 3600 | 64 | 39 | 10 | |
104049 | 3.7/3.8V | 2200 | 49 | 40 | 10.0 | |
104050 | 3.7/3.8V | 2500 | 50 | 40 | 10.0 | |
104058 | 3.7/3.8V | 2600 | 58 | 40 | 10 | |
104069 | 3.7/3.8V | 4400 | 69 | 40 | 10 | |
104078 | 3.7/3.8V | 4000 | 78 | 40 | 10 | |
104273 | 3.7/3.8V | 4200 | 73 | 42 | 10 | |
104346 | 3.7/3.8V | 3000 | 46 | 43 | 10 | |
104372 | 3.7/3.8V | 5000 | 72 | 43 | 10 | |
104373 | 3.7/3.8V | 5000 | 73 | 43 | 10.0 | |
104381 | 3.7/3.8V | 5000 | 81 | 43 | 10.0 | |
104448 | 3.7/3.8V | 3000 | 48 | 44 | 10 | |
104450 | 3.7/3.8V | 3000 | 50 | 44 | 10 | |
104466 | 3.7/3.8V | 4000 | 66 | 44 | 10 | |
104544 | 3.7/3.8V | 3000 | 44 | 45 | 10 | |
104858 | 3.7/3.8V | 3500 | 58 | 48 | 10.0 | |
104861 | 3.7/3.8V | 5000 | 61 | 48 | 10 | |
104954 | 3.7/3.8V | 4200 | 54 | 49 | 10 | |
105056 | 3.7/3.8V | 4500 | 56 | 50 | 10 | |
105555 | 3.7/3.8V | 5000 | 55 | 55 | 10 | |
105568 | 3.7/3.8V | 5000 | 68 | 55 | 10.0 | |
105570 | 3.7/3.8V | 5000 | 70 | 55 | 10.0 | |
105573 | 3.7/3.8V | 5000 | 73 | 55 | 10.0 | |
106168 | 3.7/3.8V | 5000 | 68 | 61 | 10 | |
106248 | 3.7/3.8V | 4000 | 48 | 62 | 10 | |
113073 | 3.7/3.8V | 3700 | 73 | 30 | 11 | |
113565 | 3.7/3.8V | 3700 | 65 | 35 | 11 | |
113855 | 3.7/3.8V | 3500 | 55 | 38 | 11 | |
113876 | 3.7/3.8V | 4000 | 76 | 38 | 11 | |
113962 | 3.7/3.8V | 3670 | 62 | 39 | 11 | |
114056 | 3.7/3.8V | 3350 | 56 | 40 | 11 | |
114062 | 3.7/3.8V | 4000 | 62 | 40 | 11 | |
114148 | 3.7/3.8V | 3250 | 48 | 41 | 11 | |
114258 | 3.7/3.8V | 4000 | 58 | 42 | 11 | |
114348 | 3.7/3.8V | 3250 | 48 | 43 | 11 | |
114443 | 3.7/3.8V | 2850 | 43 | 44 | 11 | |
114762 | 3.7/3.8V | 4300 | 62 | 47 | 11 | |
114846 | 3.7/3.8V | 3450 | 46 | 48 | 11 | |
114950 | 3.7/3.8V | 3000 | 50 | 49 | 11 | |
115162 | 3.7/3.8V | 5000 | 62 | 51 | 11 | |
115262 | 3.7/3.8V | 5000 | 62 | 52 | 11 | |
122770 | 3.7/3.8V | 2400 | 70 | 27 | 11 | |
123650 | 3.7/3.8V | 3000 | 50 | 36 | 11 | |
123665 | 3.7/3.8V | 3600 | 65 | 36 | 11 | |
123744 | 3.7/3.8V | 2850 | 44 | 37 | 11 | |
123771 | 3.7/3.8V | 4000 | 71 | 37 | 11 | |
123855 | 3.7/3.8V | 3500 | 55 | 38 | 11 | |
123868 | 3.7/3.8V | 4700 | 68 | 38 | 12 | |
124062 | 3.7/3.8V | 4000 | 62 | 40 | 12 | |
124064 | 3.7/3.8V | 4000 | 64 | 40 | 12 | |
124170 | 3.7/3.8V | 4700 | 70 | 41 | 12 | |
124258 | 3.7/3.8V | 4120 | 58 | 42 | 12 | |
124345 | 3.7/3.8V | 3400 | 45 | 43 | 12 | |
124353 | 3.7/3.8V | 4160 | 53 | 43 | 12 | |
124356 | 3.7/3.8V | 4000 | 56 | 43 | 12 | |
124452 | 3.7/3.8V | 4000 | 52 | 44 | 12 | |
124465 | 3.7/3.8V | 4000 | 65 | 44 | 12 | |
124565 | 3.7/3.8V | 4500 | 65 | 45 | 12 | |
125053 | 3.7/3.8V | 4000 | 53 | 50 | 12 | |
133561 | 3.7/3.8V | 3500 | 61 | 35 | 13 | |
133568 | 3.7/3.8V | 4000 | 68 | 35 | 13 | |
266796 | 3.7/3.8V | 2150 | 96 | 67 | 2.6 | |
267293 | 3.7/3.8V | 2500 | 93 | 72 | 2.6 | |
267394 | 3.7/3.8V | 2700 | 94 | 73 | 2.6 | |
287095 | 3.7/3.8V | 2500 | 95 | 70 | 2.8 | |
288088 | 3.7/3.8V | 2200 | 88 | 80 | 2.8 | |
298085 | 3.7/3.8V | 3000 | 85 | 80 | 2.9 | |
298595 | 3.7/3.8V | 4000 | 95 | 85 | 2.9 | |
298893 | 3.7/3.8V | 3750 | 93 | 88 | 2.9 | |
306799 | 3.7/3.8V | 2400 | 99 | 67 | 3.0 | |
307090 | 3.7/3.8V | 2150 | 90 | 70 | 3.0 | |
307095 | 3.7/3.8V | 2500 | 95 | 70 | 3.0 | |
308083 | 3.7/3.8V | 3000 | 83 | 80 | 3.0 | |
308085 | 3.7/3.8V | 2500 | 85 | 80 | 3.0 | |
308088 | 3.7/3.8V | 2800 | 88 | 80 | 3.0 | |
308590 | 3.7/3.8V | 3000 | 90 | 85 | 3.0 | |
308888 | 3.7/3.8V | 3400 | 88 | 88 | 3.0 | |
309395 | 3.7/3.8V | 3700 | 95 | 93 | 3.0 | |
309595 | 3.7/3.8V | 3500 | 95 | 95 | 3.0 | |
309699 | 3.7/3.8V | 4000 | 99 | 96 | 3.0 | |
309895 | 3.7/3.8V | 4000 | 95 | 98 | 3.0 | |
316285 | 3.7/3.8V | 2500 | 85 | 62 | 3.1 | |
317090 | 3.7/3.8V | 3000 | 90 | 70 | 3.1 | |
325292 | 3.7/3.8V | 2050 | 92 | 52 | 3.2 | |
326679 | 3.7/3.8V | 2450 | 79 | 66 | 3.2 | |
327098 | 3.7/3.8V | 3000 | 98 | 70 | 3.2 | |
327590 | 3.7/3.8V | 3500 | 90 | 75 | 3.2 | |
329074 | 3.7/3.8V | 3550 | 74 | 90 | 3.2 | |
335598 | 3.7/3.8V | 2440 | 98 | 55 | 3.3 | |
335983 | 3.7/3.8V | 2500 | 83 | 59 | 3.3 | |
336587 | 3.7/3.8V | 2600 | 87 | 65 | 3.3 | |
337095 | 3.7/3.8V | 2800 | 95 | 70 | 3.3 | |
345766 | 3.7/3.8V | 2200 | 66 | 57 | 3.4 | |
346588 | 3.7/3.8V | 3200 | 88 | 65 | 3.4 | |
346680 | 3.7/3.8V | 2800 | 80 | 66 | 3.4 | |
347090 | 3.7/3.8V | 2800 | 90 | 70 | 3.4 | |
348589 | 3.7/3.8V | 4100 | 89 | 85 | 3.4 | |
349396 | 3.7/3.8V | 2800 | 96 | 96 | 3.4 | |
355880 | 3.7/3.8V | 2020 | 80 | 58 | 3.5 | |
356290 | 3.7/3.8V | 2900 | 90 | 62 | 3.5 | |
356372 | 3.7/3.8V | 2500 | 72 | 63 | 3.5 | |
356380 | 3.7/3.8V | 2300 | 80 | 63 | 3.5 | |
356479 | 3.7/3.8V | 3300 | 79 | 64 | 3.5 | |
356777 | 3.7/3.8V | 2700 | 77 | 67 | 3.5 | |
357095 | 3.7/3.8V | 2500 | 95 | 70 | 3.5 | |
357176 | 3.7/3.8V | 3000 | 76 | 71 | 3.5 | |
365978 | 3.7/3.8V | 2500 | 78 | 59 | 3.6 | |
366074 | 3.7/3.8V | 2500 | 74 | 60 | 3.6 | |
366076 | 3.7/3.8V | 2500 | 76 | 60 | 3.6 | |
366080 | 3.7/3.8V | 2400 | 80 | 60 | 3.6 | |
366176 | 3.7/3.8V | 2500 | 76 | 61 | 3.6 | |
366685 | 3.7/3.8V | 2600 | 85 | 66 | 3.6 | |
367293 | 3.7/3.8V | 4000 | 93 | 72 | 3.6 | |
368497 | 3.7/3.8V | 4200 | 97 | 84 | 3.6 | |
375983 | 3.7/3.8V | 3000 | 83 | 59 | 3.7 | |
376068 | 3.7/3.8V | 2200 | 68 | 60 | 3.7 | |
376799 | 3.7/3.8V | 3100 | 99 | 67 | 3.7 | |
376896 | 3.7/3.8V | 3620 | 96 | 68 | 3.7 | |
378694 | 3.7/3.8V | 5000 | 94 | 86 | 3.7 | |
379190 | 3.7/3.8V | 4350 | 90 | 91 | 3.7 | |
385475 | 3.7/3.8V | 2200 | 75 | 54 | 3.8 | |
385769 | 3.7/3.8V | 2480 | 69 | 57 | 3.8 | |
385896 | 3.7/3.8V | 3200 | 96 | 58 | 3.8 | |
386080 | 3.7/3.8V | 2750 | 80 | 60 | 3.8 | |
386082 | 3.7/3.8V | 3220 | 82 | 60 | 3.8 | |
386380 | 3.7/3.8V | 2500 | 80 | 63 | 3.8 | |
386479 | 3.7/3.8V | 3000 | 79 | 64 | 3.8 | |
386482 | 3.7/3.8V | 2910 | 82 | 64 | 3.8 | |
386585 | 3.7/3.8V | 2700 | 85 | 65 | 3.8 | |
386587 | 3.7/3.8V | 3200 | 87 | 65 | 3.8 | |
386996 | 3.7/3.8V | 3500 | 96 | 69 | 3.8 | |
396377 | 3.7/3.8V | 2500 | 77 | 63 | 3.9 | |
396871 | 3.7/3.8V | 2850 | 71 | 68 | 3.9 | |
398093 | 3.7/3.8V | 4000 | 93 | 80 | 3.9 | |
404579 | 3.7/3.8V | 2300 | 79 | 45 | 4.0 | |
405887 | 3.7/3.8V | 3000 | 87 | 58 | 4.0 | |
405889 | 3.7/3.8V | 3000 | 89 | 58 | 4.0 | |
405890 | 3.7/3.8V | 3000 | 90 | 58 | 4.0 | |
405969 | 3.7/3.8V | 2650 | 69 | 59 | 4.0 | |
405981 | 3.7/3.8V | 2700 | 81 | 59 | 4.0 | |
406063 | 3.7/3.8V | 2100 | 63 | 60 | 4.0 | |
406080 | 3.7/3.8V | 3000 | 80 | 60 | 4.0 | |
406082 | 3.7/3.8V | 3000 | 82 | 60 | 4.0 | |
406387 | 3.7/3.8V | 3485 | 87 | 63 | 4.0 | |
406484 | 3.7/3.8V | 3600 | 84 | 64 | 4.0 | |
406493 | 3.7/3.8V | 3900 | 93 | 64 | 4.0 | |
406669 | 3.7/3.8V | 3000 | 69 | 66 | 4.0 | |
406787 | 3.7/3.8V | 3200 | 87 | 67 | 4.0 | |
408095 | 3.7/3.8V | 4000 | 95 | 80 | 4.0 | |
408596 | 3.7/3.8V | 4500 | 96 | 85 | 4.0 | |
408991 | 3.7/3.8V | 3250 | 91 | 89 | 4.0 | |
415489 | 3.7/3.8V | 3000 | 89 | 54 | 4.1 | |
416087 | 3.7/3.8V | 3500 | 87 | 60 | 4.1 | |
416179 | 3.7/3.8V | 2700 | 79 | 61 | 4.1 | |
416276 | 3.7/3.8V | 2500 | 76 | 62 | 4.1 | |
416584 | 3.7/3.8V | 3900 | 84 | 65 | 4.1 | |
416587 | 3.7/3.8V | 3500 | 87 | 65 | 4.1 | |
424590 | 3.7/3.8V | 3180 | 90 | 45 | 4.2 | |
425864 | 3.7/3.8V | 2220 | 64 | 58 | 4.2 | |
426278 | 3.7/3.8V | 2700 | 78 | 62 | 4.2 | |
426386 | 3.7/3.8V | 3000 | 86 | 63 | 4.2 | |
426483 | 3.7/3.8V | 3000 | 83 | 64 | 4.2 | |
426484 | 3.7/3.8V | 3500 | 84 | 64 | 4.2 | |
426488 | 3.7/3.8V | 4000 | 88 | 64 | 4.2 | |
426584 | 3.7/3.8V | 4000 | 84 | 65 | 4.2 | |
428787 | 3.7/3.8V | 4250 | 87 | 87 | 4.2 | |
428978 | 3.7/3.8V | 3900 | 78 | 89 | 4.2 | |
434296 | 3.7/3.8V | 2150 | 96 | 42 | 4.3 | |
435483 | 3.7/3.8V | 2800 | 83 | 54 | 4.3 | |
436290 | 3.7/3.8V | 2400 | 90 | 62 | 4.3 | |
436382 | 3.7/3.8V | 4000 | 82 | 63 | 4.3 | |
436384 | 3.7/3.8V | 4000 | 84 | 63 | 4.3 | |
436578 | 3.7/3.8V | 3300 | 78 | 65 | 4.3 | |
436582 | 3.7/3.8V | 3950 | 82 | 65 | 4.3 | |
436660 | 3.7/3.8V | 2700 | 60 | 36 | 4.3 | |
436981 | 3.7/3.8V | 4000 | 81 | 69 | 4.3 | |
437885 | 3.7/3.8V | 4500 | 85 | 78 | 4.3 | |
438155 | 3.7/3.8V | 3100 | 55 | 81 | 4.3 | |
443879 | 3.7/3.8V | 2050 | 79 | 38 | 4.4 | |
444090 | 3.7/3.8V | 2547 | 90 | 40 | 4.4 | |
445285 | 3.7/3.8V | 2800 | 85 | 52 | 4.4 | |
445392 | 3.7/3.8V | 2500 | 91 | 53 | 4.4 | |
445769 | 3.7/3.8V | 2920 | 69 | 57 | 4.4 | |
445770 | 3.7/3.8V | 2950 | 70 | 57 | 4.4 | |
446388 | 3.7/3.8V | 4000 | 88 | 63 | 4.4 | |
453776 | 3.7/3.8V | 2050 | 76 | 37 | 4.5 | |
453995 | 3.7/3.8V | 2100 | 95 | 39 | 4.5 | |
454092 | 3.7/3.8V | 2900 | 92 | 40 | 4.5 | |
455085 | 3.7/3.8V | 2300 | 85 | 50 | 4.5 | |
455271 | 3.7/3.8V | 2550 | 71 | 52 | 4.5 | |
455369 | 3.7/3.8V | 2020 | 69 | 53 | 4.5 | |
456498 | 3.7/3.8V | 2800 | 98 | 64 | 4.5 | |
459576 | 3.7/3.8V | 4800 | 76 | 95 | 4.5 | |
465557 | 3.7/3.8V | 2450 | 57 | 55 | 4.6 | |
465585 | 3.7/3.8V | 2800 | 85 | 55 | 4.6 | |
465880 | 3.7/3.8V | 3000 | 80 | 58 | 4.6 | |
466061 | 3.7/3.8V | 2200 | 61 | 60 | 4.6 | |
466272 | 3.7/3.8V | 3650 | 72 | 62 | 4.6 | |
466380 | 3.7/3.8V | 3500 | 80 | 63 | 4.6 | |
466493 | 3.7/3.8V | 4800 | 93 | 64 | 4.6 | |
466561 | 3.7/3.8V | 2500 | 61 | 65 | 4.6 | |
466591 | 3.7/3.8V | 4900 | 91 | 65 | 4.6 | |
466595 | 3.7/3.8V | 4950 | 95 | 65 | 4.6 | |
466666 | 3.7/3.8V | 3000 | 66 | 66 | 4.6 | |
466986 | 3.7/3.8V | 3900 | 86 | 69 | 4.6 | |
468882 | 3.7/3.8V | 4800 | 82 | 88 | 4.6 | |
474475 | 3.7/3.8V | 2580 | 75 | 44 | 4.7 | |
474580 | 3.7/3.8V | 2300 | 80 | 45 | 4.7 | |
475886 | 3.7/3.8V | 3850 | 86 | 58 | 4.7 | |
475984 | 3.7/3.8V | 4000 | 84 | 59 | 4.7 | |
476078 | 3.7/3.8V | 3300 | 78 | 60 | 4.7 | |
476179 | 3.7/3.8V | 3500 | 79 | 61 | 4.7 | |
476180 | 3.7/3.8V | 4000 | 80 | 61 | 4.7 | |
476369 | 3.7/3.8V | 2750 | 69 | 63 | 4.7 | |
476371 | 3.7/3.8V | 2750 | 71 | 63 | 4.7 | |
476389 | 3.7/3.8V | 4880 | 89 | 63 | 4.7 | |
476484 | 3.7/3.8V | 4400 | 84 | 64 | 4.7 | |
476690 | 3.7/3.8V | 4930 | 90 | 66 | 4.7 | |
477877 | 3.7/3.8V | 4400 | 77 | 78 | 4.7 | |
485575 | 3.7/3.8V | 2750 | 75 | 55 | 4.8 | |
485584 | 3.7/3.8V | 3420 | 84 | 55 | 4.8 | |
485795 | 3.7/3.8V | 4900 | 95 | 57 | 4.8 | |
486079 | 3.7/3.8V | 3500 | 79 | 60 | 4.8 | |
486087 | 3.7/3.8V | 2400 | 87 | 60 | 4.8 | |
486095 | 3.7/3.8V | 4000 | 95 | 60 | 4.8 | |
486272 | 3.7/3.8V | 3950 | 72 | 62 | 4.8 | |
486374 | 3.7/3.8V | 3150 | 74 | 63 | 4.8 | |
486574 | 3.7/3.8V | 3600 | 74 | 65 | 4.8 | |
486590 | 3.7/3.8V | 4000 | 90 | 65 | 4.8 | |
486790 | 3.7/3.8V | 5000 | 90 | 67 | 4.8 | |
486871 | 3.7/3.8V | 3200 | 71 | 68 | 4.8 | |
488471 | 3.7/3.8V | 3800 | 71 | 84 | 4.8 | |
494597 | 3.7/3.8V | 3250 | 97 | 45 | 4.9 | |
495490 | 3.7/3.8V | 4030 | 90 | 54 | 4.9 | |
495878 | 3.7/3.8V | 3720 | 78 | 58 | 4.9 | |
496688 | 3.7/3.8V | 4720 | 88 | 66 | 4.9 | |
496691 | 3.7/3.8V | 4700 | 91 | 66 | 4.9 | |
497087 | 3.7/3.8V | 4900 | 87 | 70 | 4.9 | |
499097 | 3.7/3.8V | 5000 | 97 | 90 | 4.9 | |
504078 | 3.7/3.8V | 2400 | 78 | 40 | 5.0 | |
504997 | 3.7/3.8V | 3000 | 97 | 49 | 5.0 | |
505170 | 3.7/3.8V | 2200 | 70 | 51 | 5.0 | |
505256 | 3.7/3.8V | 2200 | 56 | 52 | 5.0 | |
505999 | 3.7/3.8V | 3715 | 99 | 59 | 5.0 | |
506193 | 3.7/3.8V | 4000 | 93 | 61 | 5.0 | |
506465 | 3.7/3.8V | 3300 | 65 | 64 | 5.0 | |
506582 | 3.7/3.8V | 4000 | 82 | 65 | 5.0 | |
506758 | 3.7/3.8V | 2700 | 58 | 67 | 5.0 | |
507175 | 3.7/3.8V | 4000 | 75 | 71 | 5.0 | |
507779 | 3.7/3.8V | 4100 | 79 | 77 | 5.0 | |
507983 | 3.7/3.8V | 4000 | 83 | 79 | 5.0 | |
508865 | 3.7/3.8V | 4700 | 65 | 88 | 5.0 | |
515777 | 3.7/3.8V | 3600 | 77 | 57 | 5.1 | |
515974 | 3.7/3.8V | 3600 | 74 | 59 | 5.1 | |
517183 | 3.7/3.8V | 5000 | 83 | 71 | 5.1 | |
524687 | 3.7/3.8V | 3200 | 87 | 46 | 5.2 | |
524961 | 3.7/3.8V | 2620 | 61 | 49 | 5.2 | |
525075 | 3.7/3.8V | 2500 | 75 | 50 | 5.2 | |
525280 | 3.7/3.8V | 2700 | 80 | 75 | 5.2 | |
525580 | 3.7/3.8V | 3500 | 80 | 52 | 5.2 | |
525777 | 3.7/3.8V | 3400 | 77 | 55 | 5.2 | |
525779 | 3.7/3.8V | 3600 | 79 | 57 | 5.2 | |
526270 | 3.7/3.8V | 3400 | 70 | 62 | 5.2 | |
526272 | 3.7/3.8V | 3400 | 72 | 62 | 5.2 | |
526275 | 3.7/3.8V | 4200 | 75 | 62 | 5.2 | |
526468 | 3.7/3.8V | 3850 | 68 | 64 | 5.2 | |
526480 | 3.7/3.8V | 3850 | 80 | 64 | 5.2 | |
526580 | 3.7/3.8V | 4000 | 80 | 65 | 5.2 | |
526974 | 3.7/3.8V | 4150 | 74 | 69 | 5.2 | |
533975 | 3.7/3.8V | 2100 | 75 | 39 | 5.3 | |
534764 | 3.7/3.8V | 2600 | 64 | 47 | 5.3 | |
535186 | 3.7/3.8V | 3300 | 86 | 51 | 5.3 | |
535284 | 3.7/3.8V | 3300 | 84 | 52 | 5.3 | |
535292 | 3.7/3.8V | 4000 | 92 | 52 | 5.3 | |
535578 | 3.7/3.8V | 3600 | 78 | 55 | 5.3 | |
535776 | 3.7/3.8V | 3700 | 76 | 57 | 5.3 | |
536057 | 3.7/3.8V | 3200 | 57 | 60 | 5.3 | |
544380 | 3.7/3.8V | 2200 | 90 | 43 | 5.4 | |
544762 | 3.7/3.8V | 2630 | 62 | 47 | 5.4 | |
545068 | 3.7/3.8V | 2550 | 68 | 50 | 5.4 | |
545163 | 3.7/3.8V | 2100 | 63 | 51 | 5.4 | |
545287 | 3.7/3.8V | 3350 | 87 | 52 | 5.4 | |
545288 | 3.7/3.8V | 2800 | 88 | 52 | 5.4 | |
545669 | 3.7/3.8V | 2950 | 69 | 56 | 5.4 | |
545693 | 3.7/3.8V | 4250 | 93 | 56 | 5.4 | |
546290 | 3.7/3.8V | 4850 | 90 | 62 | 5.4 | |
546982 | 3.7/3.8V | 4000 | 82 | 69 | 5.4 | |
546984 | 3.7/3.8V | 4000 | 84 | 69 | 5.4 | |
554393 | 3.7/3.8V | 3350 | 93 | 43 | 5.5 | |
554998 | 3.7/3.8V | 4600 | 98 | 49 | 5.5 | |
555498 | 3.7/3.8V | 4000 | 98 | 54 | 5.5 | |
556095 | 3.7/3.8V | 4000 | 95 | 60 | 5.5 | |
564070 | 3.7/3.8V | 2500 | 70 | 40 | 5.6 | |
564173 | 3.7/3.8V | 2400 | 73 | 41 | 5.6 | |
564497 | 3.7/3.8V | 3000 | 97 | 44 | 5.6 | |
565872 | 3.7/3.8V | 3400 | 72 | 58 | 5.6 | |
566270 | 3.7/3.8V | 3000 | 70 | 62 | 5.6 | |
573496 | 3.7/3.8V | 2200 | 96 | 34 | 5.7 | |
574599 | 3.7/3.8V | 3150 | 99 | 45 | 5.7 | |
574954 | 3.7/3.8V | 2220 | 54 | 49 | 5.7 | |
575576 | 3.7/3.8V | 3450 | 76 | 55 | 5.7 | |
575578 | 3.7/3.8V | 2500 | 78 | 55 | 5.7 | |
576090 | 3.7/3.8V | 4150 | 90 | 60 | 5.7 | |
576185 | 3.7/3.8V | 5000 | 85 | 61 | 5.7 | |
577093 | 3.7/3.8V | 5000 | 93 | 70 | 5.7 | |
584764 | 3.7/3.8V | 2050 | 64 | 47 | 5.8 | |
584858 | 3.7/3.8V | 2090 | 58 | 48 | 5.8 | |
584976 | 3.7/3.8V | 3460 | 76 | 49 | 5.8 | |
585575 | 3.7/3.8V | 2900 | 75 | 55 | 5.8 | |
585577 | 3.7/3.8V | 3900 | 77 | 55 | 5.8 | |
585579 | 3.7/3.8V | 4200 | 79 | 55 | 5.8 | |
585880 | 3.7/3.8V | 3600 | 80 | 58 | 5.8 | |
585950 | 3.7/3.8V | 2650 | 50 | 59 | 5.8 | |
585962 | 3.7/3.8V | 3500 | 62 | 59 | 5.8 | |
586285 | 3.7/3.8V | 4000 | 85 | 62 | 5.8 | |
587578 | 3.7/3.8V | 4000 | 78 | 75 | 5.8 | |
588157 | 3.7/3.8V | 3500 | 57 | 81 | 5.8 | |
594280 | 3.7/3.8V | 2600 | 80 | 42 | 5.9 | |
594368 | 3.7/3.8V | 2250 | 68 | 43 | 5.9 | |
594395 | 3.7/3.8V | 2800 | 95 | 43 | 5.9 | |
595578 | 3.7/3.8V | 3600 | 78 | 55 | 5.9 | |
596067 | 3.7/3.8V | 2900 | 67 | 60 | 5.9 | |
596181 | 3.7/3.8V | 4700 | 81 | 61 | 5.9 | |
596378 | 3.7/3.8V | 5000 | 63 | 63 | 5.9 | |
603380 | 3.7/3.8V | 2100 | 80 | 33 | 6.0 | |
604097 | 3.7/3.8V | 2600 | 97 | 40 | 6.0 | |
604664 | 3.7/3.8V | 2200 | 64 | 46 | 6.0 | |
604674 | 3.7/3.8V | 3600 | 74 | 46 | 6.0 | |
604875 | 3.7/3.8V | 2600 | 75 | 48 | 6.0 | |
604880 | 3.7/3.8V | 3700 | 80 | 48 | 6.0 | |
605361 | 3.7/3.8V | 2750 | 61 | 53 | 6.0 | |
605374 | 3.7/3.8V | 2400 | 74 | 53 | 6.0 | |
605483 | 3.7/3.8V | 3500 | 83 | 54 | 6.0 | |
605490 | 3.7/3.8V | 4000 | 90 | 54 | 6.0 | |
605562 | 3.7/3.8V | 2700 | 62 | 55 | 6.0 | |
605578 | 3.7/3.8V | 3400 | 78 | 55 | 6.0 | |
605969 | 3.7/3.8V | 4000 | 69 | 59 | 6.0 | |
606063 | 3.7/3.8V | 3400 | 63 | 60 | 6.0 | |
606070 | 3.7/3.8V | 3000 | 70 | 60 | 6.0 | |
606072 | 3.7/3.8V | 4150 | 72 | 60 | 6.0 | |
606080 | 3.7/3.8V | 3900 | 80 | 60 | 6.0 | |
606082 | 3.7/3.8V | 3800 | 82 | 60 | 6.0 | |
606090 | 3.7/3.8V | 5000 | 90 | 60 | 6.0 | |
606168 | 3.7/3.8V | 2400 | 68 | 61 | 6.0 | |
606262 | 3.7/3.8V | 3550 | 62 | 62 | 6.0 | |
606282 | 3.7/3.8V | 5000 | 82 | 62 | 6.0 | |
606397 | 3.7/3.8V | 4850 | 97 | 63 | 6.0 | |
606576 | 3.7/3.8V | 3450 | 76 | 65 | 6.0 | |
606580 | 3.7/3.8V | 4000 | 80 | 65 | 6.0 | |
606696 | 3.7/3.8V | 5000 | 96 | 66 | 6.0 | |
614279 | 3.7/3.8V | 3150 | 79 | 42 | 6.1 | |
614282 | 3.7/3.8V | 3000 | 82 | 42 | 6.1 | |
614857 | 3.7/3.8V | 2500 | 57 | 48 | 6.1 | |
615453 | 3.7/3.8V | 2030 | 53 | 54 | 6.1 | |
615576 | 3.7/3.8V | 3950 | 76 | 55 | 6.1 | |
615957 | 3.7/3.8V | 3175 | 57 | 59 | 6.1 | |
616864 | 3.7/3.8V | 3896 | 64 | 68 | 6.1 | |
624751 | 3.7/3.8V | 2250 | 51 | 47 | 6.2 | |
624764 | 3.7/3.8V | 2800 | 64 | 47 | 6.2 | |
624871 | 3.7/3.8V | 3000 | 71 | 48 | 6.2 | |
624885 | 3.7/3.8V | 4100 | 85 | 48 | 6.2 | |
625686 | 3.7/3.8V | 4800 | 86 | 56 | 6.2 | |
625978 | 3.7/3.8V | 5000 | 78 | 59 | 6.2 | |
626196 | 3.7/3.8V | 5000 | 96 | 61 | 6.2 | |
627138 | 3.7/3.8V | 2550 | 38 | 71 | 6.2 | |
634791 | 3.7/3.8V | 4500 | 91 | 47 | 6.3 | |
634869 | 3.7/3.8V | 2800 | 69 | 48 | 6.3 | |
635776 | 3.7/3.8V | 4860 | 76 | 57 | 6.3 | |
635883 | 3.7/3.8V | 4000 | 83 | 58 | 6.3 | |
636267 | 3.7/3.8V | 3300 | 67 | 62 | 6.3 | |
638870 | 3.7/3.8V | 4900 | 70 | 88 | 6.3 | |
644889 | 3.7/3.8V | 3950 | 89 | 48 | 6.4 | |
645465 | 3.7/3.8V | 3900 | 65 | 54 | 6.4 | |
645573 | 3.7/3.8V | 3850 | 73 | 55 | 6.4 | |
646175 | 3.7/3.8V | 4600 | 75 | 61 | 6.4 | |
653964 | 3.7/3.8V | 2300 | 64 | 39 | 6.5 | |
653975 | 3.7/3.8V | 2500 | 75 | 39 | 6.5 | |
654566 | 3.7/3.8V | 2200 | 66 | 45 | 6.5 | |
654764 | 3.7/3.8V | 2050 | 64 | 47 | 6.5 | |
654952 | 3.7/3.8V | 2600 | 52 | 49 | 6.5 | |
655471 | 3.7/3.8V | 3850 | 71 | 54 | 6.5 | |
655485 | 3.7/3.8V | 3300 | 85 | 54 | 6.5 | |
655566 | 3.7/3.8V | 3200 | 66 | 55 | 6.5 | |
655667 | 3.7/3.8V | 3500 | 67 | 56 | 6.5 | |
655982 | 3.7/3.8V | 5000 | 82 | 59 | 6.5 | |
656090 | 3.7/3.8V | 5000 | 90 | 60 | 6.5 | |
656182 | 3.7/3.8V | 4440 | 82 | 61 | 6.5 | |
656470 | 3.7/3.8V | 3600 | 70 | 64 | 6.5 | |
656473 | 3.7/3.8V | 4400 | 73 | 64 | 6.5 | |
656583 | 3.7/3.8V | 5000 | 83 | 65 | 6.5 | |
663079 | 3.7/3.8V | 2100 | 79 | 30 | 6.6 | |
663993 | 3.7/3.8V | 3000 | 93 | 39 | 6.6 | |
664952 | 3.7/3.8V | 2600 | 52 | 49 | 6.6 | |
665365 | 3.7/3.8V | 3500 | 65 | 53 | 6.6 | |
665477 | 3.7/3.8V | 4520 | 77 | 54 | 6.6 | |
665487 | 3.7/3.8V | 5000 | 87 | 55 | 6.6 | |
665567 | 3.7/3.8V | 3000 | 67 | 55 | 6.6 | |
666255 | 3.7/3.8V | 3150 | 55 | 62 | 6.6 | |
675076 | 3.7/3.8V | 5000 | 76 | 50 | 6.7 | |
675395 | 3.7/3.8V | 5000 | 95 | 53 | 6.7 | |
675479 | 3.7/3.8V | 4500 | 79 | 54 | 6.7 | |
675571 | 3.7/3.8V | 4500 | 74 | 55 | 6.7 | |
675883 | 3.7/3.8V | 5000 | 83 | 58 | 6.7 | |
676090 | 3.7/3.8V | 5000 | 90 | 60 | 6.7 | |
683782 | 3.7/3.8V | 3000 | 82 | 37 | 6.8 | |
683886 | 3.7/3.8V | 2800 | 86 | 38 | 6.8 | |
683982 | 3.7/3.8V | 2800 | 82 | 39 | 6.8 | |
684078 | 3.7/3.8V | 2500 | 78 | 40 | 6.8 | |
684570 | 3.7/3.8V | 2520 | 70 | 45 | 6.8 | |
684698 | 3.7/3.8V | 4100 | 98 | 46 | 6.8 | |
684856 | 3.7/3.8V | 3080 | 56 | 48 | 6.8 | |
684893 | 3.7/3.8V | 4000 | 93 | 48 | 6.8 | |
684987 | 3.7/3.8V | 3900 | 87 | 49 | 6.8 | |
685068 | 3.7/3.8V | 3000 | 68 | 50 | 6.8 | |
685163 | 3.7/3.8V | 3000 | 63 | 51 | 6.8 | |
685185 | 3.7/3.8V | 4400 | 85 | 51 | 6.8 | |
685264 | 3.7/3.8V | 2650 | 64 | 52 | 6.8 | |
685450 | 3.7/3.8V | 2450 | 50 | 54 | 6.8 | |
685578 | 3.7/3.8V | 4000 | 78 | 55 | 6.8 | |
694796 | 3.7/3.8V | 5000 | 96 | 47 | 6.9 | |
695268 | 3.7/3.8V | 3000 | 68 | 52 | 6.9 | |
695383 | 3.7/3.8V | 4200 | 83 | 53 | 6.9 | |
695466 | 3.7/3.8V | 4000 | 66 | 46 | 6.9 | |
695670 | 3.7/3.8V | 4000 | 70 | 56 | 6.9 | |
695766 | 3.7/3.8V | 4000 | 66 | 57 | 6.9 | |
695776 | 3.7/3.8V | 5000 | 76 | 57 | 6.9 | |
696175 | 3.7/3.8V | 5000 | 75 | 61 | 6.9 | |
703874 | 3.7/3.8V | 2600 | 74 | 38 | 7.0 | |
703876 | 3.7/3.8V | 2500 | 76 | 39 | 7.0 | |
703982 | 3.7/3.8V | 2800 | 85 | 40 | 7.0 | |
704060 | 3.7/3.8V | 2100 | 60 | 40 | 7.0 | |
704084 | 3.7/3.8V | 3000 | 84 | 42 | 7.0 | |
704270 | 3.7/3.8V | 3000 | 70 | 45 | 7.0 | |
704560 | 3.7/3.8V | 2700 | 60 | 45 | 7.0 | |
704849 | 3.7/3.8V | 2200 | 49 | 48 | 7.0 | |
705167 | 3.7/3.8V | 3000 | 67 | 51 | 7.0 | |
705245 | 3.7/3.8V | 2600 | 45 | 52 | 7.0 | |
705586 | 3.7/3.8V | 4400 | 86 | 55 | 7.0 | |
705960 | 3.7/3.8V | 3500 | 60 | 59 | 7.0 | |
706090 | 3.7/3.8V | 5000 | 90 | 60 | 7.0 | |
706174 | 3.7/3.8V | 4000 | 74 | 61 | 7.0 | |
713982 | 3.7/3.8V | 3000 | 82 | 39 | 7.1 | |
714359 | 3.7/3.8V | 2300 | 59 | 43 | 7.1 | |
723390 | 3.7/3.8V | 2600 | 90 | 33 | 7.2 | |
723398 | 3.7/3.8V | 3500 | 98 | 33 | 7.2 | |
723499 | 3.7/3.8V | 3500 | 99 | 34 | 7.2 | |
724372 | 3.7/3.8V | 3000 | 72 | 43 | 7.2 | |
725671 | 3.7/3.8V | 4920 | 71 | 56 | 7.2 | |
726378 | 3.7/3.8V | 5000 | 78 | 63 | 7.2 | |
733662 | 3.7/3.8V | 2100 | 62 | 36 | 7.3 | |
733762 | 3.7/3.8V | 2200 | 62 | 37 | 7.3 | |
733978 | 3.7/3.8V | 3000 | 78 | 39 | 7.3 | |
734470 | 3.7/3.8V | 3000 | 70 | 44 | 7.3 | |
735080 | 3.7/3.8V | 4800 | 80 | 50 | 7.3 | |
735153 | 3.7/3.8V | 3060 | 53 | 51 | 7.3 | |
735490 | 3.7/3.8V | 5000 | 90 | 54 | 7.3 | |
735762 | 3.7/3.8V | 4020 | 62 | 57 | 7.3 | |
735987 | 3.7/3.8V | 5000 | 87 | 59 | 7.3 | |
736285 | 3.7/3.8V | 4750 | 85 | 62 | 7.3 | |
737066 | 3.7/3.8V | 2100 | 66 | 70 | 7.3 | |
743862 | 3.7/3.8V | 2400 | 62 | 38 | 7.4 | |
744445 | 3.7/3.8V | 2200 | 45 | 44 | 7.4 | |
745060 | 3.7/3.8V | 3000 | 60 | 50 | 7.4 | |
752886 | 3.7/3.8V | 2620 | 86 | 28 | 7.5 | |
753898 | 3.7/3.8V | 3500 | 98 | 38 | 7.5 | |
754698 | 3.7/3.8V | 4100 | 98 | 46 | 7.5 | |
755064 | 3.7/3.8V | 3400 | 64 | 50 | 7.5 | |
755585 | 3.7/3.8V | 4000 | 85 | 55 | 7.5 | |
755590 | 3.7/3.8V | 5000 | 90 | 55 | 7.5 | |
755673 | 3.7/3.8V | 5000 | 73 | 56 | 7.5 | |
756175 | 3.7/3.8V | 4800 | 75 | 61 | 7.5 | |
756378 | 3.7/3.8V | 5000 | 78 | 63 | 7.5 | |
763556 | 3.7/3.8V | 2300 | 56 | 35 | 7.6 | |
764395 | 3.7/3.8V | 4300 | 95 | 43 | 7.6 | |
765068 | 3.7/3.8V | 3800 | 68 | 50 | 7.6 | |
765178 | 3.7/3.8V | 5000 | 78 | 51 | 7.6 | |
766063 | 3.7/3.8V | 4900 | 63 | 60 | 7.6 | |
775068 | 3.7/3.8V | 4000 | 68 | 50 | 7.7 | |
775656 | 3.7/3.8V | 3200 | 56 | 56 | 7.7 | |
783468 | 3.7/3.8V | 2750 | 68 | 34 | 7.8 | |
783670 | 3.7/3.8V | 2500 | 70 | 36 | 7.8 | |
784060 | 3.7/3.8V | 2500 | 60 | 40 | 7.8 | |
784171 | 3.7/3.8V | 2200 | 71 | 41 | 7.8 | |
784368 | 3.7/3.8V | 3000 | 69 | 43 | 7.8 | |
785275 | 3.7/3.8V | 4680 | 75 | 52 | 7.8 | |
794350 | 3.7/3.8V | 2050 | 50 | 43 | 7.9 | |
794679 | 3.7/3.8V | 4500 | 79 | 46 | 7.9 | |
802792 | 3.7/3.8V | 2500 | 92 | 27 | 8.0 | |
803470 | 3.7/3.8V | 2700 | 70 | 34 | 8.0 | |
803883 | 3.7/3.8V | 3900 | 83 | 38 | 8.0 | |
803985 | 3.7/3.8V | 4000 | 85 | 39 | 8.0 | |
804457 | 3.7/3.8V | 2400 | 57 | 44 | 8.0 | |
804672 | 3.7/3.8V | 3870 | 72 | 46 | 8.0 | |
804771 | 3.7/3.8V | 4150 | 74 | 47 | 8.0 | |
805065 | 3.7/3.8V | 4000 | 65 | 50 | 8.0 | |
805080 | 3.7/3.8V | 4000 | 80 | 50 | 8.0 | |
805457 | 3.7/3.8V | 4020 | 57 | 54 | 8.0 | |
805566 | 3.7/3.8V | 3650 | 66 | 55 | 8.0 | |
805575 | 3.7/3.8V | 3750 | 75 | 55 | 8.0 | |
805683 | 3.7/3.8V | 4300 | 83 | 56 | 8.0 | |
805861 | 3.7/3.8V | 4500 | 61 | 58 | 8.0 | |
806263 | 3.7/3.8V | 4200 | 63 | 62 | 8.0 | |
807662 | 3.7/3.8V | 4500 | 62 | 76 | 8.0 | |
813888 | 3.7/3.8V | 3900 | 88 | 38 | 8.1 | |
814772 | 3.7/3.8V | 4000 | 72 | 47 | 8.1 | |
815261 | 3.7/3.8V | 3000 | 61 | 52 | 8.1 | |
815567 | 3.7/3.8V | 3924 | 67 | 55 | 8.1 | |
815769 | 3.7/3.8V | 5000 | 69 | 57 | 8.1 | |
824090 | 3.7/3.8V | 4900 | 90 | 40 | 8.2 | |
824777 | 3.7/3.8V | 4000 | 77 | 47 | 8.2 | |
825575 | 3.7/3.8V | 4800 | 75 | 55 | 8.2 | |
834888 | 3.7/3.8V | 5000 | 88 | 48 | 8.3 | |
835676 | 3.7/3.8V | 4800 | 76 | 56 | 8.3 | |
843757 | 3.7/3.8V | 3000 | 57 | 37 | 8.4 | |
844353 | 3.7/3.8V | 2950 | 53 | 43 | 8.4 | |
844872 | 3.7/3.8V | 5000 | 72 | 48 | 8.4 | |
844969 | 3.7/3.8V | 4000 | 69 | 49 | 8.4 | |
845360 | 3.7/3.8V | 4100 | 60 | 53 | 8.4 | |
846061 | 3.7/3.8V | 4000 | 61 | 60 | 8.4 | |
853863 | 3.7/3.8V | 2600 | 63 | 38 | 8.5 | |
854375 | 3.7/3.8V | 4400 | 75 | 43 | 8.5 | |
854545 | 3.7/3.8V | 2300 | 45 | 45 | 8.5 | |
854665 | 3.7/3.8V | 2820 | 65 | 46 | 8.5 | |
854969 | 3.7/3.8V | 3670 | 69 | 49 | 8.5 | |
855260 | 3.7/3.8V | 3500 | 60 | 52 | 8.5 | |
855767 | 3.7/3.8V | 4600 | 67 | 57 | 8.5 | |
864475 | 3.7/3.8V | 4100 | 75 | 44 | 8.6 | |
864480 | 3.7/3.8V | 4000 | 80 | 44 | 8.6 | |
864974 | 3.7/3.8V | 4300 | 74 | 49 | 8.6 | |
865268 | 3.7/3.8V | 4700 | 68 | 52 | 8.6 | |
865557 | 3.7/3.8V | 4200 | 57 | 55 | 8.6 | |
874050 | 3.7/3.8V | 2450 | 50 | 40 | 8.7 | |
874353 | 3.7/3.8V | 3100 | 53 | 43 | 8.7 | |
874376 | 3.7/3.8V | 3600 | 76 | 43 | 8.7 | |
874969 | 3.7/3.8V | 3500 | 69 | 49 | 8.7 | |
884169 | 3.7/3.8V | 2500 | 69 | 41 | 8.8 | |
884553 | 3.7/3.8V | 2600 | 53 | 45 | 8.8 | |
885054 | 3.7/3.8V | 2930 | 54 | 50 | 8.8 | |
885266 | 3.7/3.8V | 5000 | 66 | 52 | 8.8 | |
885657 | 3.7/3.8V | 3800 | 56 | 56 | 8.8 | |
894672 | 3.7/3.8V | 4800 | 46 | 46 | 8.9 | |
895465 | 3.7/3.8V | 5000 | 54 | 54 | 8.9 | |
895764 | 3.7/3.8V | 5000 | 57 | 57 | 8.9 | |
903588 | 3.7/3.8V | 4000 | 35 | 35 | 9.0 | |
903659 | 3.7/3.8V | 2500 | 36 | 36 | 9.0 | |
904083 | 3.7/3.8V | 3800 | 83 | 40 | 9.0 | |
904261 | 3.7/3.8V | 3000 | 61 | 42 | 9.0 | |
904356 | 3.7/3.8V | 3000 | 56 | 43 | 9.0 | |
904954 | 3.7/3.8V | 3050 | 54 | 49 | 9.0 | |
905050 | 3.7/3.8V | 2500 | 50 | 50 | 9.0 | |
905265 | 3.7/3.8V | 5000 | 65 | 52 | 9.0 | |
905472 | 3.7/3.8V | 5000 | 72 | 54 | 9.0 | |
905570 | 3.7/3.8V | 4500 | 70 | 55 | 9.0 | |
906082 | 3.7/3.8V | 5000 | 82 | 60 | 9.0 | |
914159 | 3.7/3.8V | 2750 | 59 | 41 | 9.1 | |
915760 | 3.7/3.8V | 4000 | 60 | 57 | 9.1 | |
923949 | 3.7/3.8V | 2500 | 49 | 39 | 9.2 | |
925558 | 3.7/3.8V | 3500 | 58 | 55 | 9.2 | |
925857 | 3.7/3.8V | 4020 | 57 | 58 | 9.2 | |
933757 | 3.7/3.8V | 3000 | 57 | 37 | 9.3 | |
933866 | 3.7/3.8V | 2600 | 66 | 38 | 9.3 | |
934654 | 3.7/3.8V | 3000 | 54 | 46 | 9.3 | |
944755 | 3.7/3.8V | 3150 | 55 | 47 | 9.4 | |
945258 | 3.7/3.8V | 4500 | 58 | 52 | 9.4 | |
953363 | 3.7/3.8V | 3000 | 63 | 33 | 9.5 | |
953759 | 3.7/3.8V | 2300 | 59 | 37 | 9.5 | |
953773 | 3.7/3.8V | 3600 | 73 | 37 | 9.5 | |
953956 | 3.7/3.8V | 3000 | 56 | 39 | 9.5 | |
954046 | 3.7/3.8V | 2250 | 46 | 40 | 9.5 | |
954190 | 3.7/3.8V | 5000 | 90 | 41 | 9.5 | |
954390 | 3.7/3.8V | 5000 | 90 | 43 | 9.5 | |
954642 | 3.7/3.8V | 2600 | 42 | 46 | 9.5 | |
955060 | 3.7/3.8V | 4000 | 60 | 50 | 9.5 | |
955375 | 3.7/3.8V | 5000 | 75 | 53 | 9.5 | |
955465 | 3.7/3.8V | 5000 | 65 | 54 | 9.5 | |
955565 | 3.7/3.8V | 5000 | 655 | 55 | 9.5 | |
955566 | 3.7/3.8V | 5000 | 66 | 55 | 9.5 | |
955570 | 3.7/3.8V | 5000 | 70 | 55 | 9.5 | |
955575 | 3.7/3.8V | 3800 | 75 | 55 | 9.5 | |
963759 | 3.7/3.8V | 3000 | 59 | 37 | 9.6 | |
964156 | 3.7/3.8V | 3250 | 56 | 41 | 9.6 | |
973567 | 3.7/3.8V | 3100 | 67 | 35 | 9.7 | |
975060 | 3.7/3.8V | 4000 | 60 | 50 | 9.7 | |
994050 | 3.7/3.8V | 2500 | 50 | 40 | 9.9 | |
1174170 | 3.7/3.8 | 4700 | 170 | 74 | 11 | |
1184050 | 3.7/3.8 | 3000 | 50 | 84 | 11 | |
2272107 | 3.7/3.8 | 2500 | 107 | 72 | 2.2 | |
2275107 | 3.7/3.8 | 2500 | 107 | 75 | 2.2 | |
2310589 | 3.7/3.8 | 3000 | 589 | 10 | 2.3 | |
2358108 | 3.7/3.8 | 2170 | 108 | 58 | 2.3 | |
2463104 | 3.7/3.8 | 2300 | 104 | 63 | 2.4 | |
2563172 | 3.7/3.8 | 4100 | 172 | 63 | 2.5 | |
2665142 | 3.7/3.8 | 3000 | 142 | 65 | 2.6 | |
2670155 | 3.7/3.8 | 4170 | 155 | 70 | 2.6 | |
2695100 | 3.7/3.8 | 2900 | 100 | 95 | 2.6 | |
2696102 | 3.7/3.8 | 3610 | 102 | 96 | 2.6 | |
2754161 | 3.7/3.8 | 3700 | 161 | 54 | 2.7 | |
2755170 | 3.7/3.8 | 3900 | 170 | 55 | 2.7 | |
2765159 | 3.7/3.8 | 4270 | 159 | 65 | 2.7 | |
2775110 | 3.7/3.8 | 2700 | 110 | 75 | 2.7 | |
2775120 | 3.7/3.8 | 3000 | 120 | 75 | 2.7 | |
2780102 | 3.7/3.8 | 3000 | 102 | 80 | 2.7 | |
2786161 | 3.7/3.8 | 4800 | 161 | 86 | 2.7 | |
2794127 | 3.7/3.8 | 4500 | 127 | 94 | 2.7 | |
2810193 | 3.7/3.8 | 4000 | 193 | 10 | 2.8 | |
2854142 | 3.7/3.8 | 3300 | 142 | 54 | 2.8 | |
2855125 | 3.7/3.8 | 3000 | 125 | 55 | 2.8 | |
2857138 | 3.7/3.8 | 3500 | 138 | 57 | 2.8 | |
2858139 | 3.7/3.8 | 2850 | 139 | 58 | 2.8 | |
2860116 | 3.7/3.8 | 3000 | 116 | 60 | 2.8 | |
2864138 | 3.7/3.8 | 3000 | 138 | 64 | 2.8 | |
2864147 | 3.7/3.8 | 3500 | 147 | 64 | 2.8 | |
2868145 | 3.7/3.8 | 5000 | 145 | 68 | 2.8 | |
2870100 | 3.7/3.8 | 2500 | 100 | 70 | 2.8 | |
2870104 | 3.7/3.8 | 2500 | 104 | 70 | 2.8 | |
2870105 | 3.7/3.8 | 2500 | 105 | 70 | 2.8 | |
2870120 | 3.7/3.8 | 3220 | 120 | 70 | 2.8 | |
2877128 | 3.7/3.8 | 4580 | 128 | 77 | 2.8 | |
2884101 | 3.7/3.8 | 3280 | 101 | 84 | 2.8 | |
2885118 | 3.7/3.8 | 3200 | 118 | 85 | 2.8 | |
2892140 | 3.7/3.8 | 5000 | 140 | 92 | 2.8 | |
2895107 | 3.7/3.8 | 4000 | 107 | 95 | 2.8 | |
2898100 | 3.7/3.8 | 3800 | 100 | 98 | 2.8 | |
2898125 | 3.7/3.8 | 5000 | 125 | 98 | 2.8 | |
2899109 | 3.7/3.8 | 4900 | 109 | 99 | 2.8 | |
2949119 | 3.7/3.8 | 2750 | 119 | 49 | 2.9 | |
2958135 | 3.7/3.8 | 3000 | 135 | 58 | 2.9 | |
2960116 | 3.7/3.8 | 3000 | 116 | 60 | 2.9 | |
2962118 | 3.7/3.8 | 3500 | 118 | 62 | 2.9 | |
2963115 | 3.7/3.8 | 3300 | 115 | 63 | 2.9 | |
2964120 | 3.7/3.8 | 3250 | 120 | 64 | 2.9 | |
2965119 | 3.7/3.8 | 3500 | 119 | 65 | 2.9 | |
2968178 | 3.7/3.8 | 5000 | 178 | 68 | 2.9 | |
2970115 | 3.7/3.8 | 3000 | 115 | 70 | 2.9 | |
2975122 | 3.7/3.8 | 4030 | 122 | 75 | 2.9 | |
2982131 | 3.7/3.8 | 4800 | 131 | 82 | 2.9 | |
2983122 | 3.7/3.8 | 4200 | 122 | 83 | 2.9 | |
2996109 | 3.7/3.8 | 3800 | 109 | 96 | 2.9 | |
2998116 | 3.7/3.8 | 3600 | 116 | 98 | 2.9 | |
2998125 | 3.7/3.8 | 5000 | 125 | 98 | 2.9 | |
3010097 | 3.7/3.8 | 4000 | 97 | 10 | 3 | |
3052118 | 3.7/3.8 | 2400 | 118 | 52 | 3 | |
3055148 | 3.7/3.8 | 3000 | 148 | 55 | 3 | |
3059132 | 3.7/3.8 | 3750 | 132 | 59 | 3 | |
3062114 | 3.7/3.8 | 4000 | 114 | 62 | 3 | |
3062138 | 3.7/3.8 | 4000 | 138 | 62 | 3 | |
3065165 | 3.7/3.8 | 5000 | 165 | 65 | 3 | |
3068120 | 3.7/3.8 | 3000 | 120 | 68 | 3 | |
3070145 | 3.7/3.8 | 4000 | 145 | 70 | 3 | |
3075108 | 3.7/3.8 | 3900 | 108 | 75 | 3 | |
3075120 | 3.7/3.8 | 3500 | 120 | 75 | 3 | |
3075131 | 3.7/3.8 | 4750 | 131 | 75 | 3 | |
3084114 | 3.7/3.8 | 4000 | 114 | 84 | 3 | |
3096137 | 3.7/3.8 | 4500 | 137 | 96 | 3 | |
3097140 | 3.7/3.8 | 5000 | 140 | 97 | 3 | |
3098140 | 3.7/3.8 | 5000 | 140 | 98 | 3 | |
3153130 | 3.7/3.8 | 2500 | 130 | 53 | 3.1 | |
3157125 | 3.7/3.8 | 3500 | 125 | 57 | 3.1 | |
3163138 | 3.7/3.8 | 4000 | 138 | 63 | 3.1 | |
3175145 | 3.7/3.8 | 5000 | 145 | 75 | 3.1 | |
3180142 | 3.7/3.8 | 5000 | 142 | 80 | 3.1 | |
3182109 | 3.7/3.8 | 4000 | 109 | 82 | 3.1 | |
3183103 | 3.7/3.8 | 4000 | 103 | 83 | 3.1 | |
3210097 | 3.7/3.8 | 5000 | 97 | 10 | 3.2 | |
3247135 | 3.7/3.8 | 3400 | 135 | 47 | 3.2 | |
3249108 | 3.7/3.8 | 2572 | 108 | 49 | 3.2 | |
3250154 | 3.7/3.8 | 2900 | 154 | 50 | 3.2 | |
3254143 | 3.7/3.8 | 4000 | 143 | 54 | 3.2 | |
3256118 | 3.7/3.8 | 2200 | 118 | 56 | 3.2 | |
3260133 | 3.7/3.8 | 4000 | 133 | 60 | 3.2 | |
3260136 | 3.7/3.8 | 4000 | 136 | 60 | 3.2 | |
3263135 | 3.7/3.8 | 4030 | 135 | 63 | 3.2 | |
3264120 | 3.7/3.8 | 4000 | 120 | 64 | 3.2 | |
3268137 | 3.7/3.8 | 4000 | 137 | 68 | 3.2 | |
3270128 | 3.7/3.8 | 3000 | 128 | 70 | 3.2 | |
3281112 | 3.7/3.8 | 4100 | 112 | 81 | 3.2 | |
3282123 | 3.7/3.8 | 4500 | 123 | 82 | 3.2 | |
3293107 | 3.7/3.8 | 5000 | 107 | 93 | 3.2 | |
3298125 | 3.7/3.8 | 5000 | 125 | 98 | 3.2 | |
3349119 | 3.7/3.8 | 2950 | 119 | 49 | 3.3 | |
3356123 | 3.7/3.8 | 2500 | 123 | 56 | 3.3 | |
3362125 | 3.7/3.8 | 3500 | 125 | 62 | 3.3 | |
3364125 | 3.7/3.8 | 3400 | 125 | 64 | 3.3 | |
3365100 | 3.7/3.8 | 2500 | 100 | 65 | 3.3 | |
3375128 | 3.7/3.8 | 3500 | 128 | 75 | 3.3 | |
3378107 | 3.7/3.8 | 4000 | 107 | 78 | 3.3 | |
3378130 | 3.7/3.8 | 2800 | 130 | 78 | 3.3 | |
3395145 | 3.7/3.8 | 5000 | 145 | 95 | 3.3 | |
3449118 | 3.7/3.8 | 2915 | 118 | 49 | 3.4 | |
3453100 | 3.7/3.8 | 2500 | 100 | 53 | 3.4 | |
3454119 | 3.7/3.8 | 3230 | 119 | 54 | 3.4 | |
3466731 | 3.7/3.8 | 2290 | 731 | 66 | 3.4 | |
3473125 | 3.7/3.8 | 5000 | 125 | 73 | 3.4 | |
3543114 | 3.7/3.8 | 2480 | 114 | 43 | 3.5 | |
3549109 | 3.7/3.8 | 2900 | 109 | 49 | 3.5 | |
3553125 | 3.7/3.8 | 2700 | 125 | 53 | 3.5 | |
3555162 | 3.7/3.8 | 4950 | 162 | 55 | 3.5 | |
3566102 | 3.7/3.8 | 3500 | 102 | 66 | 3.5 | |
3569125 | 3.7/3.8 | 4000 | 125 | 69 | 3.5 | |
3585100 | 3.7/3.8 | 4750 | 100 | 85 | 3.5 | |
3666100 | 3.7/3.8 | 2600 | 100 | 66 | 3.6 | |
3674110 | 3.7/3.8 | 3600 | 110 | 74 | 3.6 | |
3745101 | 3.7/3.8 | 2500 | 101 | 45 | 3.7 | |
3760130 | 3.7/3.8 | 4750 | 130 | 60 | 3.7 | |
3766110 | 3.7/3.8 | 3600 | 110 | 66 | 3.7 | |
3768110 | 3.7/3.8 | 3800 | 110 | 68 | 3.7 | |
3863118 | 3.7/3.8 | 4400 | 118 | 63 | 3.8 | |
3866101 | 3.7/3.8 | 3000 | 101 | 66 | 3.8 | |
3868129 | 3.7/3.8 | 4800 | 129 | 68 | 3.8 | |
3886115 | 3.7/3.8 | 5000 | 115 | 86 | 3.8 | |
3967106 | 3.7/3.8 | 4000 | 106 | 67 | 3.9 | |
3968130 | 3.7/3.8 | 5000 | 130 | 68 | 3.9 | |
4037125 | 3.7/3.8 | 2200 | 125 | 37 | 4 | |
4042150 | 3.7/3.8 | 2800 | 150 | 42 | 4 | |
4055102 | 3.7/3.8 | 2800 | 102 | 55 | 4 | |
4055130 | 3.7/3.8 | 4000 | 130 | 55 | 4 | |
4062131 | 3.7/3.8 | 4650 | 131 | 62 | 4 | |
4065116 | 3.7/3.8 | 5000 | 116 | 65 | 4 | |
4066125 | 3.7/3.8 | 4940 | 125 | 66 | 4 | |
4068125 | 3.7/3.8 | 3000 | 125 | 68 | 4 | |
4070115 | 3.7/3.8 | 4000 | 115 | 70 | 4 | |
4078110 | 3.7/3.8 | 5000 | 110 | 78 | 4 | |
4080100 | 3.7/3.8 | 5000 | 100 | 80 | 4 | |
4082110 | 3.7/3.8 | 5000 | 110 | 82 | 4 | |
4082113 | 3.7/3.8 | 5000 | 113 | 82 | 4 | |
4084110 | 3.7/3.8 | 5000 | 110 | 84 | 4 | |
4088110 | 3.7/3.8 | 5000 | 110 | 88 | 4 | |
4164120 | 3.7/3.8 | 4500 | 120 | 64 | 4.1 | |
4185103 | 3.7/3.8 | 5000 | 103 | 85 | 4.1 | |
4238106 | 3.7/3.8 | 2400 | 106 | 38 | 4.2 | |
4246105 | 3.7/3.8 | 2400 | 105 | 46 | 4.2 | |
4247123 | 3.7/3.8 | 3000 | 123 | 47 | 4.2 | |
4253122 | 3.7/3.8 | 3900 | 122 | 53 | 4.2 | |
4255107 | 3.7/3.8 | 4000 | 107 | 55 | 4.2 | |
4255128 | 3.7/3.8 | 4900 | 128 | 55 | 4.2 | |
4258120 | 3.7/3.8 | 3750 | 120 | 58 | 4.2 | |
4260115 | 3.7/3.8 | 4000 | 115 | 60 | 4.2 | |
4270125 | 3.7/3.8 | 5000 | 125 | 70 | 4.2 | |
4283114 | 3.7/3.8 | 4700 | 114 | 83 | 4.2 | |
4346112 | 3.7/3.8 | 3000 | 112 | 46 | 4.3 | |
4347118 | 3.7/3.8 | 3200 | 118 | 47 | 4.3 | |
4350104 | 3.7/3.8 | 3855 | 104 | 50 | 4.3 | |
4358135 | 3.7/3.8 | 4300 | 135 | 58 | 4.3 | |
4361135 | 3.7/3.8 | 5000 | 135 | 61 | 4.3 | |
4370100 | 3.7/3.8 | 4250 | 100 | 70 | 4.3 | |
4370115 | 3.7/3.8 | 5000 | 115 | 70 | 4.3 | |
4552118 | 3.7/3.8 | 3800 | 118 | 52 | 4.5 | |
4552122 | 3.7/3.8 | 4700 | 122 | 52 | 4.5 | |
4555120 | 3.7/3.8 | 3750 | 120 | 55 | 4.5 | |
4562108 | 3.7/3.8 | 4000 | 108 | 62 | 4.5 | |
4565110 | 3.7/3.8 | 4300 | 110 | 65 | 4.5 | |
4565113 | 3.7/3.8 | 5000 | 113 | 65 | 4.5 | |
4576125 | 3.7/3.8 | 5000 | 125 | 76 | 4.5 | |
4647117 | 3.7/3.8 | 4520 | 117 | 47 | 4.6 | |
4674118 | 3.7/3.8 | 4500 | 118 | 74 | 4.6 | |
4738109 | 3.7/3.8 | 2200 | 109 | 38 | 4.7 | |
4748123 | 3.7/3.8 | 3800 | 123 | 48 | 4.7 | |
4842125 | 3.7/3.8 | 3000 | 125 | 42 | 4.8 | |
4956120 | 3.7/3.8 | 4000 | 120 | 56 | 4.9 | |
5055115 | 3.7/3.8 | 4200 | 115 | 55 | 5 | |
5080100 | 3.7/3.8 | 5000 | 100 | 80 | 5 | |
5143102 | 3.7/3.8 | 3839 | 102 | 43 | 5.1 | |
5340101 | 3.7/3.8 | 3500 | 101 | 40 | 5.3 | |
5364105 | 3.7/3.8 | 4750 | 105 | 64 | 5.3 | |
5465110 | 3.7/3.8 | 5000 | 110 | 65 | 5.4 | |
5534105 | 3.7/3.8 | 2500 | 105 | 34 | 5.5 | |
5547105 | 3.7/3.8 | 3900 | 105 | 47 | 5.5 | |
5558110 | 3.7/3.8 | 4500 | 110 | 58 | 5.5 | |
5565113 | 3.7/3.8V | 5000 | 113 | 65 | 5.5 | |
5654132 | 3.7/3.8 | 5000 | 132 | 54 | 5.6 | |
5744110 | 3.7/3.8 | 4600 | 110 | 44 | 5.7 | |
5745108 | 3.7/3.8 | 4600 | 108 | 45 | 5.7 | |
5758102 | 3.7/3.8 | 5000 | 102 | 58 | 5.7 | |
5936142 | 3.7/3.8 | 4200 | 142 | 36 | 5.9 | |
6045116 | 3.7/3.8 | 5000 | 116 | 45 | 6 | |
6060100 | 3.7/3.8 | 5000 | 100 | 60 | 6 | |
6060110 | 3.7/3.8V | 5000 | 110 | 60 | 6.0 | |
6153110 | 3.7/3.8 | 4500 | 110 | 53 | 6.1 | |
6251100 | 3.7/3.8 | 4000 | 100 | 51 | 6.2 | |
6330125 | 3.7/3.8 | 3000 | 125 | 30 | 6.3 | |
6341101 | 3.7/3.8 | 3500 | 101 | 41 | 6.3 | |
6535125 | 3.7/3.8 | 4000 | 125 | 35 | 6.5 | |
6558102 | 3.7/3.8 | 5000 | 102 | 58 | 6.5 | |
6736122 | 3.7/3.8 | 3800 | 122 | 36 | 6.7 | |
6836137 | 3.7/3.8 | 3900 | 137 | 36 | 6.8 | |
6840114 | 3.7/3.8 | 3800 | 114 | 40 | 6.8 | |
7044123 | 3.7/3.8 | 5000 | 123 | 44 | 7 | |
7130101 | 3.7/3.8 | 3655 | 101 | 30 | 7.1 | |
7242123 | 3.7/3.8 | 4500 | 123 | 42 | 7.2 | |
7446102 | 3.7/3.8 | 3900 | 102 | 46 | 7.4 | |
7533101 | 3.7/3.8 | 4100 | 101 | 33 | 7.5 | |
7545125 | 3.7/3.8 | 5000 | 125 | 45 | 7.5 | |
7550105 | 3.7/3.8 | 5000 | 105 | 50 | 7.5 | |
7847100 | 3.7/3.8 | 5000 | 100 | 47 | 7.8 | |
8347113 | 3.7/3.8 | 5000 | 113 | 47 | 8.3 | |
8730100 | 3.7/3.8 | 3800 | 100 | 30 | 8.7 | |
9265108 | 3.7/3.8 | 5000 | 108 | 65 | 9.2 | |
9527101 | 3.7/3.8 | 3150 | 101 | 27 | 9.5 | |
25100150 | 3.7/3.8 | 4200 | 150 | 100 | 2.5 | |
28100100 | 3.7/3.8 | 3600 | 100 | 100 | 2.8 | |
28100120 | 3.7/3.8 | 5000 | 120 | 100 | 2.8 | |
29100100 | 3.7/3.8 | 3500 | 100 | 100 | 2.9 | |
29100101 | 3.7/3.8 | 3500 | 101 | 100 | 2.9 | |
29100114 | 3.7/3.8 | 4200 | 114 | 100 | 2.9 | |
30100100 | 3.7/3.8 | 4000 | 100 | 100 | 3 | |
30100102 | 3.7/3.8 | 4000 | 102 | 100 | 3 | |
30100103 | 3.7/3.8 | 4000 | 103 | 100 | 3 | |
30100133 | 3.7/3.8 | 5000 | 133 | 100 | 3 | |
30110106 | 3.7/3.8 | 4000 | 106 | 110 | 3 | |
31100100 | 3.7/3.8 | 4500 | 100 | 100 | 3.1 | |
33100103 | 3.7/3.8 | 4000 | 103 | 100 | 3.3 | |
38100102 | 3.7/3.8 | 5000 | 102 | 100 | 3.8 |
|
Click here to find a list of other models |
T |
6.3mm |
W |
55.0mm |
H |
78.0mm |
L |
110.0mm |
