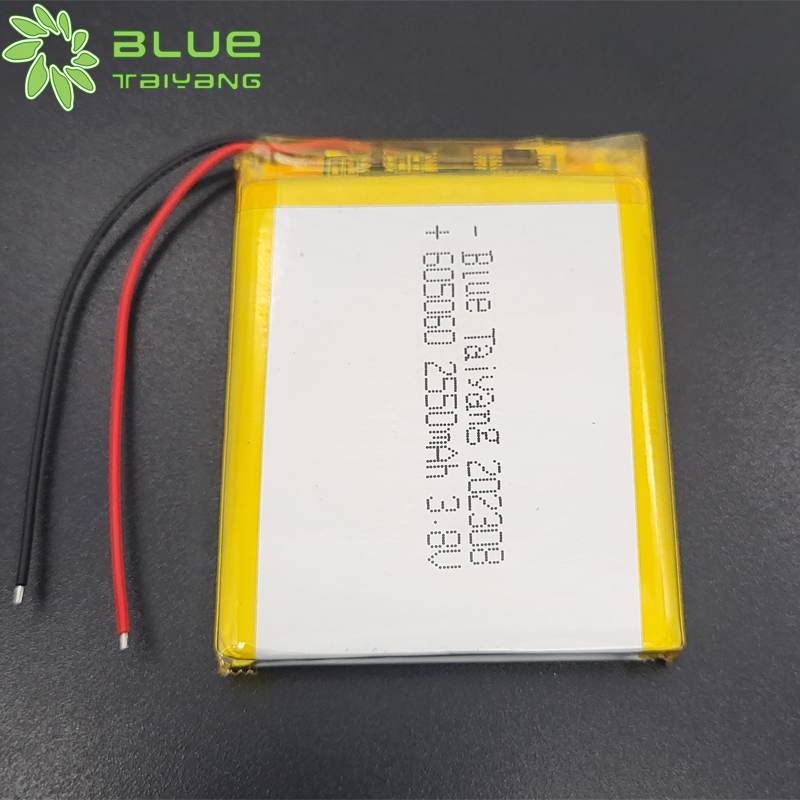

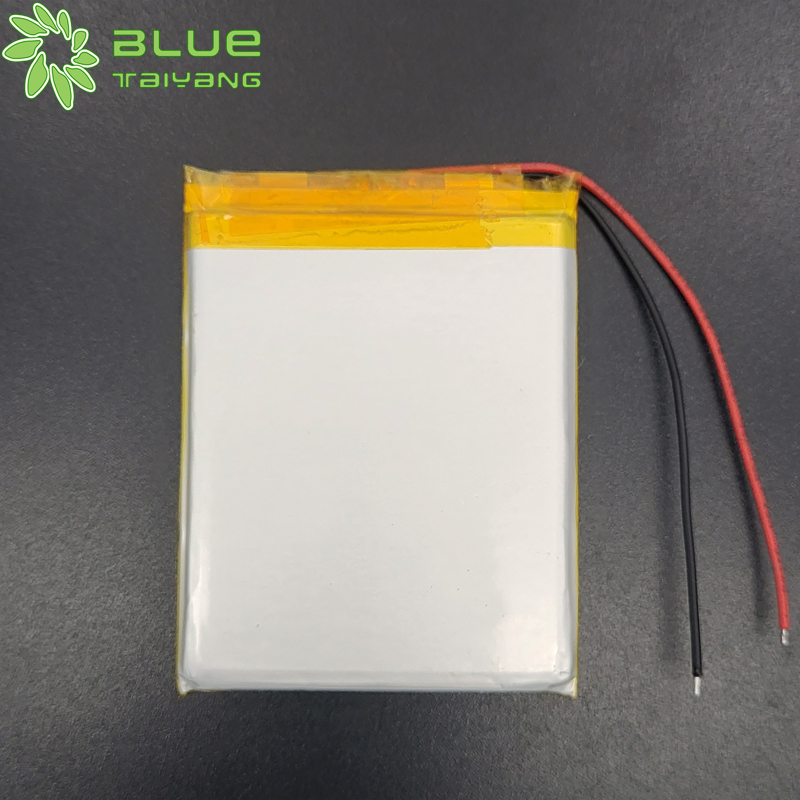

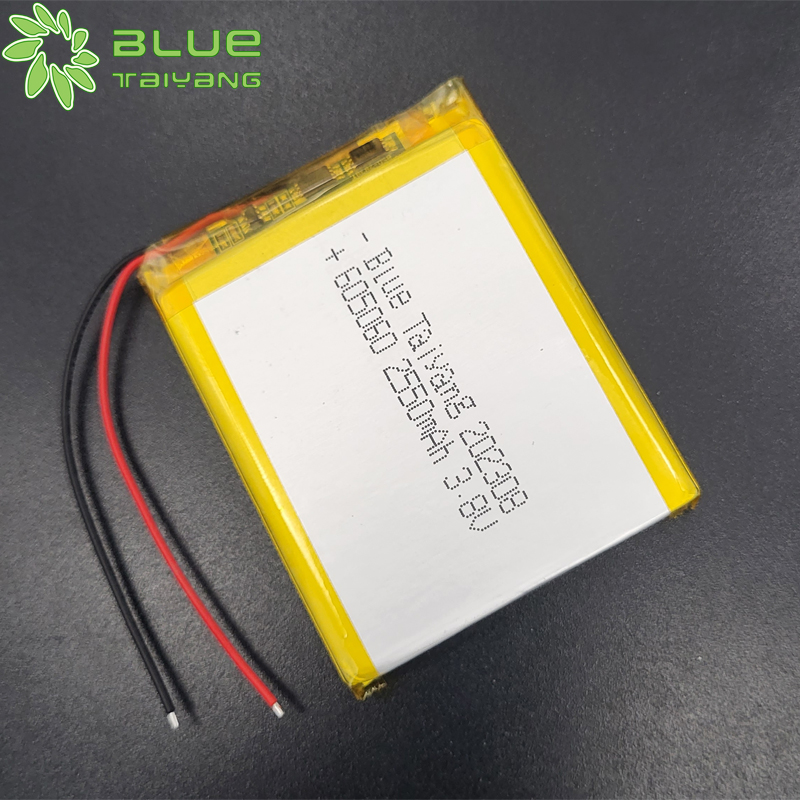

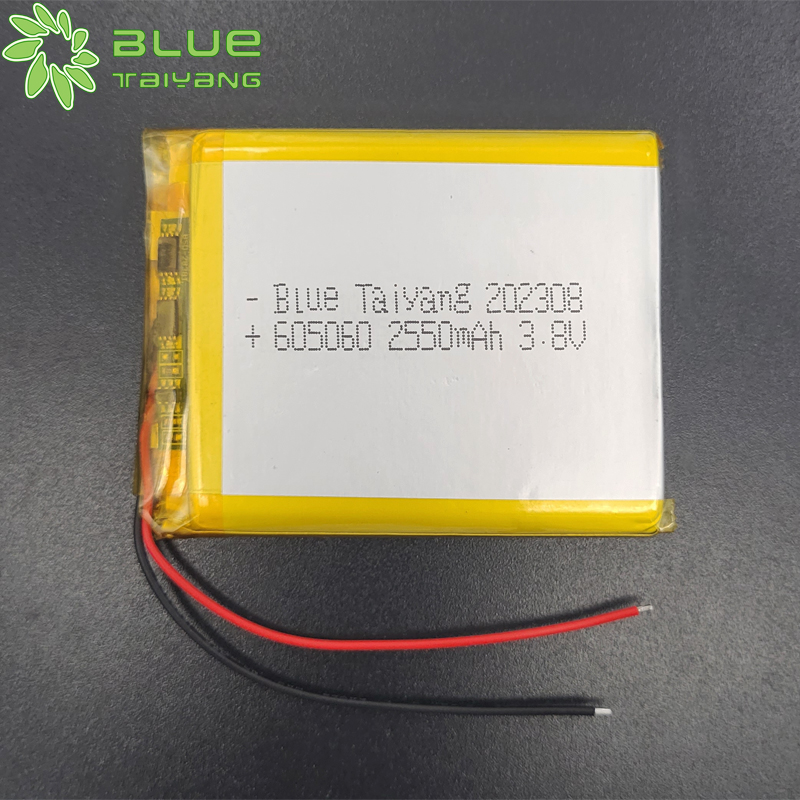

605060 rechargeable li polymer battery cells lipo 3.8v 2550mah battery

Items	Parameter
Battery model	605060
Design scheme	With PCM
Nominal voltage	3.8V
Minimum capacity	2550mAh (1C discharge)
Size	T：6.0mm W：50.0mm H：60.0mm (Includes PCM and wires) L：60.0mm (Wire length)
Charging voltage	4.35V
Discharging cut-off voltage	2.5V
Standard charging	0.2C /4.35V
Max charging	0.5C /4.35V
Standard discharging	0.2C/2.5V
Max discharging	0.5C/2.5V
Weight	Appr：51.0g
Shipment voltage	≥3.9V
Battery pack impedance	≤50mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	( 12 months, ≥85% )
	-10°C ~45°C	( 6 months, ≥85% )
	-10°C~60°C	( 1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Download
103067	3.7/3.8V	2100	67	30	10
103557	3.7/3.8V	3000	57	35	10
103560	3.7/3.8V	2700	60	35	10
103665	3.7/3.8V	3000	65	36	10
103863	3.7/3.8V	2800	63	38	10
103870	3.7/3.8V	4000	70	38	10
103964	3.7/3.8V	3600	64	39	10
104049	3.7/3.8V	2200	49	40	10.0
104050	3.7/3.8V	2500	50	40	10.0
104058	3.7/3.8V	2600	58	40	10
104069	3.7/3.8V	4400	69	40	10
104078	3.7/3.8V	4000	78	40	10
104273	3.7/3.8V	4200	73	42	10
104346	3.7/3.8V	3000	46	43	10
104372	3.7/3.8V	5000	72	43	10
104373	3.7/3.8V	5000	73	43	10.0
104381	3.7/3.8V	5000	81	43	10.0
104448	3.7/3.8V	3000	48	44	10
104450	3.7/3.8V	3000	50	44	10
104466	3.7/3.8V	4000	66	44	10
104544	3.7/3.8V	3000	44	45	10
104858	3.7/3.8V	3500	58	48	10.0
104861	3.7/3.8V	5000	61	48	10
104954	3.7/3.8V	4200	54	49	10
105056	3.7/3.8V	4500	56	50	10
105555	3.7/3.8V	5000	55	55	10
105568	3.7/3.8V	5000	68	55	10.0
105570	3.7/3.8V	5000	70	55	10.0
105573	3.7/3.8V	5000	73	55	10.0
106168	3.7/3.8V	5000	68	61	10
106248	3.7/3.8V	4000	48	62	10
113073	3.7/3.8V	3700	73	30	11
113565	3.7/3.8V	3700	65	35	11
113855	3.7/3.8V	3500	55	38	11
113876	3.7/3.8V	4000	76	38	11
113962	3.7/3.8V	3670	62	39	11
114056	3.7/3.8V	3350	56	40	11
114062	3.7/3.8V	4000	62	40	11
114148	3.7/3.8V	3250	48	41	11
114258	3.7/3.8V	4000	58	42	11
114348	3.7/3.8V	3250	48	43	11
114443	3.7/3.8V	2850	43	44	11
114762	3.7/3.8V	4300	62	47	11
114846	3.7/3.8V	3450	46	48	11
114950	3.7/3.8V	3000	50	49	11
115162	3.7/3.8V	5000	62	51	11
115262	3.7/3.8V	5000	62	52	11
122770	3.7/3.8V	2400	70	27	11
123650	3.7/3.8V	3000	50	36	11
123665	3.7/3.8V	3600	65	36	11
123744	3.7/3.8V	2850	44	37	11
123771	3.7/3.8V	4000	71	37	11
123855	3.7/3.8V	3500	55	38	11
123868	3.7/3.8V	4700	68	38	12
124062	3.7/3.8V	4000	62	40	12
124064	3.7/3.8V	4000	64	40	12
124170	3.7/3.8V	4700	70	41	12
124258	3.7/3.8V	4120	58	42	12
124345	3.7/3.8V	3400	45	43	12
124353	3.7/3.8V	4160	53	43	12
124356	3.7/3.8V	4000	56	43	12
124452	3.7/3.8V	4000	52	44	12
124465	3.7/3.8V	4000	65	44	12
124565	3.7/3.8V	4500	65	45	12
125053	3.7/3.8V	4000	53	50	12
133561	3.7/3.8V	3500	61	35	13
133568	3.7/3.8V	4000	68	35	13
266796	3.7/3.8V	2150	96	67	2.6
267293	3.7/3.8V	2500	93	72	2.6
267394	3.7/3.8V	2700	94	73	2.6
287095	3.7/3.8V	2500	95	70	2.8
288088	3.7/3.8V	2200	88	80	2.8
298085	3.7/3.8V	3000	85	80	2.9
298595	3.7/3.8V	4000	95	85	2.9
298893	3.7/3.8V	3750	93	88	2.9
306799	3.7/3.8V	2400	99	67	3.0
307090	3.7/3.8V	2150	90	70	3.0
307095	3.7/3.8V	2500	95	70	3.0
308083	3.7/3.8V	3000	83	80	3.0
308085	3.7/3.8V	2500	85	80	3.0
308088	3.7/3.8V	2800	88	80	3.0
308590	3.7/3.8V	3000	90	85	3.0
308888	3.7/3.8V	3400	88	88	3.0
309395	3.7/3.8V	3700	95	93	3.0
309595	3.7/3.8V	3500	95	95	3.0
309699	3.7/3.8V	4000	99	96	3.0
309895	3.7/3.8V	4000	95	98	3.0
316285	3.7/3.8V	2500	85	62	3.1
317090	3.7/3.8V	3000	90	70	3.1
325292	3.7/3.8V	2050	92	52	3.2
326679	3.7/3.8V	2450	79	66	3.2
327098	3.7/3.8V	3000	98	70	3.2
327590	3.7/3.8V	3500	90	75	3.2
329074	3.7/3.8V	3550	74	90	3.2
335598	3.7/3.8V	2440	98	55	3.3
335983	3.7/3.8V	2500	83	59	3.3
336587	3.7/3.8V	2600	87	65	3.3
337095	3.7/3.8V	2800	95	70	3.3
345766	3.7/3.8V	2200	66	57	3.4
346588	3.7/3.8V	3200	88	65	3.4
346680	3.7/3.8V	2800	80	66	3.4
347090	3.7/3.8V	2800	90	70	3.4
348589	3.7/3.8V	4100	89	85	3.4
349396	3.7/3.8V	2800	96	96	3.4
355880	3.7/3.8V	2020	80	58	3.5
356290	3.7/3.8V	2900	90	62	3.5
356372	3.7/3.8V	2500	72	63	3.5
356380	3.7/3.8V	2300	80	63	3.5
356479	3.7/3.8V	3300	79	64	3.5
356777	3.7/3.8V	2700	77	67	3.5
357095	3.7/3.8V	2500	95	70	3.5
357176	3.7/3.8V	3000	76	71	3.5
365978	3.7/3.8V	2500	78	59	3.6
366074	3.7/3.8V	2500	74	60	3.6
366076	3.7/3.8V	2500	76	60	3.6
366080	3.7/3.8V	2400	80	60	3.6
366176	3.7/3.8V	2500	76	61	3.6
366685	3.7/3.8V	2600	85	66	3.6
367293	3.7/3.8V	4000	93	72	3.6
368497	3.7/3.8V	4200	97	84	3.6
375983	3.7/3.8V	3000	83	59	3.7
376068	3.7/3.8V	2200	68	60	3.7
376799	3.7/3.8V	3100	99	67	3.7
376896	3.7/3.8V	3620	96	68	3.7
378694	3.7/3.8V	5000	94	86	3.7
379190	3.7/3.8V	4350	90	91	3.7
385475	3.7/3.8V	2200	75	54	3.8
385769	3.7/3.8V	2480	69	57	3.8
385896	3.7/3.8V	3200	96	58	3.8
386080	3.7/3.8V	2750	80	60	3.8
386082	3.7/3.8V	3220	82	60	3.8
386380	3.7/3.8V	2500	80	63	3.8
386479	3.7/3.8V	3000	79	64	3.8
386482	3.7/3.8V	2910	82	64	3.8
386585	3.7/3.8V	2700	85	65	3.8
386587	3.7/3.8V	3200	87	65	3.8
386996	3.7/3.8V	3500	96	69	3.8
396377	3.7/3.8V	2500	77	63	3.9
396871	3.7/3.8V	2850	71	68	3.9
398093	3.7/3.8V	4000	93	80	3.9
404579	3.7/3.8V	2300	79	45	4.0
405887	3.7/3.8V	3000	87	58	4.0
405889	3.7/3.8V	3000	89	58	4.0
405890	3.7/3.8V	3000	90	58	4.0
405969	3.7/3.8V	2650	69	59	4.0
405981	3.7/3.8V	2700	81	59	4.0
406063	3.7/3.8V	2100	63	60	4.0
406080	3.7/3.8V	3000	80	60	4.0
406082	3.7/3.8V	3000	82	60	4.0
406387	3.7/3.8V	3485	87	63	4.0
406484	3.7/3.8V	3600	84	64	4.0
406493	3.7/3.8V	3900	93	64	4.0
406669	3.7/3.8V	3000	69	66	4.0
406787	3.7/3.8V	3200	87	67	4.0
408095	3.7/3.8V	4000	95	80	4.0
408596	3.7/3.8V	4500	96	85	4.0
408991	3.7/3.8V	3250	91	89	4.0
415489	3.7/3.8V	3000	89	54	4.1
416087	3.7/3.8V	3500	87	60	4.1
416179	3.7/3.8V	2700	79	61	4.1
416276	3.7/3.8V	2500	76	62	4.1
416584	3.7/3.8V	3900	84	65	4.1
416587	3.7/3.8V	3500	87	65	4.1
424590	3.7/3.8V	3180	90	45	4.2
425864	3.7/3.8V	2220	64	58	4.2
426278	3.7/3.8V	2700	78	62	4.2
426386	3.7/3.8V	3000	86	63	4.2
426483	3.7/3.8V	3000	83	64	4.2
426484	3.7/3.8V	3500	84	64	4.2
426488	3.7/3.8V	4000	88	64	4.2
426584	3.7/3.8V	4000	84	65	4.2
428787	3.7/3.8V	4250	87	87	4.2
428978	3.7/3.8V	3900	78	89	4.2
434296	3.7/3.8V	2150	96	42	4.3
435483	3.7/3.8V	2800	83	54	4.3
436290	3.7/3.8V	2400	90	62	4.3
436382	3.7/3.8V	4000	82	63	4.3
436384	3.7/3.8V	4000	84	63	4.3
436578	3.7/3.8V	3300	78	65	4.3
436582	3.7/3.8V	3950	82	65	4.3
436660	3.7/3.8V	2700	60	36	4.3
436981	3.7/3.8V	4000	81	69	4.3
437885	3.7/3.8V	4500	85	78	4.3
438155	3.7/3.8V	3100	55	81	4.3
443879	3.7/3.8V	2050	79	38	4.4
444090	3.7/3.8V	2547	90	40	4.4
445285	3.7/3.8V	2800	85	52	4.4
445392	3.7/3.8V	2500	91	53	4.4
445769	3.7/3.8V	2920	69	57	4.4
445770	3.7/3.8V	2950	70	57	4.4
446388	3.7/3.8V	4000	88	63	4.4
453776	3.7/3.8V	2050	76	37	4.5
453995	3.7/3.8V	2100	95	39	4.5
454092	3.7/3.8V	2900	92	40	4.5
455085	3.7/3.8V	2300	85	50	4.5
455271	3.7/3.8V	2550	71	52	4.5
455369	3.7/3.8V	2020	69	53	4.5
456498	3.7/3.8V	2800	98	64	4.5
459576	3.7/3.8V	4800	76	95	4.5
465557	3.7/3.8V	2450	57	55	4.6
465585	3.7/3.8V	2800	85	55	4.6
465880	3.7/3.8V	3000	80	58	4.6
466061	3.7/3.8V	2200	61	60	4.6
466272	3.7/3.8V	3650	72	62	4.6
466380	3.7/3.8V	3500	80	63	4.6
466493	3.7/3.8V	4800	93	64	4.6
466561	3.7/3.8V	2500	61	65	4.6
466591	3.7/3.8V	4900	91	65	4.6
466595	3.7/3.8V	4950	95	65	4.6
466666	3.7/3.8V	3000	66	66	4.6
466986	3.7/3.8V	3900	86	69	4.6
468882	3.7/3.8V	4800	82	88	4.6
474475	3.7/3.8V	2580	75	44	4.7
474580	3.7/3.8V	2300	80	45	4.7
475886	3.7/3.8V	3850	86	58	4.7
475984	3.7/3.8V	4000	84	59	4.7
476078	3.7/3.8V	3300	78	60	4.7
476179	3.7/3.8V	3500	79	61	4.7
476180	3.7/3.8V	4000	80	61	4.7
476369	3.7/3.8V	2750	69	63	4.7
476371	3.7/3.8V	2750	71	63	4.7
476389	3.7/3.8V	4880	89	63	4.7
476484	3.7/3.8V	4400	84	64	4.7
476690	3.7/3.8V	4930	90	66	4.7
477877	3.7/3.8V	4400	77	78	4.7
485575	3.7/3.8V	2750	75	55	4.8
485584	3.7/3.8V	3420	84	55	4.8
485795	3.7/3.8V	4900	95	57	4.8
486079	3.7/3.8V	3500	79	60	4.8
486087	3.7/3.8V	2400	87	60	4.8
486095	3.7/3.8V	4000	95	60	4.8
486272	3.7/3.8V	3950	72	62	4.8
486374	3.7/3.8V	3150	74	63	4.8
486574	3.7/3.8V	3600	74	65	4.8
486590	3.7/3.8V	4000	90	65	4.8
486790	3.7/3.8V	5000	90	67	4.8
486871	3.7/3.8V	3200	71	68	4.8
488471	3.7/3.8V	3800	71	84	4.8
494597	3.7/3.8V	3250	97	45	4.9
495490	3.7/3.8V	4030	90	54	4.9
495878	3.7/3.8V	3720	78	58	4.9
496688	3.7/3.8V	4720	88	66	4.9
496691	3.7/3.8V	4700	91	66	4.9
497087	3.7/3.8V	4900	87	70	4.9
499097	3.7/3.8V	5000	97	90	4.9
504078	3.7/3.8V	2400	78	40	5.0
504997	3.7/3.8V	3000	97	49	5.0
505170	3.7/3.8V	2200	70	51	5.0
505256	3.7/3.8V	2200	56	52	5.0
505999	3.7/3.8V	3715	99	59	5.0
506193	3.7/3.8V	4000	93	61	5.0
506465	3.7/3.8V	3300	65	64	5.0
506582	3.7/3.8V	4000	82	65	5.0
506758	3.7/3.8V	2700	58	67	5.0
507175	3.7/3.8V	4000	75	71	5.0
507779	3.7/3.8V	4100	79	77	5.0
507983	3.7/3.8V	4000	83	79	5.0
508865	3.7/3.8V	4700	65	88	5.0
515777	3.7/3.8V	3600	77	57	5.1
515974	3.7/3.8V	3600	74	59	5.1
517183	3.7/3.8V	5000	83	71	5.1
524687	3.7/3.8V	3200	87	46	5.2
524961	3.7/3.8V	2620	61	49	5.2
525075	3.7/3.8V	2500	75	50	5.2
525280	3.7/3.8V	2700	80	75	5.2
525580	3.7/3.8V	3500	80	52	5.2
525777	3.7/3.8V	3400	77	55	5.2
525779	3.7/3.8V	3600	79	57	5.2
526270	3.7/3.8V	3400	70	62	5.2
526272	3.7/3.8V	3400	72	62	5.2
526275	3.7/3.8V	4200	75	62	5.2
526468	3.7/3.8V	3850	68	64	5.2
526480	3.7/3.8V	3850	80	64	5.2
526580	3.7/3.8V	4000	80	65	5.2
526974	3.7/3.8V	4150	74	69	5.2
533975	3.7/3.8V	2100	75	39	5.3
534764	3.7/3.8V	2600	64	47	5.3
535186	3.7/3.8V	3300	86	51	5.3
535284	3.7/3.8V	3300	84	52	5.3
535292	3.7/3.8V	4000	92	52	5.3
535578	3.7/3.8V	3600	78	55	5.3
535776	3.7/3.8V	3700	76	57	5.3
536057	3.7/3.8V	3200	57	60	5.3
544380	3.7/3.8V	2200	90	43	5.4
544762	3.7/3.8V	2630	62	47	5.4
545068	3.7/3.8V	2550	68	50	5.4
545163	3.7/3.8V	2100	63	51	5.4
545287	3.7/3.8V	3350	87	52	5.4
545288	3.7/3.8V	2800	88	52	5.4
545669	3.7/3.8V	2950	69	56	5.4
545693	3.7/3.8V	4250	93	56	5.4
546290	3.7/3.8V	4850	90	62	5.4
546982	3.7/3.8V	4000	82	69	5.4
546984	3.7/3.8V	4000	84	69	5.4
554393	3.7/3.8V	3350	93	43	5.5
554998	3.7/3.8V	4600	98	49	5.5
555498	3.7/3.8V	4000	98	54	5.5
556095	3.7/3.8V	4000	95	60	5.5
564070	3.7/3.8V	2500	70	40	5.6
564173	3.7/3.8V	2400	73	41	5.6
564497	3.7/3.8V	3000	97	44	5.6
565872	3.7/3.8V	3400	72	58	5.6
566270	3.7/3.8V	3000	70	62	5.6
573496	3.7/3.8V	2200	96	34	5.7
574599	3.7/3.8V	3150	99	45	5.7
574954	3.7/3.8V	2220	54	49	5.7
575576	3.7/3.8V	3450	76	55	5.7
575578	3.7/3.8V	2500	78	55	5.7
576090	3.7/3.8V	4150	90	60	5.7
576185	3.7/3.8V	5000	85	61	5.7
577093	3.7/3.8V	5000	93	70	5.7
584764	3.7/3.8V	2050	64	47	5.8
584858	3.7/3.8V	2090	58	48	5.8
584976	3.7/3.8V	3460	76	49	5.8
585575	3.7/3.8V	2900	75	55	5.8
585577	3.7/3.8V	3900	77	55	5.8
585579	3.7/3.8V	4200	79	55	5.8
585880	3.7/3.8V	3600	80	58	5.8
585950	3.7/3.8V	2650	50	59	5.8
585962	3.7/3.8V	3500	62	59	5.8
586285	3.7/3.8V	4000	85	62	5.8
587578	3.7/3.8V	4000	78	75	5.8
588157	3.7/3.8V	3500	57	81	5.8
594280	3.7/3.8V	2600	80	42	5.9
594368	3.7/3.8V	2250	68	43	5.9
594395	3.7/3.8V	2800	95	43	5.9
595578	3.7/3.8V	3600	78	55	5.9
596067	3.7/3.8V	2900	67	60	5.9
596181	3.7/3.8V	4700	81	61	5.9
596378	3.7/3.8V	5000	63	63	5.9
603380	3.7/3.8V	2100	80	33	6.0
604097	3.7/3.8V	2600	97	40	6.0
604664	3.7/3.8V	2200	64	46	6.0
604674	3.7/3.8V	3600	74	46	6.0
604875	3.7/3.8V	2600	75	48	6.0
604880	3.7/3.8V	3700	80	48	6.0
605361	3.7/3.8V	2750	61	53	6.0
605374	3.7/3.8V	2400	74	53	6.0
605483	3.7/3.8V	3500	83	54	6.0
605490	3.7/3.8V	4000	90	54	6.0
605562	3.7/3.8V	2700	62	55	6.0
605578	3.7/3.8V	3400	78	55	6.0
605969	3.7/3.8V	4000	69	59	6.0
606063	3.7/3.8V	3400	63	60	6.0
606070	3.7/3.8V	3000	70	60	6.0
606072	3.7/3.8V	4150	72	60	6.0
606080	3.7/3.8V	3900	80	60	6.0
606082	3.7/3.8V	3800	82	60	6.0
606090	3.7/3.8V	5000	90	60	6.0
606168	3.7/3.8V	2400	68	61	6.0
606262	3.7/3.8V	3550	62	62	6.0
606282	3.7/3.8V	5000	82	62	6.0
606397	3.7/3.8V	4850	97	63	6.0
606576	3.7/3.8V	3450	76	65	6.0
606580	3.7/3.8V	4000	80	65	6.0
606696	3.7/3.8V	5000	96	66	6.0
614279	3.7/3.8V	3150	79	42	6.1
614282	3.7/3.8V	3000	82	42	6.1
614857	3.7/3.8V	2500	57	48	6.1
615453	3.7/3.8V	2030	53	54	6.1
615576	3.7/3.8V	3950	76	55	6.1
615957	3.7/3.8V	3175	57	59	6.1
616864	3.7/3.8V	3896	64	68	6.1
624751	3.7/3.8V	2250	51	47	6.2
624764	3.7/3.8V	2800	64	47	6.2
624871	3.7/3.8V	3000	71	48	6.2
624885	3.7/3.8V	4100	85	48	6.2
625686	3.7/3.8V	4800	86	56	6.2
625978	3.7/3.8V	5000	78	59	6.2
626196	3.7/3.8V	5000	96	61	6.2
627138	3.7/3.8V	2550	38	71	6.2
634791	3.7/3.8V	4500	91	47	6.3
634869	3.7/3.8V	2800	69	48	6.3
635776	3.7/3.8V	4860	76	57	6.3
635883	3.7/3.8V	4000	83	58	6.3
636267	3.7/3.8V	3300	67	62	6.3
638870	3.7/3.8V	4900	70	88	6.3
644889	3.7/3.8V	3950	89	48	6.4
645465	3.7/3.8V	3900	65	54	6.4
645573	3.7/3.8V	3850	73	55	6.4
646175	3.7/3.8V	4600	75	61	6.4
653964	3.7/3.8V	2300	64	39	6.5
653975	3.7/3.8V	2500	75	39	6.5
654566	3.7/3.8V	2200	66	45	6.5
654764	3.7/3.8V	2050	64	47	6.5
654952	3.7/3.8V	2600	52	49	6.5
655471	3.7/3.8V	3850	71	54	6.5
655485	3.7/3.8V	3300	85	54	6.5
655566	3.7/3.8V	3200	66	55	6.5
655667	3.7/3.8V	3500	67	56	6.5
655982	3.7/3.8V	5000	82	59	6.5
656090	3.7/3.8V	5000	90	60	6.5
656182	3.7/3.8V	4440	82	61	6.5
656470	3.7/3.8V	3600	70	64	6.5
656473	3.7/3.8V	4400	73	64	6.5
656583	3.7/3.8V	5000	83	65	6.5
663079	3.7/3.8V	2100	79	30	6.6
663993	3.7/3.8V	3000	93	39	6.6
664952	3.7/3.8V	2600	52	49	6.6
665365	3.7/3.8V	3500	65	53	6.6
665477	3.7/3.8V	4520	77	54	6.6
665487	3.7/3.8V	5000	87	55	6.6
665567	3.7/3.8V	3000	67	55	6.6
666255	3.7/3.8V	3150	55	62	6.6
675076	3.7/3.8V	5000	76	50	6.7
675395	3.7/3.8V	5000	95	53	6.7
675479	3.7/3.8V	4500	79	54	6.7
675571	3.7/3.8V	4500	74	55	6.7
675883	3.7/3.8V	5000	83	58	6.7
676090	3.7/3.8V	5000	90	60	6.7
683782	3.7/3.8V	3000	82	37	6.8
683886	3.7/3.8V	2800	86	38	6.8
683982	3.7/3.8V	2800	82	39	6.8
684078	3.7/3.8V	2500	78	40	6.8
684570	3.7/3.8V	2520	70	45	6.8
684698	3.7/3.8V	4100	98	46	6.8
684856	3.7/3.8V	3080	56	48	6.8
684893	3.7/3.8V	4000	93	48	6.8
684987	3.7/3.8V	3900	87	49	6.8
685068	3.7/3.8V	3000	68	50	6.8
685163	3.7/3.8V	3000	63	51	6.8
685185	3.7/3.8V	4400	85	51	6.8
685264	3.7/3.8V	2650	64	52	6.8
685450	3.7/3.8V	2450	50	54	6.8
685578	3.7/3.8V	4000	78	55	6.8
694796	3.7/3.8V	5000	96	47	6.9
695268	3.7/3.8V	3000	68	52	6.9
695383	3.7/3.8V	4200	83	53	6.9
695466	3.7/3.8V	4000	66	46	6.9
695670	3.7/3.8V	4000	70	56	6.9
695766	3.7/3.8V	4000	66	57	6.9
695776	3.7/3.8V	5000	76	57	6.9
696175	3.7/3.8V	5000	75	61	6.9
703874	3.7/3.8V	2600	74	38	7.0
703876	3.7/3.8V	2500	76	39	7.0
703982	3.7/3.8V	2800	85	40	7.0
704060	3.7/3.8V	2100	60	40	7.0
704084	3.7/3.8V	3000	84	42	7.0
704270	3.7/3.8V	3000	70	45	7.0
704560	3.7/3.8V	2700	60	45	7.0
704849	3.7/3.8V	2200	49	48	7.0
705167	3.7/3.8V	3000	67	51	7.0
705245	3.7/3.8V	2600	45	52	7.0
705586	3.7/3.8V	4400	86	55	7.0
705960	3.7/3.8V	3500	60	59	7.0
706090	3.7/3.8V	5000	90	60	7.0
706174	3.7/3.8V	4000	74	61	7.0
713982	3.7/3.8V	3000	82	39	7.1
714359	3.7/3.8V	2300	59	43	7.1
723390	3.7/3.8V	2600	90	33	7.2
723398	3.7/3.8V	3500	98	33	7.2
723499	3.7/3.8V	3500	99	34	7.2
724372	3.7/3.8V	3000	72	43	7.2
725671	3.7/3.8V	4920	71	56	7.2
726378	3.7/3.8V	5000	78	63	7.2
733662	3.7/3.8V	2100	62	36	7.3
733762	3.7/3.8V	2200	62	37	7.3
733978	3.7/3.8V	3000	78	39	7.3
734470	3.7/3.8V	3000	70	44	7.3
735080	3.7/3.8V	4800	80	50	7.3
735153	3.7/3.8V	3060	53	51	7.3
735490	3.7/3.8V	5000	90	54	7.3
735762	3.7/3.8V	4020	62	57	7.3
735987	3.7/3.8V	5000	87	59	7.3
736285	3.7/3.8V	4750	85	62	7.3
737066	3.7/3.8V	2100	66	70	7.3
743862	3.7/3.8V	2400	62	38	7.4
744445	3.7/3.8V	2200	45	44	7.4
745060	3.7/3.8V	3000	60	50	7.4
752886	3.7/3.8V	2620	86	28	7.5
753898	3.7/3.8V	3500	98	38	7.5
754698	3.7/3.8V	4100	98	46	7.5
755064	3.7/3.8V	3400	64	50	7.5
755585	3.7/3.8V	4000	85	55	7.5
755590	3.7/3.8V	5000	90	55	7.5
755673	3.7/3.8V	5000	73	56	7.5
756175	3.7/3.8V	4800	75	61	7.5
756378	3.7/3.8V	5000	78	63	7.5
763556	3.7/3.8V	2300	56	35	7.6
764395	3.7/3.8V	4300	95	43	7.6
765068	3.7/3.8V	3800	68	50	7.6
765178	3.7/3.8V	5000	78	51	7.6
766063	3.7/3.8V	4900	63	60	7.6
775068	3.7/3.8V	4000	68	50	7.7
775656	3.7/3.8V	3200	56	56	7.7
783468	3.7/3.8V	2750	68	34	7.8
783670	3.7/3.8V	2500	70	36	7.8
784060	3.7/3.8V	2500	60	40	7.8
784171	3.7/3.8V	2200	71	41	7.8
784368	3.7/3.8V	3000	69	43	7.8
785275	3.7/3.8V	4680	75	52	7.8
794350	3.7/3.8V	2050	50	43	7.9
794679	3.7/3.8V	4500	79	46	7.9
802792	3.7/3.8V	2500	92	27	8.0
803470	3.7/3.8V	2700	70	34	8.0
803883	3.7/3.8V	3900	83	38	8.0
803985	3.7/3.8V	4000	85	39	8.0
804457	3.7/3.8V	2400	57	44	8.0
804672	3.7/3.8V	3870	72	46	8.0
804771	3.7/3.8V	4150	74	47	8.0
805065	3.7/3.8V	4000	65	50	8.0
805080	3.7/3.8V	4000	80	50	8.0
805457	3.7/3.8V	4020	57	54	8.0
805566	3.7/3.8V	3650	66	55	8.0
805575	3.7/3.8V	3750	75	55	8.0
805683	3.7/3.8V	4300	83	56	8.0
805861	3.7/3.8V	4500	61	58	8.0
806263	3.7/3.8V	4200	63	62	8.0
807662	3.7/3.8V	4500	62	76	8.0
813888	3.7/3.8V	3900	88	38	8.1
814772	3.7/3.8V	4000	72	47	8.1
815261	3.7/3.8V	3000	61	52	8.1
815567	3.7/3.8V	3924	67	55	8.1
815769	3.7/3.8V	5000	69	57	8.1
824090	3.7/3.8V	4900	90	40	8.2
824777	3.7/3.8V	4000	77	47	8.2
825575	3.7/3.8V	4800	75	55	8.2
834888	3.7/3.8V	5000	88	48	8.3
835676	3.7/3.8V	4800	76	56	8.3
843757	3.7/3.8V	3000	57	37	8.4
844353	3.7/3.8V	2950	53	43	8.4
844872	3.7/3.8V	5000	72	48	8.4
844969	3.7/3.8V	4000	69	49	8.4
845360	3.7/3.8V	4100	60	53	8.4
846061	3.7/3.8V	4000	61	60	8.4
853863	3.7/3.8V	2600	63	38	8.5
854375	3.7/3.8V	4400	75	43	8.5
854545	3.7/3.8V	2300	45	45	8.5
854665	3.7/3.8V	2820	65	46	8.5
854969	3.7/3.8V	3670	69	49	8.5
855260	3.7/3.8V	3500	60	52	8.5
855767	3.7/3.8V	4600	67	57	8.5
864475	3.7/3.8V	4100	75	44	8.6
864480	3.7/3.8V	4000	80	44	8.6
864974	3.7/3.8V	4300	74	49	8.6
865268	3.7/3.8V	4700	68	52	8.6
865557	3.7/3.8V	4200	57	55	8.6
874050	3.7/3.8V	2450	50	40	8.7
874353	3.7/3.8V	3100	53	43	8.7
874376	3.7/3.8V	3600	76	43	8.7
874969	3.7/3.8V	3500	69	49	8.7
884169	3.7/3.8V	2500	69	41	8.8
884553	3.7/3.8V	2600	53	45	8.8
885054	3.7/3.8V	2930	54	50	8.8
885266	3.7/3.8V	5000	66	52	8.8
885657	3.7/3.8V	3800	56	56	8.8
894672	3.7/3.8V	4800	46	46	8.9
895465	3.7/3.8V	5000	54	54	8.9
895764	3.7/3.8V	5000	57	57	8.9
903588	3.7/3.8V	4000	35	35	9.0
903659	3.7/3.8V	2500	36	36	9.0
904083	3.7/3.8V	3800	83	40	9.0
904261	3.7/3.8V	3000	61	42	9.0
904356	3.7/3.8V	3000	56	43	9.0
904954	3.7/3.8V	3050	54	49	9.0
905050	3.7/3.8V	2500	50	50	9.0
905265	3.7/3.8V	5000	65	52	9.0
905472	3.7/3.8V	5000	72	54	9.0
905570	3.7/3.8V	4500	70	55	9.0
906082	3.7/3.8V	5000	82	60	9.0
914159	3.7/3.8V	2750	59	41	9.1
915760	3.7/3.8V	4000	60	57	9.1
923949	3.7/3.8V	2500	49	39	9.2
925558	3.7/3.8V	3500	58	55	9.2
925857	3.7/3.8V	4020	57	58	9.2
933757	3.7/3.8V	3000	57	37	9.3
933866	3.7/3.8V	2600	66	38	9.3
934654	3.7/3.8V	3000	54	46	9.3
944755	3.7/3.8V	3150	55	47	9.4
945258	3.7/3.8V	4500	58	52	9.4
953363	3.7/3.8V	3000	63	33	9.5
953759	3.7/3.8V	2300	59	37	9.5
953773	3.7/3.8V	3600	73	37	9.5
953956	3.7/3.8V	3000	56	39	9.5
954046	3.7/3.8V	2250	46	40	9.5
954190	3.7/3.8V	5000	90	41	9.5
954390	3.7/3.8V	5000	90	43	9.5
954642	3.7/3.8V	2600	42	46	9.5
955060	3.7/3.8V	4000	60	50	9.5
955375	3.7/3.8V	5000	75	53	9.5
955465	3.7/3.8V	5000	65	54	9.5
955565	3.7/3.8V	5000	655	55	9.5
955566	3.7/3.8V	5000	66	55	9.5
955570	3.7/3.8V	5000	70	55	9.5
955575	3.7/3.8V	3800	75	55	9.5
963759	3.7/3.8V	3000	59	37	9.6
964156	3.7/3.8V	3250	56	41	9.6
973567	3.7/3.8V	3100	67	35	9.7
975060	3.7/3.8V	4000	60	50	9.7
994050	3.7/3.8V	2500	50	40	9.9
1174170	3.7/3.8	4700	170	74	11
1184050	3.7/3.8	3000	50	84	11
2272107	3.7/3.8	2500	107	72	2.2
2275107	3.7/3.8	2500	107	75	2.2
2310589	3.7/3.8	3000	589	10	2.3
2358108	3.7/3.8	2170	108	58	2.3
2463104	3.7/3.8	2300	104	63	2.4
2563172	3.7/3.8	4100	172	63	2.5
2665142	3.7/3.8	3000	142	65	2.6
2670155	3.7/3.8	4170	155	70	2.6
2695100	3.7/3.8	2900	100	95	2.6
2696102	3.7/3.8	3610	102	96	2.6
2754161	3.7/3.8	3700	161	54	2.7
2755170	3.7/3.8	3900	170	55	2.7
2765159	3.7/3.8	4270	159	65	2.7
2775110	3.7/3.8	2700	110	75	2.7
2775120	3.7/3.8	3000	120	75	2.7
2780102	3.7/3.8	3000	102	80	2.7
2786161	3.7/3.8	4800	161	86	2.7
2794127	3.7/3.8	4500	127	94	2.7
2810193	3.7/3.8	4000	193	10	2.8
2854142	3.7/3.8	3300	142	54	2.8
2855125	3.7/3.8	3000	125	55	2.8
2857138	3.7/3.8	3500	138	57	2.8
2858139	3.7/3.8	2850	139	58	2.8
2860116	3.7/3.8	3000	116	60	2.8
2864138	3.7/3.8	3000	138	64	2.8
2864147	3.7/3.8	3500	147	64	2.8
2868145	3.7/3.8	5000	145	68	2.8
2870100	3.7/3.8	2500	100	70	2.8
2870104	3.7/3.8	2500	104	70	2.8
2870105	3.7/3.8	2500	105	70	2.8
2870120	3.7/3.8	3220	120	70	2.8
2877128	3.7/3.8	4580	128	77	2.8
2884101	3.7/3.8	3280	101	84	2.8
2885118	3.7/3.8	3200	118	85	2.8
2892140	3.7/3.8	5000	140	92	2.8
2895107	3.7/3.8	4000	107	95	2.8
2898100	3.7/3.8	3800	100	98	2.8
2898125	3.7/3.8	5000	125	98	2.8
2899109	3.7/3.8	4900	109	99	2.8
2949119	3.7/3.8	2750	119	49	2.9
2958135	3.7/3.8	3000	135	58	2.9
2960116	3.7/3.8	3000	116	60	2.9
2962118	3.7/3.8	3500	118	62	2.9
2963115	3.7/3.8	3300	115	63	2.9
2964120	3.7/3.8	3250	120	64	2.9
2965119	3.7/3.8	3500	119	65	2.9
2968178	3.7/3.8	5000	178	68	2.9
2970115	3.7/3.8	3000	115	70	2.9
2975122	3.7/3.8	4030	122	75	2.9
2982131	3.7/3.8	4800	131	82	2.9
2983122	3.7/3.8	4200	122	83	2.9
2996109	3.7/3.8	3800	109	96	2.9
2998116	3.7/3.8	3600	116	98	2.9
2998125	3.7/3.8	5000	125	98	2.9
3010097	3.7/3.8	4000	97	10	3
3052118	3.7/3.8	2400	118	52	3
3055148	3.7/3.8	3000	148	55	3
3059132	3.7/3.8	3750	132	59	3
3062114	3.7/3.8	4000	114	62	3
3062138	3.7/3.8	4000	138	62	3
3065165	3.7/3.8	5000	165	65	3
3068120	3.7/3.8	3000	120	68	3
3070145	3.7/3.8	4000	145	70	3
3075108	3.7/3.8	3900	108	75	3
3075120	3.7/3.8	3500	120	75	3
3075131	3.7/3.8	4750	131	75	3
3084114	3.7/3.8	4000	114	84	3
3096137	3.7/3.8	4500	137	96	3
3097140	3.7/3.8	5000	140	97	3
3098140	3.7/3.8	5000	140	98	3
3153130	3.7/3.8	2500	130	53	3.1
3157125	3.7/3.8	3500	125	57	3.1
3163138	3.7/3.8	4000	138	63	3.1
3175145	3.7/3.8	5000	145	75	3.1
3180142	3.7/3.8	5000	142	80	3.1
3182109	3.7/3.8	4000	109	82	3.1
3183103	3.7/3.8	4000	103	83	3.1
3210097	3.7/3.8	5000	97	10	3.2
3247135	3.7/3.8	3400	135	47	3.2
3249108	3.7/3.8	2572	108	49	3.2
3250154	3.7/3.8	2900	154	50	3.2
3254143	3.7/3.8	4000	143	54	3.2
3256118	3.7/3.8	2200	118	56	3.2
3260133	3.7/3.8	4000	133	60	3.2
3260136	3.7/3.8	4000	136	60	3.2
3263135	3.7/3.8	4030	135	63	3.2
3264120	3.7/3.8	4000	120	64	3.2
3268137	3.7/3.8	4000	137	68	3.2
3270128	3.7/3.8	3000	128	70	3.2
3281112	3.7/3.8	4100	112	81	3.2
3282123	3.7/3.8	4500	123	82	3.2
3293107	3.7/3.8	5000	107	93	3.2
3298125	3.7/3.8	5000	125	98	3.2
3349119	3.7/3.8	2950	119	49	3.3
3356123	3.7/3.8	2500	123	56	3.3
3362125	3.7/3.8	3500	125	62	3.3
3364125	3.7/3.8	3400	125	64	3.3
3365100	3.7/3.8	2500	100	65	3.3
3375128	3.7/3.8	3500	128	75	3.3
3378107	3.7/3.8	4000	107	78	3.3
3378130	3.7/3.8	2800	130	78	3.3
3395145	3.7/3.8	5000	145	95	3.3
3449118	3.7/3.8	2915	118	49	3.4
3453100	3.7/3.8	2500	100	53	3.4
3454119	3.7/3.8	3230	119	54	3.4
3466731	3.7/3.8	2290	731	66	3.4
3473125	3.7/3.8	5000	125	73	3.4
3543114	3.7/3.8	2480	114	43	3.5
3549109	3.7/3.8	2900	109	49	3.5
3553125	3.7/3.8	2700	125	53	3.5
3555162	3.7/3.8	4950	162	55	3.5
3566102	3.7/3.8	3500	102	66	3.5
3569125	3.7/3.8	4000	125	69	3.5
3585100	3.7/3.8	4750	100	85	3.5
3666100	3.7/3.8	2600	100	66	3.6
3674110	3.7/3.8	3600	110	74	3.6
3745101	3.7/3.8	2500	101	45	3.7
3760130	3.7/3.8	4750	130	60	3.7
3766110	3.7/3.8	3600	110	66	3.7
3768110	3.7/3.8	3800	110	68	3.7
3863118	3.7/3.8	4400	118	63	3.8
3866101	3.7/3.8	3000	101	66	3.8
3868129	3.7/3.8	4800	129	68	3.8
3886115	3.7/3.8	5000	115	86	3.8
3967106	3.7/3.8	4000	106	67	3.9
3968130	3.7/3.8	5000	130	68	3.9
4037125	3.7/3.8	2200	125	37	4
4042150	3.7/3.8	2800	150	42	4
4055102	3.7/3.8	2800	102	55	4
4055130	3.7/3.8	4000	130	55	4
4062131	3.7/3.8	4650	131	62	4
4065116	3.7/3.8	5000	116	65	4
4066125	3.7/3.8	4940	125	66	4
4068125	3.7/3.8	3000	125	68	4
4070115	3.7/3.8	4000	115	70	4
4078110	3.7/3.8	5000	110	78	4
4080100	3.7/3.8	5000	100	80	4
4082110	3.7/3.8	5000	110	82	4
4082113	3.7/3.8	5000	113	82	4
4084110	3.7/3.8	5000	110	84	4
4088110	3.7/3.8	5000	110	88	4
4164120	3.7/3.8	4500	120	64	4.1
4185103	3.7/3.8	5000	103	85	4.1
4238106	3.7/3.8	2400	106	38	4.2
4246105	3.7/3.8	2400	105	46	4.2
4247123	3.7/3.8	3000	123	47	4.2
4253122	3.7/3.8	3900	122	53	4.2
4255107	3.7/3.8	4000	107	55	4.2
4255128	3.7/3.8	4900	128	55	4.2
4258120	3.7/3.8	3750	120	58	4.2
4260115	3.7/3.8	4000	115	60	4.2
4270125	3.7/3.8	5000	125	70	4.2
4283114	3.7/3.8	4700	114	83	4.2
4346112	3.7/3.8	3000	112	46	4.3
4347118	3.7/3.8	3200	118	47	4.3
4350104	3.7/3.8	3855	104	50	4.3
4358135	3.7/3.8	4300	135	58	4.3
4361135	3.7/3.8	5000	135	61	4.3
4370100	3.7/3.8	4250	100	70	4.3
4370115	3.7/3.8	5000	115	70	4.3
4552118	3.7/3.8	3800	118	52	4.5
4552122	3.7/3.8	4700	122	52	4.5
4555120	3.7/3.8	3750	120	55	4.5
4562108	3.7/3.8	4000	108	62	4.5
4565110	3.7/3.8	4300	110	65	4.5
4565113	3.7/3.8	5000	113	65	4.5
4576125	3.7/3.8	5000	125	76	4.5
4647117	3.7/3.8	4520	117	47	4.6
4674118	3.7/3.8	4500	118	74	4.6
4738109	3.7/3.8	2200	109	38	4.7
4748123	3.7/3.8	3800	123	48	4.7
4842125	3.7/3.8	3000	125	42	4.8
4956120	3.7/3.8	4000	120	56	4.9
5055115	3.7/3.8	4200	115	55	5
5080100	3.7/3.8	5000	100	80	5
5143102	3.7/3.8	3839	102	43	5.1
5340101	3.7/3.8	3500	101	40	5.3
5364105	3.7/3.8	4750	105	64	5.3
5465110	3.7/3.8	5000	110	65	5.4
5534105	3.7/3.8	2500	105	34	5.5
5547105	3.7/3.8	3900	105	47	5.5
5558110	3.7/3.8	4500	110	58	5.5
5565113	3.7/3.8V	5000	113	65	5.5
5654132	3.7/3.8	5000	132	54	5.6
5744110	3.7/3.8	4600	110	44	5.7
5745108	3.7/3.8	4600	108	45	5.7
5758102	3.7/3.8	5000	102	58	5.7
5936142	3.7/3.8	4200	142	36	5.9
6045116	3.7/3.8	5000	116	45	6
6060100	3.7/3.8	5000	100	60	6
6060110	3.7/3.8V	5000	110	60	6.0
6153110	3.7/3.8	4500	110	53	6.1
6251100	3.7/3.8	4000	100	51	6.2
6330125	3.7/3.8	3000	125	30	6.3
6341101	3.7/3.8	3500	101	41	6.3
6535125	3.7/3.8	4000	125	35	6.5
6558102	3.7/3.8	5000	102	58	6.5
6736122	3.7/3.8	3800	122	36	6.7
6836137	3.7/3.8	3900	137	36	6.8
6840114	3.7/3.8	3800	114	40	6.8
7044123	3.7/3.8	5000	123	44	7
7130101	3.7/3.8	3655	101	30	7.1
7242123	3.7/3.8	4500	123	42	7.2
7446102	3.7/3.8	3900	102	46	7.4
7533101	3.7/3.8	4100	101	33	7.5
7545125	3.7/3.8	5000	125	45	7.5
7550105	3.7/3.8	5000	105	50	7.5
7847100	3.7/3.8	5000	100	47	7.8
8347113	3.7/3.8	5000	113	47	8.3
8730100	3.7/3.8	3800	100	30	8.7
9265108	3.7/3.8	5000	108	65	9.2
9527101	3.7/3.8	3150	101	27	9.5
25100150	3.7/3.8	4200	150	100	2.5
28100100	3.7/3.8	3600	100	100	2.8
28100120	3.7/3.8	5000	120	100	2.8
29100100	3.7/3.8	3500	100	100	2.9
29100101	3.7/3.8	3500	101	100	2.9
29100114	3.7/3.8	4200	114	100	2.9
30100100	3.7/3.8	4000	100	100	3
30100102	3.7/3.8	4000	102	100	3
30100103	3.7/3.8	4000	103	100	3
30100133	3.7/3.8	5000	133	100	3
30110106	3.7/3.8	4000	106	110	3
31100100	3.7/3.8	4500	100	100	3.1
33100103	3.7/3.8	4000	103	100	3.3
38100102	3.7/3.8	5000	102	100	3.8

Click here to find a list of other models

T	6.0mm
W	50.0mm
H	60.0mm
L	60.0mm
