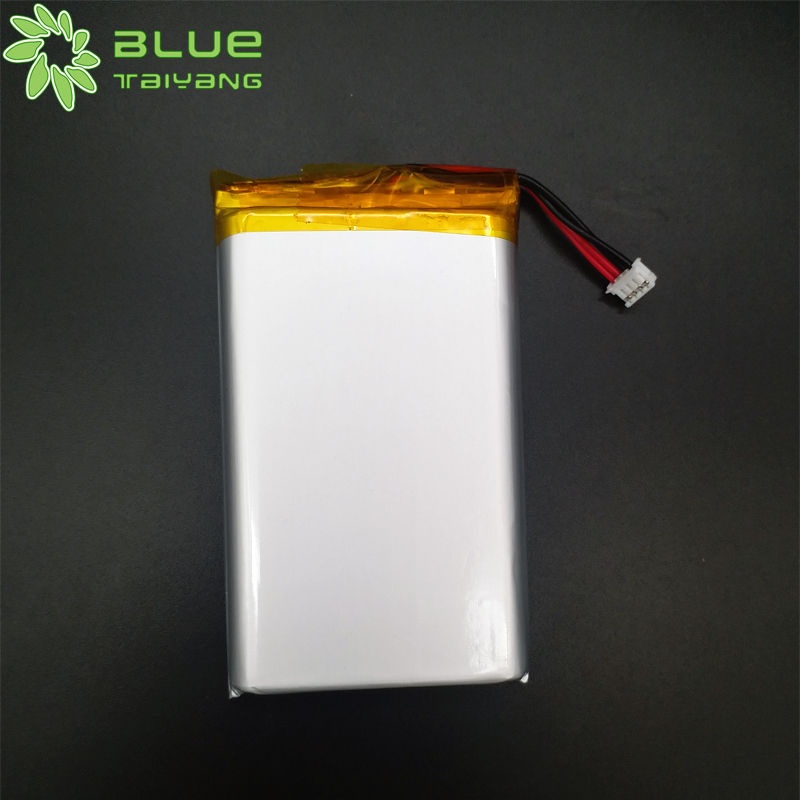

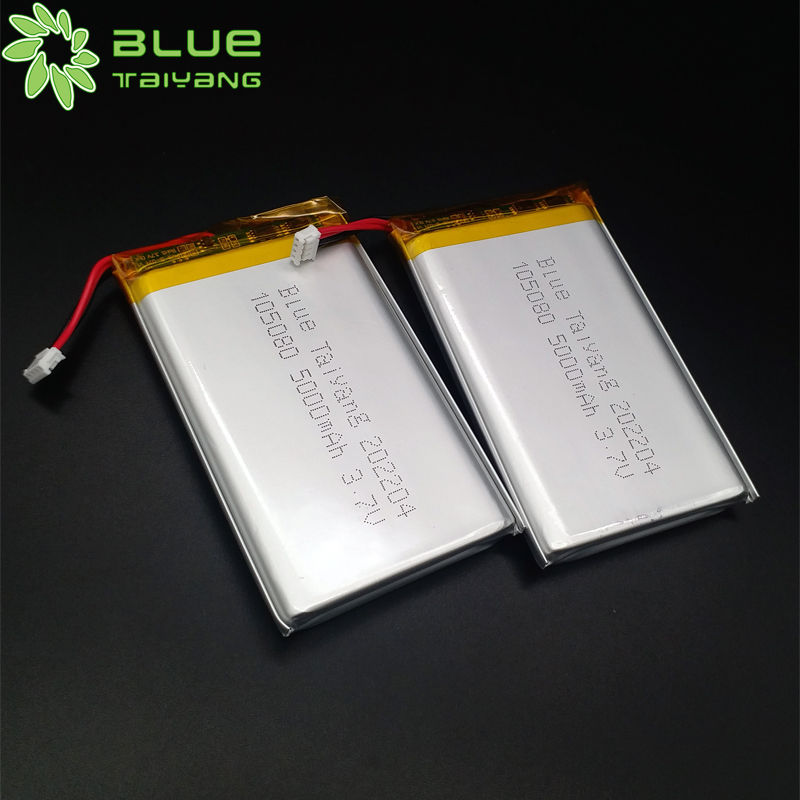

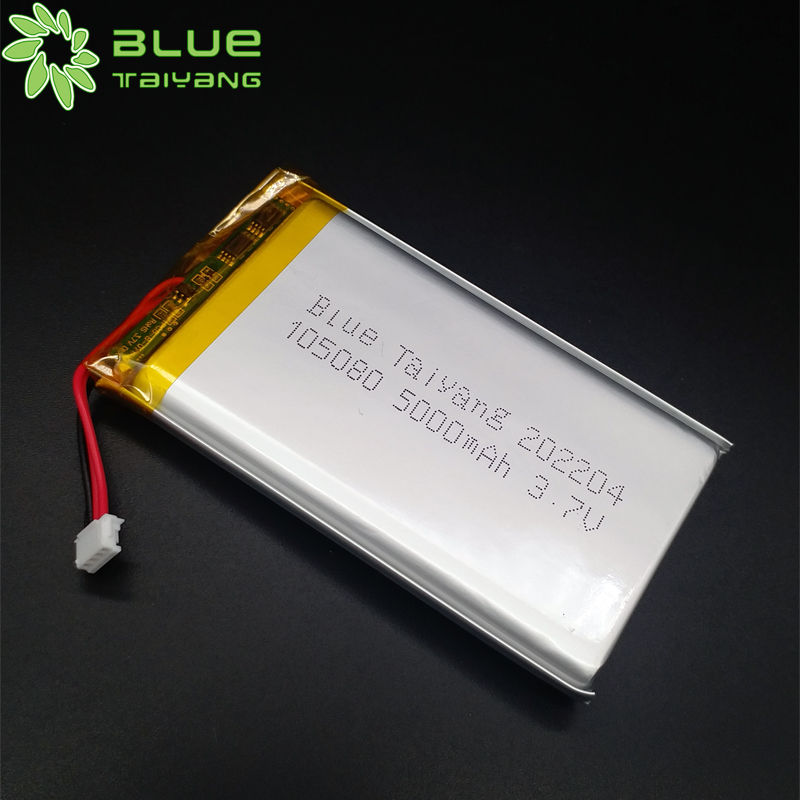

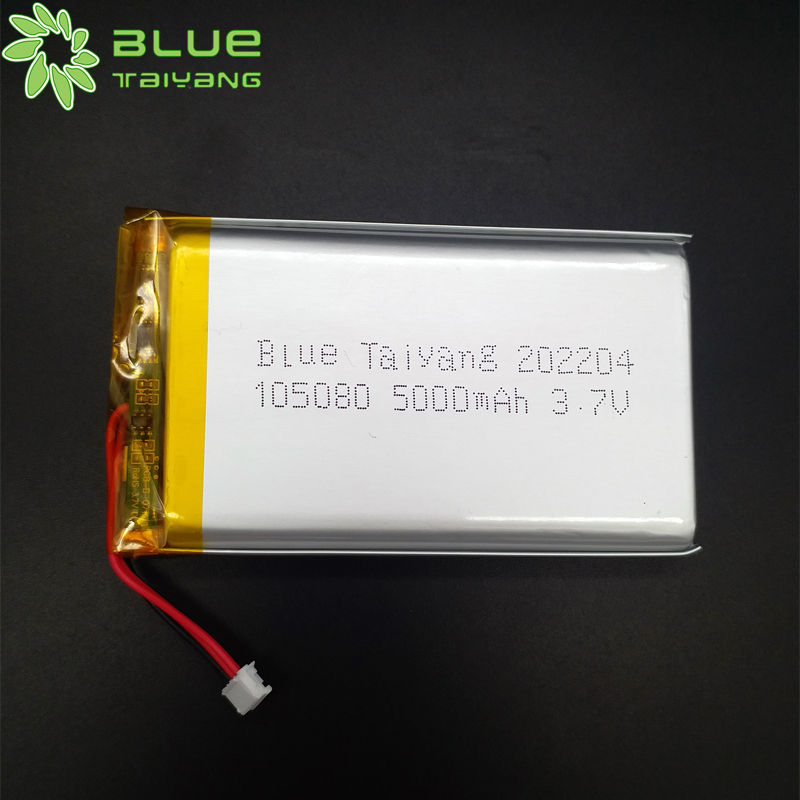

Rechargeable 105080 3.7v 5000mah lipo Lithium Polymer battery

Items	Parameter
Battery model	105085
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	5000mAh (0.5C discharge)

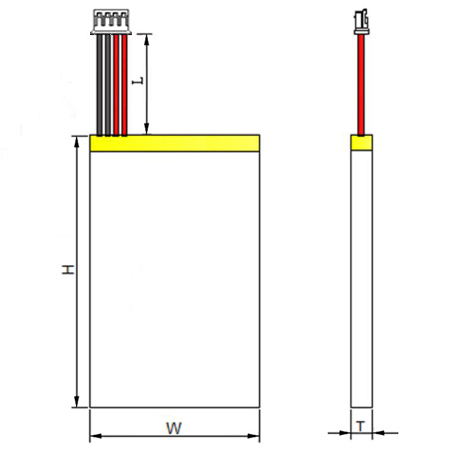

Size	T: 10.0mm W: 50.0mm H: 80.0mm (Includes PCM and wires) L: 40.0mm (Wire length)
Charging voltage	4.3V
Discharging cut-off voltage	2.5V
Standard charging	0.2C /4.2V
Max charging	0.5C /4.2V
Standard discharging	0.2C/2.5V
Max discharging	0.5C/2.5V
Weight	Appr：100.0g
Shipment voltage	≥3.9V
Battery pack impedance	≤40mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	(12 months, ≥85% )
	-10°C~45°C	(6 months, ≥85% )
	-10°C~60°C	(1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Download
103067	3.7/3.8V	2100	67	30	10
103557	3.7/3.8V	3000	57	35	10
103560	3.7/3.8V	2700	60	35	10
103665	3.7/3.8V	3000	65	36	10
103863	3.7/3.8V	2800	63	38	10
103870	3.7/3.8V	4000	70	38	10
103964	3.7/3.8V	3600	64	39	10
104049	3.7/3.8V	2200	49	40	10.0
104050	3.7/3.8V	2500	50	40	10.0
104058	3.7/3.8V	2600	58	40	10
104069	3.7/3.8V	4400	69	40	10
104078	3.7/3.8V	4000	78	40	10
104273	3.7/3.8V	4200	73	42	10
104346	3.7/3.8V	3000	46	43	10
104372	3.7/3.8V	5000	72	43	10
104373	3.7/3.8V	5000	73	43	10.0
104381	3.7/3.8V	5000	81	43	10.0
104448	3.7/3.8V	3000	48	44	10
104450	3.7/3.8V	3000	50	44	10
104466	3.7/3.8V	4000	66	44	10
104544	3.7/3.8V	3000	44	45	10
104858	3.7/3.8V	3500	58	48	10.0
104861	3.7/3.8V	5000	61	48	10
104954	3.7/3.8V	4200	54	49	10
105056	3.7/3.8V	4500	56	50	10
105555	3.7/3.8V	5000	55	55	10
105568	3.7/3.8V	5000	68	55	10.0
105570	3.7/3.8V	5000	70	55	10.0
105573	3.7/3.8V	5000	73	55	10.0
106168	3.7/3.8V	5000	68	61	10
106248	3.7/3.8V	4000	48	62	10
113073	3.7/3.8V	3700	73	30	11
113565	3.7/3.8V	3700	65	35	11
113855	3.7/3.8V	3500	55	38	11
113876	3.7/3.8V	4000	76	38	11
113962	3.7/3.8V	3670	62	39	11
114056	3.7/3.8V	3350	56	40	11
114062	3.7/3.8V	4000	62	40	11
114148	3.7/3.8V	3250	48	41	11
114258	3.7/3.8V	4000	58	42	11
114348	3.7/3.8V	3250	48	43	11
114443	3.7/3.8V	2850	43	44	11
114762	3.7/3.8V	4300	62	47	11
114846	3.7/3.8V	3450	46	48	11
114950	3.7/3.8V	3000	50	49	11
115162	3.7/3.8V	5000	62	51	11
115262	3.7/3.8V	5000	62	52	11
122770	3.7/3.8V	2400	70	27	11
123650	3.7/3.8V	3000	50	36	11
123665	3.7/3.8V	3600	65	36	11
123744	3.7/3.8V	2850	44	37	11
123771	3.7/3.8V	4000	71	37	11
123855	3.7/3.8V	3500	55	38	11
123868	3.7/3.8V	4700	68	38	12
124062	3.7/3.8V	4000	62	40	12
124064	3.7/3.8V	4000	64	40	12
124170	3.7/3.8V	4700	70	41	12
124258	3.7/3.8V	4120	58	42	12
124345	3.7/3.8V	3400	45	43	12
124353	3.7/3.8V	4160	53	43	12
124356	3.7/3.8V	4000	56	43	12
124452	3.7/3.8V	4000	52	44	12
124465	3.7/3.8V	4000	65	44	12
124565	3.7/3.8V	4500	65	45	12
125053	3.7/3.8V	4000	53	50	12
133561	3.7/3.8V	3500	61	35	13
133568	3.7/3.8V	4000	68	35	13
266796	3.7/3.8V	2150	96	67	2.6
267293	3.7/3.8V	2500	93	72	2.6
267394	3.7/3.8V	2700	94	73	2.6
287095	3.7/3.8V	2500	95	70	2.8
288088	3.7/3.8V	2200	88	80	2.8
298085	3.7/3.8V	3000	85	80	2.9
298595	3.7/3.8V	4000	95	85	2.9
298893	3.7/3.8V	3750	93	88	2.9
306799	3.7/3.8V	2400	99	67	3.0
307090	3.7/3.8V	2150	90	70	3.0
307095	3.7/3.8V	2500	95	70	3.0
308083	3.7/3.8V	3000	83	80	3.0
308085	3.7/3.8V	2500	85	80	3.0
308088	3.7/3.8V	2800	88	80	3.0
308590	3.7/3.8V	3000	90	85	3.0
308888	3.7/3.8V	3400	88	88	3.0
309395	3.7/3.8V	3700	95	93	3.0
309595	3.7/3.8V	3500	95	95	3.0
309699	3.7/3.8V	4000	99	96	3.0
309895	3.7/3.8V	4000	95	98	3.0
316285	3.7/3.8V	2500	85	62	3.1
317090	3.7/3.8V	3000	90	70	3.1
325292	3.7/3.8V	2050	92	52	3.2
326679	3.7/3.8V	2450	79	66	3.2
327098	3.7/3.8V	3000	98	70	3.2
327590	3.7/3.8V	3500	90	75	3.2
329074	3.7/3.8V	3550	74	90	3.2
335598	3.7/3.8V	2440	98	55	3.3
335983	3.7/3.8V	2500	83	59	3.3
336587	3.7/3.8V	2600	87	65	3.3
337095	3.7/3.8V	2800	95	70	3.3
345766	3.7/3.8V	2200	66	57	3.4
346588	3.7/3.8V	3200	88	65	3.4
346680	3.7/3.8V	2800	80	66	3.4
347090	3.7/3.8V	2800	90	70	3.4
348589	3.7/3.8V	4100	89	85	3.4
349396	3.7/3.8V	2800	96	96	3.4
355880	3.7/3.8V	2020	80	58	3.5
356290	3.7/3.8V	2900	90	62	3.5
356372	3.7/3.8V	2500	72	63	3.5
356380	3.7/3.8V	2300	80	63	3.5
356479	3.7/3.8V	3300	79	64	3.5
356777	3.7/3.8V	2700	77	67	3.5
357095	3.7/3.8V	2500	95	70	3.5
357176	3.7/3.8V	3000	76	71	3.5
365978	3.7/3.8V	2500	78	59	3.6
366074	3.7/3.8V	2500	74	60	3.6
366076	3.7/3.8V	2500	76	60	3.6
366080	3.7/3.8V	2400	80	60	3.6
366176	3.7/3.8V	2500	76	61	3.6
366685	3.7/3.8V	2600	85	66	3.6
367293	3.7/3.8V	4000	93	72	3.6
368497	3.7/3.8V	4200	97	84	3.6
375983	3.7/3.8V	3000	83	59	3.7
376068	3.7/3.8V	2200	68	60	3.7
376799	3.7/3.8V	3100	99	67	3.7
376896	3.7/3.8V	3620	96	68	3.7
378694	3.7/3.8V	5000	94	86	3.7
379190	3.7/3.8V	4350	90	91	3.7
385475	3.7/3.8V	2200	75	54	3.8
385769	3.7/3.8V	2480	69	57	3.8
385896	3.7/3.8V	3200	96	58	3.8
386080	3.7/3.8V	2750	80	60	3.8
386082	3.7/3.8V	3220	82	60	3.8
386380	3.7/3.8V	2500	80	63	3.8
386479	3.7/3.8V	3000	79	64	3.8
386482	3.7/3.8V	2910	82	64	3.8
386585	3.7/3.8V	2700	85	65	3.8
386587	3.7/3.8V	3200	87	65	3.8
386996	3.7/3.8V	3500	96	69	3.8
396377	3.7/3.8V	2500	77	63	3.9
396871	3.7/3.8V	2850	71	68	3.9
398093	3.7/3.8V	4000	93	80	3.9
404579	3.7/3.8V	2300	79	45	4.0
405887	3.7/3.8V	3000	87	58	4.0
405889	3.7/3.8V	3000	89	58	4.0
405890	3.7/3.8V	3000	90	58	4.0
405969	3.7/3.8V	2650	69	59	4.0
405981	3.7/3.8V	2700	81	59	4.0
406063	3.7/3.8V	2100	63	60	4.0
406080	3.7/3.8V	3000	80	60	4.0
406082	3.7/3.8V	3000	82	60	4.0
406387	3.7/3.8V	3485	87	63	4.0
406484	3.7/3.8V	3600	84	64	4.0
406493	3.7/3.8V	3900	93	64	4.0
406669	3.7/3.8V	3000	69	66	4.0
406787	3.7/3.8V	3200	87	67	4.0
408095	3.7/3.8V	4000	95	80	4.0
408596	3.7/3.8V	4500	96	85	4.0
408991	3.7/3.8V	3250	91	89	4.0
415489	3.7/3.8V	3000	89	54	4.1
416087	3.7/3.8V	3500	87	60	4.1
416179	3.7/3.8V	2700	79	61	4.1
416276	3.7/3.8V	2500	76	62	4.1
416584	3.7/3.8V	3900	84	65	4.1
416587	3.7/3.8V	3500	87	65	4.1
424590	3.7/3.8V	3180	90	45	4.2
425864	3.7/3.8V	2220	64	58	4.2
426278	3.7/3.8V	2700	78	62	4.2
426386	3.7/3.8V	3000	86	63	4.2
426483	3.7/3.8V	3000	83	64	4.2
426484	3.7/3.8V	3500	84	64	4.2
426488	3.7/3.8V	4000	88	64	4.2
426584	3.7/3.8V	4000	84	65	4.2
428787	3.7/3.8V	4250	87	87	4.2
428978	3.7/3.8V	3900	78	89	4.2
434296	3.7/3.8V	2150	96	42	4.3
435483	3.7/3.8V	2800	83	54	4.3
436290	3.7/3.8V	2400	90	62	4.3
436382	3.7/3.8V	4000	82	63	4.3
436384	3.7/3.8V	4000	84	63	4.3
436578	3.7/3.8V	3300	78	65	4.3
436582	3.7/3.8V	3950	82	65	4.3
436660	3.7/3.8V	2700	60	36	4.3
436981	3.7/3.8V	4000	81	69	4.3
437885	3.7/3.8V	4500	85	78	4.3
438155	3.7/3.8V	3100	55	81	4.3
443879	3.7/3.8V	2050	79	38	4.4
444090	3.7/3.8V	2547	90	40	4.4
445285	3.7/3.8V	2800	85	52	4.4
445392	3.7/3.8V	2500	91	53	4.4
445769	3.7/3.8V	2920	69	57	4.4
445770	3.7/3.8V	2950	70	57	4.4
446388	3.7/3.8V	4000	88	63	4.4
453776	3.7/3.8V	2050	76	37	4.5
453995	3.7/3.8V	2100	95	39	4.5
454092	3.7/3.8V	2900	92	40	4.5
455085	3.7/3.8V	2300	85	50	4.5
455271	3.7/3.8V	2550	71	52	4.5
455369	3.7/3.8V	2020	69	53	4.5
456498	3.7/3.8V	2800	98	64	4.5
459576	3.7/3.8V	4800	76	95	4.5
465557	3.7/3.8V	2450	57	55	4.6
465585	3.7/3.8V	2800	85	55	4.6
465880	3.7/3.8V	3000	80	58	4.6
466061	3.7/3.8V	2200	61	60	4.6
466272	3.7/3.8V	3650	72	62	4.6
466380	3.7/3.8V	3500	80	63	4.6
466493	3.7/3.8V	4800	93	64	4.6
466561	3.7/3.8V	2500	61	65	4.6
466591	3.7/3.8V	4900	91	65	4.6
466595	3.7/3.8V	4950	95	65	4.6
466666	3.7/3.8V	3000	66	66	4.6
466986	3.7/3.8V	3900	86	69	4.6
468882	3.7/3.8V	4800	82	88	4.6
474475	3.7/3.8V	2580	75	44	4.7
474580	3.7/3.8V	2300	80	45	4.7
475886	3.7/3.8V	3850	86	58	4.7
475984	3.7/3.8V	4000	84	59	4.7
476078	3.7/3.8V	3300	78	60	4.7
476179	3.7/3.8V	3500	79	61	4.7
476180	3.7/3.8V	4000	80	61	4.7
476369	3.7/3.8V	2750	69	63	4.7
476371	3.7/3.8V	2750	71	63	4.7
476389	3.7/3.8V	4880	89	63	4.7
476484	3.7/3.8V	4400	84	64	4.7
476690	3.7/3.8V	4930	90	66	4.7
477877	3.7/3.8V	4400	77	78	4.7
485575	3.7/3.8V	2750	75	55	4.8
485584	3.7/3.8V	3420	84	55	4.8
485795	3.7/3.8V	4900	95	57	4.8
486079	3.7/3.8V	3500	79	60	4.8
486087	3.7/3.8V	2400	87	60	4.8
486095	3.7/3.8V	4000	95	60	4.8
486272	3.7/3.8V	3950	72	62	4.8
486374	3.7/3.8V	3150	74	63	4.8
486574	3.7/3.8V	3600	74	65	4.8
486590	3.7/3.8V	4000	90	65	4.8
486790	3.7/3.8V	5000	90	67	4.8
486871	3.7/3.8V	3200	71	68	4.8
488471	3.7/3.8V	3800	71	84	4.8
494597	3.7/3.8V	3250	97	45	4.9
495490	3.7/3.8V	4030	90	54	4.9
495878	3.7/3.8V	3720	78	58	4.9
496688	3.7/3.8V	4720	88	66	4.9
496691	3.7/3.8V	4700	91	66	4.9
497087	3.7/3.8V	4900	87	70	4.9
499097	3.7/3.8V	5000	97	90	4.9
504078	3.7/3.8V	2400	78	40	5.0
504997	3.7/3.8V	3000	97	49	5.0
505170	3.7/3.8V	2200	70	51	5.0
505256	3.7/3.8V	2200	56	52	5.0
505999	3.7/3.8V	3715	99	59	5.0
506193	3.7/3.8V	4000	93	61	5.0
506465	3.7/3.8V	3300	65	64	5.0
506582	3.7/3.8V	4000	82	65	5.0
506758	3.7/3.8V	2700	58	67	5.0
507175	3.7/3.8V	4000	75	71	5.0
507779	3.7/3.8V	4100	79	77	5.0
507983	3.7/3.8V	4000	83	79	5.0
508865	3.7/3.8V	4700	65	88	5.0
515777	3.7/3.8V	3600	77	57	5.1
515974	3.7/3.8V	3600	74	59	5.1
517183	3.7/3.8V	5000	83	71	5.1
524687	3.7/3.8V	3200	87	46	5.2
524961	3.7/3.8V	2620	61	49	5.2
525075	3.7/3.8V	2500	75	50	5.2
525280	3.7/3.8V	2700	80	75	5.2
525580	3.7/3.8V	3500	80	52	5.2
525777	3.7/3.8V	3400	77	55	5.2
525779	3.7/3.8V	3600	79	57	5.2
526270	3.7/3.8V	3400	70	62	5.2
526272	3.7/3.8V	3400	72	62	5.2
526275	3.7/3.8V	4200	75	62	5.2
526468	3.7/3.8V	3850	68	64	5.2
526480	3.7/3.8V	3850	80	64	5.2
526580	3.7/3.8V	4000	80	65	5.2
526974	3.7/3.8V	4150	74	69	5.2
533975	3.7/3.8V	2100	75	39	5.3
534764	3.7/3.8V	2600	64	47	5.3
535186	3.7/3.8V	3300	86	51	5.3
535284	3.7/3.8V	3300	84	52	5.3
535292	3.7/3.8V	4000	92	52	5.3
535578	3.7/3.8V	3600	78	55	5.3
535776	3.7/3.8V	3700	76	57	5.3
536057	3.7/3.8V	3200	57	60	5.3
544380	3.7/3.8V	2200	90	43	5.4
544762	3.7/3.8V	2630	62	47	5.4
545068	3.7/3.8V	2550	68	50	5.4
545163	3.7/3.8V	2100	63	51	5.4
545287	3.7/3.8V	3350	87	52	5.4
545288	3.7/3.8V	2800	88	52	5.4
545669	3.7/3.8V	2950	69	56	5.4
545693	3.7/3.8V	4250	93	56	5.4
546290	3.7/3.8V	4850	90	62	5.4
546982	3.7/3.8V	4000	82	69	5.4
546984	3.7/3.8V	4000	84	69	5.4
554393	3.7/3.8V	3350	93	43	5.5
554998	3.7/3.8V	4600	98	49	5.5
555498	3.7/3.8V	4000	98	54	5.5
556095	3.7/3.8V	4000	95	60	5.5
564070	3.7/3.8V	2500	70	40	5.6
564173	3.7/3.8V	2400	73	41	5.6
564497	3.7/3.8V	3000	97	44	5.6
565872	3.7/3.8V	3400	72	58	5.6
566270	3.7/3.8V	3000	70	62	5.6
573496	3.7/3.8V	2200	96	34	5.7
574599	3.7/3.8V	3150	99	45	5.7
574954	3.7/3.8V	2220	54	49	5.7
575576	3.7/3.8V	3450	76	55	5.7
575578	3.7/3.8V	2500	78	55	5.7
576090	3.7/3.8V	4150	90	60	5.7
576185	3.7/3.8V	5000	85	61	5.7
577093	3.7/3.8V	5000	93	70	5.7
584764	3.7/3.8V	2050	64	47	5.8
584858	3.7/3.8V	2090	58	48	5.8
584976	3.7/3.8V	3460	76	49	5.8
585575	3.7/3.8V	2900	75	55	5.8
585577	3.7/3.8V	3900	77	55	5.8
585579	3.7/3.8V	4200	79	55	5.8
585880	3.7/3.8V	3600	80	58	5.8
585950	3.7/3.8V	2650	50	59	5.8
585962	3.7/3.8V	3500	62	59	5.8
586285	3.7/3.8V	4000	85	62	5.8
587578	3.7/3.8V	4000	78	75	5.8
588157	3.7/3.8V	3500	57	81	5.8
594280	3.7/3.8V	2600	80	42	5.9
594368	3.7/3.8V	2250	68	43	5.9
594395	3.7/3.8V	2800	95	43	5.9
595578	3.7/3.8V	3600	78	55	5.9
596067	3.7/3.8V	2900	67	60	5.9
596181	3.7/3.8V	4700	81	61	5.9
596378	3.7/3.8V	5000	63	63	5.9
603380	3.7/3.8V	2100	80	33	6.0
604097	3.7/3.8V	2600	97	40	6.0
604664	3.7/3.8V	2200	64	46	6.0
604674	3.7/3.8V	3600	74	46	6.0
604875	3.7/3.8V	2600	75	48	6.0
604880	3.7/3.8V	3700	80	48	6.0
605361	3.7/3.8V	2750	61	53	6.0
605374	3.7/3.8V	2400	74	53	6.0
605483	3.7/3.8V	3500	83	54	6.0
605490	3.7/3.8V	4000	90	54	6.0
605562	3.7/3.8V	2700	62	55	6.0
605578	3.7/3.8V	3400	78	55	6.0
605969	3.7/3.8V	4000	69	59	6.0
606063	3.7/3.8V	3400	63	60	6.0
606070	3.7/3.8V	3000	70	60	6.0
606072	3.7/3.8V	4150	72	60	6.0
606080	3.7/3.8V	3900	80	60	6.0
606082	3.7/3.8V	3800	82	60	6.0
606090	3.7/3.8V	5000	90	60	6.0
606168	3.7/3.8V	2400	68	61	6.0
606262	3.7/3.8V	3550	62	62	6.0
606282	3.7/3.8V	5000	82	62	6.0
606397	3.7/3.8V	4850	97	63	6.0
606576	3.7/3.8V	3450	76	65	6.0
606580	3.7/3.8V	4000	80	65	6.0
606696	3.7/3.8V	5000	96	66	6.0
614279	3.7/3.8V	3150	79	42	6.1
614282	3.7/3.8V	3000	82	42	6.1
614857	3.7/3.8V	2500	57	48	6.1
615453	3.7/3.8V	2030	53	54	6.1
615576	3.7/3.8V	3950	76	55	6.1
615957	3.7/3.8V	3175	57	59	6.1
616864	3.7/3.8V	3896	64	68	6.1
624751	3.7/3.8V	2250	51	47	6.2
624764	3.7/3.8V	2800	64	47	6.2
624871	3.7/3.8V	3000	71	48	6.2
624885	3.7/3.8V	4100	85	48	6.2
625686	3.7/3.8V	4800	86	56	6.2
625978	3.7/3.8V	5000	78	59	6.2
626196	3.7/3.8V	5000	96	61	6.2
627138	3.7/3.8V	2550	38	71	6.2
634791	3.7/3.8V	4500	91	47	6.3
634869	3.7/3.8V	2800	69	48	6.3
635776	3.7/3.8V	4860	76	57	6.3
635883	3.7/3.8V	4000	83	58	6.3
636267	3.7/3.8V	3300	67	62	6.3
638870	3.7/3.8V	4900	70	88	6.3
644889	3.7/3.8V	3950	89	48	6.4
645465	3.7/3.8V	3900	65	54	6.4
645573	3.7/3.8V	3850	73	55	6.4
646175	3.7/3.8V	4600	75	61	6.4
653964	3.7/3.8V	2300	64	39	6.5
653975	3.7/3.8V	2500	75	39	6.5
654566	3.7/3.8V	2200	66	45	6.5
654764	3.7/3.8V	2050	64	47	6.5
654952	3.7/3.8V	2600	52	49	6.5
655471	3.7/3.8V	3850	71	54	6.5
655485	3.7/3.8V	3300	85	54	6.5
655566	3.7/3.8V	3200	66	55	6.5
655667	3.7/3.8V	3500	67	56	6.5
655982	3.7/3.8V	5000	82	59	6.5
656090	3.7/3.8V	5000	90	60	6.5
656182	3.7/3.8V	4440	82	61	6.5
656470	3.7/3.8V	3600	70	64	6.5
656473	3.7/3.8V	4400	73	64	6.5
656583	3.7/3.8V	5000	83	65	6.5
663079	3.7/3.8V	2100	79	30	6.6
663993	3.7/3.8V	3000	93	39	6.6
664952	3.7/3.8V	2600	52	49	6.6
665365	3.7/3.8V	3500	65	53	6.6
665477	3.7/3.8V	4520	77	54	6.6
665487	3.7/3.8V	5000	87	55	6.6
665567	3.7/3.8V	3000	67	55	6.6
666255	3.7/3.8V	3150	55	62	6.6
675076	3.7/3.8V	5000	76	50	6.7
675395	3.7/3.8V	5000	95	53	6.7
675479	3.7/3.8V	4500	79	54	6.7
675571	3.7/3.8V	4500	74	55	6.7
675883	3.7/3.8V	5000	83	58	6.7
676090	3.7/3.8V	5000	90	60	6.7
683782	3.7/3.8V	3000	82	37	6.8
683886	3.7/3.8V	2800	86	38	6.8
683982	3.7/3.8V	2800	82	39	6.8
684078	3.7/3.8V	2500	78	40	6.8
684570	3.7/3.8V	2520	70	45	6.8
684698	3.7/3.8V	4100	98	46	6.8
684856	3.7/3.8V	3080	56	48	6.8
684893	3.7/3.8V	4000	93	48	6.8
684987	3.7/3.8V	3900	87	49	6.8
685068	3.7/3.8V	3000	68	50	6.8
685163	3.7/3.8V	3000	63	51	6.8
685185	3.7/3.8V	4400	85	51	6.8
685264	3.7/3.8V	2650	64	52	6.8
685450	3.7/3.8V	2450	50	54	6.8
685578	3.7/3.8V	4000	78	55	6.8
694796	3.7/3.8V	5000	96	47	6.9
695268	3.7/3.8V	3000	68	52	6.9
695383	3.7/3.8V	4200	83	53	6.9
695466	3.7/3.8V	4000	66	46	6.9
695670	3.7/3.8V	4000	70	56	6.9
695766	3.7/3.8V	4000	66	57	6.9
695776	3.7/3.8V	5000	76	57	6.9
696175	3.7/3.8V	5000	75	61	6.9
703874	3.7/3.8V	2600	74	38	7.0
703876	3.7/3.8V	2500	76	39	7.0
703982	3.7/3.8V	2800	85	40	7.0
704060	3.7/3.8V	2100	60	40	7.0
704084	3.7/3.8V	3000	84	42	7.0
704270	3.7/3.8V	3000	70	45	7.0
704560	3.7/3.8V	2700	60	45	7.0
704849	3.7/3.8V	2200	49	48	7.0
705167	3.7/3.8V	3000	67	51	7.0
705245	3.7/3.8V	2600	45	52	7.0
705586	3.7/3.8V	4400	86	55	7.0
705960	3.7/3.8V	3500	60	59	7.0
706090	3.7/3.8V	5000	90	60	7.0
706174	3.7/3.8V	4000	74	61	7.0
713982	3.7/3.8V	3000	82	39	7.1
714359	3.7/3.8V	2300	59	43	7.1
723390	3.7/3.8V	2600	90	33	7.2
723398	3.7/3.8V	3500	98	33	7.2
723499	3.7/3.8V	3500	99	34	7.2
724372	3.7/3.8V	3000	72	43	7.2
725671	3.7/3.8V	4920	71	56	7.2
726378	3.7/3.8V	5000	78	63	7.2
733662	3.7/3.8V	2100	62	36	7.3
733762	3.7/3.8V	2200	62	37	7.3
733978	3.7/3.8V	3000	78	39	7.3
734470	3.7/3.8V	3000	70	44	7.3
735080	3.7/3.8V	4800	80	50	7.3
735153	3.7/3.8V	3060	53	51	7.3
735490	3.7/3.8V	5000	90	54	7.3
735762	3.7/3.8V	4020	62	57	7.3
735987	3.7/3.8V	5000	87	59	7.3
736285	3.7/3.8V	4750	85	62	7.3
737066	3.7/3.8V	2100	66	70	7.3
743862	3.7/3.8V	2400	62	38	7.4
744445	3.7/3.8V	2200	45	44	7.4
745060	3.7/3.8V	3000	60	50	7.4
752886	3.7/3.8V	2620	86	28	7.5
753898	3.7/3.8V	3500	98	38	7.5
754698	3.7/3.8V	4100	98	46	7.5
755064	3.7/3.8V	3400	64	50	7.5
755585	3.7/3.8V	4000	85	55	7.5
755590	3.7/3.8V	5000	90	55	7.5
755673	3.7/3.8V	5000	73	56	7.5
756175	3.7/3.8V	4800	75	61	7.5
756378	3.7/3.8V	5000	78	63	7.5
763556	3.7/3.8V	2300	56	35	7.6
764395	3.7/3.8V	4300	95	43	7.6
765068	3.7/3.8V	3800	68	50	7.6
765178	3.7/3.8V	5000	78	51	7.6
766063	3.7/3.8V	4900	63	60	7.6
775068	3.7/3.8V	4000	68	50	7.7
775656	3.7/3.8V	3200	56	56	7.7
783468	3.7/3.8V	2750	68	34	7.8
783670	3.7/3.8V	2500	70	36	7.8
784060	3.7/3.8V	2500	60	40	7.8
784171	3.7/3.8V	2200	71	41	7.8
784368	3.7/3.8V	3000	69	43	7.8
785275	3.7/3.8V	4680	75	52	7.8
794350	3.7/3.8V	2050	50	43	7.9
794679	3.7/3.8V	4500	79	46	7.9
802792	3.7/3.8V	2500	92	27	8.0
803470	3.7/3.8V	2700	70	34	8.0
803883	3.7/3.8V	3900	83	38	8.0
803985	3.7/3.8V	4000	85	39	8.0
804457	3.7/3.8V	2400	57	44	8.0
804672	3.7/3.8V	3870	72	46	8.0
804771	3.7/3.8V	4150	74	47	8.0
805065	3.7/3.8V	4000	65	50	8.0
805080	3.7/3.8V	4000	80	50	8.0
805457	3.7/3.8V	4020	57	54	8.0
805566	3.7/3.8V	3650	66	55	8.0
805575	3.7/3.8V	3750	75	55	8.0
805683	3.7/3.8V	4300	83	56	8.0
805861	3.7/3.8V	4500	61	58	8.0
806263	3.7/3.8V	4200	63	62	8.0
807662	3.7/3.8V	4500	62	76	8.0
813888	3.7/3.8V	3900	88	38	8.1
814772	3.7/3.8V	4000	72	47	8.1
815261	3.7/3.8V	3000	61	52	8.1
815567	3.7/3.8V	3924	67	55	8.1
815769	3.7/3.8V	5000	69	57	8.1
824090	3.7/3.8V	4900	90	40	8.2
824777	3.7/3.8V	4000	77	47	8.2
825575	3.7/3.8V	4800	75	55	8.2
834888	3.7/3.8V	5000	88	48	8.3
835676	3.7/3.8V	4800	76	56	8.3
843757	3.7/3.8V	3000	57	37	8.4
844353	3.7/3.8V	2950	53	43	8.4
844872	3.7/3.8V	5000	72	48	8.4
844969	3.7/3.8V	4000	69	49	8.4
845360	3.7/3.8V	4100	60	53	8.4
846061	3.7/3.8V	4000	61	60	8.4
853863	3.7/3.8V	2600	63	38	8.5
854375	3.7/3.8V	4400	75	43	8.5
854545	3.7/3.8V	2300	45	45	8.5
854665	3.7/3.8V	2820	65	46	8.5
854969	3.7/3.8V	3670	69	49	8.5
855260	3.7/3.8V	3500	60	52	8.5
855767	3.7/3.8V	4600	67	57	8.5
864475	3.7/3.8V	4100	75	44	8.6
864480	3.7/3.8V	4000	80	44	8.6
864974	3.7/3.8V	4300	74	49	8.6
865268	3.7/3.8V	4700	68	52	8.6
865557	3.7/3.8V	4200	57	55	8.6
874050	3.7/3.8V	2450	50	40	8.7
874353	3.7/3.8V	3100	53	43	8.7
874376	3.7/3.8V	3600	76	43	8.7
874969	3.7/3.8V	3500	69	49	8.7
884169	3.7/3.8V	2500	69	41	8.8
884553	3.7/3.8V	2600	53	45	8.8
885054	3.7/3.8V	2930	54	50	8.8
885266	3.7/3.8V	5000	66	52	8.8
885657	3.7/3.8V	3800	56	56	8.8
894672	3.7/3.8V	4800	46	46	8.9
895465	3.7/3.8V	5000	54	54	8.9
895764	3.7/3.8V	5000	57	57	8.9
903588	3.7/3.8V	4000	35	35	9.0
903659	3.7/3.8V	2500	36	36	9.0
904083	3.7/3.8V	3800	83	40	9.0
904261	3.7/3.8V	3000	61	42	9.0
904356	3.7/3.8V	3000	56	43	9.0
904954	3.7/3.8V	3050	54	49	9.0
905050	3.7/3.8V	2500	50	50	9.0
905265	3.7/3.8V	5000	65	52	9.0
905472	3.7/3.8V	5000	72	54	9.0
905570	3.7/3.8V	4500	70	55	9.0
906082	3.7/3.8V	5000	82	60	9.0
914159	3.7/3.8V	2750	59	41	9.1
915760	3.7/3.8V	4000	60	57	9.1
923949	3.7/3.8V	2500	49	39	9.2
925558	3.7/3.8V	3500	58	55	9.2
925857	3.7/3.8V	4020	57	58	9.2
933757	3.7/3.8V	3000	57	37	9.3
933866	3.7/3.8V	2600	66	38	9.3
934654	3.7/3.8V	3000	54	46	9.3
944755	3.7/3.8V	3150	55	47	9.4
945258	3.7/3.8V	4500	58	52	9.4
953363	3.7/3.8V	3000	63	33	9.5
953759	3.7/3.8V	2300	59	37	9.5
953773	3.7/3.8V	3600	73	37	9.5
953956	3.7/3.8V	3000	56	39	9.5
954046	3.7/3.8V	2250	46	40	9.5
954190	3.7/3.8V	5000	90	41	9.5
954390	3.7/3.8V	5000	90	43	9.5
954642	3.7/3.8V	2600	42	46	9.5
955060	3.7/3.8V	4000	60	50	9.5
955375	3.7/3.8V	5000	75	53	9.5
955465	3.7/3.8V	5000	65	54	9.5
955565	3.7/3.8V	5000	655	55	9.5
955566	3.7/3.8V	5000	66	55	9.5
955570	3.7/3.8V	5000	70	55	9.5
955575	3.7/3.8V	3800	75	55	9.5
963759	3.7/3.8V	3000	59	37	9.6
964156	3.7/3.8V	3250	56	41	9.6
973567	3.7/3.8V	3100	67	35	9.7
975060	3.7/3.8V	4000	60	50	9.7
994050	3.7/3.8V	2500	50	40	9.9
1174170	3.7/3.8	4700	170	74	11
1184050	3.7/3.8	3000	50	84	11
2272107	3.7/3.8	2500	107	72	2.2
2275107	3.7/3.8	2500	107	75	2.2
2310589	3.7/3.8	3000	589	10	2.3
2358108	3.7/3.8	2170	108	58	2.3
2463104	3.7/3.8	2300	104	63	2.4
2563172	3.7/3.8	4100	172	63	2.5
2665142	3.7/3.8	3000	142	65	2.6
2670155	3.7/3.8	4170	155	70	2.6
2695100	3.7/3.8	2900	100	95	2.6
2696102	3.7/3.8	3610	102	96	2.6
2754161	3.7/3.8	3700	161	54	2.7
2755170	3.7/3.8	3900	170	55	2.7
2765159	3.7/3.8	4270	159	65	2.7
2775110	3.7/3.8	2700	110	75	2.7
2775120	3.7/3.8	3000	120	75	2.7
2780102	3.7/3.8	3000	102	80	2.7
2786161	3.7/3.8	4800	161	86	2.7
2794127	3.7/3.8	4500	127	94	2.7
2810193	3.7/3.8	4000	193	10	2.8
2854142	3.7/3.8	3300	142	54	2.8
2855125	3.7/3.8	3000	125	55	2.8
2857138	3.7/3.8	3500	138	57	2.8
2858139	3.7/3.8	2850	139	58	2.8
2860116	3.7/3.8	3000	116	60	2.8
2864138	3.7/3.8	3000	138	64	2.8
2864147	3.7/3.8	3500	147	64	2.8
2868145	3.7/3.8	5000	145	68	2.8
2870100	3.7/3.8	2500	100	70	2.8
2870104	3.7/3.8	2500	104	70	2.8
2870105	3.7/3.8	2500	105	70	2.8
2870120	3.7/3.8	3220	120	70	2.8
2877128	3.7/3.8	4580	128	77	2.8
2884101	3.7/3.8	3280	101	84	2.8
2885118	3.7/3.8	3200	118	85	2.8
2892140	3.7/3.8	5000	140	92	2.8
2895107	3.7/3.8	4000	107	95	2.8
2898100	3.7/3.8	3800	100	98	2.8
2898125	3.7/3.8	5000	125	98	2.8
2899109	3.7/3.8	4900	109	99	2.8
2949119	3.7/3.8	2750	119	49	2.9
2958135	3.7/3.8	3000	135	58	2.9
2960116	3.7/3.8	3000	116	60	2.9
2962118	3.7/3.8	3500	118	62	2.9
2963115	3.7/3.8	3300	115	63	2.9
2964120	3.7/3.8	3250	120	64	2.9
2965119	3.7/3.8	3500	119	65	2.9
2968178	3.7/3.8	5000	178	68	2.9
2970115	3.7/3.8	3000	115	70	2.9
2975122	3.7/3.8	4030	122	75	2.9
2982131	3.7/3.8	4800	131	82	2.9
2983122	3.7/3.8	4200	122	83	2.9
2996109	3.7/3.8	3800	109	96	2.9
2998116	3.7/3.8	3600	116	98	2.9
2998125	3.7/3.8	5000	125	98	2.9
3010097	3.7/3.8	4000	97	10	3
3052118	3.7/3.8	2400	118	52	3
3055148	3.7/3.8	3000	148	55	3
3059132	3.7/3.8	3750	132	59	3
3062114	3.7/3.8	4000	114	62	3
3062138	3.7/3.8	4000	138	62	3
3065165	3.7/3.8	5000	165	65	3
3068120	3.7/3.8	3000	120	68	3
3070145	3.7/3.8	4000	145	70	3
3075108	3.7/3.8	3900	108	75	3
3075120	3.7/3.8	3500	120	75	3
3075131	3.7/3.8	4750	131	75	3
3084114	3.7/3.8	4000	114	84	3
3096137	3.7/3.8	4500	137	96	3
3097140	3.7/3.8	5000	140	97	3
3098140	3.7/3.8	5000	140	98	3
3153130	3.7/3.8	2500	130	53	3.1
3157125	3.7/3.8	3500	125	57	3.1
3163138	3.7/3.8	4000	138	63	3.1
3175145	3.7/3.8	5000	145	75	3.1
3180142	3.7/3.8	5000	142	80	3.1
3182109	3.7/3.8	4000	109	82	3.1
3183103	3.7/3.8	4000	103	83	3.1
3210097	3.7/3.8	5000	97	10	3.2
3247135	3.7/3.8	3400	135	47	3.2
3249108	3.7/3.8	2572	108	49	3.2
3250154	3.7/3.8	2900	154	50	3.2
3254143	3.7/3.8	4000	143	54	3.2
3256118	3.7/3.8	2200	118	56	3.2
3260133	3.7/3.8	4000	133	60	3.2
3260136	3.7/3.8	4000	136	60	3.2
3263135	3.7/3.8	4030	135	63	3.2
3264120	3.7/3.8	4000	120	64	3.2
3268137	3.7/3.8	4000	137	68	3.2
3270128	3.7/3.8	3000	128	70	3.2
3281112	3.7/3.8	4100	112	81	3.2
3282123	3.7/3.8	4500	123	82	3.2
3293107	3.7/3.8	5000	107	93	3.2
3298125	3.7/3.8	5000	125	98	3.2
3349119	3.7/3.8	2950	119	49	3.3
3356123	3.7/3.8	2500	123	56	3.3
3362125	3.7/3.8	3500	125	62	3.3
3364125	3.7/3.8	3400	125	64	3.3
3365100	3.7/3.8	2500	100	65	3.3
3375128	3.7/3.8	3500	128	75	3.3
3378107	3.7/3.8	4000	107	78	3.3
3378130	3.7/3.8	2800	130	78	3.3
3395145	3.7/3.8	5000	145	95	3.3
3449118	3.7/3.8	2915	118	49	3.4
3453100	3.7/3.8	2500	100	53	3.4
3454119	3.7/3.8	3230	119	54	3.4
3466731	3.7/3.8	2290	731	66	3.4
3473125	3.7/3.8	5000	125	73	3.4
3543114	3.7/3.8	2480	114	43	3.5
3549109	3.7/3.8	2900	109	49	3.5
3553125	3.7/3.8	2700	125	53	3.5
3555162	3.7/3.8	4950	162	55	3.5
3566102	3.7/3.8	3500	102	66	3.5
3569125	3.7/3.8	4000	125	69	3.5
3585100	3.7/3.8	4750	100	85	3.5
3666100	3.7/3.8	2600	100	66	3.6
3674110	3.7/3.8	3600	110	74	3.6
3745101	3.7/3.8	2500	101	45	3.7
3760130	3.7/3.8	4750	130	60	3.7
3766110	3.7/3.8	3600	110	66	3.7
3768110	3.7/3.8	3800	110	68	3.7
3863118	3.7/3.8	4400	118	63	3.8
3866101	3.7/3.8	3000	101	66	3.8
3868129	3.7/3.8	4800	129	68	3.8
3886115	3.7/3.8	5000	115	86	3.8
3967106	3.7/3.8	4000	106	67	3.9
3968130	3.7/3.8	5000	130	68	3.9
4037125	3.7/3.8	2200	125	37	4
4042150	3.7/3.8	2800	150	42	4
4055102	3.7/3.8	2800	102	55	4
4055130	3.7/3.8	4000	130	55	4
4062131	3.7/3.8	4650	131	62	4
4065116	3.7/3.8	5000	116	65	4
4066125	3.7/3.8	4940	125	66	4
4068125	3.7/3.8	3000	125	68	4
4070115	3.7/3.8	4000	115	70	4
4078110	3.7/3.8	5000	110	78	4
4080100	3.7/3.8	5000	100	80	4
4082110	3.7/3.8	5000	110	82	4
4082113	3.7/3.8	5000	113	82	4
4084110	3.7/3.8	5000	110	84	4
4088110	3.7/3.8	5000	110	88	4
4164120	3.7/3.8	4500	120	64	4.1
4185103	3.7/3.8	5000	103	85	4.1
4238106	3.7/3.8	2400	106	38	4.2
4246105	3.7/3.8	2400	105	46	4.2
4247123	3.7/3.8	3000	123	47	4.2
4253122	3.7/3.8	3900	122	53	4.2
4255107	3.7/3.8	4000	107	55	4.2
4255128	3.7/3.8	4900	128	55	4.2
4258120	3.7/3.8	3750	120	58	4.2
4260115	3.7/3.8	4000	115	60	4.2
4270125	3.7/3.8	5000	125	70	4.2
4283114	3.7/3.8	4700	114	83	4.2
4346112	3.7/3.8	3000	112	46	4.3
4347118	3.7/3.8	3200	118	47	4.3
4350104	3.7/3.8	3855	104	50	4.3
4358135	3.7/3.8	4300	135	58	4.3
4361135	3.7/3.8	5000	135	61	4.3
4370100	3.7/3.8	4250	100	70	4.3
4370115	3.7/3.8	5000	115	70	4.3
4552118	3.7/3.8	3800	118	52	4.5
4552122	3.7/3.8	4700	122	52	4.5
4555120	3.7/3.8	3750	120	55	4.5
4562108	3.7/3.8	4000	108	62	4.5
4565110	3.7/3.8	4300	110	65	4.5
4565113	3.7/3.8	5000	113	65	4.5
4576125	3.7/3.8	5000	125	76	4.5
4647117	3.7/3.8	4520	117	47	4.6
4674118	3.7/3.8	4500	118	74	4.6
4738109	3.7/3.8	2200	109	38	4.7
4748123	3.7/3.8	3800	123	48	4.7
4842125	3.7/3.8	3000	125	42	4.8
4956120	3.7/3.8	4000	120	56	4.9
5055115	3.7/3.8	4200	115	55	5
5080100	3.7/3.8	5000	100	80	5
5143102	3.7/3.8	3839	102	43	5.1
5340101	3.7/3.8	3500	101	40	5.3
5364105	3.7/3.8	4750	105	64	5.3
5465110	3.7/3.8	5000	110	65	5.4
5534105	3.7/3.8	2500	105	34	5.5
5547105	3.7/3.8	3900	105	47	5.5
5558110	3.7/3.8	4500	110	58	5.5
5565113	3.7/3.8V	5000	113	65	5.5
5654132	3.7/3.8	5000	132	54	5.6
5744110	3.7/3.8	4600	110	44	5.7
5745108	3.7/3.8	4600	108	45	5.7
5758102	3.7/3.8	5000	102	58	5.7
5936142	3.7/3.8	4200	142	36	5.9
6045116	3.7/3.8	5000	116	45	6
6060100	3.7/3.8	5000	100	60	6
6060110	3.7/3.8V	5000	110	60	6.0
6153110	3.7/3.8	4500	110	53	6.1
6251100	3.7/3.8	4000	100	51	6.2
6330125	3.7/3.8	3000	125	30	6.3
6341101	3.7/3.8	3500	101	41	6.3
6535125	3.7/3.8	4000	125	35	6.5
6558102	3.7/3.8	5000	102	58	6.5
6736122	3.7/3.8	3800	122	36	6.7
6836137	3.7/3.8	3900	137	36	6.8
6840114	3.7/3.8	3800	114	40	6.8
7044123	3.7/3.8	5000	123	44	7
7130101	3.7/3.8	3655	101	30	7.1
7242123	3.7/3.8	4500	123	42	7.2
7446102	3.7/3.8	3900	102	46	7.4
7533101	3.7/3.8	4100	101	33	7.5
7545125	3.7/3.8	5000	125	45	7.5
7550105	3.7/3.8	5000	105	50	7.5
7847100	3.7/3.8	5000	100	47	7.8
8347113	3.7/3.8	5000	113	47	8.3
8730100	3.7/3.8	3800	100	30	8.7
9265108	3.7/3.8	5000	108	65	9.2
9527101	3.7/3.8	3150	101	27	9.5
25100150	3.7/3.8	4200	150	100	2.5
28100100	3.7/3.8	3600	100	100	2.8
28100120	3.7/3.8	5000	120	100	2.8
29100100	3.7/3.8	3500	100	100	2.9
29100101	3.7/3.8	3500	101	100	2.9
29100114	3.7/3.8	4200	114	100	2.9
30100100	3.7/3.8	4000	100	100	3
30100102	3.7/3.8	4000	102	100	3
30100103	3.7/3.8	4000	103	100	3
30100133	3.7/3.8	5000	133	100	3
30110106	3.7/3.8	4000	106	110	3
31100100	3.7/3.8	4500	100	100	3.1
33100103	3.7/3.8	4000	103	100	3.3
38100102	3.7/3.8	5000	102	100	3.8

Click here to find a list of other models

T	10.0mm
W	50.0mm
H	80.0mm
L	30.0mm
