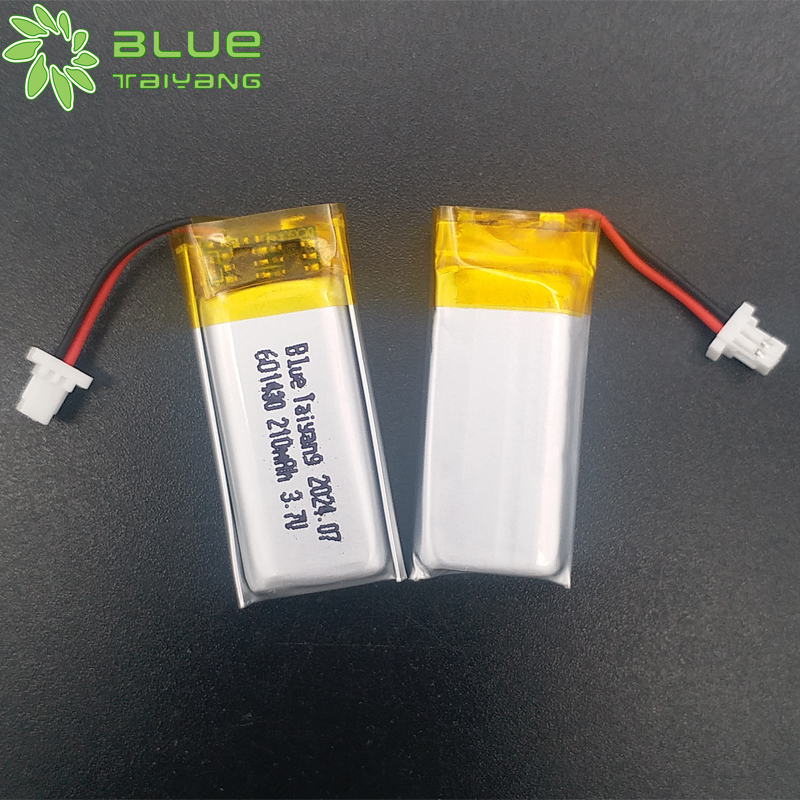

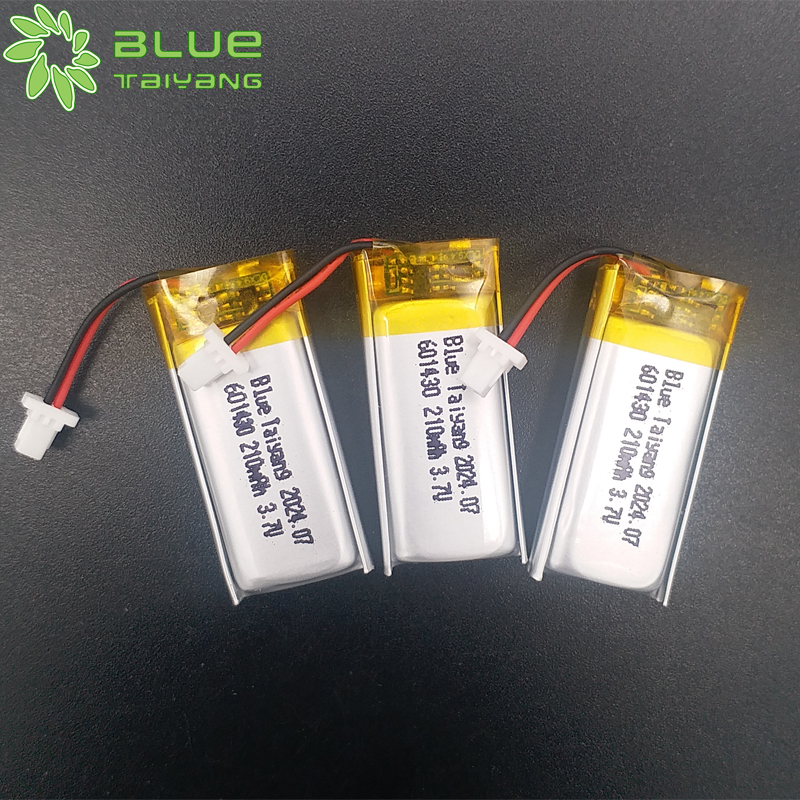

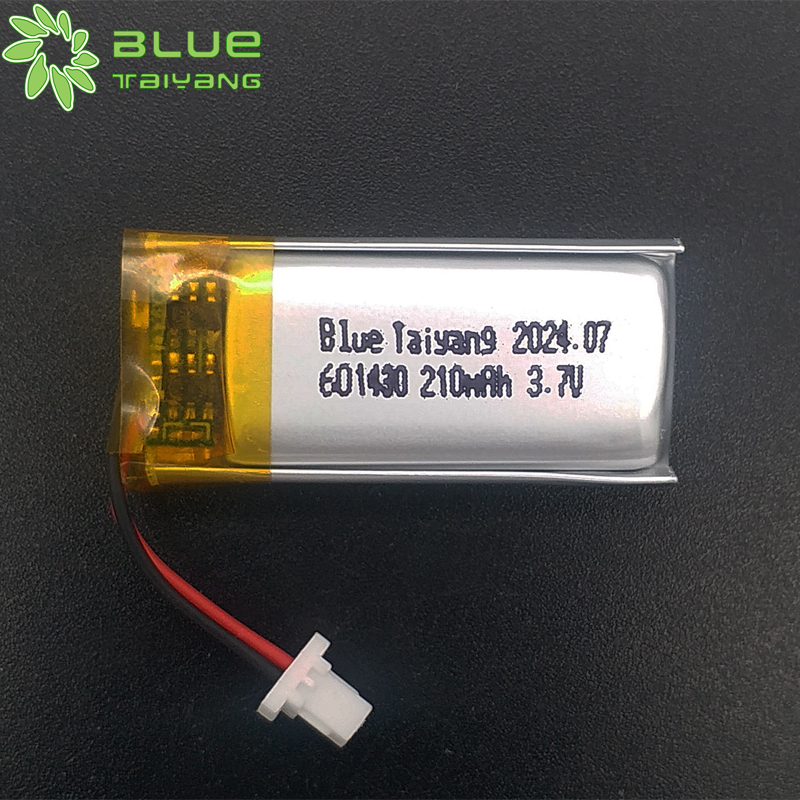

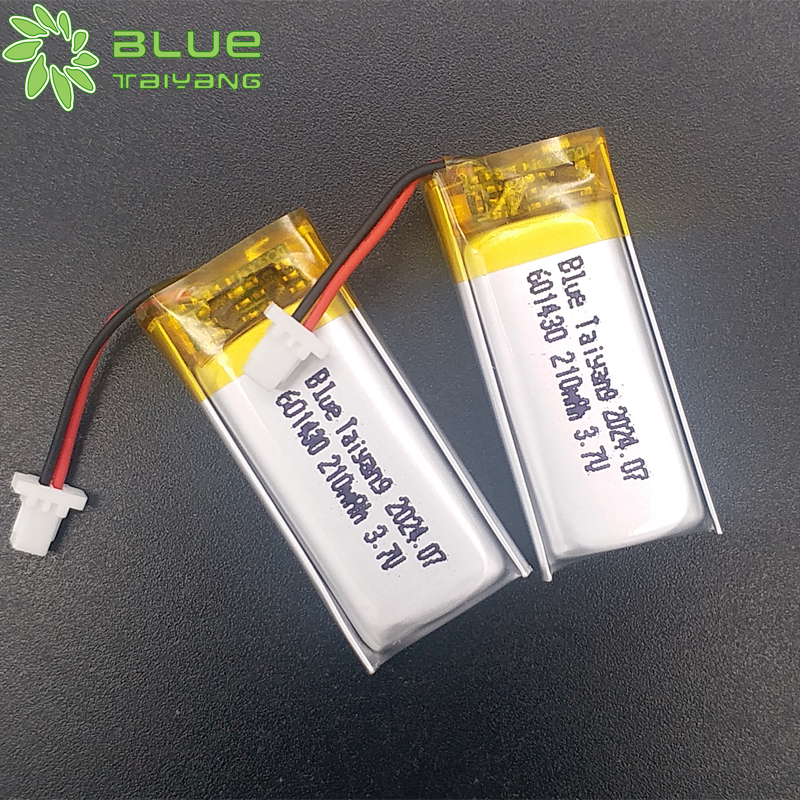

Small size 601430 210mah 3.7v rechargeable lithium polymer Bluetooth headset battery
  • Small size 601430 210mah 3.7v rechargeable lithium polymer Bluetooth headset battery
  • Small size 601430 210mah 3.7v rechargeable lithium polymer Bluetooth headset battery
  • Small size 601430 210mah 3.7v rechargeable lithium polymer Bluetooth headset battery
  • Small size 601430 210mah 3.7v rechargeable lithium polymer Bluetooth headset battery
Small size 601430 210mah 3.7v rechargeable lithium polymer Bluetooth headset battery
Product model: 601430 210mah 3.7V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V/3.8V
Nominal capacity: 210mah
Discharge temperature: ordinary
Cycle life: >500 times
Discharge rate: 1C
Cell type: Li-polymer battery
Application Area
Consumer Electronics Medical equipment Instrument and apparatus Smart Home Digital products Toy
cherry@bluetaiyang.com Online Message
Online Customization
*
*
*
*
*
*
    Items Parameter
    Battery model LP601430
    Design scheme With PCM
    Nominal voltage 3.7V
    Minimum capacity  210mAh(0.2C discharge)

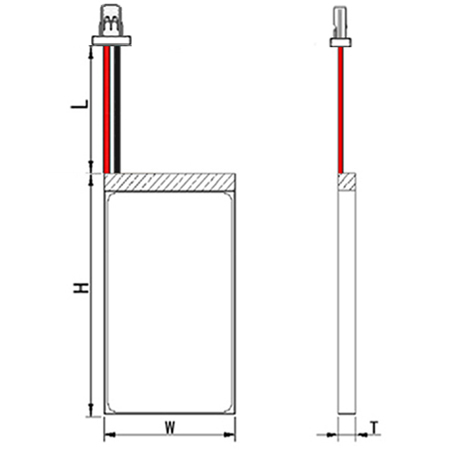

    Size
    T:6.0mm
    W:14.0mm
    H:30.0mm(Includes PCM and wires)
    L:10.0mm(Wire length)
    Charging voltage 4.2V
    Discharging cut-off voltage  2.5V
    Standard charging  0.2C /4.2V
    Max charging 1.0C /4.2V
    Standard discharging 0.2C/2.5V
    Max discharging   1.0C/2.5V
    Weight   Appr:3.9g
    Shipment voltage  3.9V
    Battery pack impedance  ≤120
    Operating temperature  Charging:    0°C ~ 45°C
    Discharging: -20°C ~60°C
    Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )  -10°C~25°C ( 12 months, ≥85% )
    -10°C ~45°C ( 6 months,  ≥85% )
    -10°C~60°C ( 1 month,   ≥90% )
    20±5°C is the recommended storage temperature

    Model Normal Voltage Normal Capacity (mAh) length (mm) width (mm) thickness (mm) Download
    101921 3.7/3.8V 330 21 19 10.0
    102020 3.7/3.8V 320 20 20 10.0
    102027 3.7/3.8V 450 27 20 10.0
    301630 3.7/3.8V 110 30 16 3
    302025 3.7/3.8V 110 25 20 3
    302030 3.7/3.8V 140 30 20 3
    302035 3.7/3.8V 170 35 20 3
    302040 3.7/3.8V 200 40 20 3
    302045 3.7/3.8V 220 45 20 3
    302258 3.7/3.8V 400 58 12 3
    302323 3.7/3.8V 110 23 23 3
    302526 3.7/3.8V 160 26 25 3
    302530 3.7/3.8V 170 30 25 3
    302540 3.7/3.8V 240 40 25 3
    303030 3.7/3.8V 210 30 30 3
    303035 3.7/3.8V 280 35 30 3
    303040 3.7/3.8V 300 40 30 3
    303450 3.7/3.8V 500 50 34 3
    312276 3.7/3.8V 420 76 22 3.1
    312725 3.7/3.8V 190 27 25 3.10
    332530 3.7/3.8V 240 30 25 3.3
    332725 3.7/3.8V 200 27 25 3.3
    333048 3.7/3.8V 450 48 30 3.3
    333448 3.7/3.8V 500 48 34 3.3
    351538 3.7/3.8V 170 38 15 3.5
    352131 3.7/3.8V 180 31 23 3.5
    352530 3.7/3.8V 210 30 25 3.5
    353035 3.7/3.8V 300 35 30 3.5
    362045 3.7/3.8V 300 45 20 3.6
    362730 3.7/3.8V 270 30 27 3.6
    382030 3.7/3.8V 180 30 20 3.8
    382036 3.7/3.8V 250 36 20 3.8
    401230 3.7/3.8V 120 30 12 4
    401730 3.7/3.8V 170 30 17 4
    401738 3.7/3.8V 260 38 17 4
    402025 3.7/3.8V 150 25 20 4
    402030 3.7/3.8V 200 30 20 4
    402035 3.7/3.8V 240 35 20 4
    402040 3.7/3.8V 280 40 20 4
    402050 3.7/3.8V 380 50 20 4
    402323 3.7/3.8V 150 23 23 4
    402532 3.7/3.8V 320 32 25 4
    402535 3.7/3.8V 320 35 25 4
    402540 3.7/3.8V 350 40 25 4
    403030 3.7/3.8V 300 30 30 4
    403035 3.7/3.8V 420 35 30 4
    411230 3.7/3.8V 120 30 12 4.1
    411530 3.7/3.8V 150 30 15 4.1
    411541 3.7/3.8V 250 41 15 4.1
    411645 3.7/3.8V 250 45 16 4.1
    421530 3.7/3.8V 150 30 15 4.2
    422025 3.7/3.8V 180 25 20 4.2
    422321 3.7/3.8V 190 21 23 4.2
    422530 3.7/3.8V 300 30 25 4.2
    432023 3.7/3.8V 160 23 20 4.3
    432025 3.7/3.8V 190 25 20 4.3
    442223 3.7/3.8V 250 23 22 4.4
    450835 3.7/3.8V 115 35 8 4.50
    451430 3.7/3.8V 150 30 14 4.5
    451535 3.7/3.8V 200 35 15 4.5
    451730 3.7/3.8V 200 30 17 4.5
    451830 3.7/3.8V 200 30 18 4.5
    451936 3.7/3.8V 380 36 19 4.5
    452036 3.7/3.8V 330 36 20 4.5
    452528 3.7/3.8V 300 28 25 4.5
    452530 3.7/3.8V 300 30 25 4.5
    452550 3.7/3.8V 500 50 25 4.5
    452631 3.7/3.8V 340 31 26 4.5
    461730 3.7/3.8V 200 30 17 4.6
    461840 3.7/3.8V 340 40 18 4.6
    472023 3.7/3.8V 180 23 20 4.7
    482626 3.7/3.8V 285 26 26 4.8
    491447 3.7/3.8V 280 47 14 4.9
    492220 3.7/3.8V 195 20 22 4.9
    500940 3.7/3.8V 145 40 9 5
    501040 3.7/3.8V 185 40 10 5
    501128 3.7/3.8V 150 28 11 5
    501130 3.7/3.8V 150 30 11 5
    501224 3.7/3.8V 110 24 12 5.0
    501228 3.7/3.8V 130 28 12 5.0
    501230 3.7/3.8V 160 30 12 5
    501231 3.7/3.8V 120 31 12 5.0
    501249 3.7/3.8V 250 49 12 5.0
    501332 3.7/3.8V 170 32 13 5.0
    501447 3.7/3.8V 280 47 14 5.0
    501521 3.7/3.8V 130 21 15 5.0
    501530 3.7/3.8V 200 30 15 5.0
    501535 3.7/3.8V 230 35 15 5.0
    501622 3.7/3.8V 150 22 16 5.0
    501743 3.7/3.8V 300 43 17 5.0
    501943 3.7/3.8V 390 43 19 5.0
    502025 3.7/3.8V 200 25 20 5.0
    502030 3.7/3.8V 250 30 20 5.0
    502035 3.7/3.8V 300 35 20 5.0
    502036 3.7/3.8V 450 36 20 5.0
    502039 3.7/3.8V 475 39 20 5.0
    502248 3.7/3.8V 500 48 22 5.0
    502325 3.7/3.8V 250 25 23 5.0
    502340 3.7/3.8V 500 40 23 5.0
    502530 3.7/3.8V 300 30 25 5.0
    502532 3.7/3.8V 390 32 25 5.0
    502535 3.7/3.8V 400 35 25 5.0
    502540 3.7/3.8V 500 40 25 5.0
    502728 3.7/3.8V 350 28 27 5.0
    502736 3.7/3.8V 500 36 27 5.0
    502837 3.7/3.8V 450 37 28 5.0
    503030 3.7/3.8V 400 30 30 5.0
    503035 3.7/3.8V 500 35 30 5.0
    531745 3.7/3.8V 400 45 17 5.3
    532331 3.7/3.8V 360 31 23 5.3
    550935 3.7/3.8V 150 35 9 5.5
    551135 3.7/3.8V 180 35 11 5.5
    551235 3.7/3.8V 200 35 12 5.5
    551430 3.7/3.8V 200 30 14 5.5
    551525 3.7/3.8V 150 25 15 5.5
    551535 3.7/3.8V 240 35 15 5.5
    551730 3.7/3.8V 210 30 17 5.5
    551735 3.7/3.8V 320 35 17 5.5
    552020 3.7/3.8V 200 20 20 5.5
    552030 3.7/3.8V 300 30 20 5.5
    552035 3.7/3.8V 350 35 20 5.5
    552225 3.7/3.8V 250 25 22 5.5
    552334 3.7/3.8V 380 34 23 5.5
    552728 3.7/3.8V 420 28 27 5.5
    571752 3.7/3.8V 500 52 17 5.7
    581525 3.7/3.8V 180 25 15 5.8
    582330 3.7/3.8V 380 30 23 5.8
    582526 3.7/3.8V 350 26 25 5.8
    582528 3.7/3.8V 450 28 25 5.8
    582530 3.7/3.8V 400 30 25 5.8
    582728 3.7/3.8V 400 28 27 5.8
    601025 3.7/3.8V 120 25 10 6.0
    601138 3.7/3.8V 220 38 11 6.0
    601230 3.7/3.8V 170 30 12 6.0
    601321 3.7/3.8V 150 21 13 6
    601447 3.7/3.8V 380 47 14 6.0
    601525 3.7/3.8V 180 25 15 6.0
    601535 3.7/3.8V 260 35 25 6.0
    601837 3.7/3.8V 495 37 18 6.0
    602020 3.7/3.8V 180 20 20 6.0
    602024 3.7/3.8V 270 24 20 6.0
    602025 3.7/3.8V 250 25 20 6.0
    602030 3.7/3.8V 300 30 20 6.0
    602035 3.7/3.8V 400 35 20 6.0
    602040 3.7/3.8V 450 40 20 6.0
    602045 3.7/3.8V 500 45 20 6.0
    602240 3.7/3.8V 500 40 22 6.0
    602530 3.7/3.8V 400 30 25 6.0
    602533 3.7/3.8V 450 33 25 6.0
    602535 3.7/3.8V 500 35 25 6.0
    602827 3.7/3.8V 420 27 28 6.0
    603030 3.7/3.8V 500 30 30 6.0
    621430 3.7/3.8V 230 30 14 6.2
    621436 3.7/3.8V 340 36 14 6.2
    622334 3.7/3.8V 500 34 23 6.2
    622435 3.7/3.8V 500 35 24 6.2
    631341 3.7/3.8V 380 41 13 6.3
    631342 3.7/3.8V 390 42 13 6.3
    632523 3.7/3.8V 340 25 23 6.3
    651447 3.7/3.8V 450 47 14 6.5
    651518 3.7/3.8V 150 18 15 6.5
    651525 3.7/3.8V 210 25 15 6.5
    651535 3.7/3.8V 300 35 15 6.5
    651728 3.7/3.8V 240 28 17 6.5
    652035 3.7/3.8V 420 35 20 6.5
    652432 3.7/3.8V 450 32 24 6.5
    652530 3.7/3.8V 400 30 25 6.5
    652728 3.7/3.8V 470 28 27 6.5
    681818 3.7/3.8V 155 18 18 6.8
    682030 3.7/3.8V 350 30 20 6.8
    682427 3.7/3.8V 450 27 24 6.8
    701221 3.7/3.8V 120 21 12 7.0
    701224 3.7/3.8V 142 24 12 7.0
    701421 3.7/3.8V 160 21 14 7.0
    701430 3.7/3.8V 250 30 14 7.0
    701435 3.7/3.8V 300 35 14 7.0
    701436 3.7/3.8V 300 36 14 7.0
    701524 3.7/3.8V 200 24 15 7.0
    701528 3.7/3.8V 240 28 15 7.0
    701535 3.7/3.8V 300 35 15 7.0
    701620 3.7/3.8V 160 20 16 7.0
    701738 3.7/3.8V 420 38 17 7.0
    701818 3.7/3.8V 150 18 18 7.0
    701821 3.7/3.8V 150 21 18 7.0
    702020 3.7/3.8V 180 20 20 7.0
    702024 3.7/3.8V 260 24 20 7.0
    702030 3.7/3.8V 400 30 20 7.0
    702039 3.7/3.8V 500 39 20 7.0
    702322 3.7/3.8V 300 22 23 7.0
    702327 3.7/3.8V 400 27 23 7.0
    722232 3.7/3.8V 500 32 22 7.2
    741435 3.7/3.8V 320 35 14 7.4
    751524 3.7/3.8V 220 24 15 7.5
    751528 3.7/3.8V 280 28 15 7.5
    751535 3.7/3.8V 380 35 15 7.5
    752020 3.7/3.8V 250 20 20 7.5
    752233 3.7/3.8V 450 33 22 7.5
    752530 3.7/3.8V 500 30 25 7.5
    801525 3.7/3.8V 240 25 15 8.0
    801530 3.7/3.8V 280 30 15 8
    801620 3.7/3.8V 160 20 16 8.0
    801637 3.7/3.8V 400 37 16 8.0
    801730 3.7/3.8V 360 30 17 8.0
    801738 3.7/3.8V 450 38 17 8.0
    801821 3.7/3.8V 240 21 18 8.0
    802022 3.7/3.8V 290 22 20 8.0
    802030 3.7/3.8V 400 30 20 8.0
    802035 3.7/3.8V 500 35 20 8.0
    802528 3.7/3.8V 500 28 25 8.0
    822025 3.7/3.8V 400 25 20 8.2
    822128 3.7/3.8V 420 28 21 8.2
    851735 3.7/3.8V 500 35 17 8.5
    852030 3.7/3.8V 450 30 20 8.5
    861632 3.7/3.8V 380 32 16 8.6
    902025 3.7/3.8V 400 25 20 9.0
    902030 3.7/3.8V 500 30 20 9.0
    921728 3.7/3.8V 360 28 17 9.2
    922228 3.7/3.8V 500 28 22 9.2
    951723 3.7/3.8V 260 23 17 9.5
    981742 3.7/3.8V 420 42 17 9.8
    Click here to find a list of other models

    T 6.0mm
    W
    14.0mm
    H
    30.0mm
    L
    10.0mm
