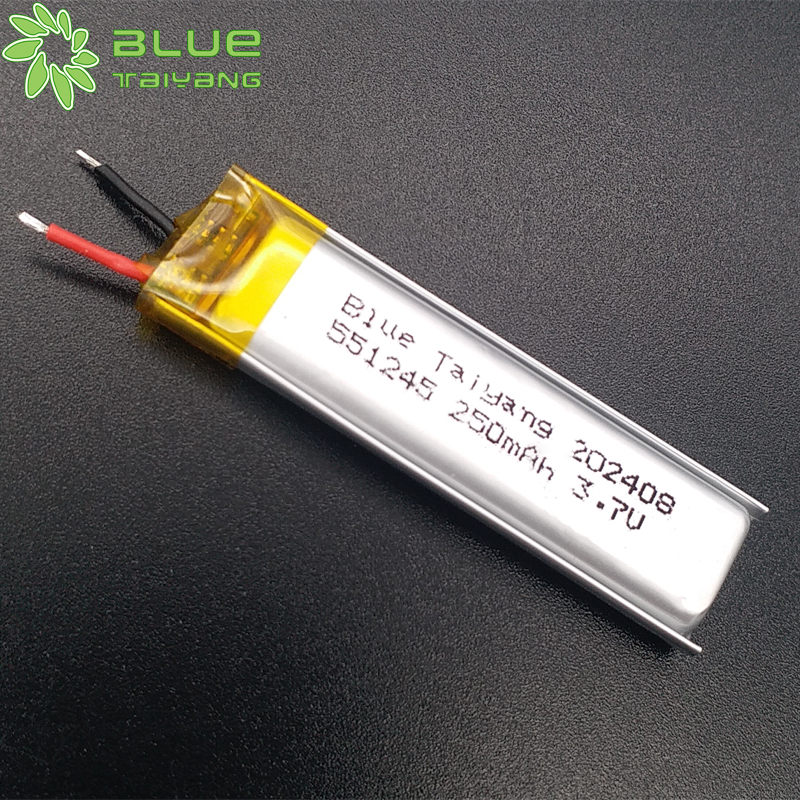

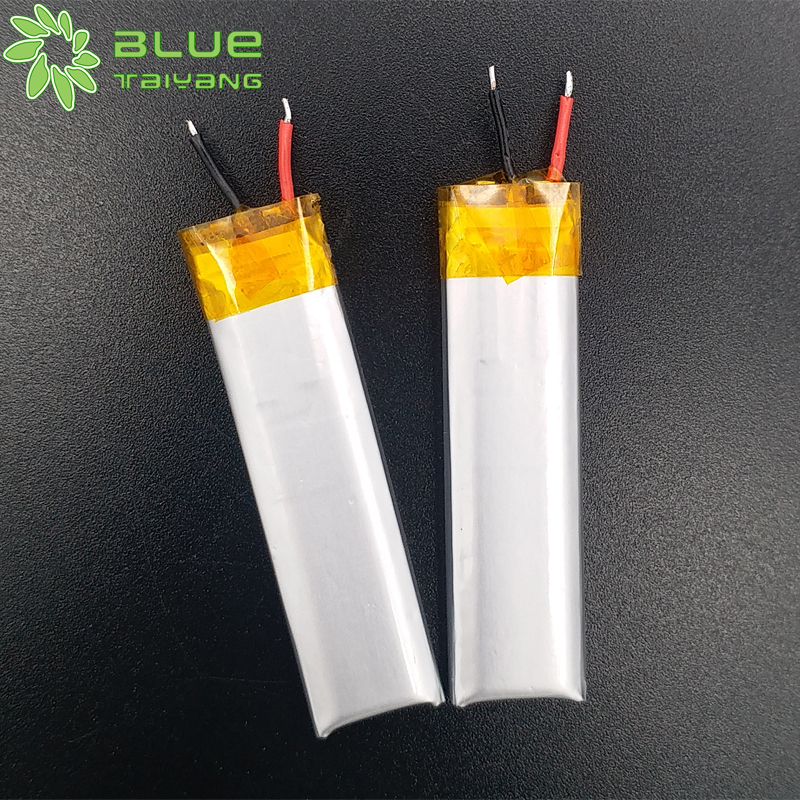

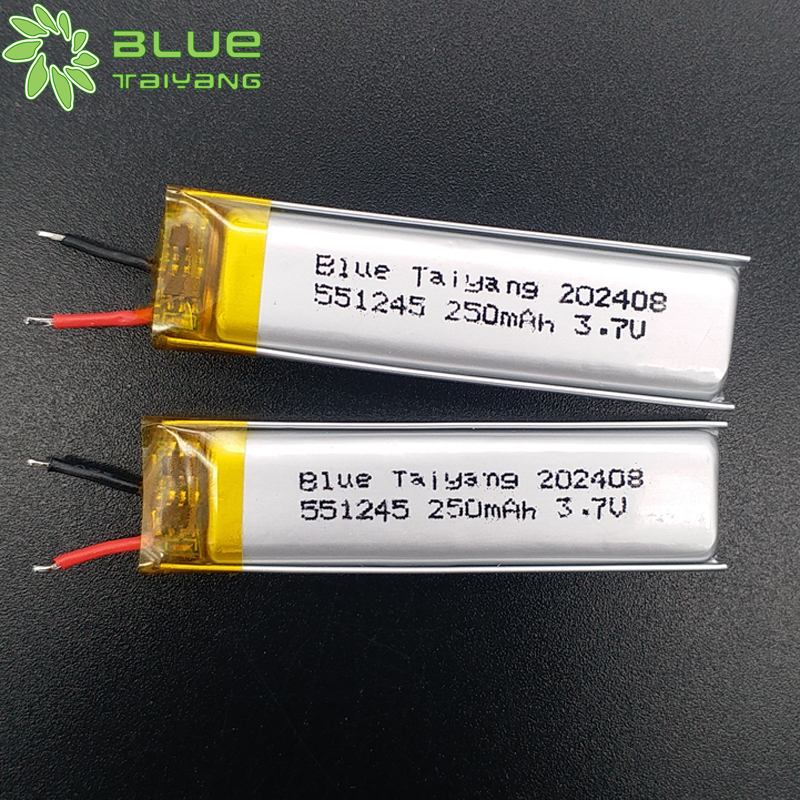

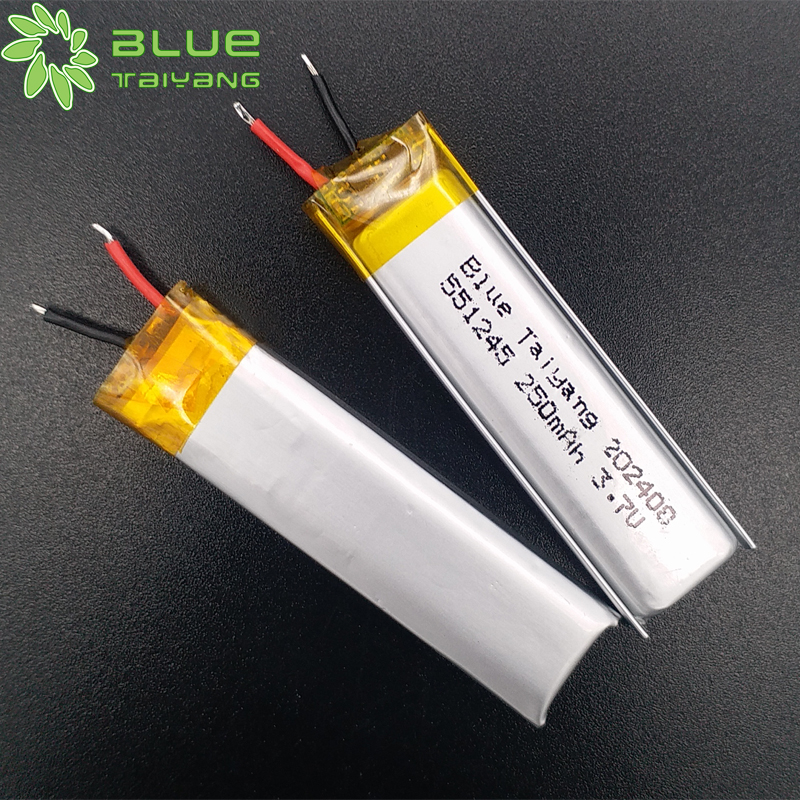

Factory 551245 rechargeable lithium polymer battery 3.7v 250mah 0.925wh lithium ion lipo batterie

Items	Parameter
Battery model	LP551245
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	250mAh(0.2C discharge)
Size	T：5.5mm W：12.0mm H：45.0mm(Includes PCM and wires) L：10.0mm(Wire length)
Charging voltage	4.2V
Discharging cut-off voltage	2.5V
Standard charging	0.2C /4.2V
Max charging	1.0C /4.2V
Standard discharging	0.2C/2.5V
Max discharging	1.0C/2.5V
Weight	Appr：3.9g
Shipment voltage	≥3.9V
Battery pack impedance	≤120mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	( 12 months, ≥85% )
	-10°C ~45°C	( 6 months, ≥85% )
	-10°C~60°C	( 1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Download
101921	3.7/3.8V	330	21	19	10.0
102020	3.7/3.8V	320	20	20	10.0
102027	3.7/3.8V	450	27	20	10.0
301630	3.7/3.8V	110	30	16	3
302025	3.7/3.8V	110	25	20	3
302030	3.7/3.8V	140	30	20	3
302035	3.7/3.8V	170	35	20	3
302040	3.7/3.8V	200	40	20	3
302045	3.7/3.8V	220	45	20	3
302258	3.7/3.8V	400	58	12	3
302323	3.7/3.8V	110	23	23	3
302526	3.7/3.8V	160	26	25	3
302530	3.7/3.8V	170	30	25	3
302540	3.7/3.8V	240	40	25	3
303030	3.7/3.8V	210	30	30	3
303035	3.7/3.8V	280	35	30	3
303040	3.7/3.8V	300	40	30	3
303450	3.7/3.8V	500	50	34	3
312276	3.7/3.8V	420	76	22	3.1
312725	3.7/3.8V	190	27	25	3.10
332530	3.7/3.8V	240	30	25	3.3
332725	3.7/3.8V	200	27	25	3.3
333048	3.7/3.8V	450	48	30	3.3
333448	3.7/3.8V	500	48	34	3.3
351538	3.7/3.8V	170	38	15	3.5
352131	3.7/3.8V	180	31	23	3.5
352530	3.7/3.8V	210	30	25	3.5
353035	3.7/3.8V	300	35	30	3.5
362045	3.7/3.8V	300	45	20	3.6
362730	3.7/3.8V	270	30	27	3.6
382030	3.7/3.8V	180	30	20	3.8
382036	3.7/3.8V	250	36	20	3.8
401230	3.7/3.8V	120	30	12	4
401730	3.7/3.8V	170	30	17	4
401738	3.7/3.8V	260	38	17	4
402025	3.7/3.8V	150	25	20	4
402030	3.7/3.8V	200	30	20	4
402035	3.7/3.8V	240	35	20	4
402040	3.7/3.8V	280	40	20	4
402050	3.7/3.8V	380	50	20	4
402323	3.7/3.8V	150	23	23	4
402532	3.7/3.8V	320	32	25	4
402535	3.7/3.8V	320	35	25	4
402540	3.7/3.8V	350	40	25	4
403030	3.7/3.8V	300	30	30	4
403035	3.7/3.8V	420	35	30	4
411230	3.7/3.8V	120	30	12	4.1
411530	3.7/3.8V	150	30	15	4.1
411541	3.7/3.8V	250	41	15	4.1
411645	3.7/3.8V	250	45	16	4.1
421530	3.7/3.8V	150	30	15	4.2
422025	3.7/3.8V	180	25	20	4.2
422321	3.7/3.8V	190	21	23	4.2
422530	3.7/3.8V	300	30	25	4.2
432023	3.7/3.8V	160	23	20	4.3
432025	3.7/3.8V	190	25	20	4.3
442223	3.7/3.8V	250	23	22	4.4
450835	3.7/3.8V	115	35	8	4.50
451430	3.7/3.8V	150	30	14	4.5
451535	3.7/3.8V	200	35	15	4.5
451730	3.7/3.8V	200	30	17	4.5
451830	3.7/3.8V	200	30	18	4.5
451936	3.7/3.8V	380	36	19	4.5
452036	3.7/3.8V	330	36	20	4.5
452528	3.7/3.8V	300	28	25	4.5
452530	3.7/3.8V	300	30	25	4.5
452550	3.7/3.8V	500	50	25	4.5
452631	3.7/3.8V	340	31	26	4.5
461730	3.7/3.8V	200	30	17	4.6
461840	3.7/3.8V	340	40	18	4.6
472023	3.7/3.8V	180	23	20	4.7
482626	3.7/3.8V	285	26	26	4.8
491447	3.7/3.8V	280	47	14	4.9
492220	3.7/3.8V	195	20	22	4.9
500940	3.7/3.8V	145	40	9	5
501040	3.7/3.8V	185	40	10	5
501128	3.7/3.8V	150	28	11	5
501130	3.7/3.8V	150	30	11	5
501224	3.7/3.8V	110	24	12	5.0
501228	3.7/3.8V	130	28	12	5.0
501230	3.7/3.8V	160	30	12	5
501231	3.7/3.8V	120	31	12	5.0
501249	3.7/3.8V	250	49	12	5.0
501332	3.7/3.8V	170	32	13	5.0
501447	3.7/3.8V	280	47	14	5.0
501521	3.7/3.8V	130	21	15	5.0
501530	3.7/3.8V	200	30	15	5.0
501535	3.7/3.8V	230	35	15	5.0
501622	3.7/3.8V	150	22	16	5.0
501743	3.7/3.8V	300	43	17	5.0
501943	3.7/3.8V	390	43	19	5.0
502025	3.7/3.8V	200	25	20	5.0
502030	3.7/3.8V	250	30	20	5.0
502035	3.7/3.8V	300	35	20	5.0
502036	3.7/3.8V	450	36	20	5.0
502039	3.7/3.8V	475	39	20	5.0
502248	3.7/3.8V	500	48	22	5.0
502325	3.7/3.8V	250	25	23	5.0
502340	3.7/3.8V	500	40	23	5.0
502530	3.7/3.8V	300	30	25	5.0
502532	3.7/3.8V	390	32	25	5.0
502535	3.7/3.8V	400	35	25	5.0
502540	3.7/3.8V	500	40	25	5.0
502728	3.7/3.8V	350	28	27	5.0
502736	3.7/3.8V	500	36	27	5.0
502837	3.7/3.8V	450	37	28	5.0
503030	3.7/3.8V	400	30	30	5.0
503035	3.7/3.8V	500	35	30	5.0
531745	3.7/3.8V	400	45	17	5.3
532331	3.7/3.8V	360	31	23	5.3
550935	3.7/3.8V	150	35	9	5.5
551135	3.7/3.8V	180	35	11	5.5
551235	3.7/3.8V	200	35	12	5.5
551430	3.7/3.8V	200	30	14	5.5
551525	3.7/3.8V	150	25	15	5.5
551535	3.7/3.8V	240	35	15	5.5
551730	3.7/3.8V	210	30	17	5.5
551735	3.7/3.8V	320	35	17	5.5
552020	3.7/3.8V	200	20	20	5.5
552030	3.7/3.8V	300	30	20	5.5
552035	3.7/3.8V	350	35	20	5.5
552225	3.7/3.8V	250	25	22	5.5
552334	3.7/3.8V	380	34	23	5.5
552728	3.7/3.8V	420	28	27	5.5
571752	3.7/3.8V	500	52	17	5.7
581525	3.7/3.8V	180	25	15	5.8
582330	3.7/3.8V	380	30	23	5.8
582526	3.7/3.8V	350	26	25	5.8
582528	3.7/3.8V	450	28	25	5.8
582530	3.7/3.8V	400	30	25	5.8
582728	3.7/3.8V	400	28	27	5.8
601025	3.7/3.8V	120	25	10	6.0
601138	3.7/3.8V	220	38	11	6.0
601230	3.7/3.8V	170	30	12	6.0
601321	3.7/3.8V	150	21	13	6
601447	3.7/3.8V	380	47	14	6.0
601525	3.7/3.8V	180	25	15	6.0
601535	3.7/3.8V	260	35	25	6.0
601837	3.7/3.8V	495	37	18	6.0
602020	3.7/3.8V	180	20	20	6.0
602024	3.7/3.8V	270	24	20	6.0
602025	3.7/3.8V	250	25	20	6.0
602030	3.7/3.8V	300	30	20	6.0
602035	3.7/3.8V	400	35	20	6.0
602040	3.7/3.8V	450	40	20	6.0
602045	3.7/3.8V	500	45	20	6.0
602240	3.7/3.8V	500	40	22	6.0
602530	3.7/3.8V	400	30	25	6.0
602533	3.7/3.8V	450	33	25	6.0
602535	3.7/3.8V	500	35	25	6.0
602827	3.7/3.8V	420	27	28	6.0
603030	3.7/3.8V	500	30	30	6.0
621430	3.7/3.8V	230	30	14	6.2
621436	3.7/3.8V	340	36	14	6.2
622334	3.7/3.8V	500	34	23	6.2
622435	3.7/3.8V	500	35	24	6.2
631341	3.7/3.8V	380	41	13	6.3
631342	3.7/3.8V	390	42	13	6.3
632523	3.7/3.8V	340	25	23	6.3
651447	3.7/3.8V	450	47	14	6.5
651518	3.7/3.8V	150	18	15	6.5
651525	3.7/3.8V	210	25	15	6.5
651535	3.7/3.8V	300	35	15	6.5
651728	3.7/3.8V	240	28	17	6.5
652035	3.7/3.8V	420	35	20	6.5
652432	3.7/3.8V	450	32	24	6.5
652530	3.7/3.8V	400	30	25	6.5
652728	3.7/3.8V	470	28	27	6.5
681818	3.7/3.8V	155	18	18	6.8
682030	3.7/3.8V	350	30	20	6.8
682427	3.7/3.8V	450	27	24	6.8
701221	3.7/3.8V	120	21	12	7.0
701224	3.7/3.8V	142	24	12	7.0
701421	3.7/3.8V	160	21	14	7.0
701430	3.7/3.8V	250	30	14	7.0
701435	3.7/3.8V	300	35	14	7.0
701436	3.7/3.8V	300	36	14	7.0
701524	3.7/3.8V	200	24	15	7.0
701528	3.7/3.8V	240	28	15	7.0
701535	3.7/3.8V	300	35	15	7.0
701620	3.7/3.8V	160	20	16	7.0
701738	3.7/3.8V	420	38	17	7.0
701818	3.7/3.8V	150	18	18	7.0
701821	3.7/3.8V	150	21	18	7.0
702020	3.7/3.8V	180	20	20	7.0
702024	3.7/3.8V	260	24	20	7.0
702030	3.7/3.8V	400	30	20	7.0
702039	3.7/3.8V	500	39	20	7.0
702322	3.7/3.8V	300	22	23	7.0
702327	3.7/3.8V	400	27	23	7.0
722232	3.7/3.8V	500	32	22	7.2
741435	3.7/3.8V	320	35	14	7.4
751524	3.7/3.8V	220	24	15	7.5
751528	3.7/3.8V	280	28	15	7.5
751535	3.7/3.8V	380	35	15	7.5
752020	3.7/3.8V	250	20	20	7.5
752233	3.7/3.8V	450	33	22	7.5
752530	3.7/3.8V	500	30	25	7.5
801525	3.7/3.8V	240	25	15	8.0
801530	3.7/3.8V	280	30	15	8
801620	3.7/3.8V	160	20	16	8.0
801637	3.7/3.8V	400	37	16	8.0
801730	3.7/3.8V	360	30	17	8.0
801738	3.7/3.8V	450	38	17	8.0
801821	3.7/3.8V	240	21	18	8.0
802022	3.7/3.8V	290	22	20	8.0
802030	3.7/3.8V	400	30	20	8.0
802035	3.7/3.8V	500	35	20	8.0
802528	3.7/3.8V	500	28	25	8.0
822025	3.7/3.8V	400	25	20	8.2
822128	3.7/3.8V	420	28	21	8.2
851735	3.7/3.8V	500	35	17	8.5
852030	3.7/3.8V	450	30	20	8.5
861632	3.7/3.8V	380	32	16	8.6
902025	3.7/3.8V	400	25	20	9.0
902030	3.7/3.8V	500	30	20	9.0
921728	3.7/3.8V	360	28	17	9.2
922228	3.7/3.8V	500	28	22	9.2
951723	3.7/3.8V	260	23	17	9.5
981742	3.7/3.8V	420	42	17	9.8

Click here to find a list of other models

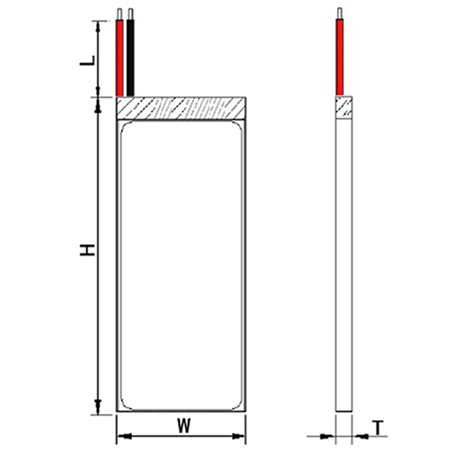

T	5.5mm
W	12.0mm
H	45.0mm
L	10.0mm
