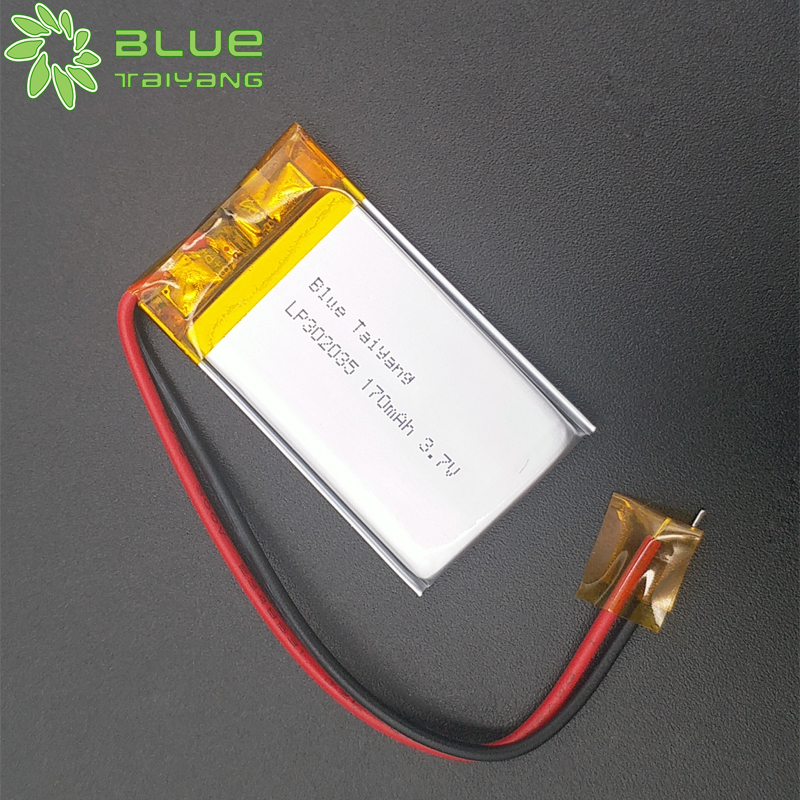

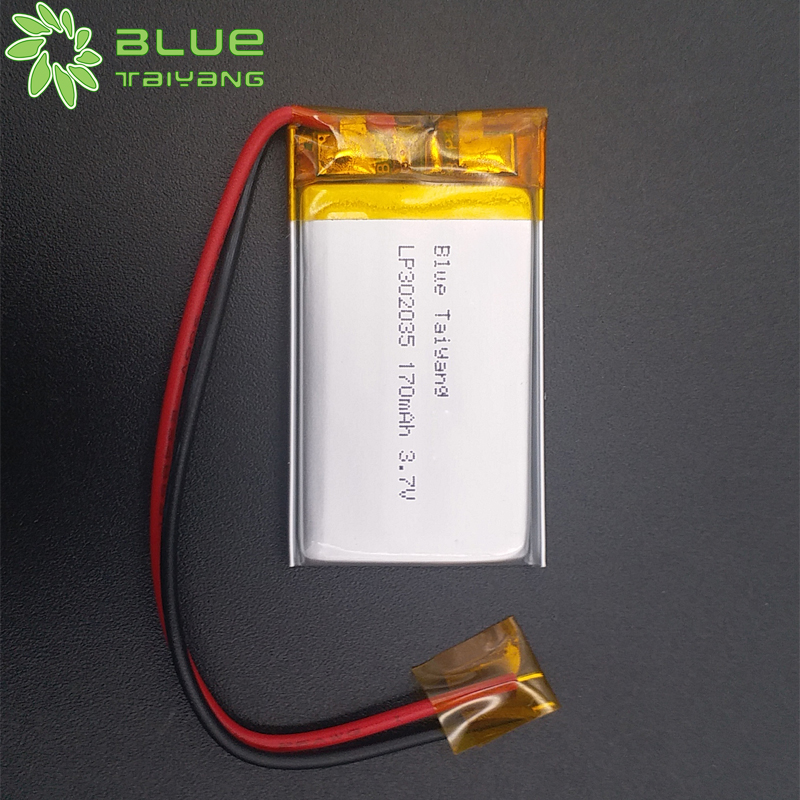

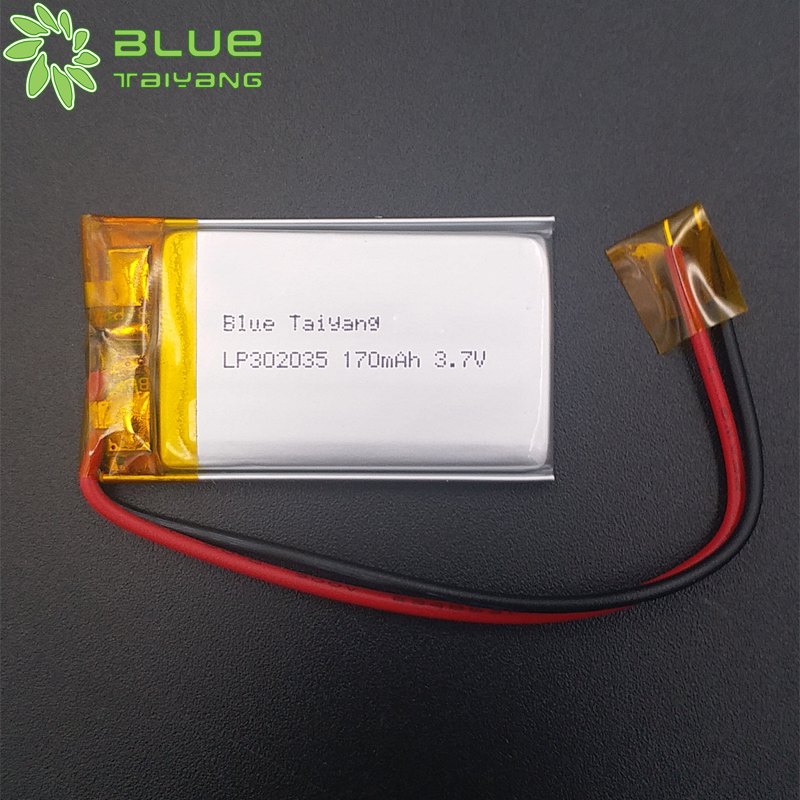

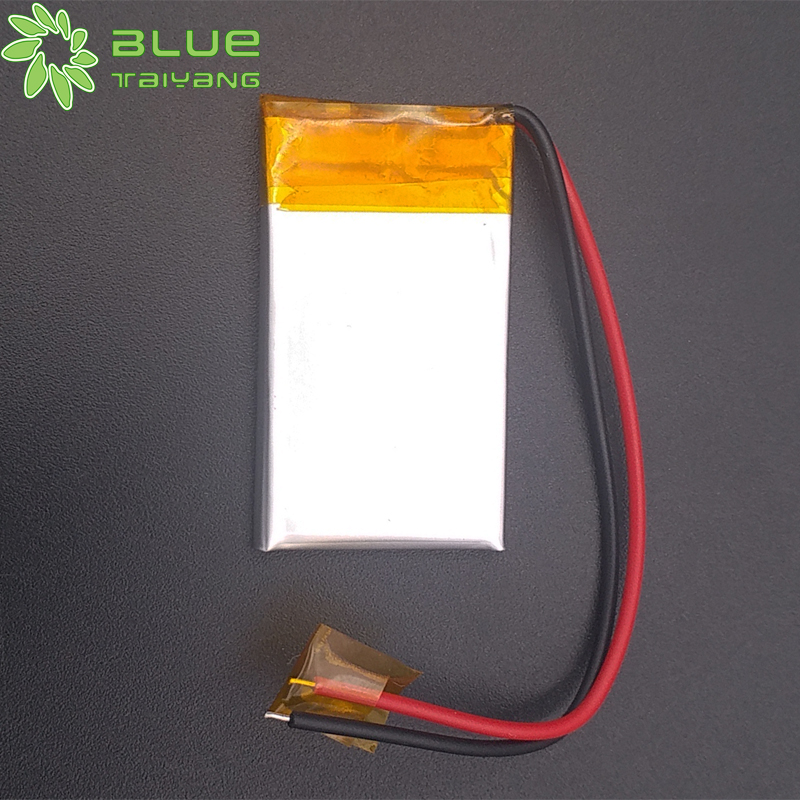

302035 Small rechargeable Lithium ion polymer battery 3.7v 170mah li ion battery
Product model: 302035 170mah 3.7V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V/3.8V
Nominal capacity: 170mah
Discharge temperature: ordinary
Cycle life: >500 times
Discharge rate: 1C
Battery application: Electronics
Battery structure: Square flexible battery
Cell type: Polymer lithium battery cell
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V/3.8V
Nominal capacity: 170mah
Discharge temperature: ordinary
Cycle life: >500 times
Discharge rate: 1C
Battery application: Electronics
Battery structure: Square flexible battery
Cell type: Polymer lithium battery cell
Application Area
Consumer Electronics
Medical equipment
Instrument and apparatus
Smart Home
Digital products
Toy
cherry@bluetaiyang.com
Online Message
| Items | Parameter | |
| Battery model | LP302035 | |
| Design scheme | With PCM | |
| Nominal voltage | 3.7V | |
| Minimum capacity | 170mAh(1C discharge) | |
| Size |
T：3.0mm
W：20.0mm
H：35.0mm (Includes PCM and wires)
L：70.0mm (Wire length)
|
|
| Charging voltage | 4.2V | |
| Discharging cut-off voltage | 2.5V | |
| Standard charging | 0.2C /4.2V | |
| Max charging | 1.0C /4.2V | |
| Standard discharging | 0.2C/2.5V | |
| Max discharging | 1.0C/2.5V | |
| Weight | Appr：3.0g | |
| Shipment voltage | ≥3.9V | |
| Battery pack impedance | ≤160mΩ | |
| Operating temperature | Charging: 0°C ~ 45°C | |
| Discharging: -20°C ~60°C | ||
| Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. ) | -10℃~25°C | (12 months, ≥85%) |
| -10℃ ~45°C | (6 months, ≥85% ) | |
| -10℃~60°C | (1 month, ≥90% ) | |
| 20±5°C is the recommended storage temperature | ||
| Model | Normal Voltage | Normal Capacity (mAh) | length (mm) | width (mm) | thickness (mm) | Download |
| 300940 | 3.7/3.8V | 80 | 40 | 9 | 3 | |
| 301730 | 3.7/3.8V | 75 | 30 | 17 | 3 | |
| 321430 | 3.7/3.8V | 100 | 30 | 14 | 3.2 | |
| 331619 | 3.7/3.8V | 75 | 19 | 16 | 3.3 | |
| 350626 | 3.7/3.8V | 40 | 26 | 6 | 3.5 | |
| 350926 | 3.7/3.8V | 60 | 26 | 9 | 3.5 | |
| 350930 | 3.7/3.8V | 75 | 30 | 9 | 3.5 | |
| 351012 | 3.7/3.8V | 30 | 12 | 10 | 3.5 | |
| 370835 | 3.7/3.8V | 80 | 35 | 8 | 3.7 | |
| 400726 | 3.7/3.8V | 50 | 26 | 7 | 4 | |
| 400830 | 3.7/3.8V | 75 | 30 | 8 | 4 | |
| 400913 | 3.7/3.8V | 30 | 13 | 9 | 4 | |
| 401012 | 3.7/3.8V | 30 | 12 | 10 | 4 | |
| 401020 | 3.7/3.8V | 60 | 20 | 10 | 4 | |
| 401025 | 3.7/3.8V | 70 | 25 | 10 | 4 | |
| 401214 | 3.7/3.8V | 40 | 14 | 12 | 4 | |
| 420835 | 3.7/3.8V | 100 | 35 | 8 | 4.2 | |
| 421515 | 3.7/3.8V | 50 | 15 | 15 | 4.2 | |
| 450726 | 3.7/3.8V | 60 | 26 | 7 | 4.5 | |
| 450813 | 3.7/3.8V | 30 | 13 | 8 | 4.5 | |
| 450830 | 3.7/3.8V | 85 | 30 | 8 | 4.5 | |
| 451114 | 3.7/3.8V | 45 | 14 | 11 | 4.5 | |
| 451220 | 3.7/3.8V | 80 | 20 | 12 | 4.5 | |
| 481220 | 3.7/3.8V | 80 | 20 | 12 | 4.8 | |
| 500825 | 3.7/3.8V | 70 | 25 | 8 | 5 | |
| 500830 | 3.7/3.8V | 100 | 30 | 8 | 5 | |
| 501012 | 3.7/3.8V | 40 | 12 | 10 | 5.0 | |
| 501015 | 3.7/3.8V | 50 | 15 | 10 | 5.0 | |
| 501114 | 3.7/3.8V | 50 | 14 | 11 | 5 | |
| 501214 | 3.7/3.8V | 55 | 14 | 12 | 5 | |
| 501220 | 3.7/3.8V | 100 | 20 | 12 | 5 | |
| 501515 | 3.7/3.8V | 85 | 15 | 15 | 5 | |
| 550913 | 3.7/3.8V | 50 | 13 | 9 | 5.5 | |
| 551013 | 3.7/3.8V | 55 | 13 | 10 | 5.5 | |
| 551115 | 3.7/3.8V | 60 | 15 | 11 | 5.5 | |
| 581013 | 3.7/3.8V | 55 | 13 | 10 | 5.8 | |
| 601015 | 3.7/3.8V | 60 | 15 | 10 | 6 | |
| 701115 | 3.7/3.8V | 85 | 15 | 11 | 7 |
|
|
Click here to find a list of other models |

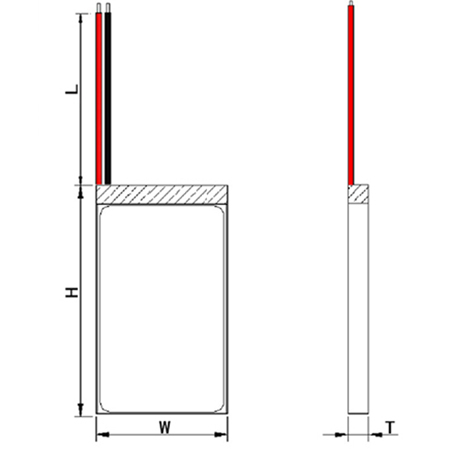

| T |
3.0mm |
|
W |
20.0mm |
|
H |
35.0mm |
|
L |
70.0mm |
