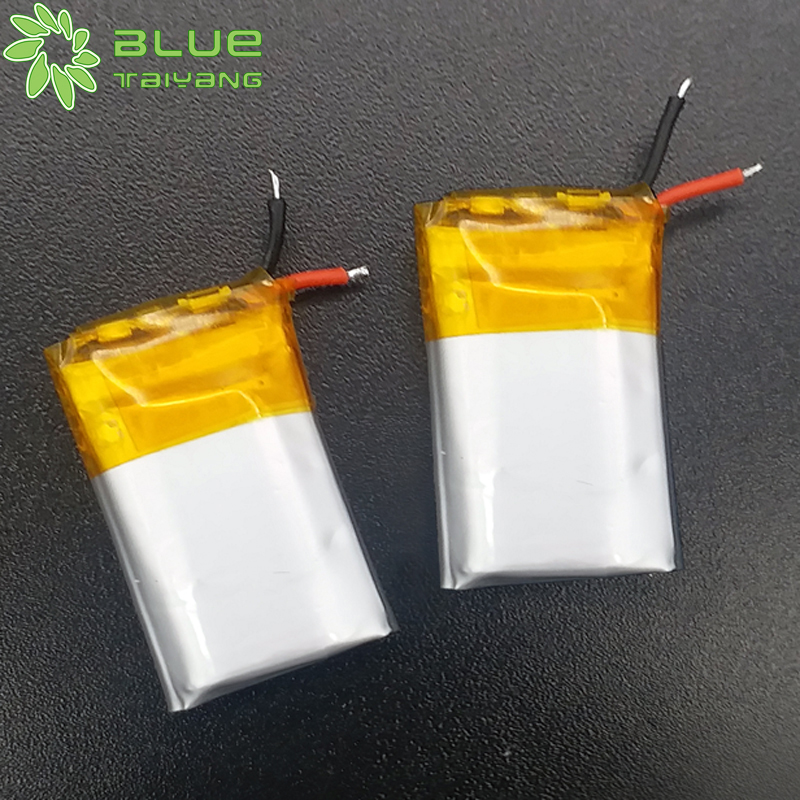

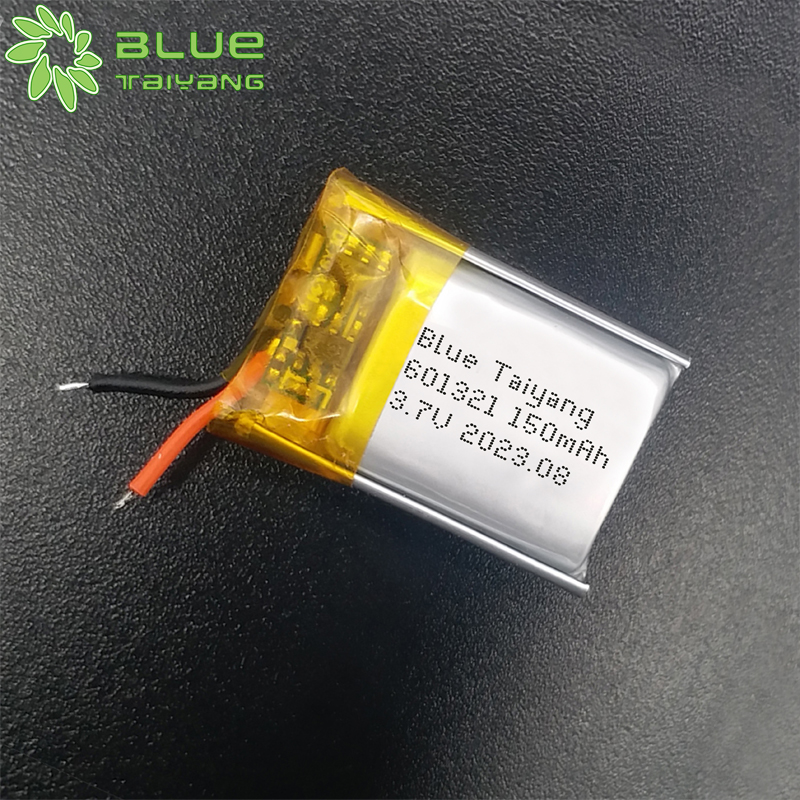

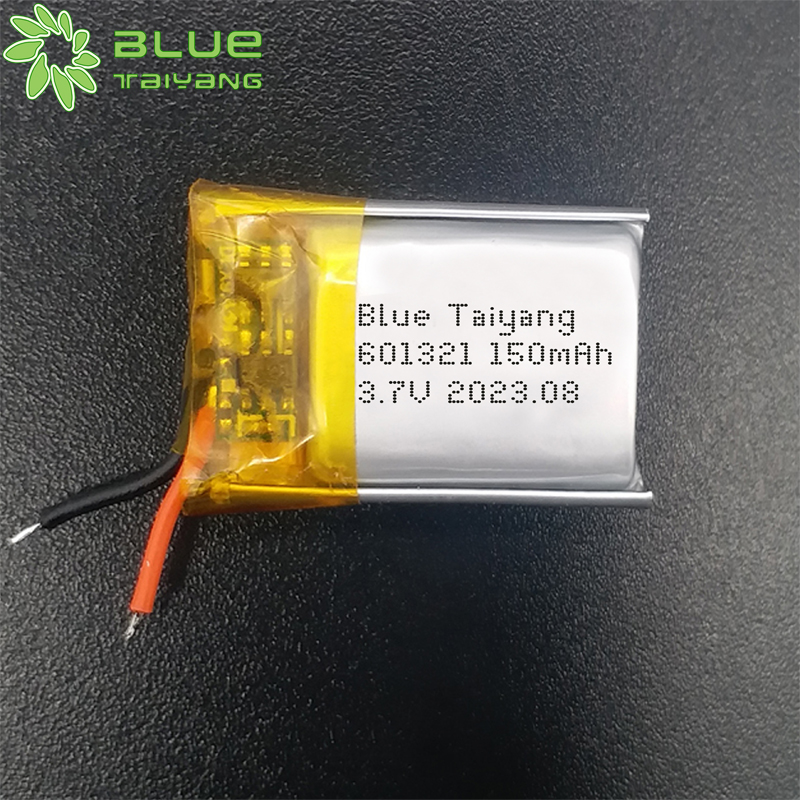

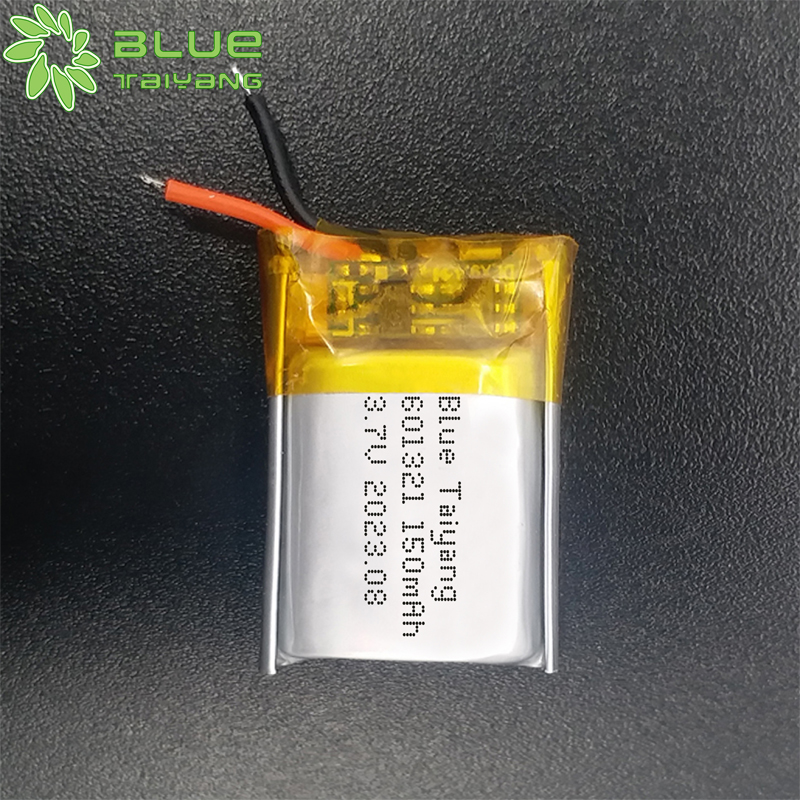

high quality small Lithium Polymer Batteries 601321 3.7v 150mah lipo battery for long battery life earphone

Product model: 601321 150mah 3.7V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V/3.8V
Nominal capacity: 150mah
Discharge temperature: ordinary
Cycle life: >500 times
Discharge rate: 1C
Battery application: Electronics
Battery structure: Square flexible battery
Cell type: Polymer lithium battery cell

Application Area

Consumer Electronics Medical equipment Instrument and apparatus Smart Home Digital products Toy

cherry@bluetaiyang.com Online Message

Online Customization

Product Specifications
Product Details
Product Pictures

Items	Parameter
Battery model	LP601321
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	150mAh(1C discharge)
Size	T：6.0mm W：13.0mm H：21.0mm (Includes PCM and wires) L：8.0mm (Wire length)
Charging voltage	4.2V
Discharging cut-off voltage	2.5V
Standard charging	0.2C /4.2V
Max charging	1.0C /4.2V
Standard discharging	0.2C/2.5V
Max discharging	1.0C/2.5V
Weight	Appr：3.0g
Shipment voltage	≥3.9V
Battery pack impedance	≤200mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10℃~25°C	(12 months, ≥85%)
	-10℃ ~45°C	(6 months, ≥85% )
	-10℃~60°C	(1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Download
300940	3.7/3.8V	80	40	9	3
301730	3.7/3.8V	75	30	17	3
321430	3.7/3.8V	100	30	14	3.2
331619	3.7/3.8V	75	19	16	3.3
350626	3.7/3.8V	40	26	6	3.5
350926	3.7/3.8V	60	26	9	3.5
350930	3.7/3.8V	75	30	9	3.5
351012	3.7/3.8V	30	12	10	3.5
370835	3.7/3.8V	80	35	8	3.7
400726	3.7/3.8V	50	26	7	4
400830	3.7/3.8V	75	30	8	4
400913	3.7/3.8V	30	13	9	4
401012	3.7/3.8V	30	12	10	4
401020	3.7/3.8V	60	20	10	4
401025	3.7/3.8V	70	25	10	4
401214	3.7/3.8V	40	14	12	4
420835	3.7/3.8V	100	35	8	4.2
421515	3.7/3.8V	50	15	15	4.2
450726	3.7/3.8V	60	26	7	4.5
450813	3.7/3.8V	30	13	8	4.5
450830	3.7/3.8V	85	30	8	4.5
451114	3.7/3.8V	45	14	11	4.5
451220	3.7/3.8V	80	20	12	4.5
481220	3.7/3.8V	80	20	12	4.8
500825	3.7/3.8V	70	25	8	5
500830	3.7/3.8V	100	30	8	5
501012	3.7/3.8V	40	12	10	5.0
501015	3.7/3.8V	50	15	10	5.0
501114	3.7/3.8V	50	14	11	5
501214	3.7/3.8V	55	14	12	5
501220	3.7/3.8V	100	20	12	5
501515	3.7/3.8V	85	15	15	5
550913	3.7/3.8V	50	13	9	5.5
551013	3.7/3.8V	55	13	10	5.5
551115	3.7/3.8V	60	15	11	5.5
581013	3.7/3.8V	55	13	10	5.8
601015	3.7/3.8V	60	15	10	6
701115	3.7/3.8V	85	15	11	7

Click here to find a list of other models

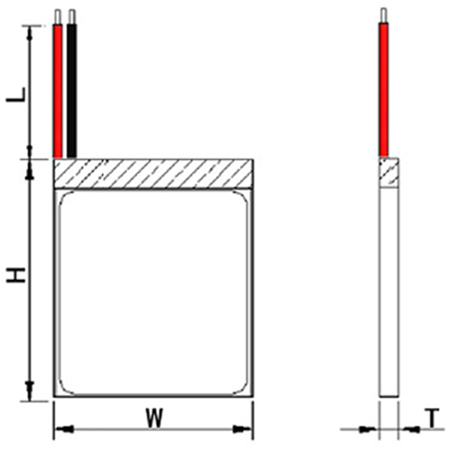

T	6.0mm
W	13.0mm
H	21.0mm
L	8.0mm

Product application

Remote control toy car

Electric toys

Artificial intelligence devices

recreational machines
