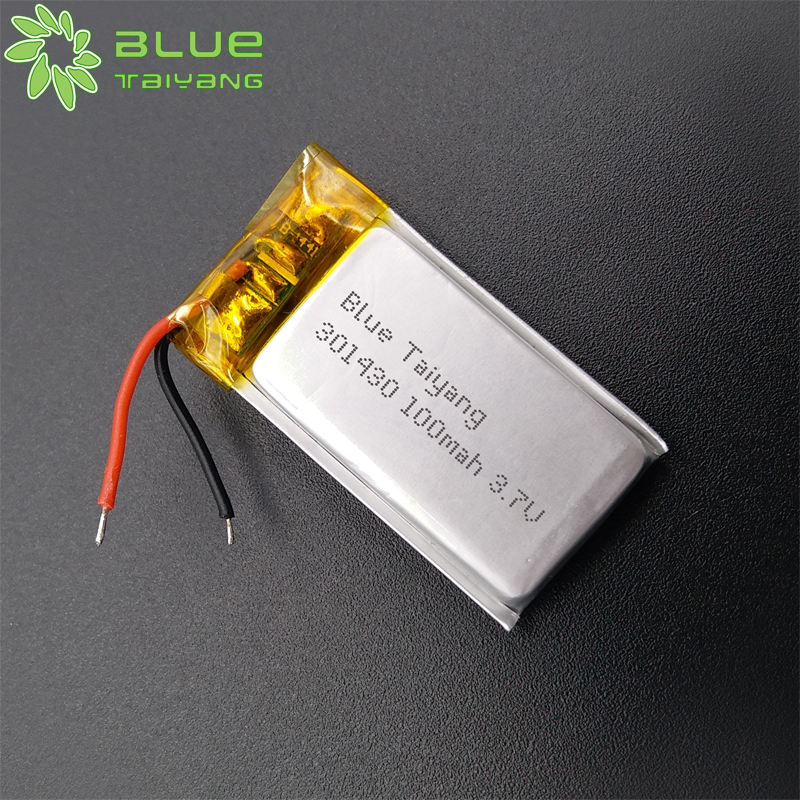

301430 custom small lithium polymer battery 3.7v 100mah lipo battery

Product model: LP301430 100mah 3.7V
Rechargeable or Non-rechargeable: Rechargeable battery
Nominal voltage: 3.7V/3.8V
Nominal capacity: 100mah
Discharge temperature: common
Cycle life: >500 times
Discharge rate: 1C

Application Area

Consumer Electronics Medical equipment Instrument and apparatus Smart Home Digital products Toy

cherry@bluetaiyang.com Online Message

Online Customization

Product Specifications
Product Details
Product Pictures

Items	Parameter
Battery model	LP301430
Design scheme	With PCM
Nominal voltage	3.7V
Minimum capacity	100mAh(1C discharge)
Size	T: 3.0mm W: 14.0mm H: 30.0mm(Includes PCM and wires) L: 15.0mm(Wire length)
Charging voltage	4.2V
Discharging cut-off voltage	2.5V
Standard charging	0.2C /4.2V
Max charging	1.0C /4.2V
Standard discharging	0.2C/2.5V
Max discharging	1.0C/2.5V
Weight	Appr：4.0g
Shipment voltage	≥3.9V
Battery pack impedance	≤200mΩ
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. )	-10°C~25°C	( 12 months, ≥85% )
	-10°C ~45°C	( 6 months, ≥85% )
	-10°C~60°C	( 1 month, ≥90% )
	20±5°C is the recommended storage temperature

Model	Normal Voltage	Normal Capacity (mAh)	length (mm)	width (mm)	thickness (mm)	Download
251020	3.7/3.8V	35	20.0	10.0	2.5
252026	3.7/3.8V	95	26.0	20.0	2.5
261025	3.7/3.8V	50	25.0	10.0	2.6
300940	3.7/3.8V	80	40.0	9.0	3.0
301046	3.7/3.8V	100	46.0	10.0	3.0
301130	3.7/3.8V	70	30.0	11.0	3.0
301323	3.7/3.8V	100	23.0	13.0	3.0
301730	3.7/3.8V	75	30.0	17.0	3.0
301827	3.7/3.8V	100	27.0	18.0	3.0
302050	3.7/3.8V	100	50.0	20.0	3.0
321222	3.7/3.8V	65	22.0	12.0	3.2
321430	3.7/3.8V	100	30.0	14.0	3.2
331031	3.7/3.8V	60	31.0	10.0	3.3	15C discharge
331619	3.7/3.8V	75	19.0	16.0	3.3
350626	3.7/3.8V	40	26.0	6.0	3.5
350926	3.7/3.8V	60	26.0	9.0	3.5
350930	3.7/3.8V	75	30.0	9.0	3.5
351012	3.7/3.8V	30	12.0	10.0	3.5
351324	3.7/3.8V	100	24.0	13.0	3.5
361215	3.7/3.8V	48	15.0	12.0	3.6
361820	3.7/3.8V	90	20.0	18.0	3.6
370835	3.7/3.8V	80	35.0	8.0	3.7
400726	3.7/3.8V	50	26.0	7.0	4.0
400830	3.7/3.8V	75	30.0	8.0	4.0
400913	3.7/3.8V	30	13.0	9.0	4.0
401012	3.7/3.8V	30	12.0	10.0	4.0
401020	3.7/3.8V	60	20.0	10.0	4.0
401025	3.7/3.8V	70	25.0	10.0	4.0
401214	3.7/3.8V	40	14.0	12.0	4.0
401215	3.7/3.8V	50	15.0	12.0	4.0
401525	3.7/3.8V	100	25.0	15.0	4.0
420835	3.7/3.8V	100	35.0	8.0	4.2
421515	3.7/3.8V	50	15.0	15.0	4.2
450726	3.7/3.8V	60	26.0	7.0	4.5
450813	3.7/3.8V	30	13.0	8.0	4.5
450830	3.7/3.8V	85	30.0	8.0	4.5
451114	3.7/3.8V	45	14.0	11.0	4.5
451220	3.7/3.8V	80	20.0	12.0	4.5
481220	3.7/3.8V	80/70	20.0	12.0	4.8
500825	3.7/3.8V	70	25.0	8.0	5.0
500830	3.7/3.8V	100	30.0	8.0	5.0
501012	3.7/3.8V	40	12.0	10.0	5.0
501015	3.7/3.8V	50	15.0	10.0	5.0
501114	3.7/3.8V	50	14.0	11.0	5.0
501214	3.7/3.8V	55	14.0	12.0	5.0
501220	3.7/3.8V	100	20.0	12.0	5.0
501515	3.7/3.8V	85	15.0	15.0	5.0
550913	3.7/3.8V	50	13.0	9.0	5.5
551013	3.7/3.8V	55	13.0	10.0	5.5
551115	3.7/3.8V	60	15.0	11.0	5.5
581013	3.7/3.8V	55	13.0	10.0	5.8
601015	3.7/3.8V	60	15.0	10.0	6.0
601025	3.7/3.8V	100	25.0	10.0	6.0
701115	3.7/3.8V	85	15.0	11.0	7.0

Click here to find a list of other models

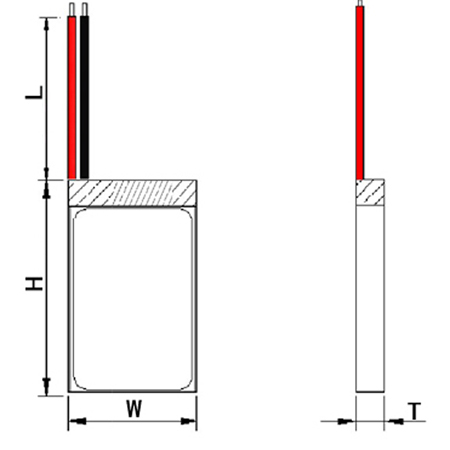

T	3.0mm
W	14.0mm
H	30.0mm
L	15.0mm

Product application

Medical endoscope

Bluetooth headset

Artificial intelligence devices

A blood glucose meter
