Items | Parameter | |
Battery model |
NI-MH 2-AA1100mah 2.4V |
|
Design scheme | With PCM | |
Nominal voltage | 2.4V | |
Minimum capacity | 1100mAh(1C discharge) | |
Connectors & Terminals |
PH1.5 3P |
|

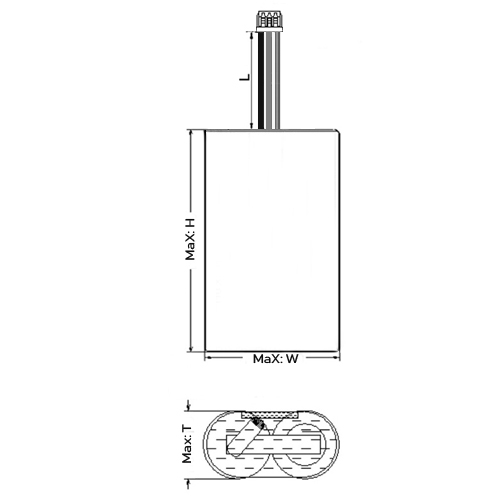

Size |
T: 14.1mm
W: 28.2mm
H: 50.2mm (includes PCM and wires)
L: 30.0mm (Wire length)
|
|
Charging voltage | 3V | |
Discharging cut-off voltage | 2V | |
Standard charging | 0.2C /3V | |
Max charging | 1.0C /3V | |
Standard discharging | 0.2C/3V | |
Max discharging | 1.0C/3V | |
Weight | Appr: 32g | |
Operating temperature | Charging: 0°C ~ 45°C | |
Discharging: -20°C ~ 60°C | ||
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time. ) | -10°C~25°C | (12 months, ≥85%) |
-10°C ~45°C | (6 months, ≥85% ) | |
-10°C~60°C | (1 month, ≥90% ) | |
20±5°C is the recommended storage temperature |
